Plan 69669AM

Craftsman House Plan with Lower Level Apartment

Heated S.F.
3,261
Beds
6
Baths
3.5
Stories
2
Cars
2

Floor Plan

Plan 69669AM

Main Level
Main Level
2nd Floor
2nd Floor
Lower Level
Lower Level

Plan 69669AM

M-F 9am-5pm EST |

1-203-761-8500

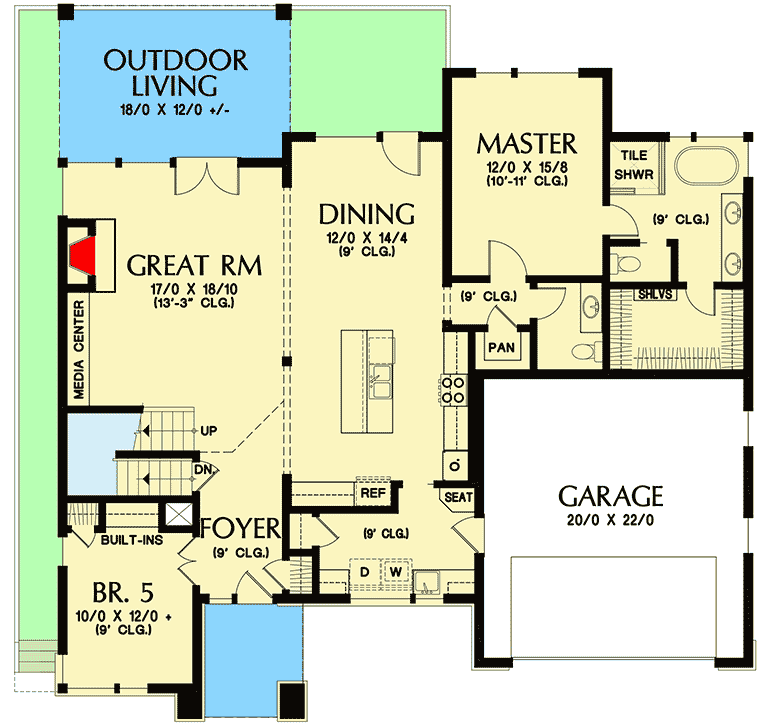

Main Level

Plan 69669AM: Craftsman House Plan with Lower Level Apartment - Floor Plan - Main Level - Northwest, Prairie

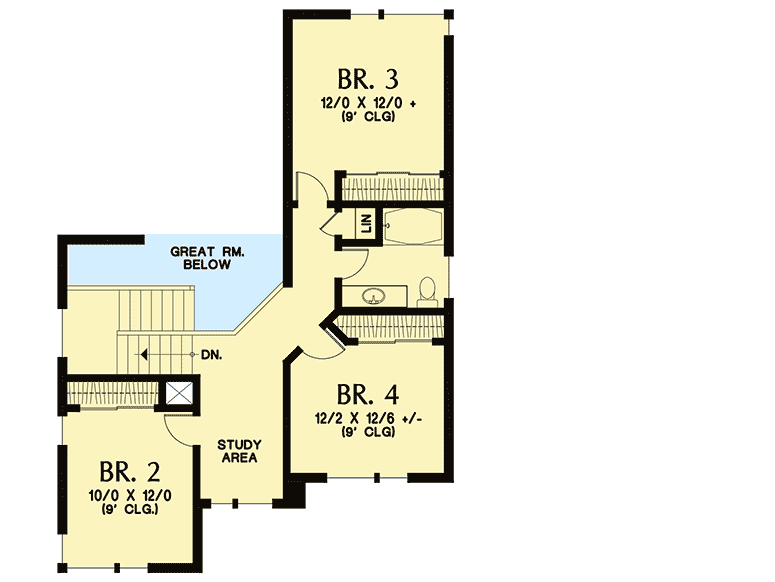

2nd Floor

Plan 69669AM: Craftsman House Plan with Lower Level Apartment - Floor Plan - 2nd Floor - Northwest, Prairie

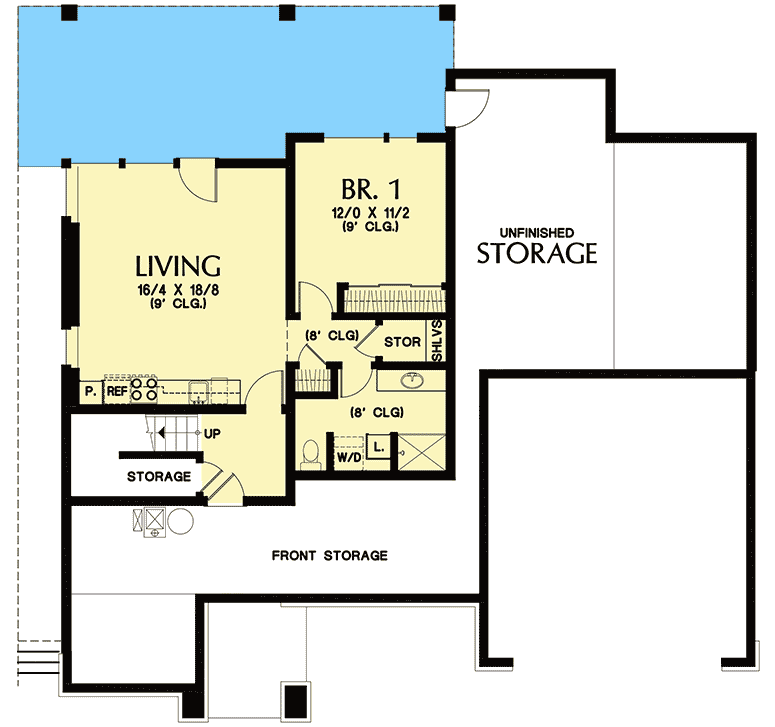

Lower Level

Plan 69669AM: Craftsman House Plan with Lower Level Apartment - Floor Plan - Lower Level - Northwest, Prairie

Plan Details

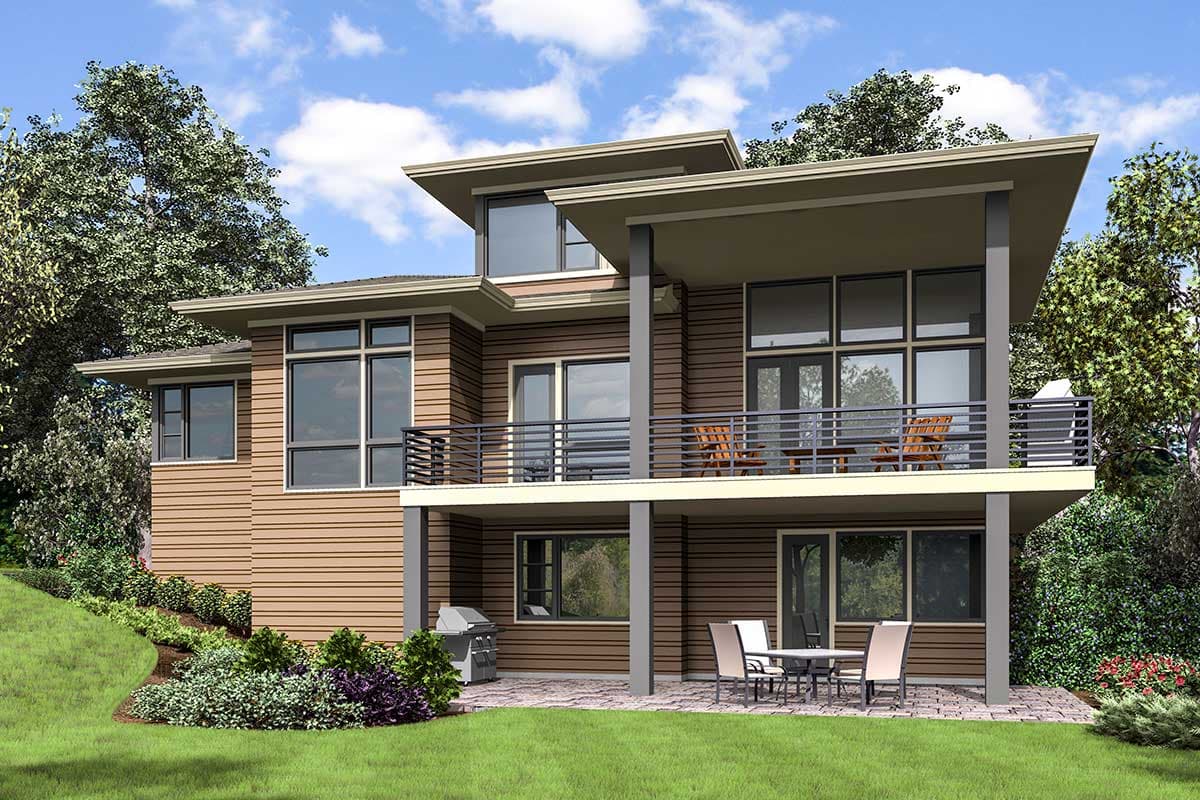

  • A Northwest Prairie exterior with a covered entry greets you to this 5 bed house plan with an apartment (and 6th bedroom) in the finished lower level. Ideal for a rear-sloping lot, it has great spaces oriented to the back.
  • The master and one other bedroom are split on the main floor leaving the rest of the space an open concept layout. Both the great room and dining room have outdoor access, the great room through French doors that take you to an outdoor living room.
  • There are three bedrooms upstairs and a study area and an overlook to below.
  • The lower level gives you a kitchen, living room and bedroom with bath plus storage. The living room has outdoor access.

What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,261 sq. ft.

1st Floor

1,711 sq. ft.

2nd Floor

741 sq. ft.

3rd Floor

809 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

55' 6"

Max Ridge Height

23' 2"

Garage

Type

Attached

Area

475 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Northwest

Prairie

Special Features

In-Law Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

3,261 sq. ft.

1st Floor

1,711 sq. ft.

2nd Floor

741 sq. ft.

3rd Floor

809 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

54' 0"

Depth

55' 6"

Max Ridge Height

23' 2"

Garage

Type

Attached

Area

475 sq. ft.

Count

2 Cars

Entry Location

Front

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Northwest

Prairie

Special Features

In-Law Suite

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom
