Plan 40402DB

Craftsman House Plan with Main-Floor Master and Bonus

Heated S.F.
1,820
Beds
3 - 4
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 40402DB

Main Level
Main Level
2nd Floor
2nd Floor

Plan 40402DB

M-F 9am-5pm EST |

1-203-761-8500

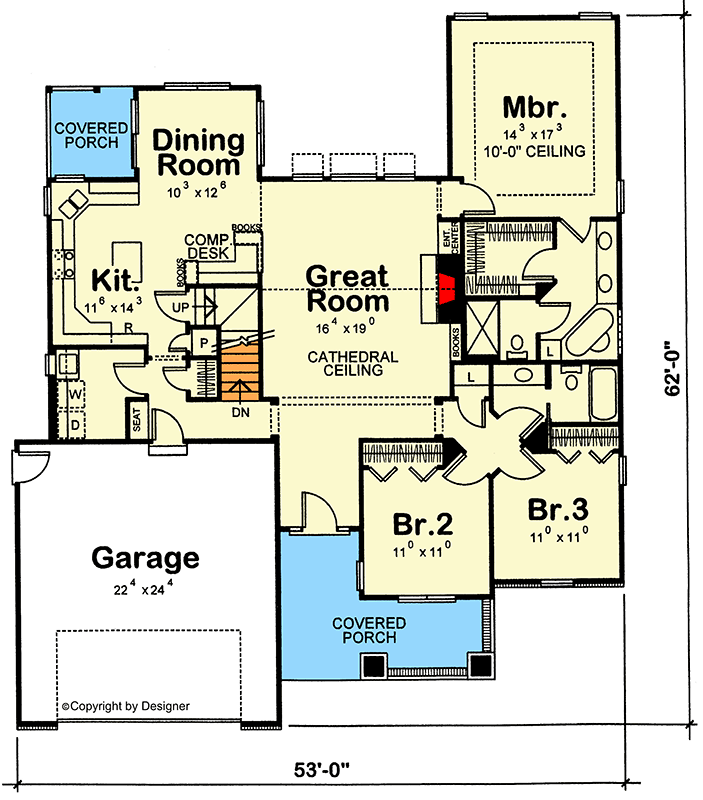

Main Level

Plan 40402DB: Craftsman House Plan with Main-Floor Master and Bonus - Floor Plan - Main Level - Craftsman, Northwest

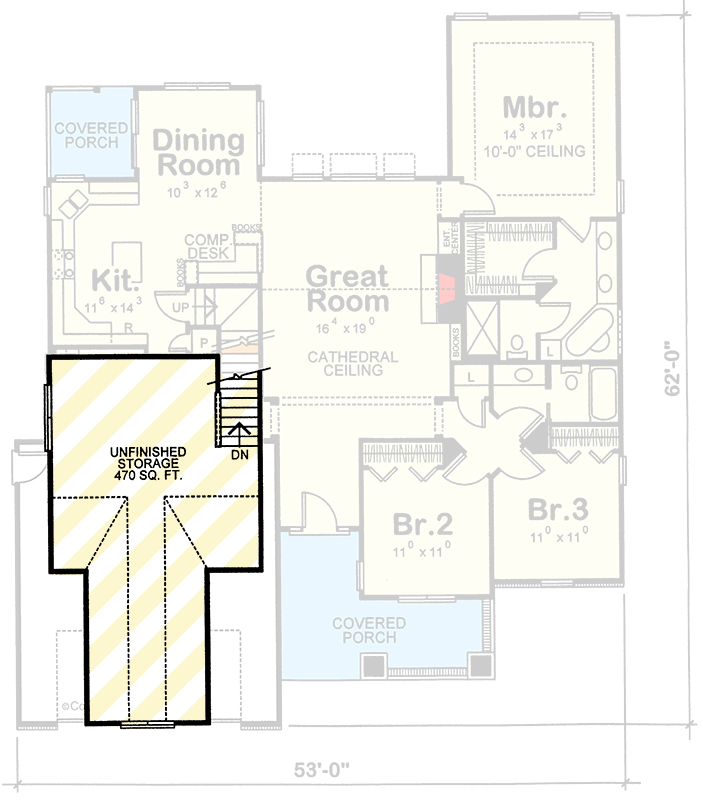

2nd Floor

Plan 40402DB: Craftsman House Plan with Main-Floor Master and Bonus - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

  • This inviting 1,820 sq. ft. Craftsman house plan offers 3 or 4 bedrooms, 2 full bathrooms, 1 half bathroom, and an attached 2-car garage, all wrapped in a timeless green siding and brick facade.
  • Step inside from the welcoming front porch to discover an inviting, open-concept layout, where sightlines extend effortlessly through the main living areas, fostering a sense of spaciousness and connectivity.
  • The main living areas flow harmoniously, with the gourmet kitchen, dining area, and spacious great room converging into a single, light-filled expanse, perfect for effortless entertaining or quiet evenings at home.
  • A tranquil first-floor master suite provides a luxurious private escape, featuring ample space and a well-appointed en-suite bathroom, while the secondary bedrooms are thoughtfully clustered on the main level, ensuring comfort and privacy for all.
  • The inviting front porch, framed by classic columns and brick accents, offers a picturesque setting for enjoying the neighborhood, perfect for morning coffee or evening relaxation.
  • An expansive 470 sq. ft. bonus room, located above the garage, presents an excellent opportunity to customize your living space, whether as an additional bedroom, a home office, or a vibrant recreation area.
  • Related Plan: Get a similar version that has a finished walkout basement with house plan 42483DB (3,041 sq. ft.).

What's Included

  • General Notes

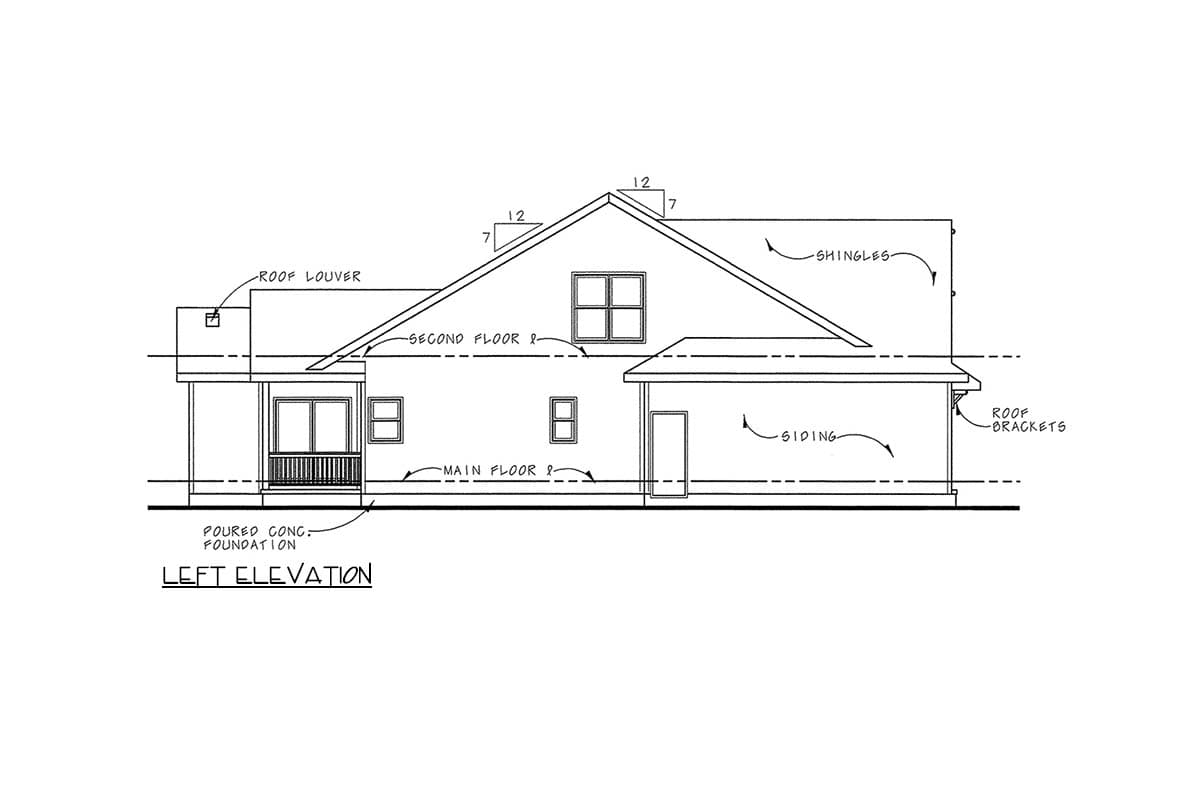

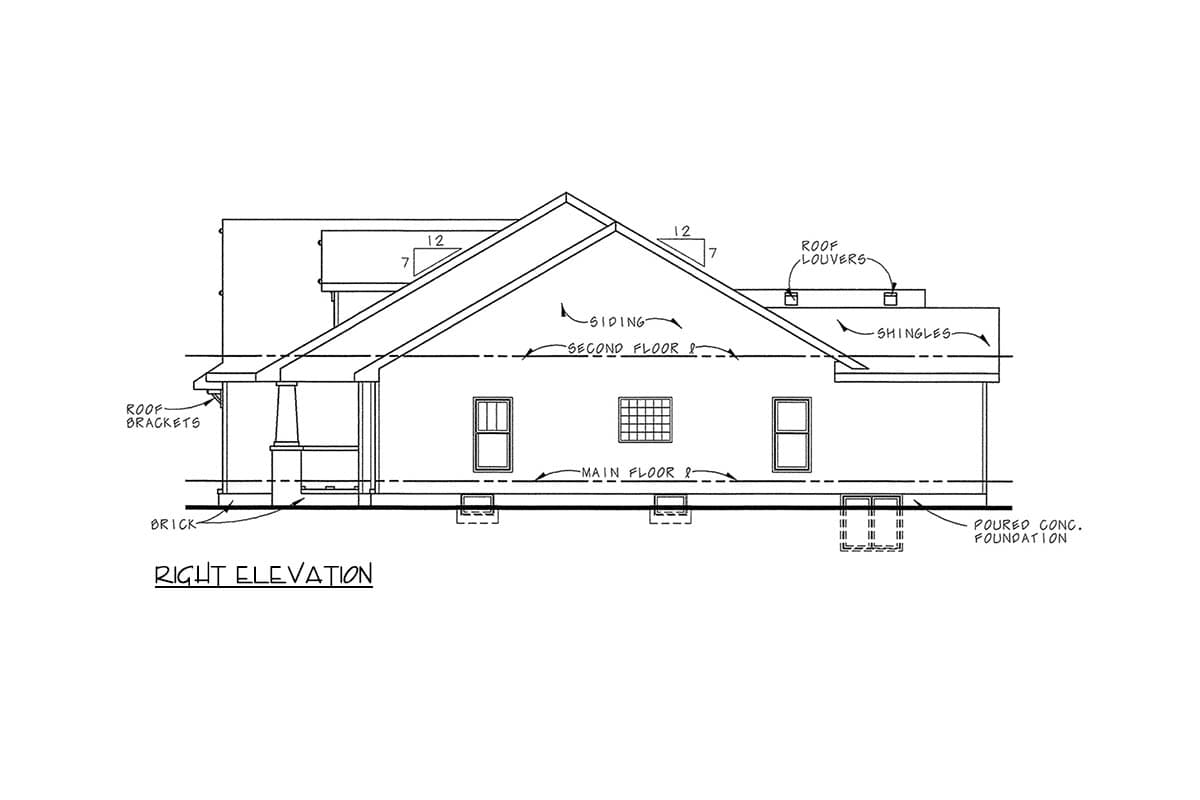

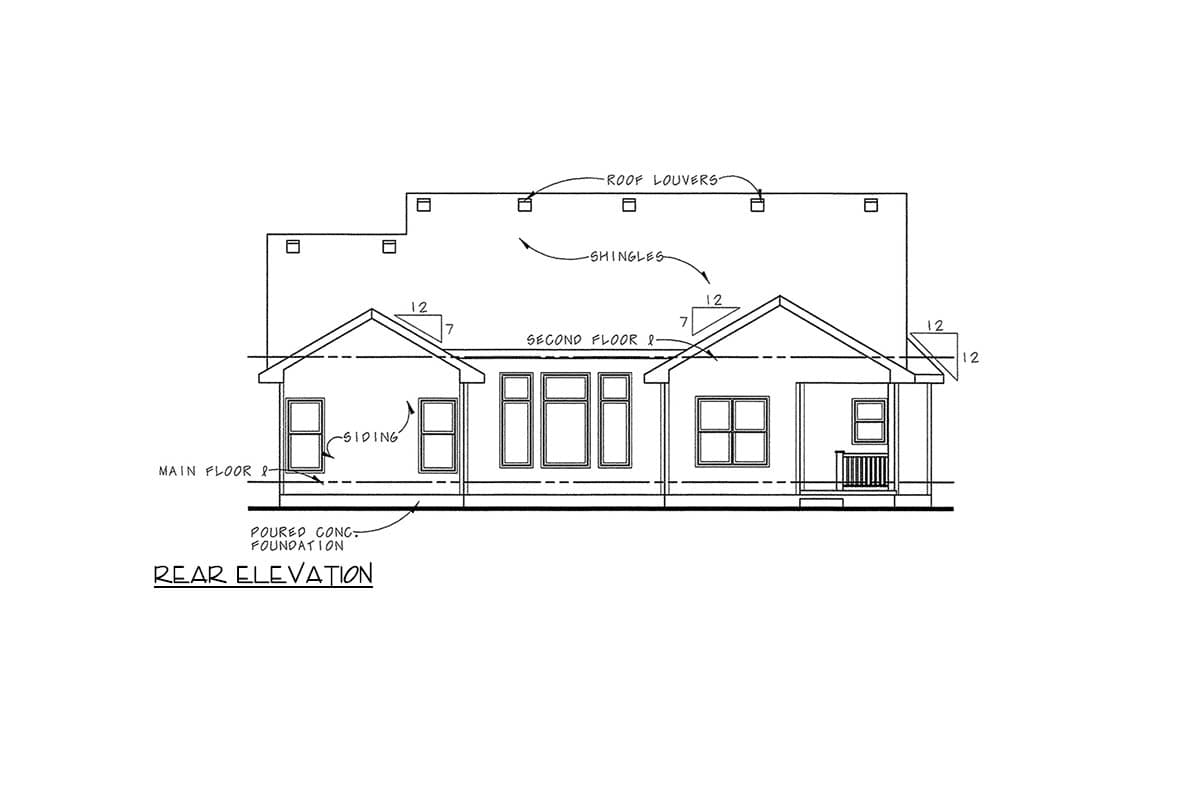

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,820 sq. ft.

1st Floor

1,820 sq. ft.

Bonus

470 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

53' 0"

Depth

62' 0"

Max Ridge Height

25' 5"

Garage

Type

Attached

Area

566 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room
