Plan 24430TW

Craftsman House Plan with Master on Main and Outdoor Kitchen

Heated S.F.
5,243
Beds
4
Baths
4.5
Stories
1
Cars
3

Floor Plan

Plan 24430TW

Main Level
Main Level
Lower Level
Lower Level

Plan 24430TW

M-F 9am-5pm EST |

1-203-761-8500

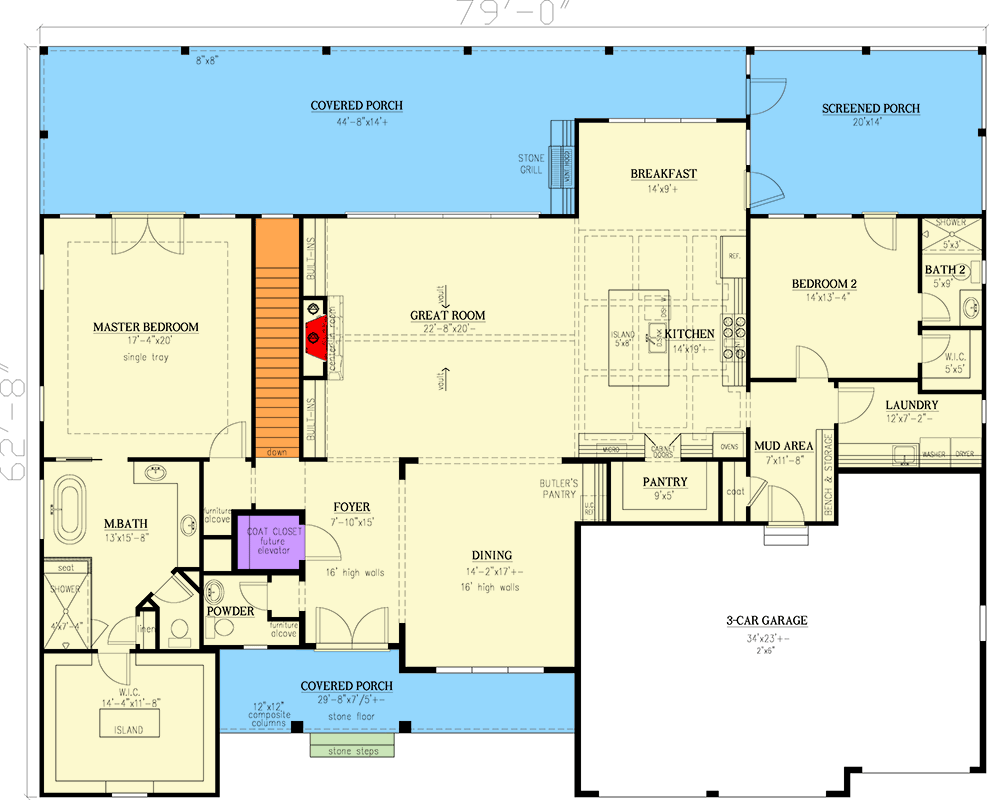

Main Level

Plan 24430TW: Craftsman House Plan with Master on Main and Outdoor Kitchen - Floor Plan - Main Level - Craftsman, Traditional

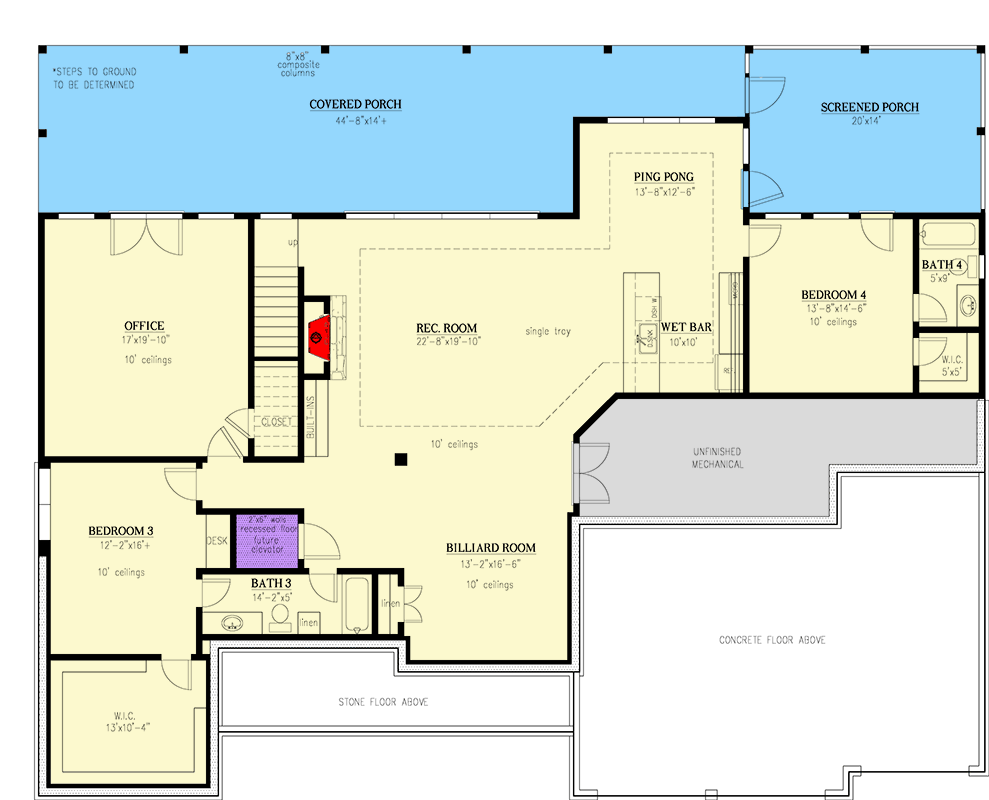

Lower Level

Plan 24430TW: Craftsman House Plan with Master on Main and Outdoor Kitchen - Floor Plan - Lower Level - Craftsman, Traditional

Plan Details

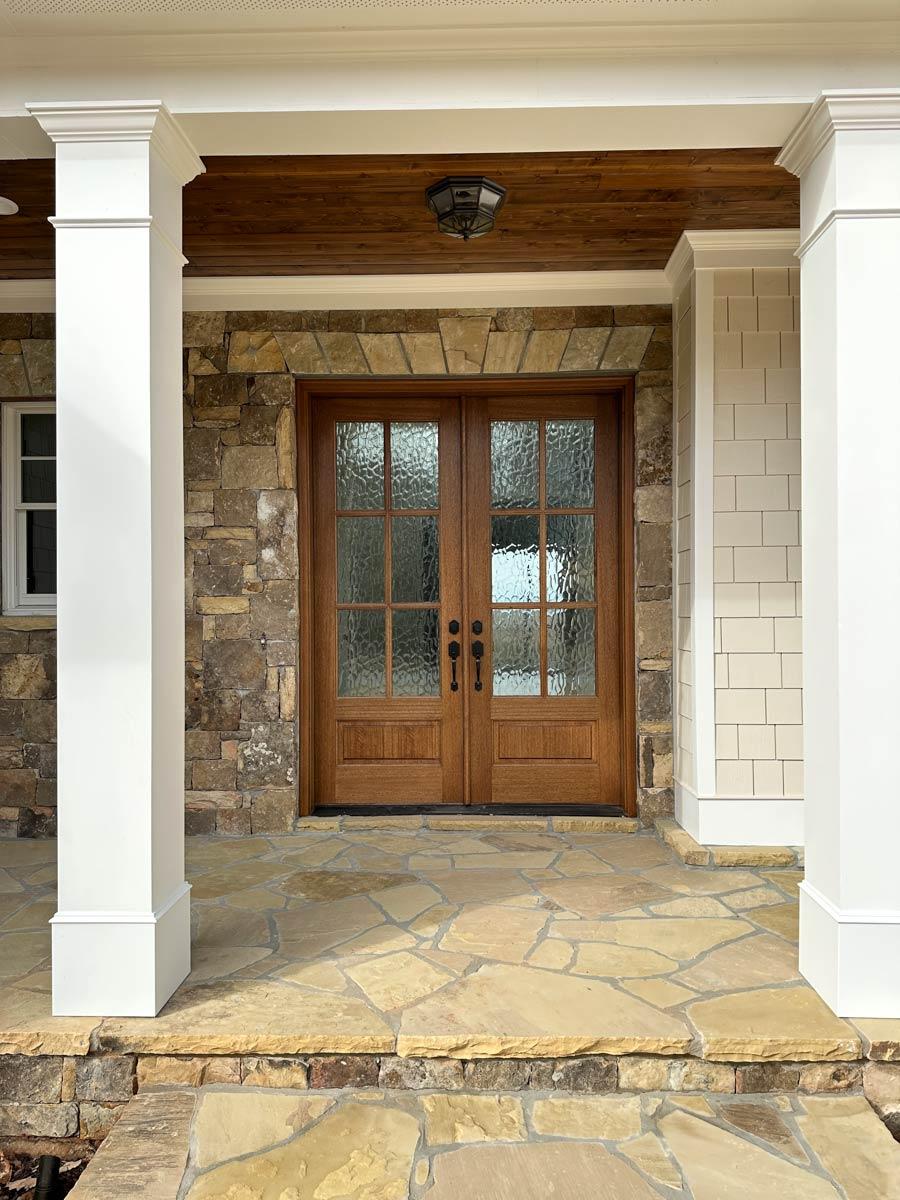

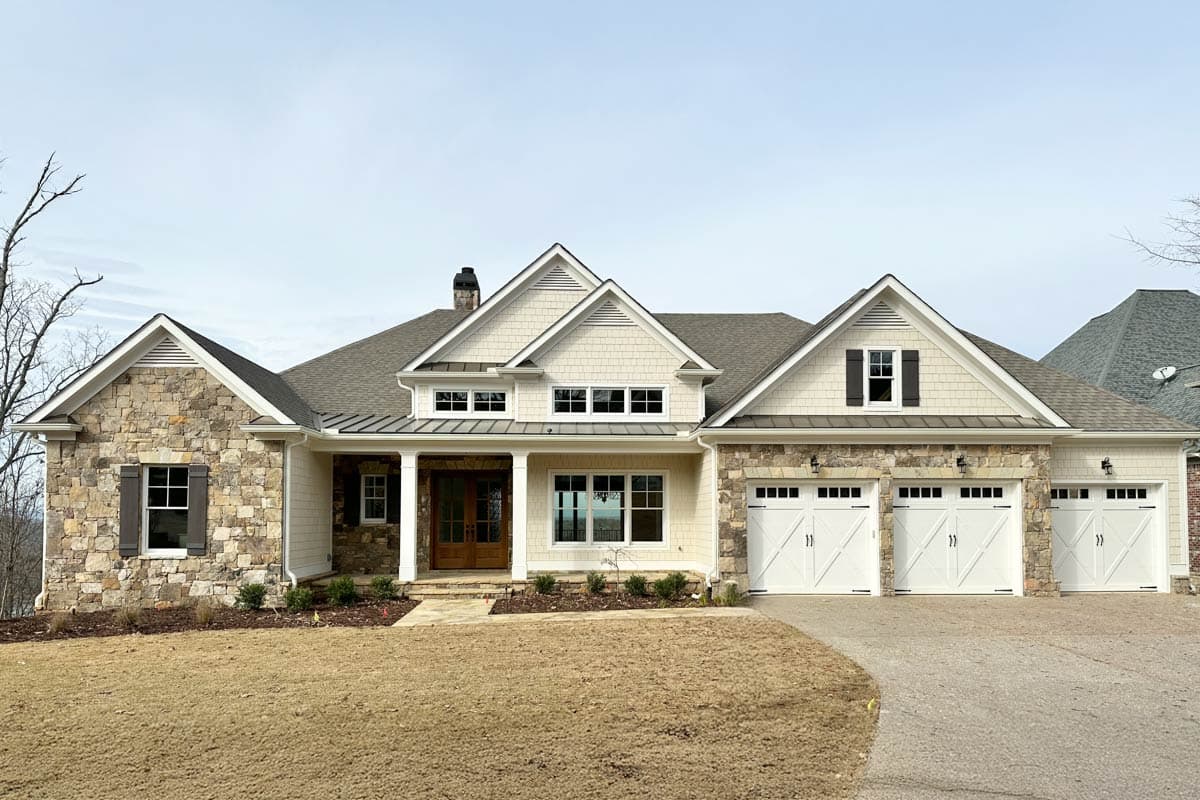

  • This expansive 5,243 sq. ft. Craftsman-style house plan offers four bedrooms, four and a half bathrooms, and a generous 803 sq. ft. three-car attached garage, featuring a striking exterior of stone and siding.
  • Step into a grand foyer from the inviting covered porch, leading directly into the heart of the home, where an open-concept design is complemented by a dedicated home office for focused work or study.

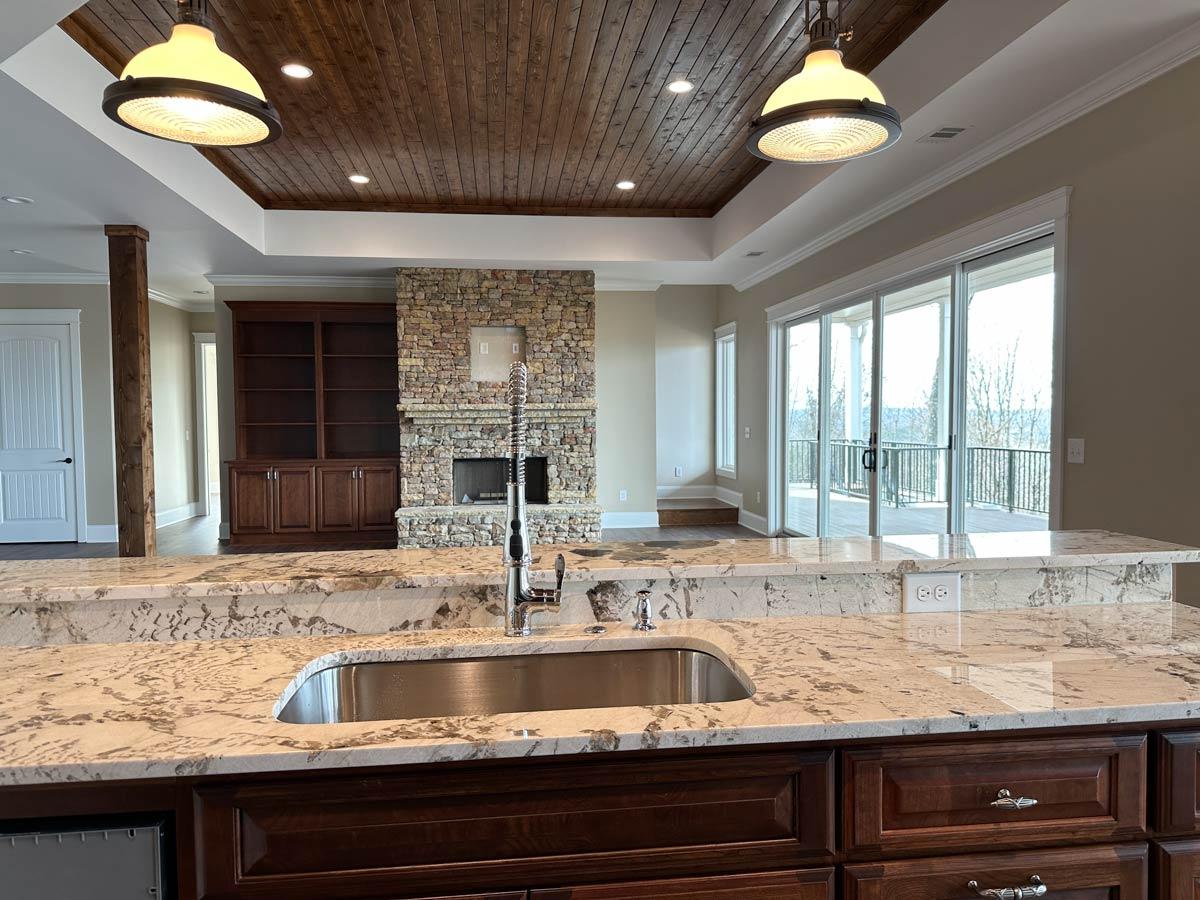

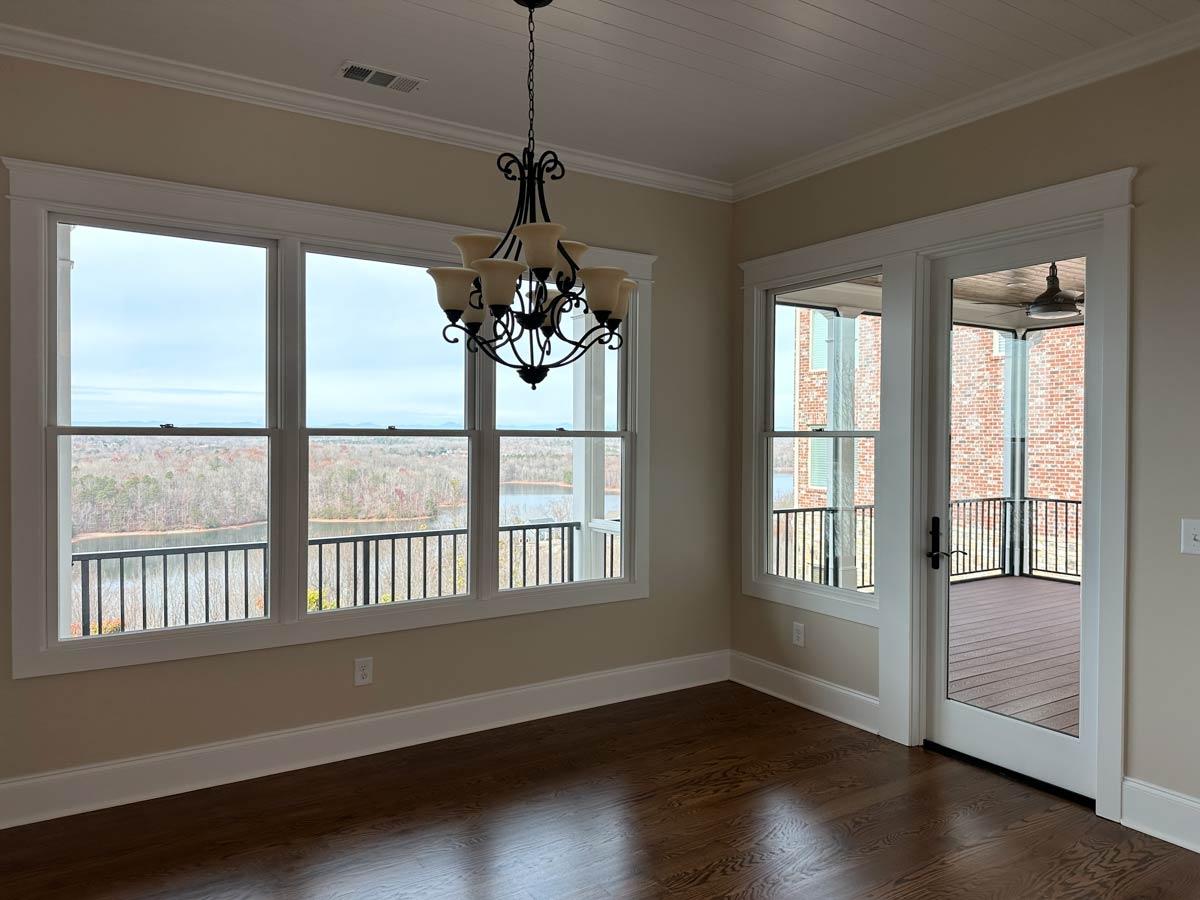

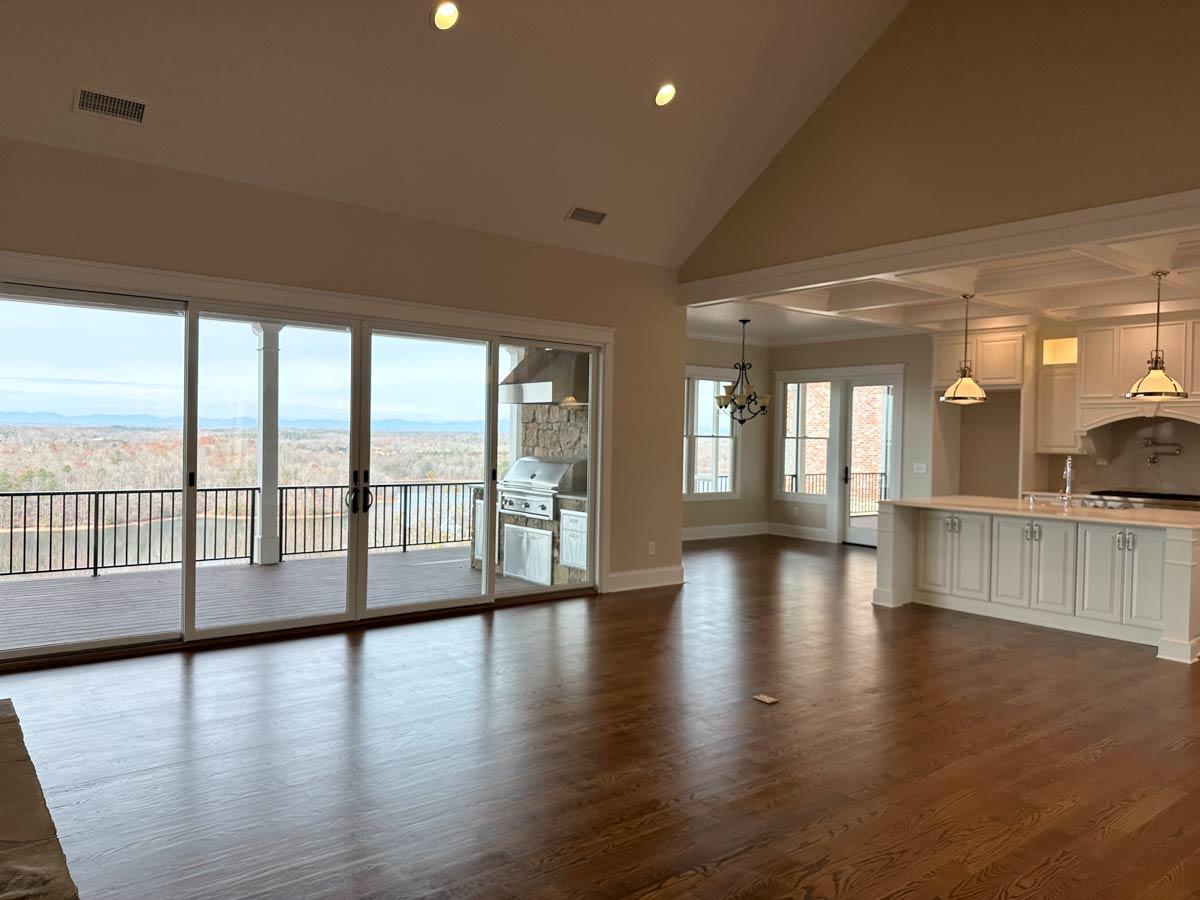

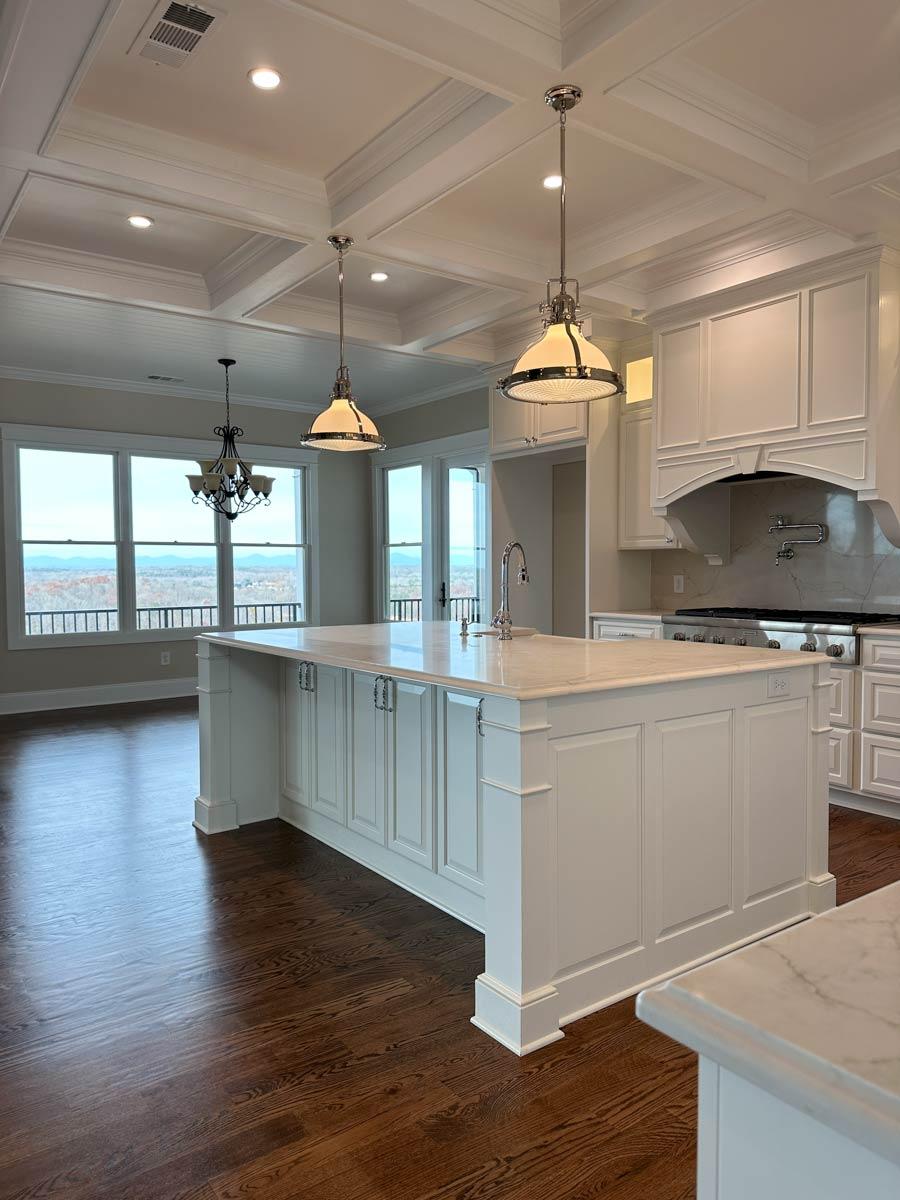

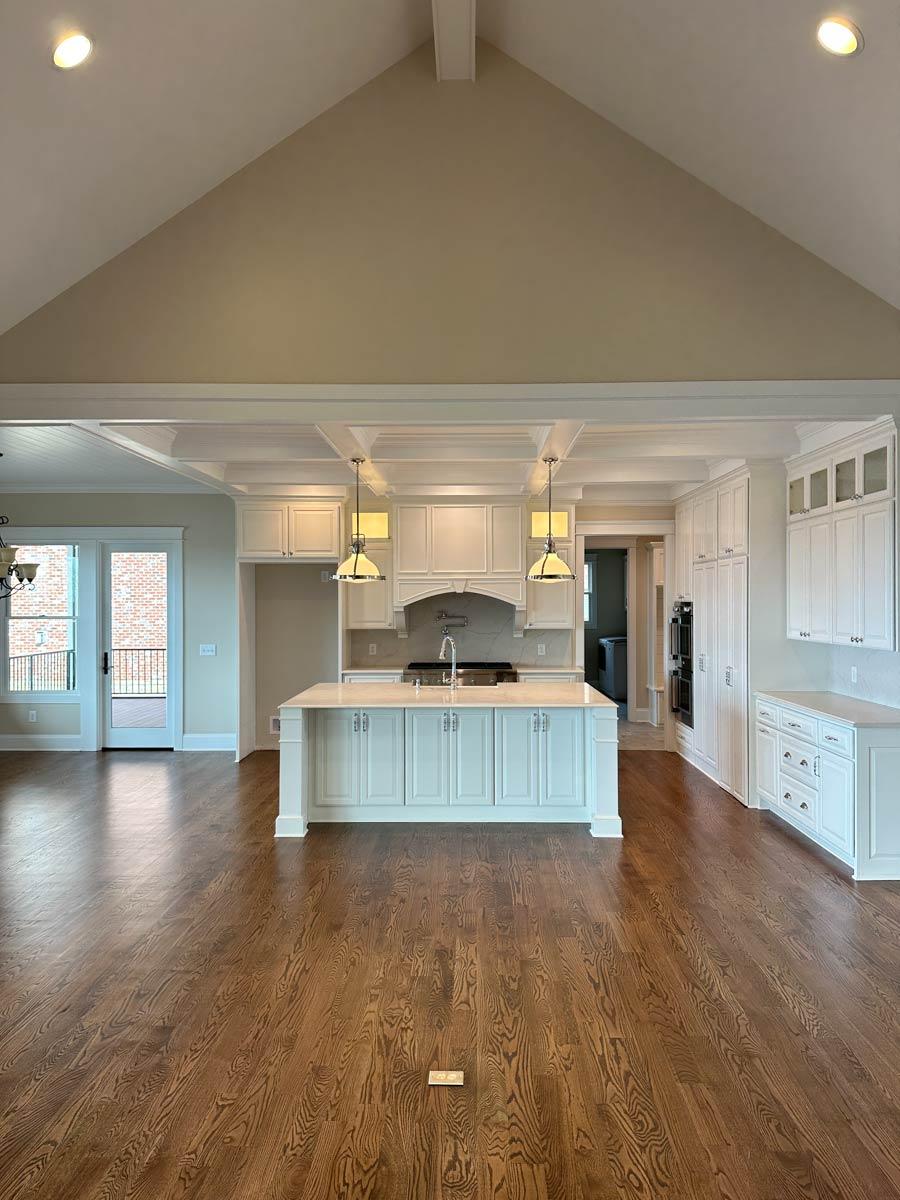

  • The main living areas flow seamlessly, with a gourmet kitchen featuring a butler's walk-in pantry, a charming breakfast nook for casual meals, and a formal dining room perfect for hosting elegant dinners.

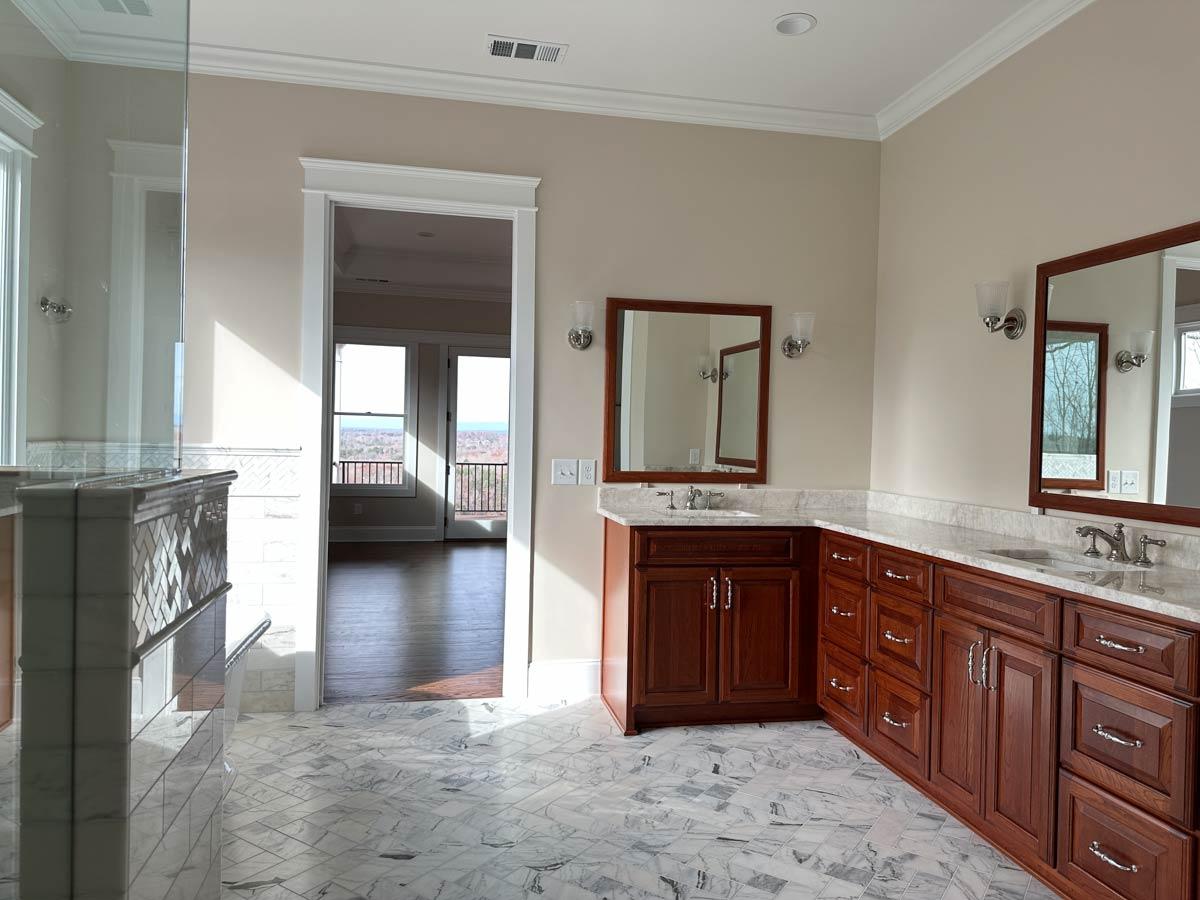

  • The luxurious master suite is privately situated on the first floor, offering a serene retreat, while additional split bedrooms on the lower level ensure comfort and privacy for family or guests.

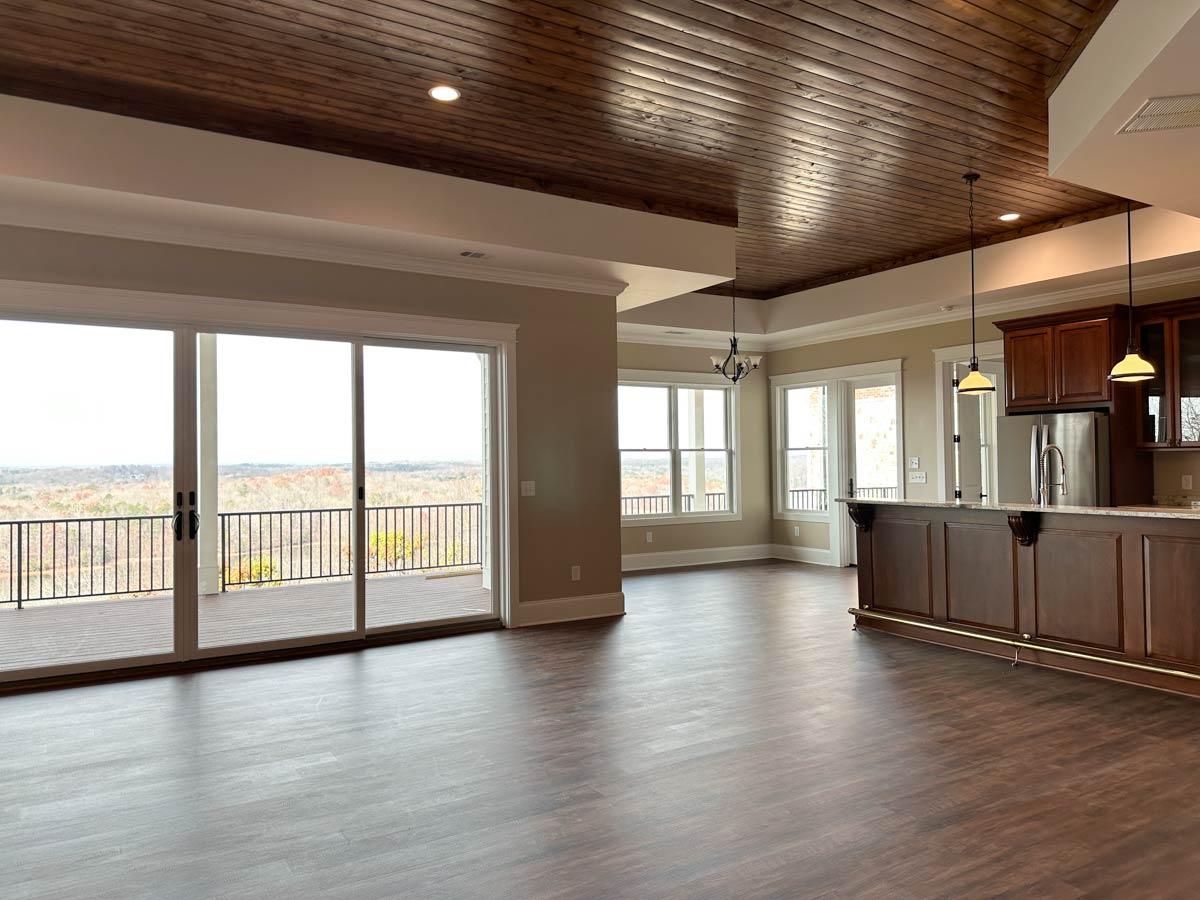

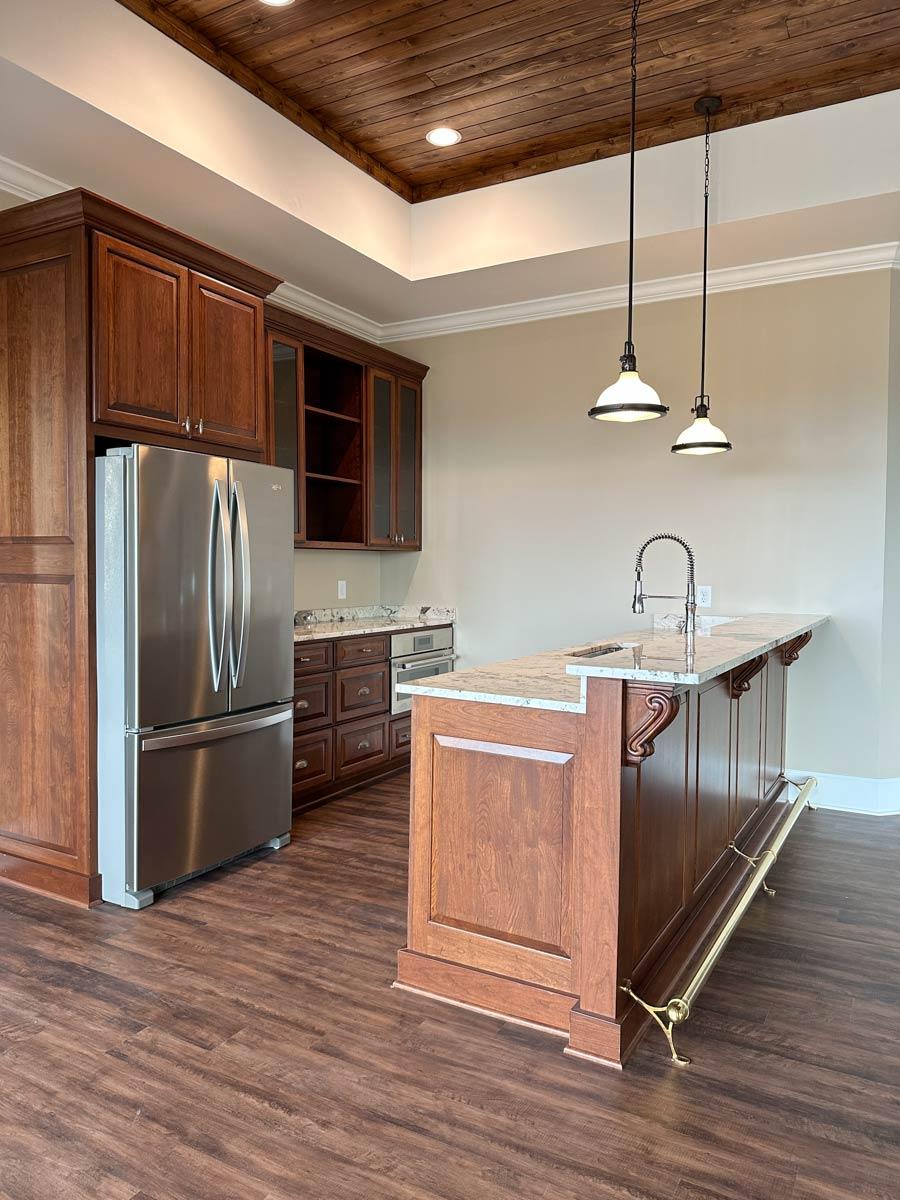

  • Discover an array of unique amenities, including a convenient elevator connecting levels, a versatile flex room, a lively game/rec room with a wet bar for entertaining, and a dedicated playroom.

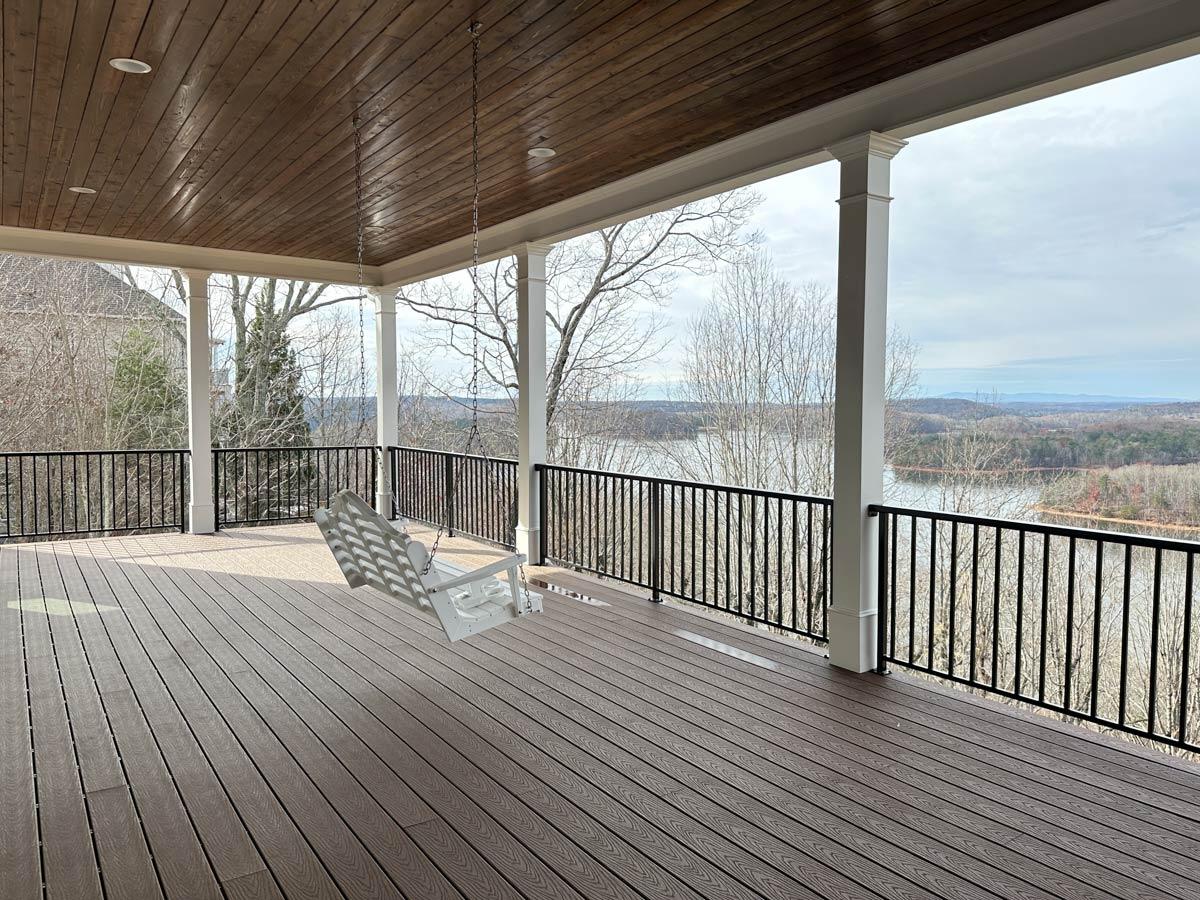

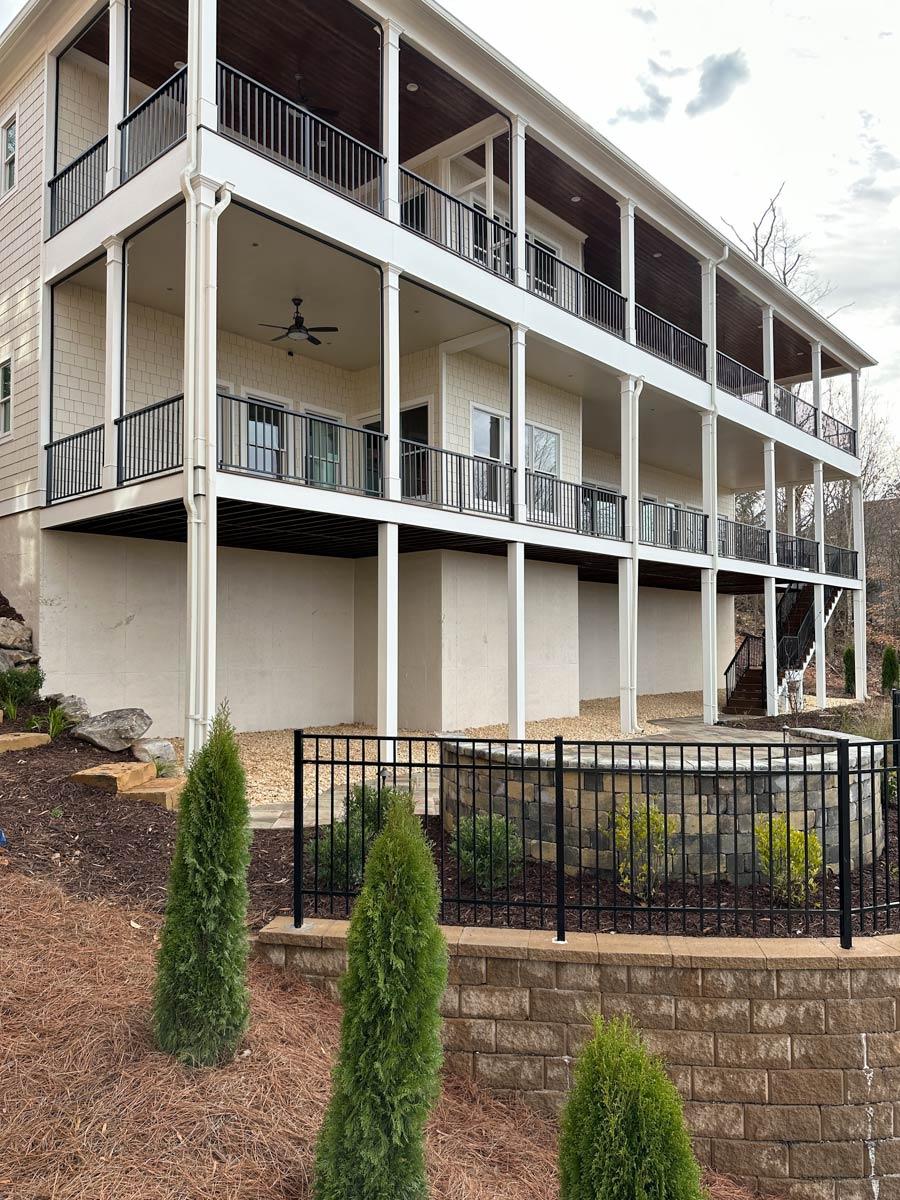

  • Embrace outdoor living with an impressive 1,167 sq. ft. of combined porch space, including an outdoor kitchen perfect for al fresco dining and enjoying the surrounding views from the walkout foundation.

What's Included

  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

5,243 sq. ft.

Lower Level

2,443 sq. ft.

1st Floor

2,800 sq. ft.

Basement Unfinished

357 sq. ft.

Porch, Combined

1,167 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

79' 0"

Depth

62' 8"

Max Ridge Height

27' 3"

Garage

Type

Attached

Area

803 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Elevator

Flex Room

Formal Dining

Game/Rec Room

Home Office

Laundry - Main Level

Master Suite - 1st Floor

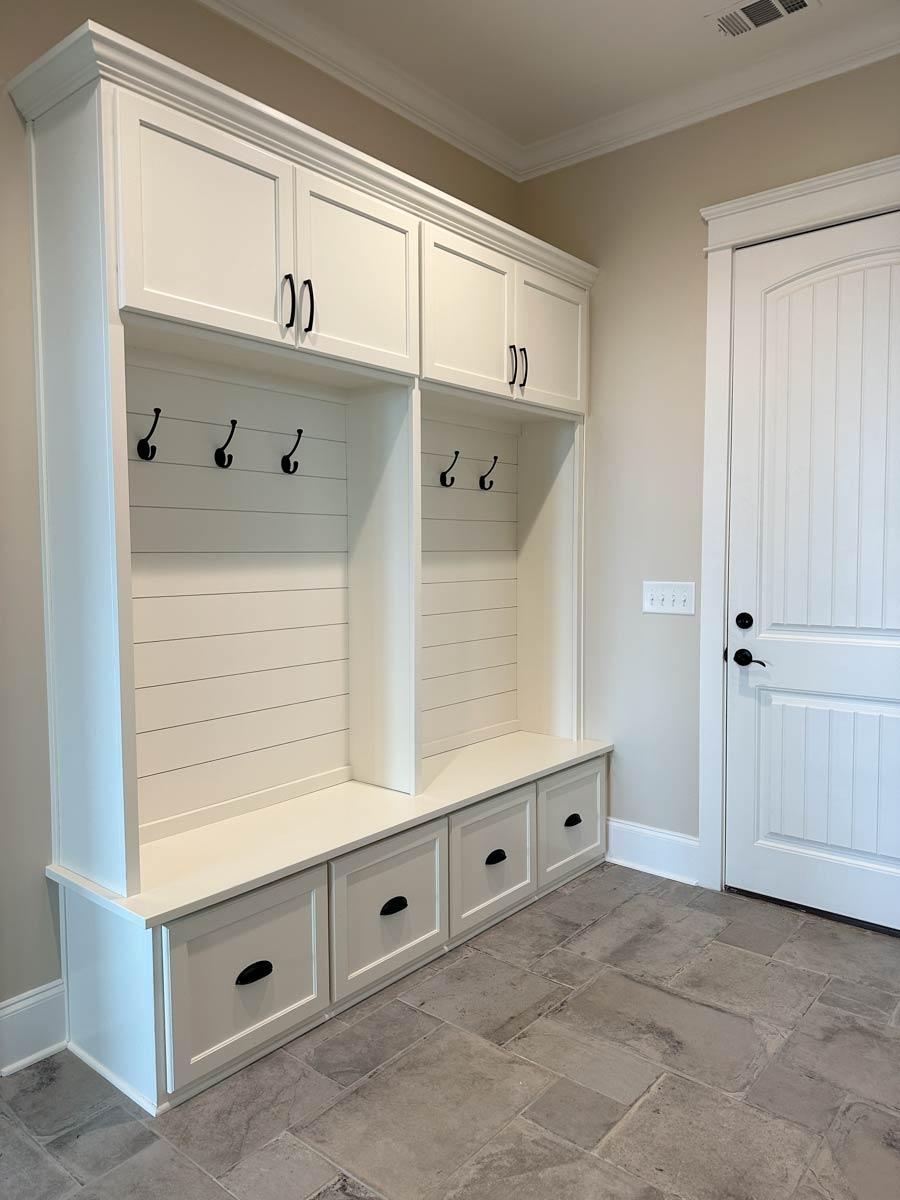

Mudroom

Outdoor Kitchen

Playroom

Walk-in Pantry

Wet Bar
