Plan 83873JW

Craftsman House Plan with Open Layout

Heated S.F.
2,173
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 83873JW

Main Level
Main Level

Plan 83873JW

M-F 9am-5pm EST |

1-203-761-8500

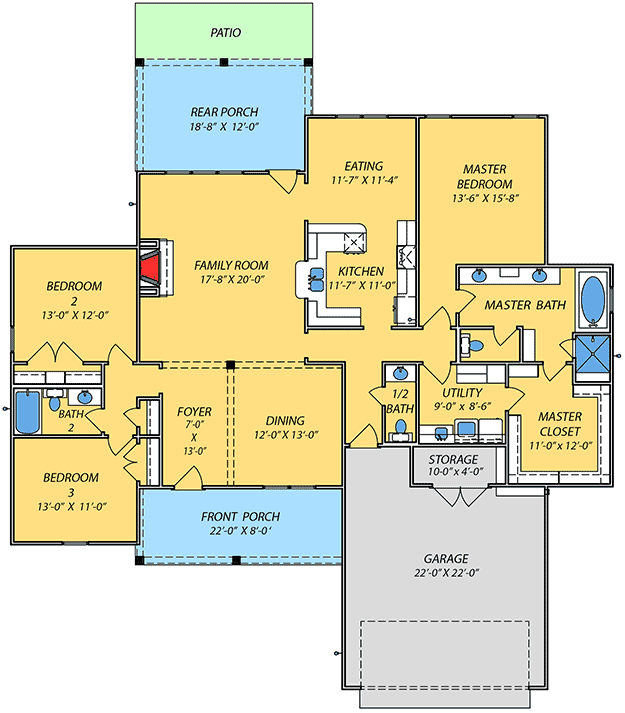

Main Level

Plan 83873JW: Craftsman House Plan with Open Layout - Floor Plan - Main Level - Craftsman, Northwest

Plan Details

  • Decorative wood trim adorns the garage and main gable of this Craftsman house plan.
  • Once inside, the open floor plan with delight you with terrific sightlines.
  • The family room fireplace can be seen from all the main living spaces.
  • A split bedroom floor plan serves to separate the master suite from the family bedrooms.
  • Note the handy door from the master walk-in closet right into the laundry room - a wonderful convenience!
  • Enjoy the outdoors in a shady spot on the rear covered porch.

What's Included

  • Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
  • Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,173 sq. ft.

1st Floor

2,173 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 6"

Depth

67' 6"

Garage

Type

Attached

Area

551 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,173 sq. ft.

1st Floor

2,173 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

64' 6"

Depth

67' 6"

Garage

Type

Attached

Area

551 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor
