Plan 62145V Craftsman House Plan with Optional Second Floor

Craftsman House Plan with Optional Second Floor

Plan 62145V

  • 1,783

    Heated s.f.

  • 3-4

    Beds

  • 2 - 3

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Decorative wood trim and rustic shutter adorn this one story Craftsman that has an optional second floor should you wish to expand.
  • The main living area is all wide open with views that run front to back.
  • In the great room, a big fireplace has built-ins on either side for extra storage.
  • Separated into different sides of the home, the bedrooms allow for a private master suite.
  • The big two car garage has two storage rooms at the back so you can lock your lawn equipment and bikes away.
  • The rear porch has plenty of room for an outdoor kitchen.
  • Bonus space on the second floor can be finished when you are ready.

Plan sets include the following:

  • Covers sheet with construction notes
  • All elevations
  • Foundation
  • Fully dimensioned floor plan
  • Detail and section page
  • Cabinet elevations
  • Roof plan
  • Electrical plan
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

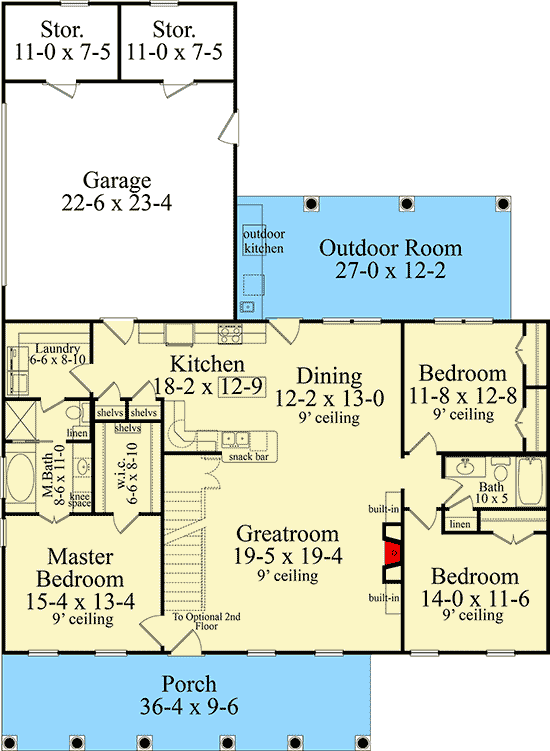

Craftsman House Plan with Optional Second Floor - 62145V floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

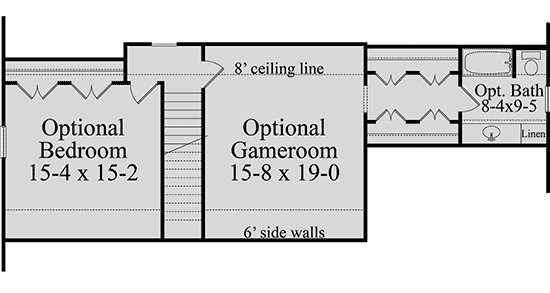

Craftsman House Plan with Optional Second Floor - 62145V floor plan - 2nd Floor

Plan details

Craftsman House Plan with Optional Second Floor

  • 1,783

    Heated s.f.

  • 3 - 4

    Beds

  • 2 +

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,050
  • 5 Sets $1,115
  • CAD - Single-Build $1,950
  • View all purchase option online

About This Plan

  • Decorative wood trim and rustic shutter adorn this one story Craftsman that has an optional second floor should you wish to expand.
  • The main living area is all wide open with views that run front to back.
  • In the great room, a big fireplace has built-ins on either side for extra storage.
  • Separated into different sides of the home, the bedrooms allow for a private master suite.
  • The big two car garage has two storage rooms at the back so you can lock your lawn equipment and bikes away.
  • The rear porch has plenty of room for an outdoor kitchen.
  • Bonus space on the second floor can be finished when you are ready.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,783 sq. ft.
  • 1st Floor: 1,783 sq. ft.
  • Bonus: 818 sq. ft.
  • Porch, Combined: 643 sq. ft.
  • Storage: 181 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 54' 0"
  • Depth: 73' 10"
  • Max ridge height: 22' 4"

Garage

  • Type: Attached
  • Area: 394 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
