Plan 51746HZ
Craftsman House Plan with Rustic Exterior and Bonus Above the Garage - 2597 Sq Ft
Heated S.F.
2,597
Beds
3 - 4
Baths
2.5 - 3.5
Stories
1
Cars
2- 3
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 51746HZ comes to life in South Carolina

House Plan 51746HZ comes to life in South Carolina

43

Photos

Photos
Floor Plan

Plan 51746HZ

Main Level
slide image 0
2nd Floor
slide image 1
Basement Option
slide image 2
3-Car Garage Option
slide image 3
3-Car Garage & Basement Option
slide image 4

Plan 51746HZ

1-800-854-7852

1-262-521-4596

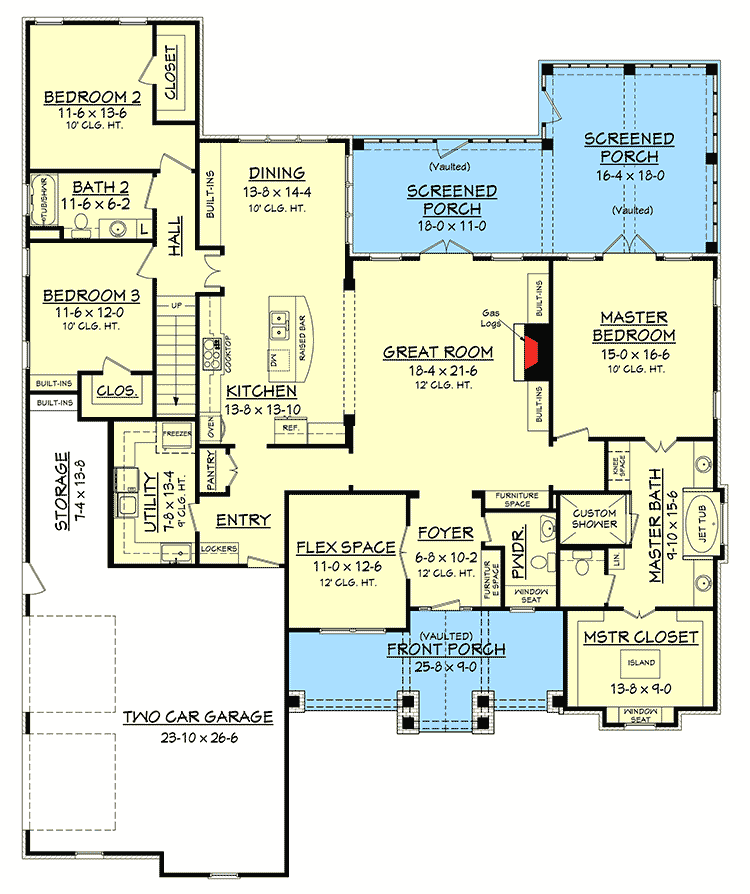

Main Level
floor plan image Main Level

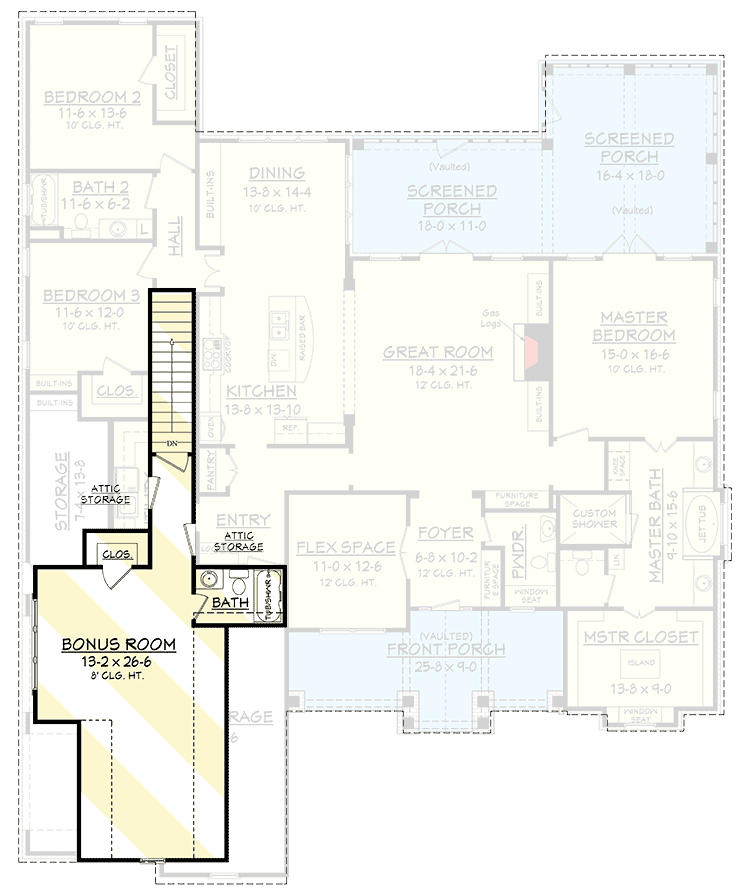

2nd Floor
floor plan image 2nd Floor

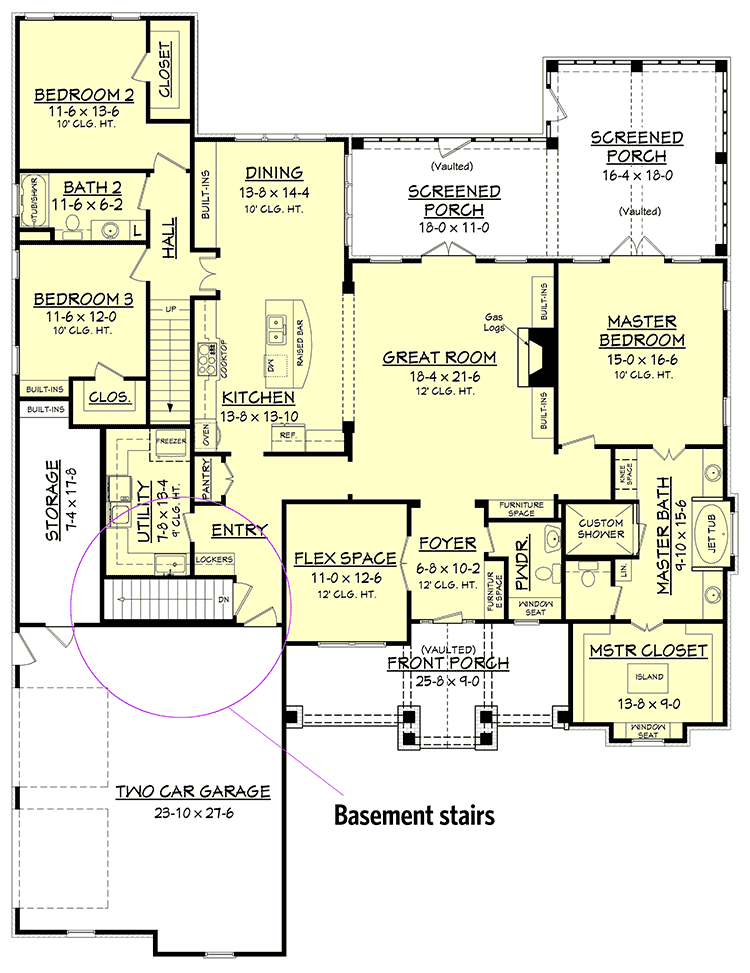

Basement Option
floor plan image Basement Option

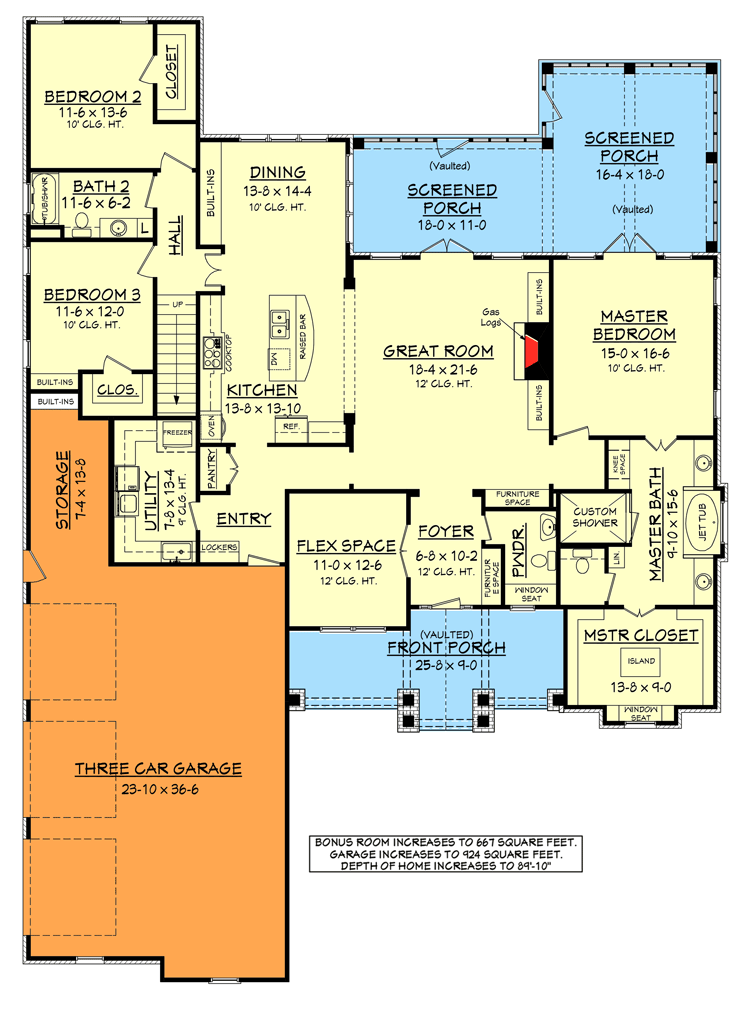

3-Car Garage Option
floor plan image 3-Car Garage Option

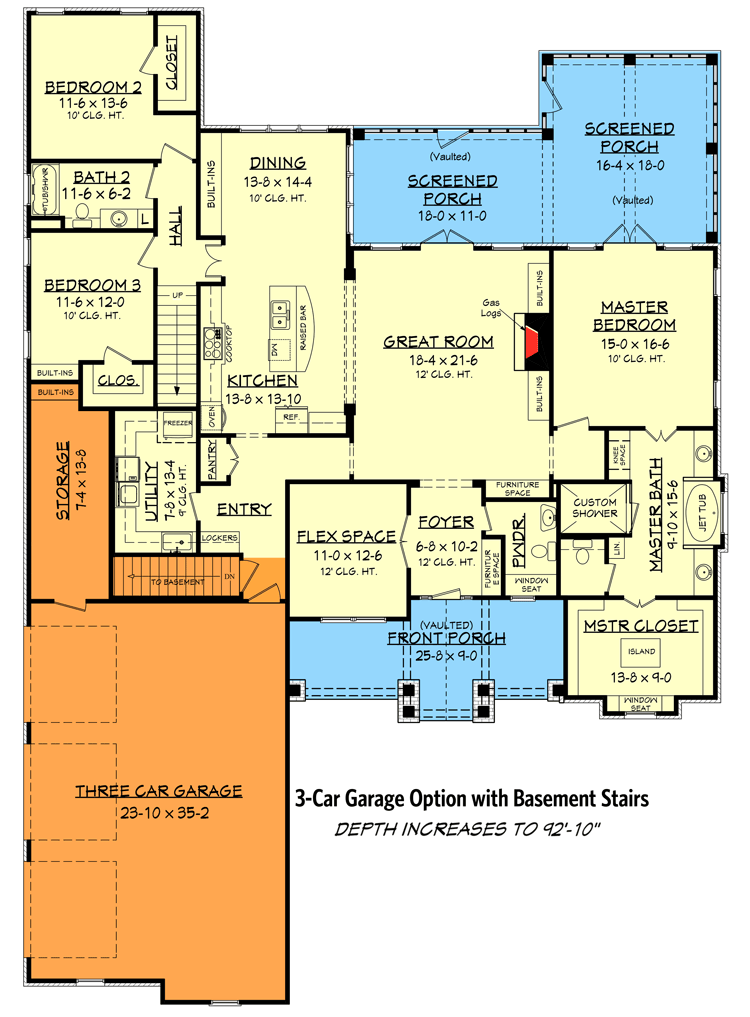

3-Car Garage & Basement Option
floor plan image 3-Car Garage & Basement Option
Plan Details

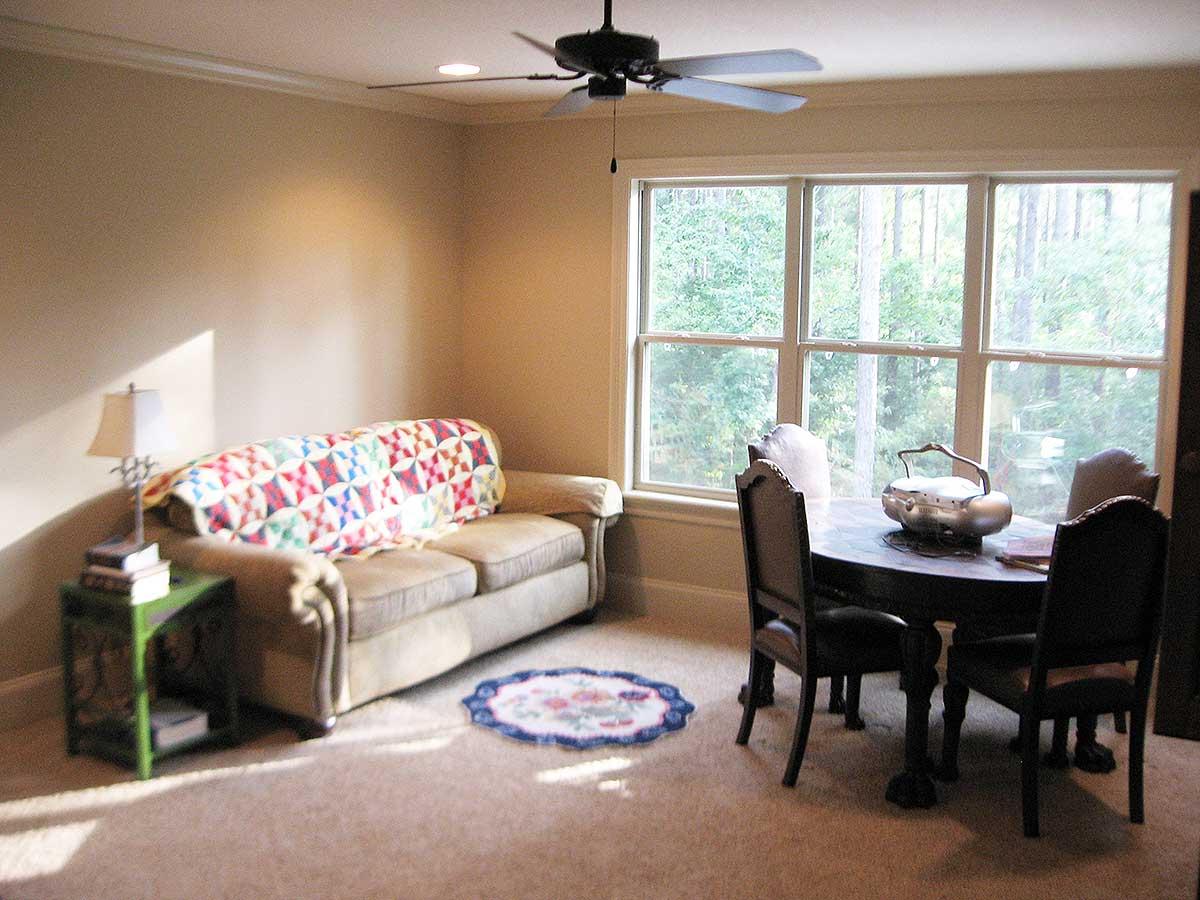

  • This 3-bed house plan has a rustic exterior and comes with a bonus room with a bathroom over the garage, giving you great expansion possibilities.

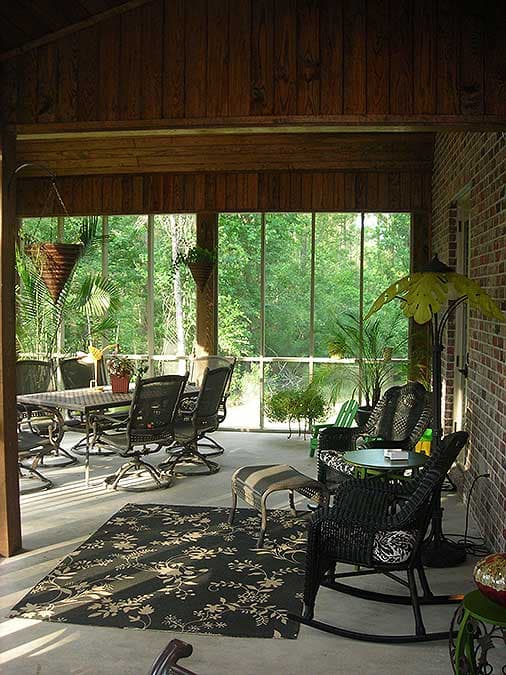

  • Great features abound inside, including high ceilings, open spaces, and vaulted outdoor spaces in the back.

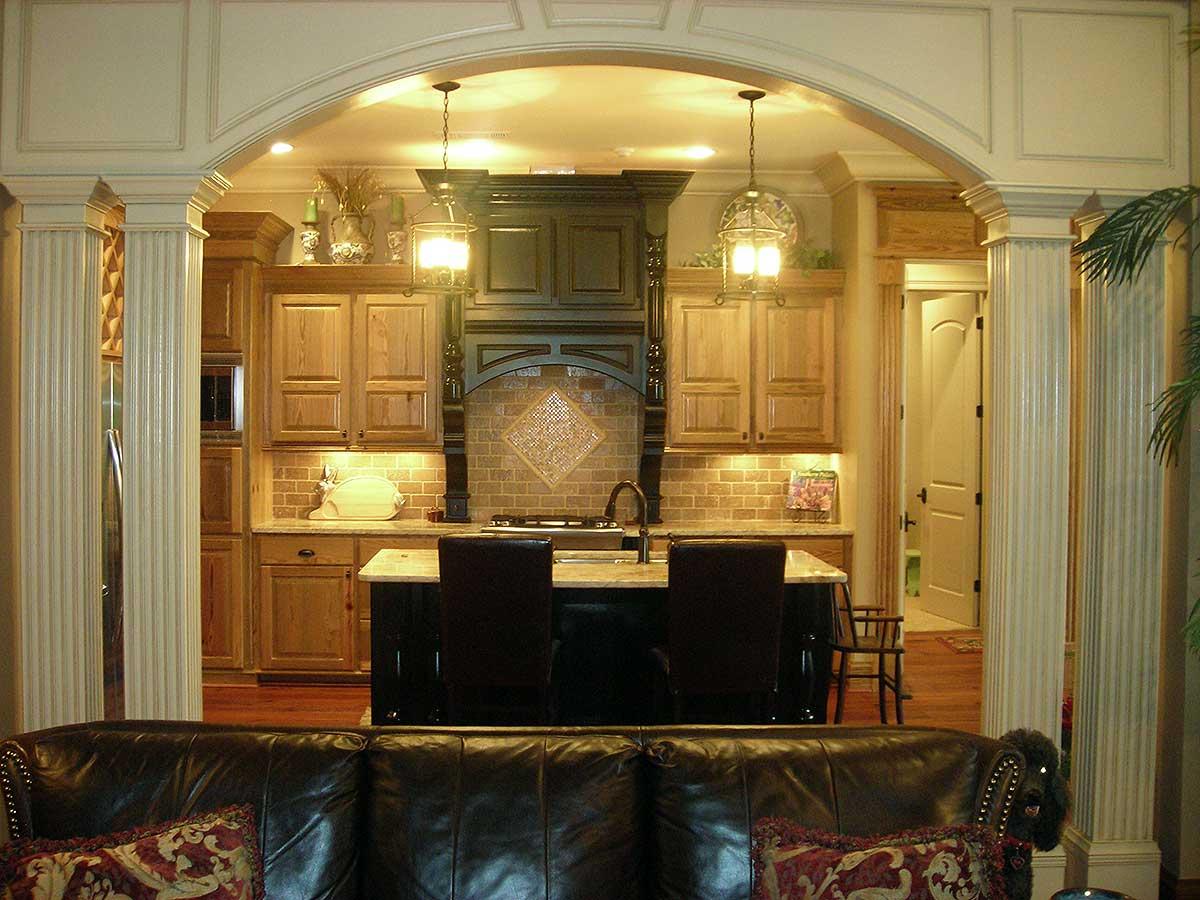

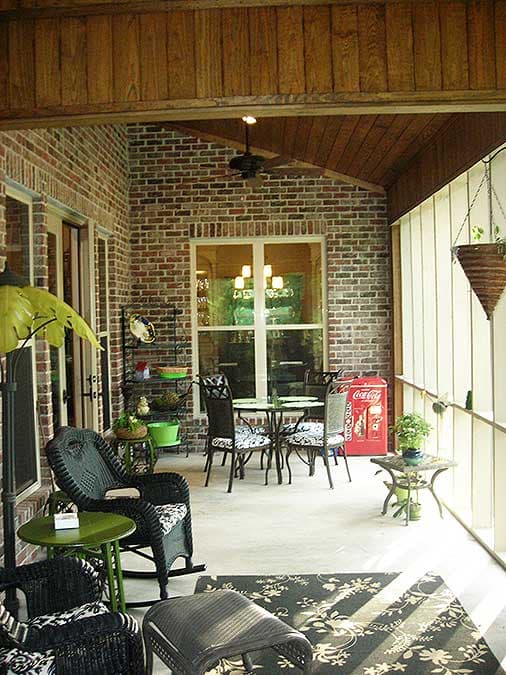

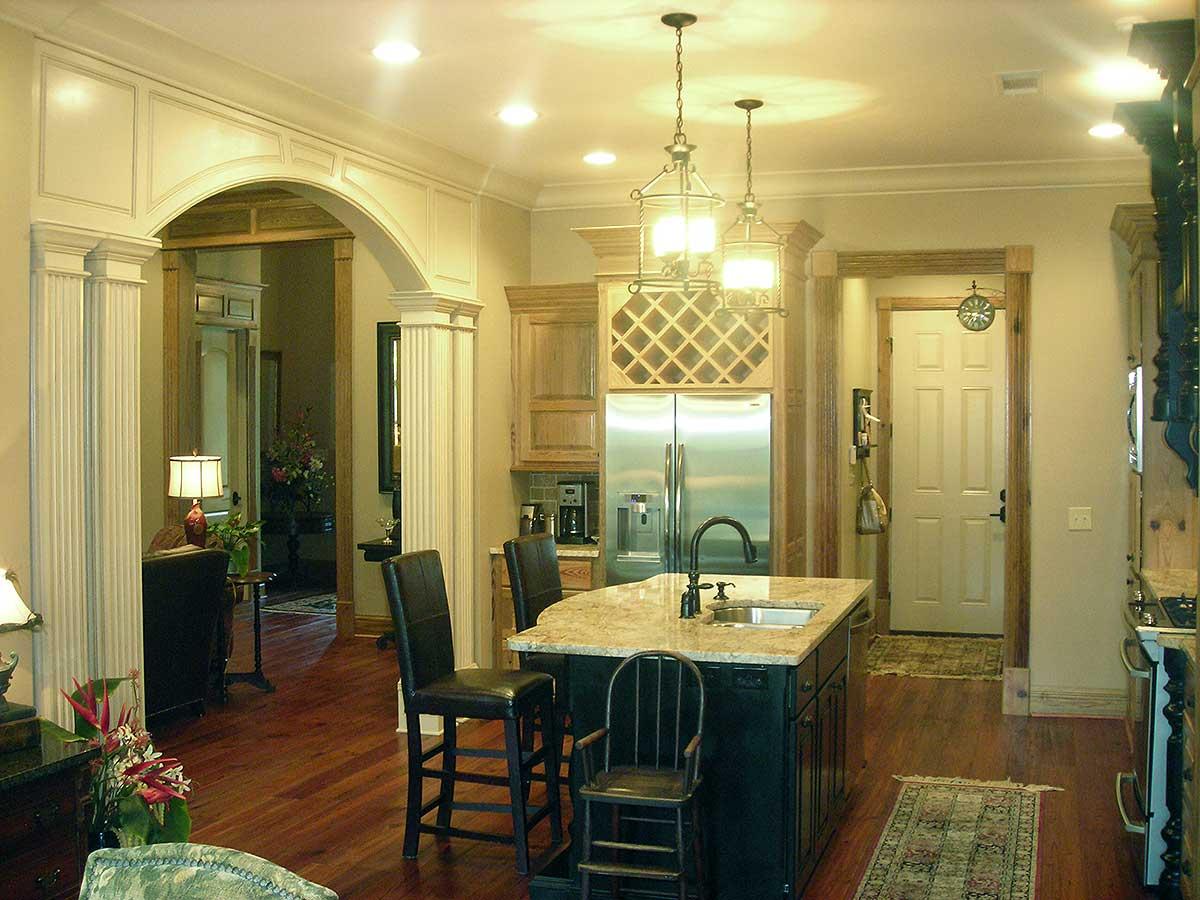

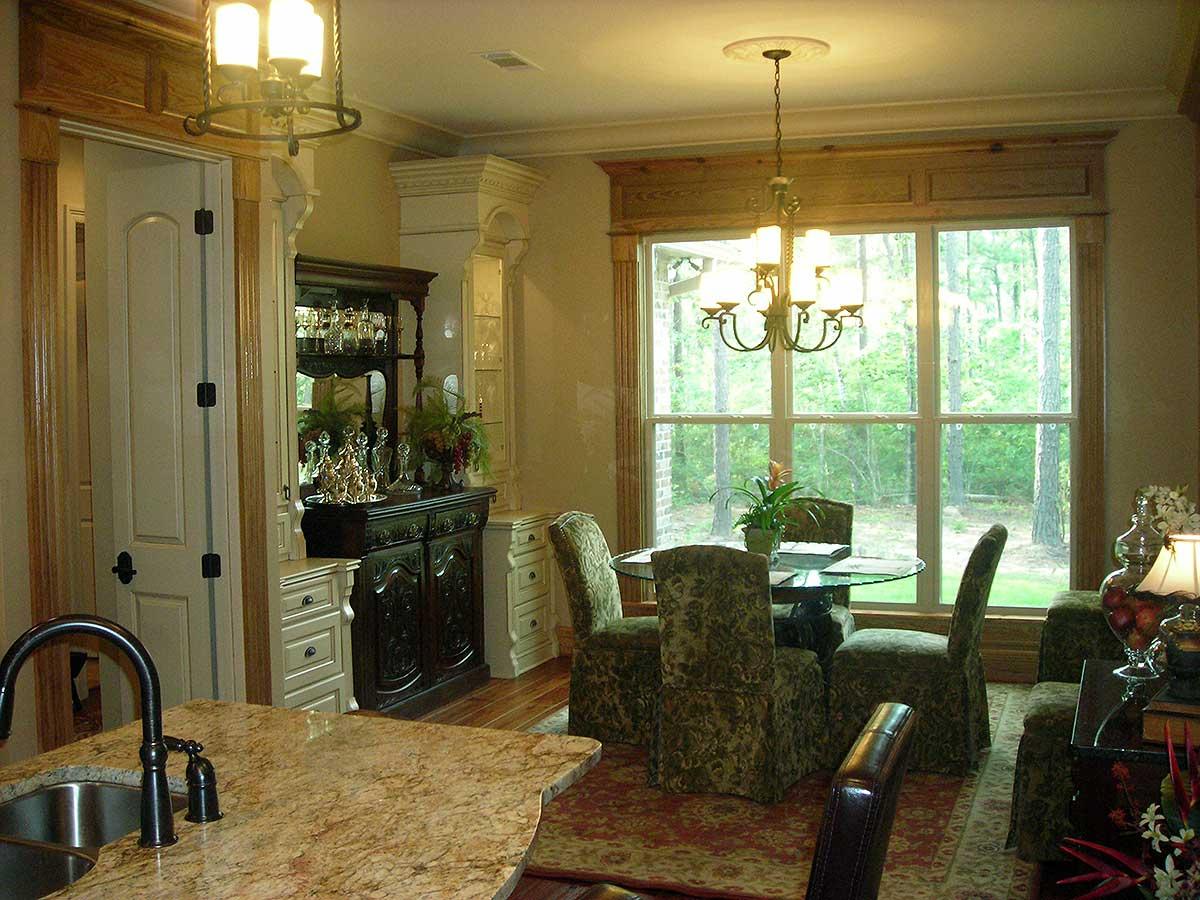

  • The home gives you a beautiful kitchen open to both the dining and great rooms. French doors open to the screened porch in the back.
  • A flex space off the foyer makes a great den or home office.

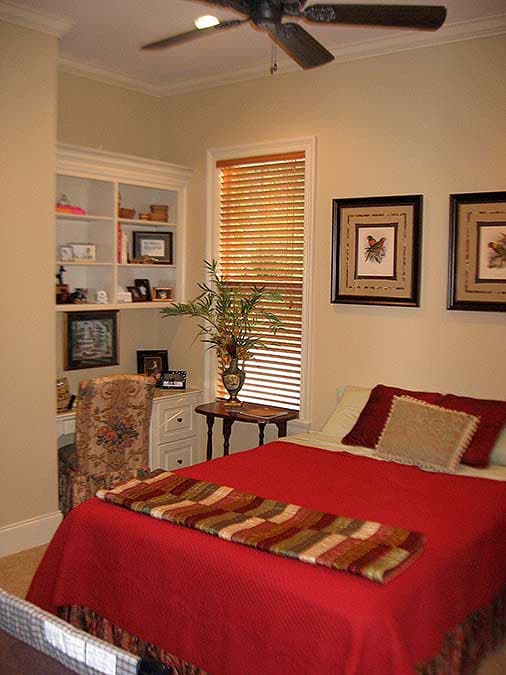

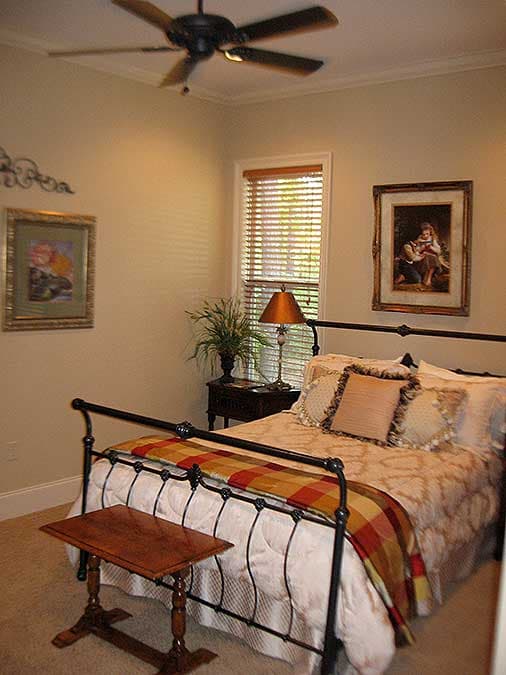

  • The three large bedrooms are complete with walk-in closets. The master bedroom has French door access to a vaulted porch in the back.
What's Included
  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,597 sq. ft.

1st Floor

2,597 sq. ft.

Bonus

529 sq. ft.

Porch, Front

224 sq. ft.

Porch, Rear

492 sq. ft.

Storage

117 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

65' 2"

Depth

79' 10"

Max Ridge Height

29' 6"

Garage

Type

Attached

Area

679 sq. ft.

Count

2 or 3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

10'

Second Floor

8'

Room

Ceiling Type

Height

Foyer

12' 0''

Great Room

12' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Square Footage Breakdown

Total Heated Area

2,597 sq. ft.

1st Floor

2,597 sq. ft.

Bonus

529 sq. ft.

Porch, Front

224 sq. ft.

Porch, Rear

492 sq. ft.

Storage

117 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

65' 2"

Depth

79' 10"

Max Ridge Height

29' 6"

Garage

Type

Attached

Area

679 sq. ft.

Count

2 or 3 Cars

Entry Location

Side

Ceiling Heights

Lower Level

9' 4"

First Floor

10'

Second Floor

8'

Room

Ceiling Type

Height

Foyer

12' 0''

Great Room

12' 0''

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Stick
