Plan 51257MM

Craftsman House Plan with Split Bedrooms and Covered Porches

Heated S.F.
1,500
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 51257MM

Main Level
Main Level

Plan 51257MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

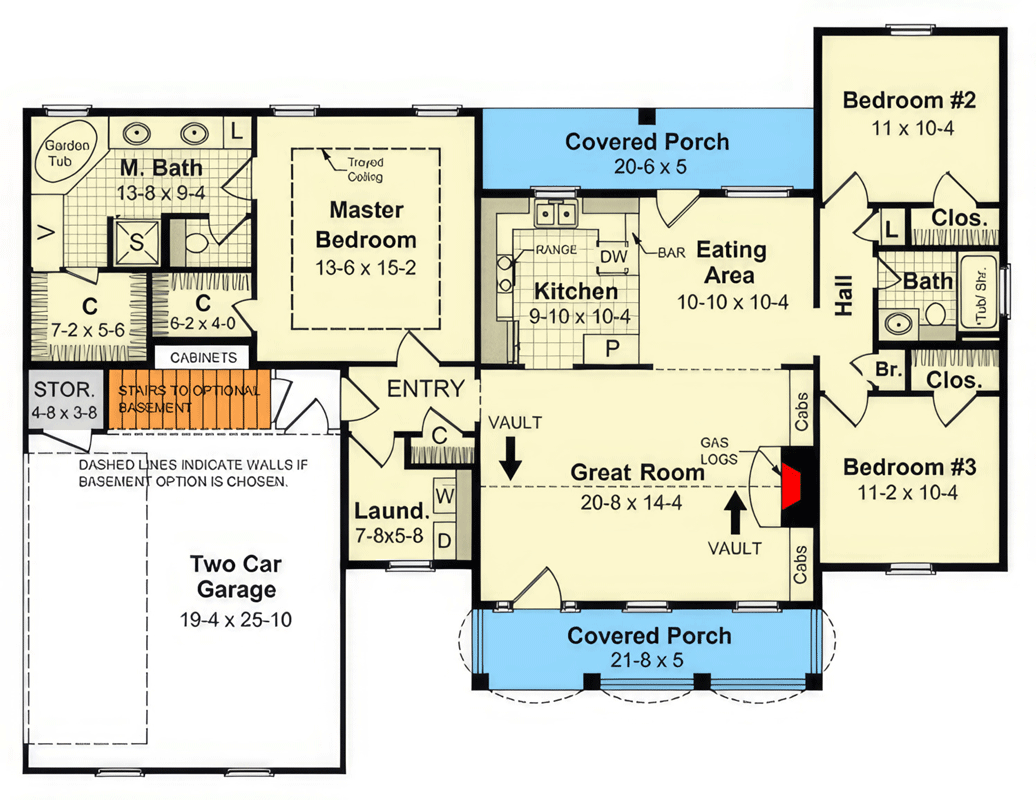

Plan 51257MM: Craftsman House Plan with Split Bedrooms and Covered Porches - Floor Plan - Main Level - Country, Craftsman, Traditional

Plan Details

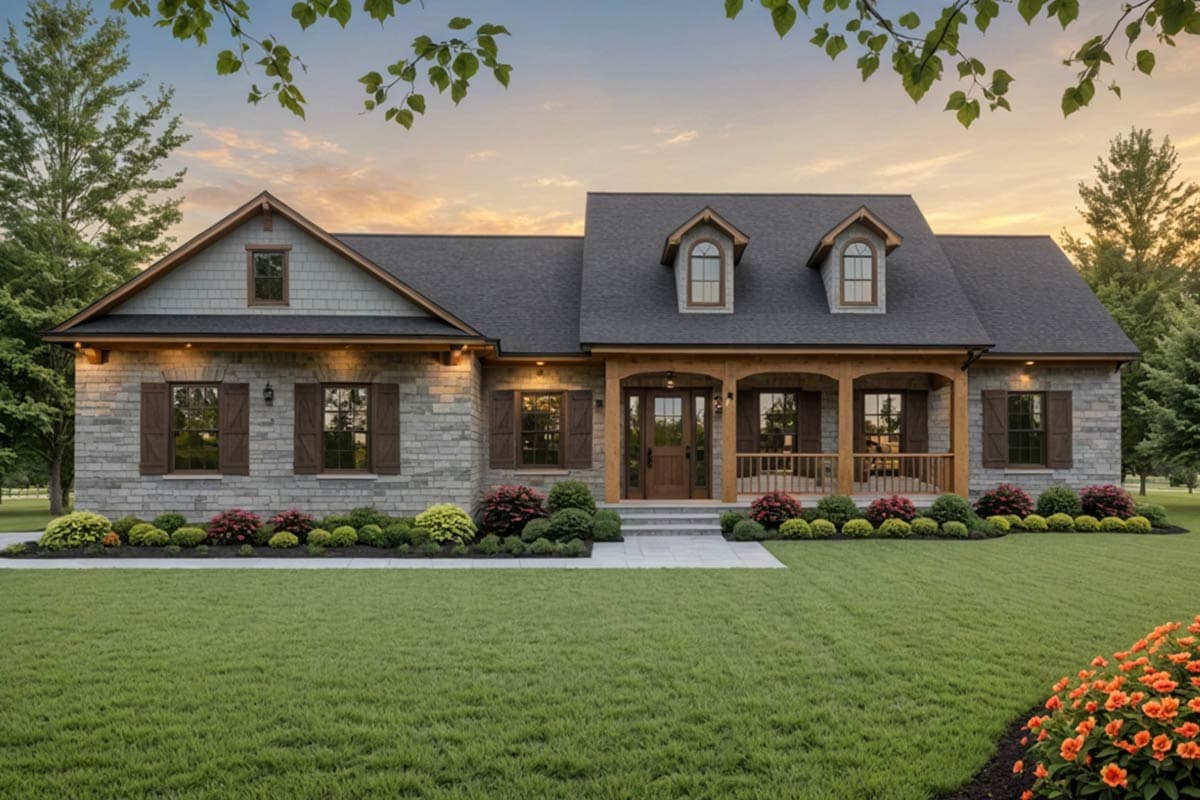

  • This inviting 1,500 sq. ft. Craftsman-style house plan features a charming stone and siding exterior, offering 3 bedrooms, 2 full bathrooms, and an attached 507 sq. ft. two-car garage.
  • Step inside to a welcoming entry that immediately opens into a spacious Great Room, forming the heart of this open-concept home, perfect for relaxed living and seamless flow.
  • The Great Room flows effortlessly into the eating area and a well-appointed kitchen, designed for both everyday meals and entertaining, complete with a convenient breakfast nook for casual mornings.
  • The private master suite is thoughtfully placed on one side of the home, featuring a generous bedroom with a tray ceiling and an en-suite bathroom with a garden tub and dual closets, while two secondary bedrooms and a full bath are located on the opposite side, offering a desirable split-bedroom layout for privacy.

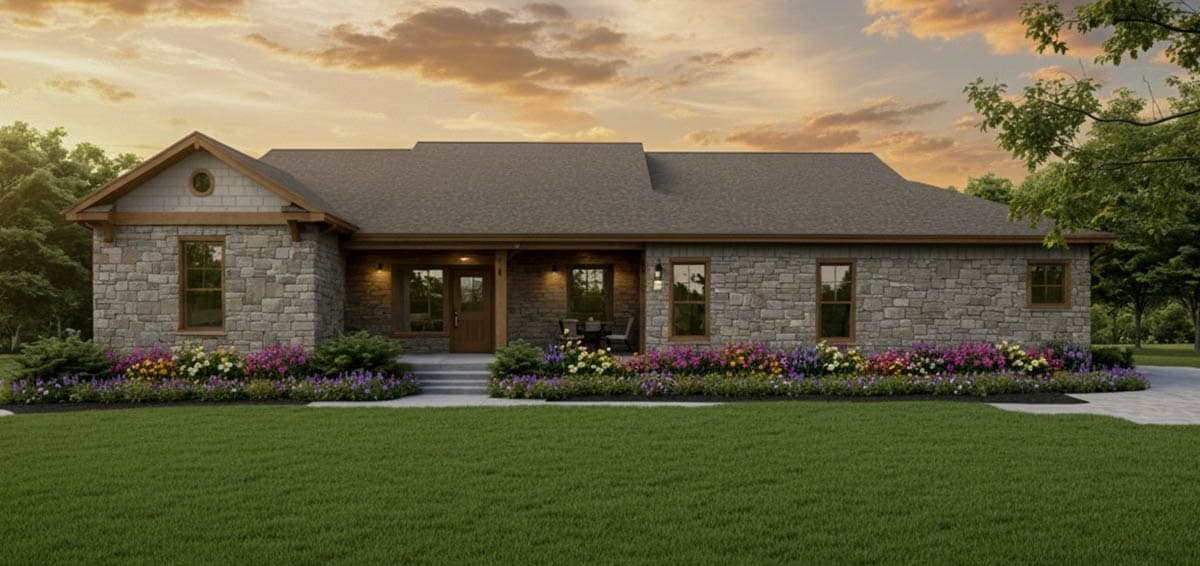

  • Enjoy tranquil moments or morning coffee on the inviting covered front porch, while a second covered porch off the eating area extends your living space outdoors, ideal for al fresco dining.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.
  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,500 sq. ft.

1st Floor

1,500 sq. ft.

Porch, Front

108 sq. ft.

Porch, Rear

103 sq. ft.

Storage

22 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Crawl, Monolithic Slab, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

61' 0"

Depth

47' 4"

Max Ridge Height

22' 0"

Garage

Type

Attached

Area

507 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Home Office

Laundry - Main Level

Master Suite - 1st Floor
