Craftsman House Plan with Split Bedrooms and Two-Story Great Room

Heated S.F.
3,169
Beds
4
Baths
3.5
Stories
1
Cars
3

Floor Plan

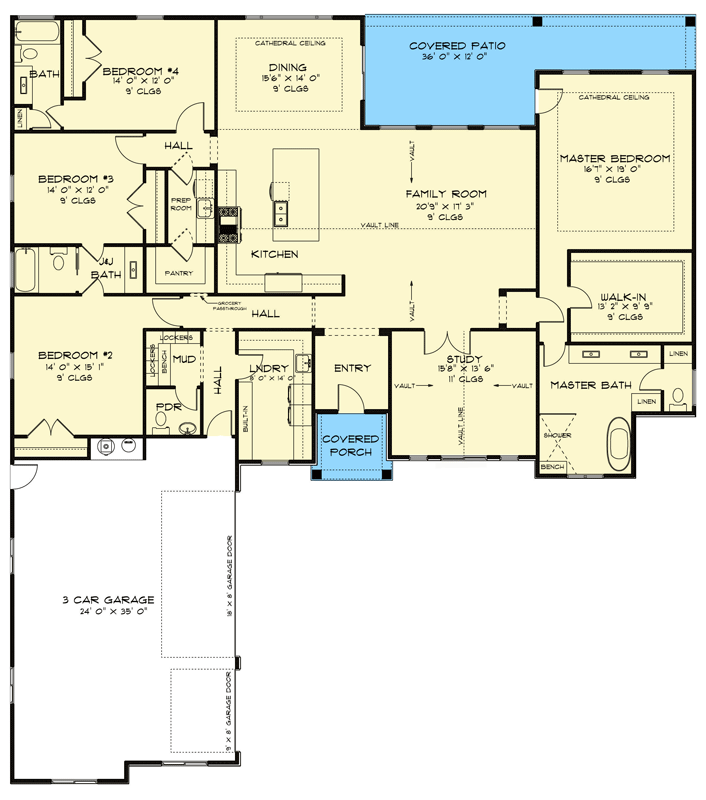

Plan 506059BRY

Main Level
Main Level

Plan 506059BRY

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 506059BRY: Craftsman House Plan with Split Bedrooms and Two-Story Great Room - Floor Plan - Main Level - Craftsman, Traditional

Plan Details

  • At 3,169 sq. ft., this one-story Craftsman-inspired plan features 4 bedrooms, 3.5 baths, and a spacious 3-car attached garage with a welcoming courtyard entry.
  • A covered front porch leads you inside, where natural light and open flow create an inviting first impression, complemented by generous sightlines through the main living spaces and a soaring two-story great room.
  • The kitchen serves as the social heart, with a large island perfect for casual meals or gatherings, a walk-in butler's pantry for ample storage, and direct connection to both the great room and formal dining area for seamless entertaining.
  • Enjoy restful privacy in the primary suite located in its own wing, while secondary bedrooms—including a Jack & Jill suite—occupy the opposite side for optimal separation and comfort.
  • Daily organization is a breeze with a drop zone, dedicated mudroom, and convenient main-level laundry easily accessed from the garage and living areas.
  • Step out to the rear porch, designed as a natural outdoor extension of your living space, ideal for relaxing or hosting with easy flow from the interior living zones.

What's Included

  • Index Page
  • Notes
  • Foundation Plan
  • Main Floor Plan
  • Front and Rear Elevations
  • Left and Right Elevations
  • Bird’s Eye Roof Plan
  • Floor Joist Layout
  • Main Floor Electrical Plan
  • Basement Electrical Plan (if applicable)
  • Cross Sections
  • Details Page
View Sample Plan

What's Not Included

  • Electrical plan
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,169 sq. ft.

1st Floor

3,169 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

74' 1"

Depth

82' 11"

Max Ridge Height

21' 0"

Garage

Type

Standard, Attached

Area

895 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

3,169 sq. ft.

1st Floor

3,169 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

74' 1"

Depth

82' 11"

Max Ridge Height

21' 0"

Garage

Type

Standard, Attached

Area

895 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Walk-in Pantry
