Plan 52585WM

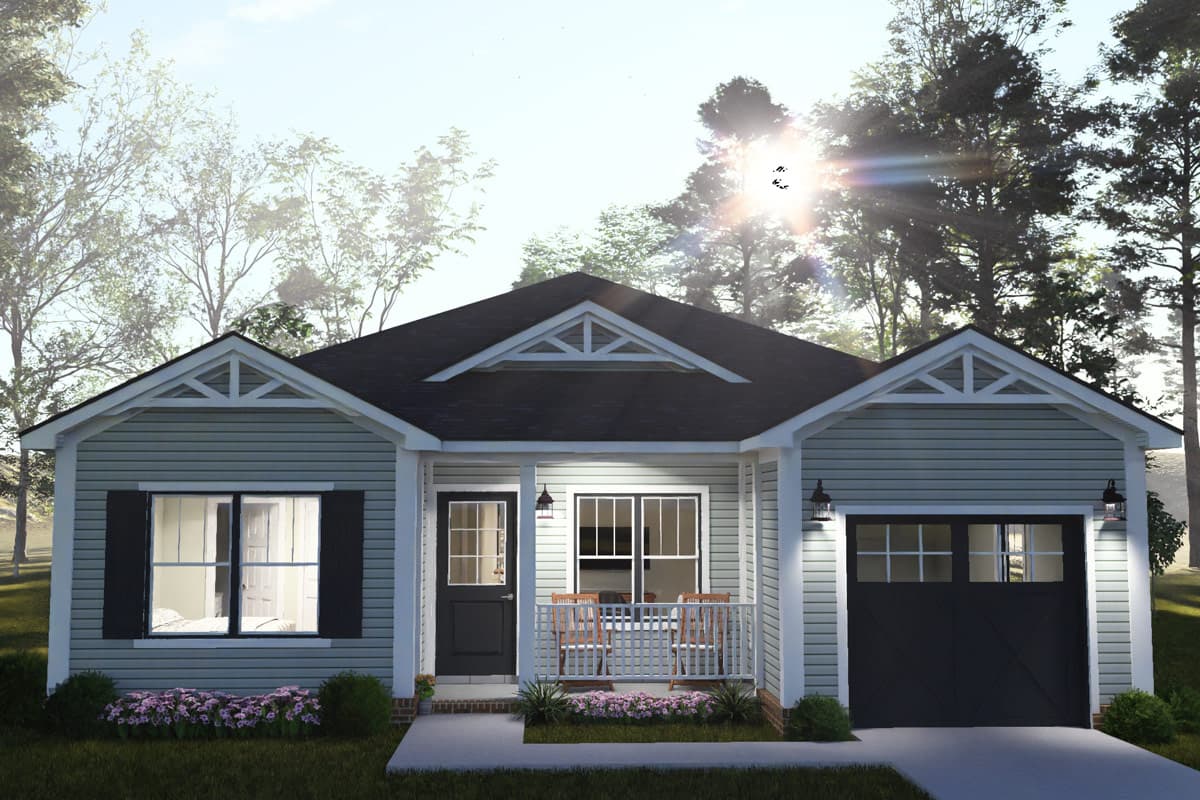

Craftsman House Plan with Three Bedrooms and Attached Garage

Heated S.F.
1,370
Beds
3
Baths
3
Stories
1
Cars
1
Tour

Floor Plan

Plan 52585WM

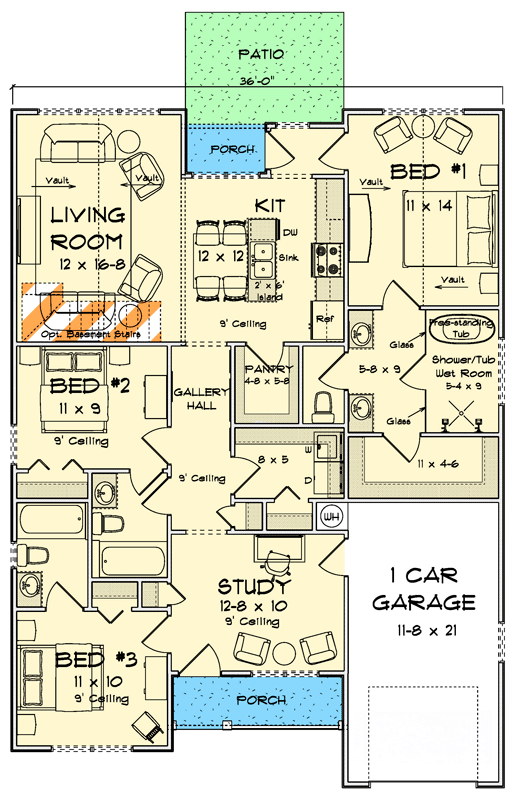

Floor Plan 1

Plan 52585WM

M-F 9am-5pm EST |

1-203-761-8500

Plan 52585WM: Craftsman House Plan with Three Bedrooms and Attached Garage - Floor Plan - - Craftsman, Traditional

Plan Details

  • This 1,370 square foot Craftsman home offers a thoughtful layout featuring three bedrooms, three full bathrooms, and a convenient one-car attached garage.

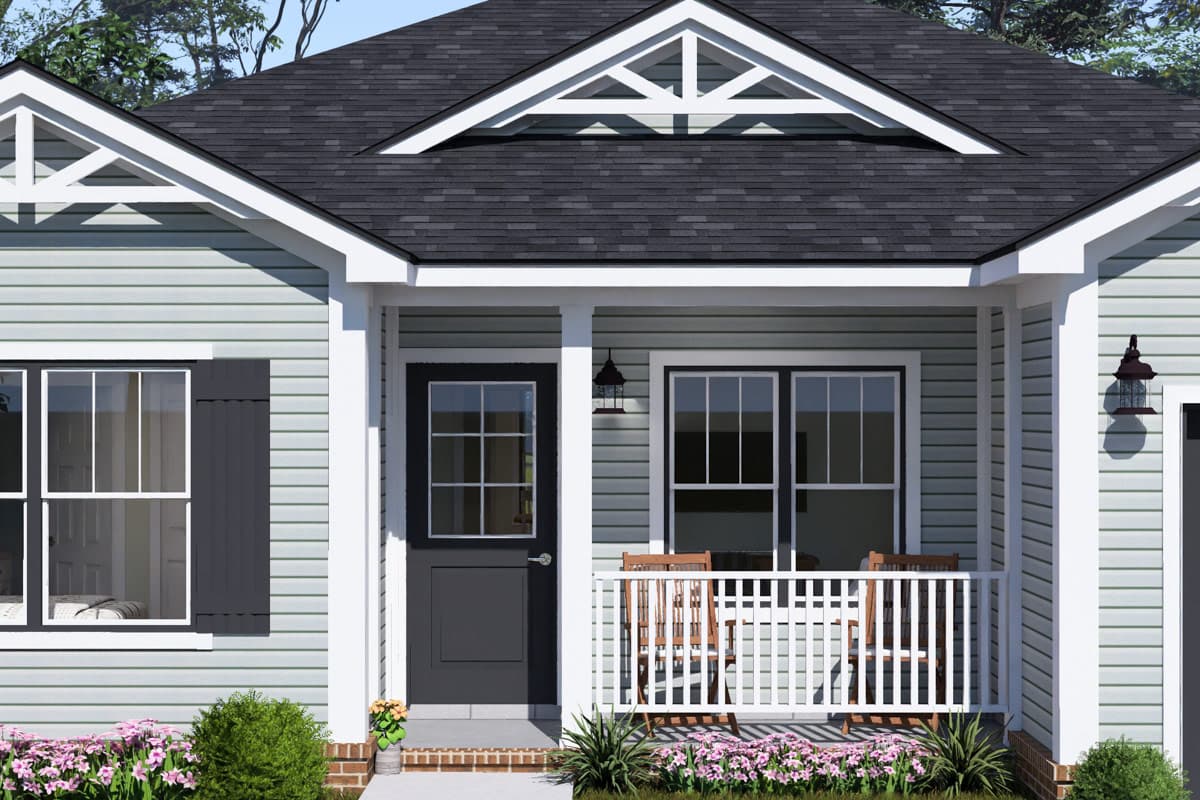

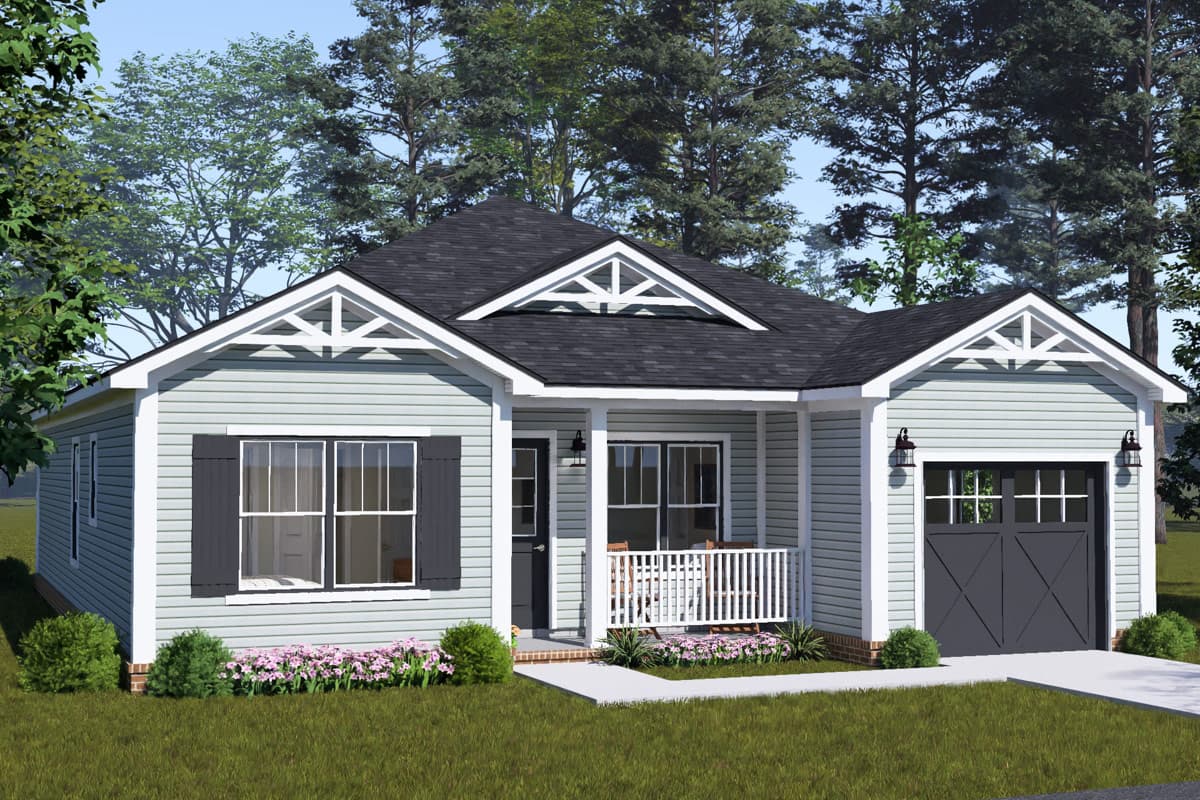

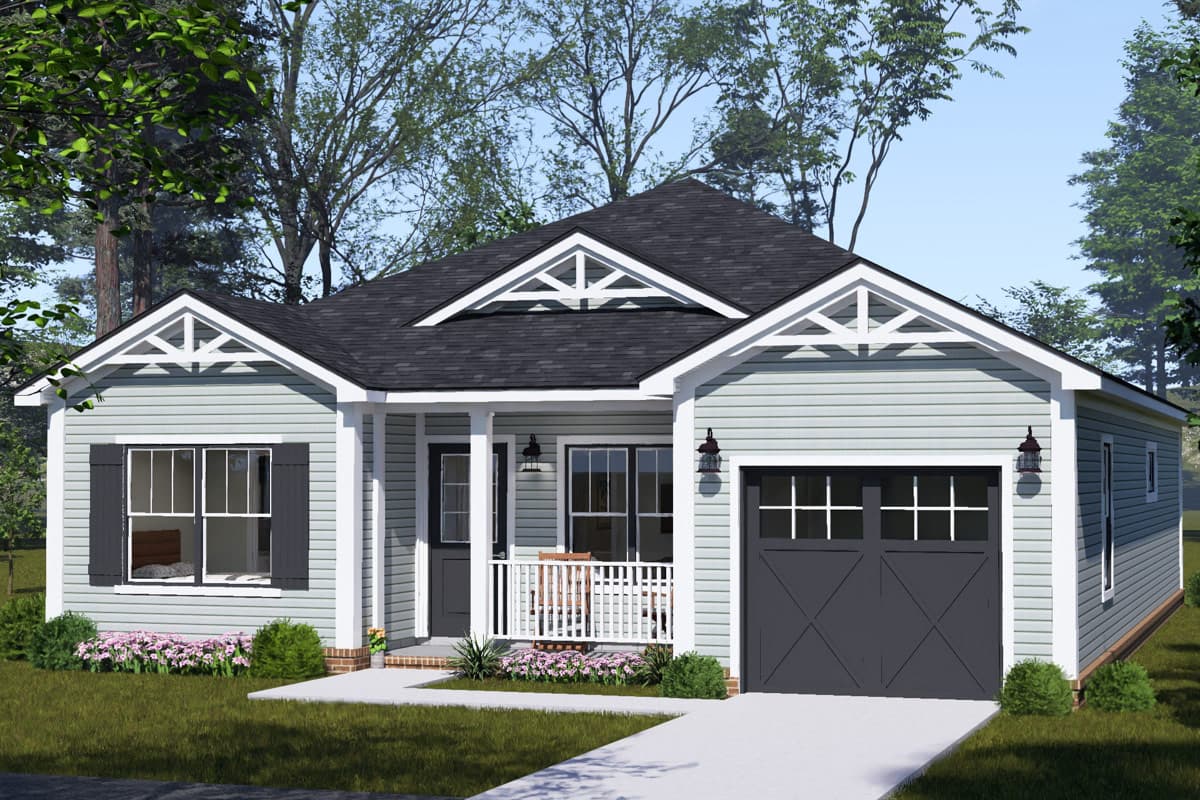

  • The welcoming front porch provides a cozy spot for morning coffee, leading directly into a functional floor plan designed for modern comfort.

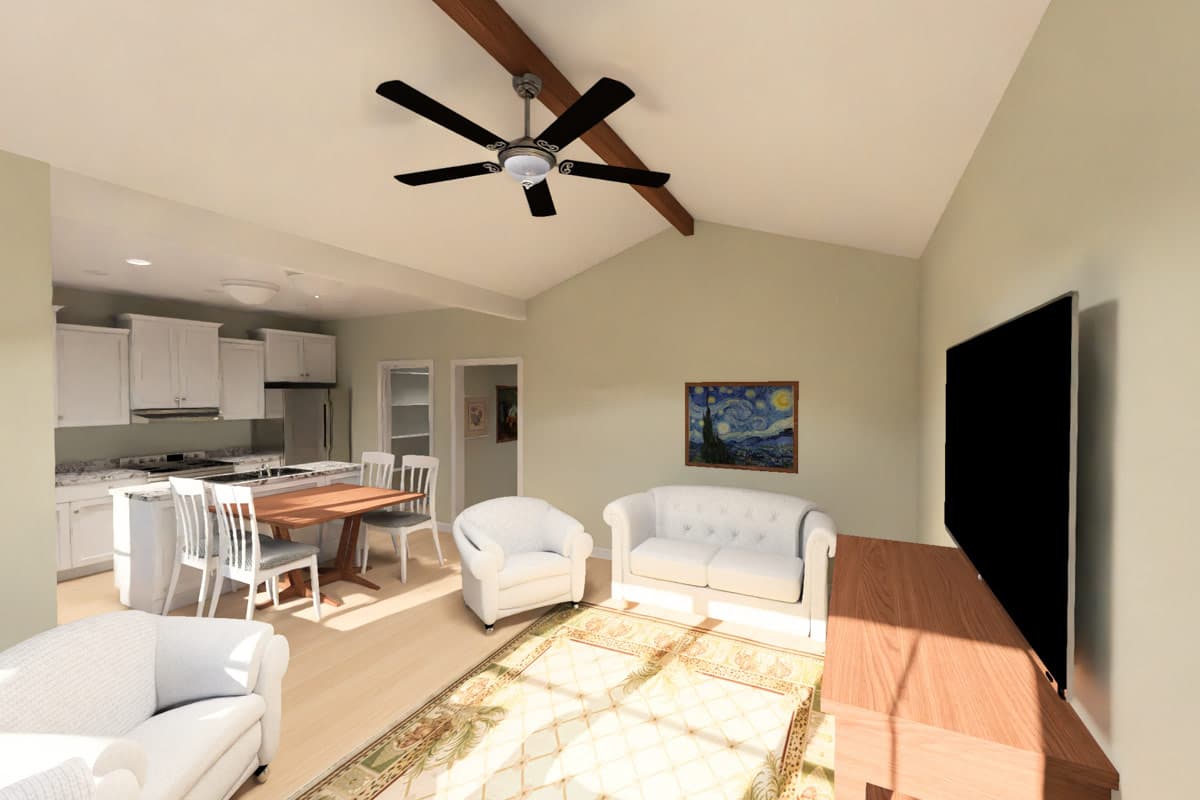

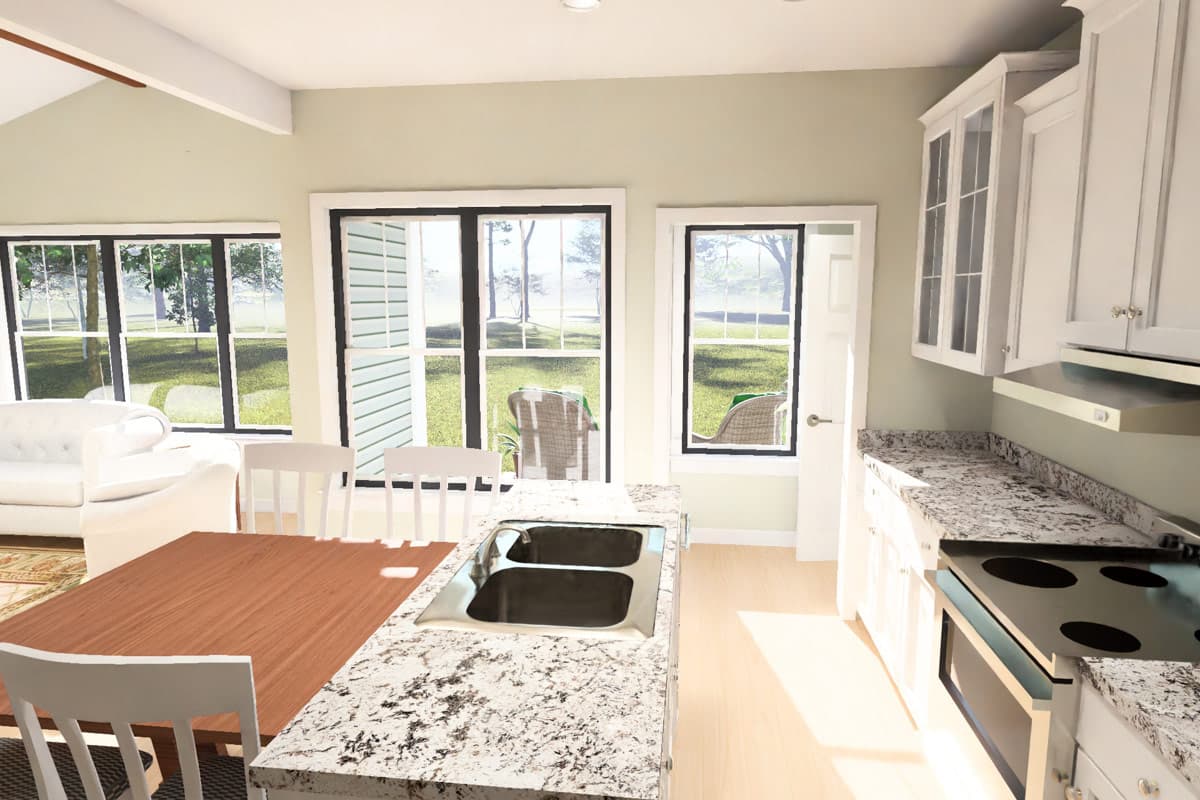

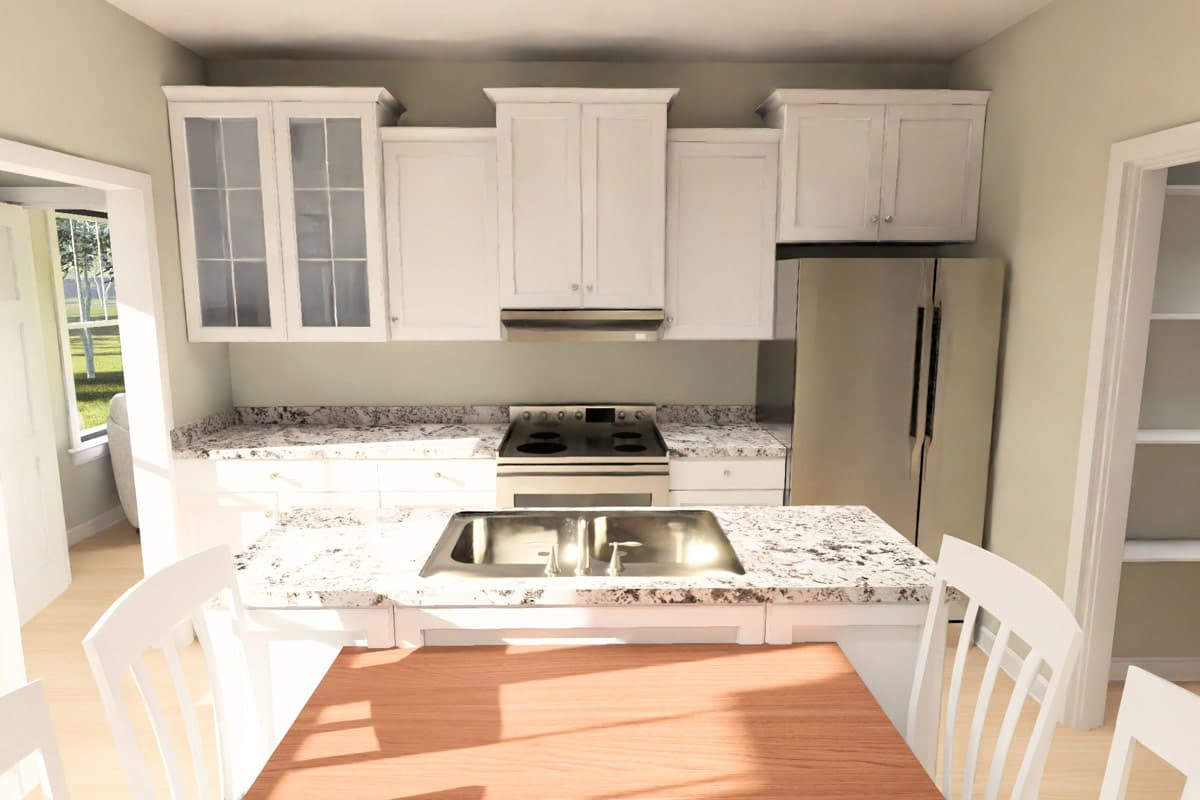

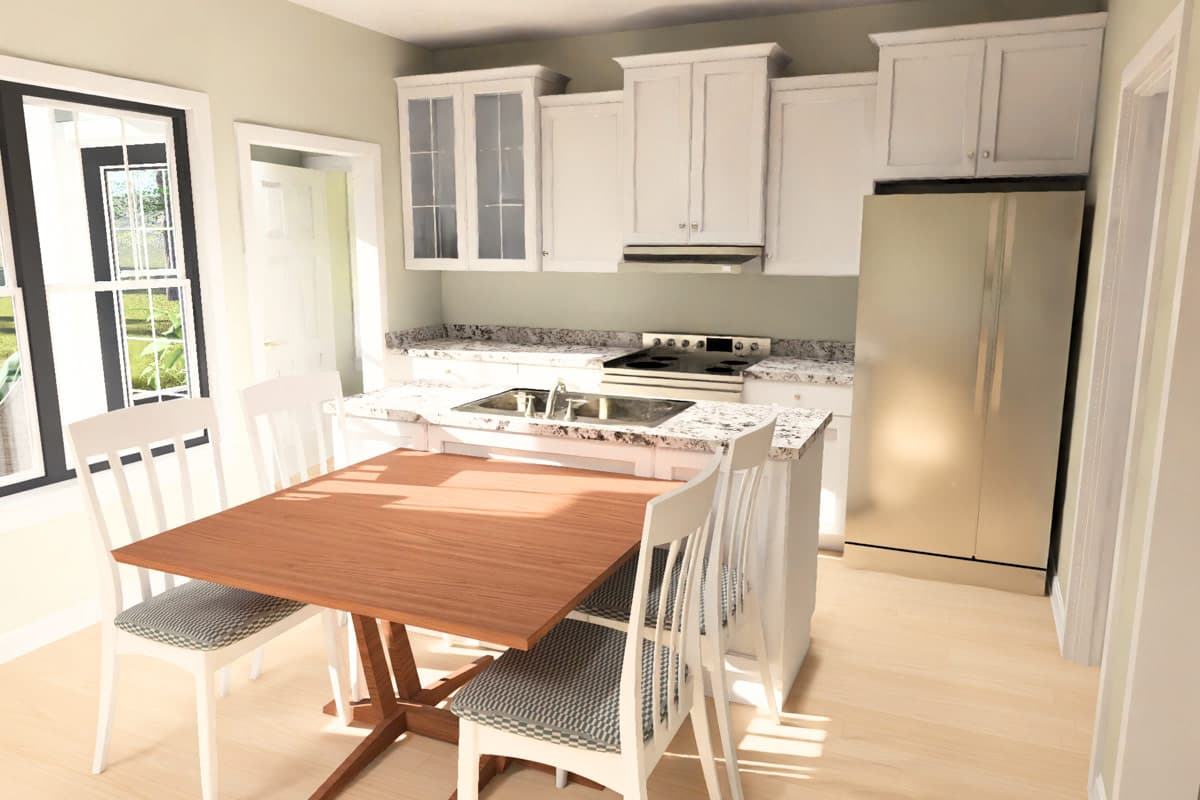

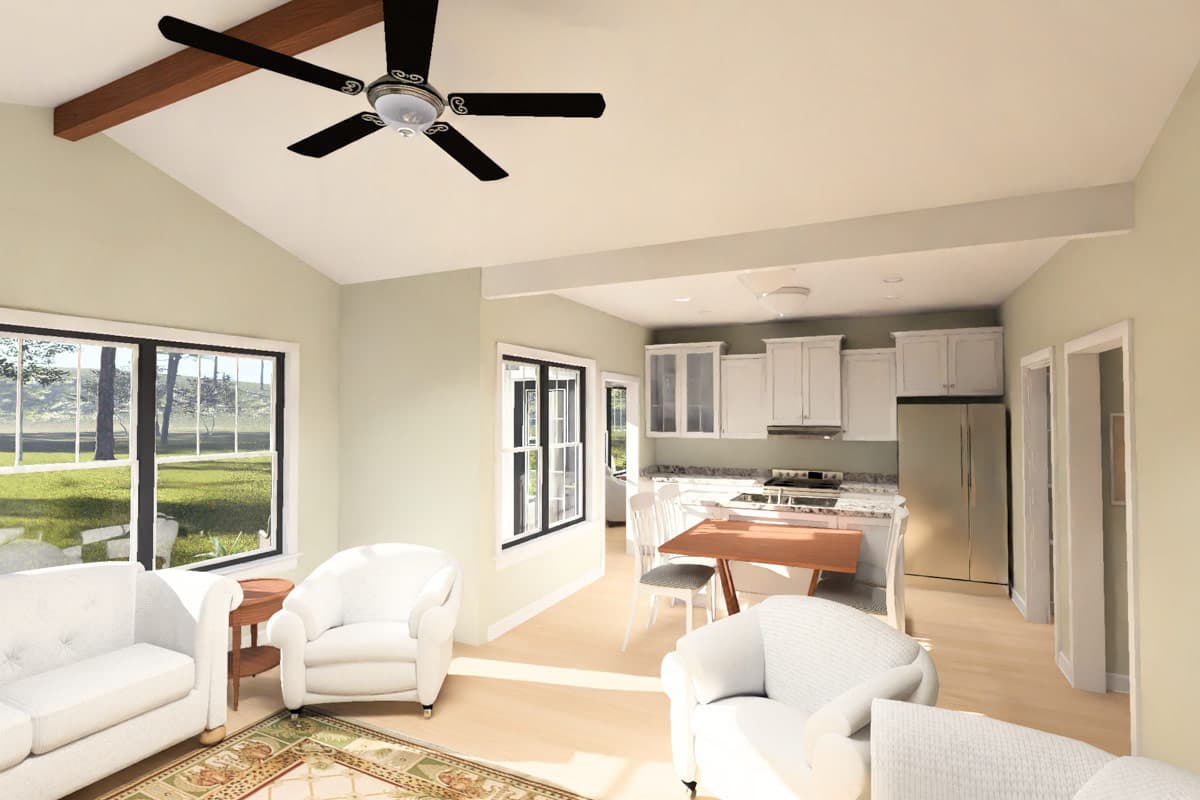

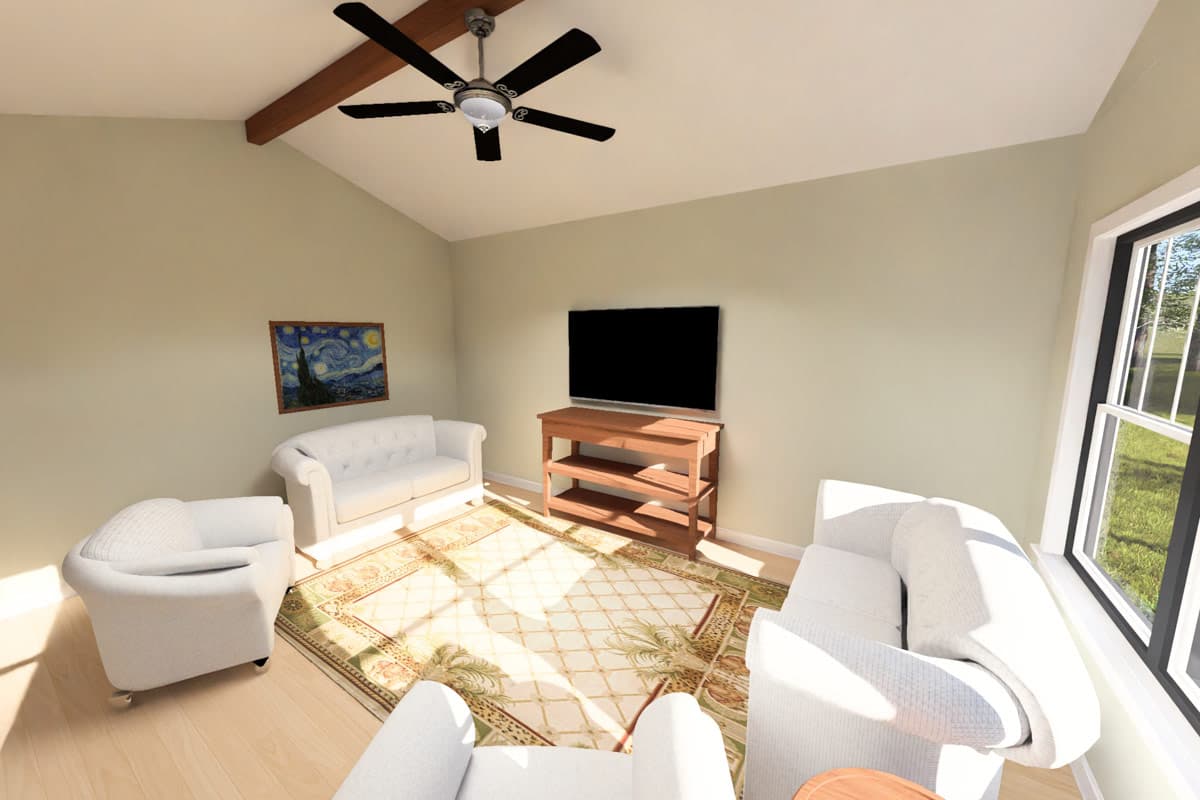

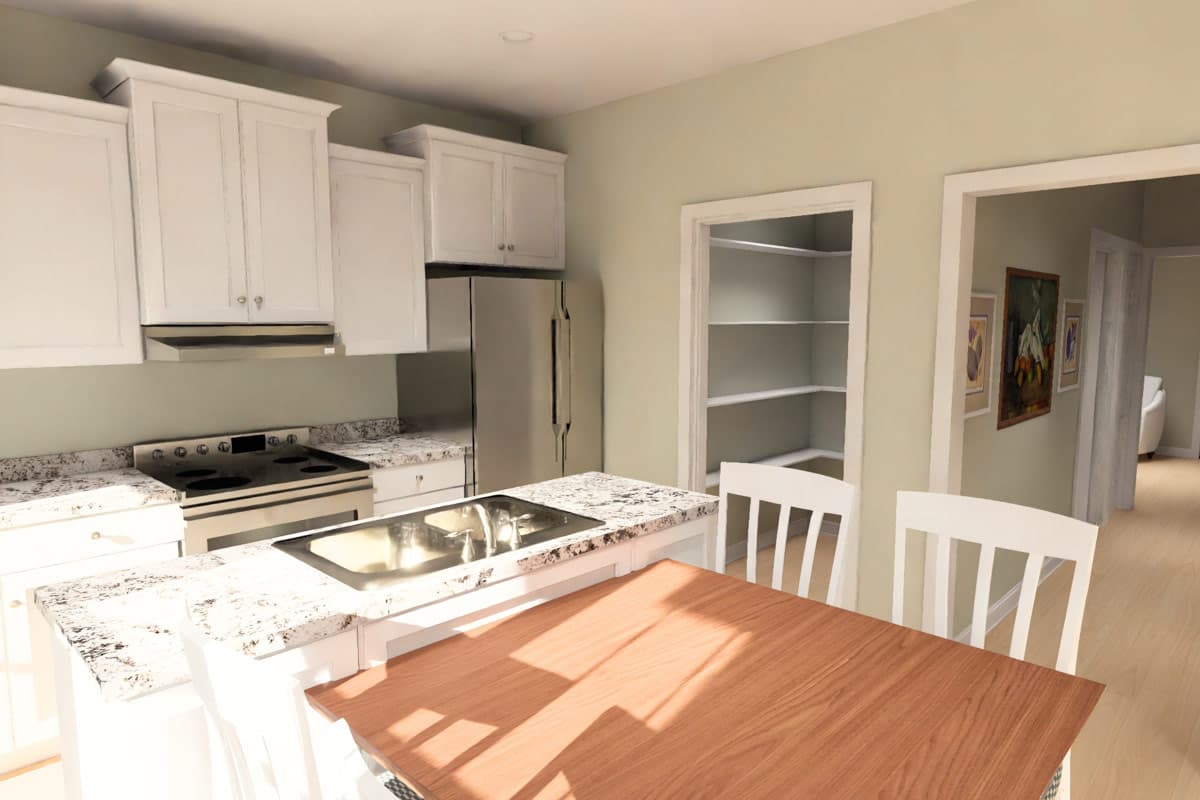

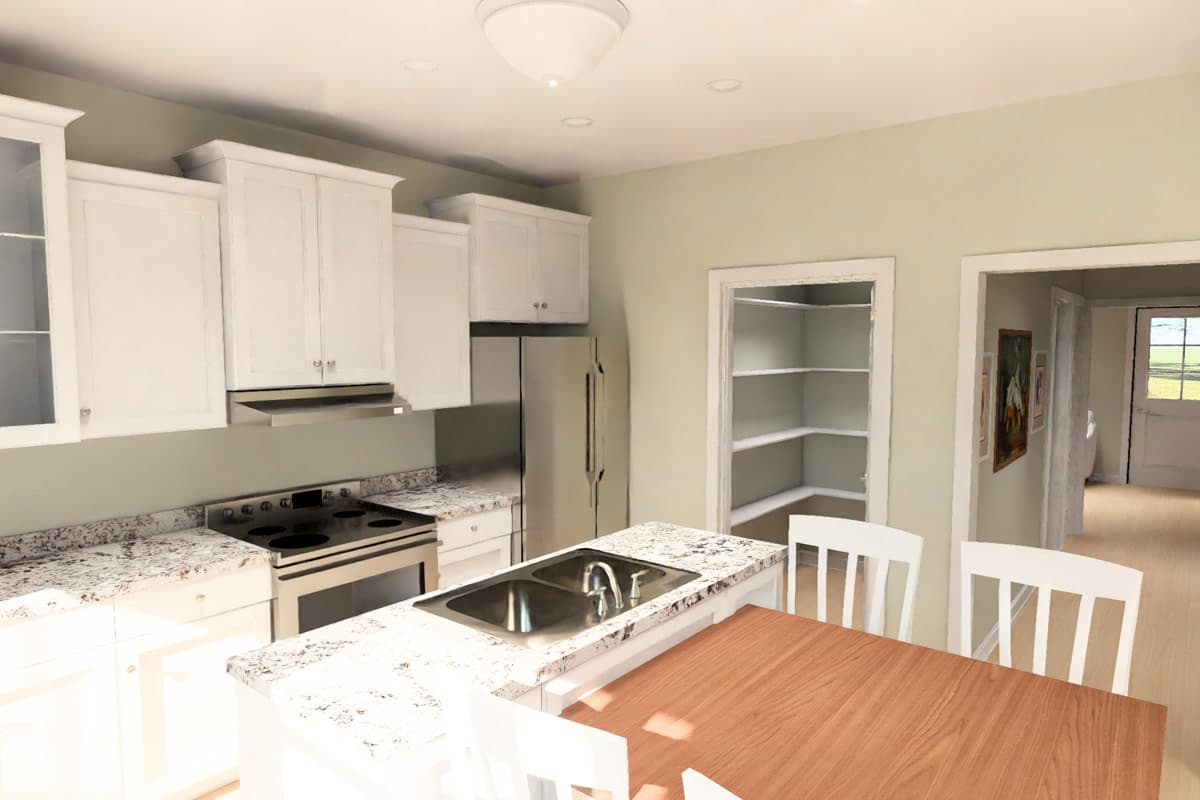

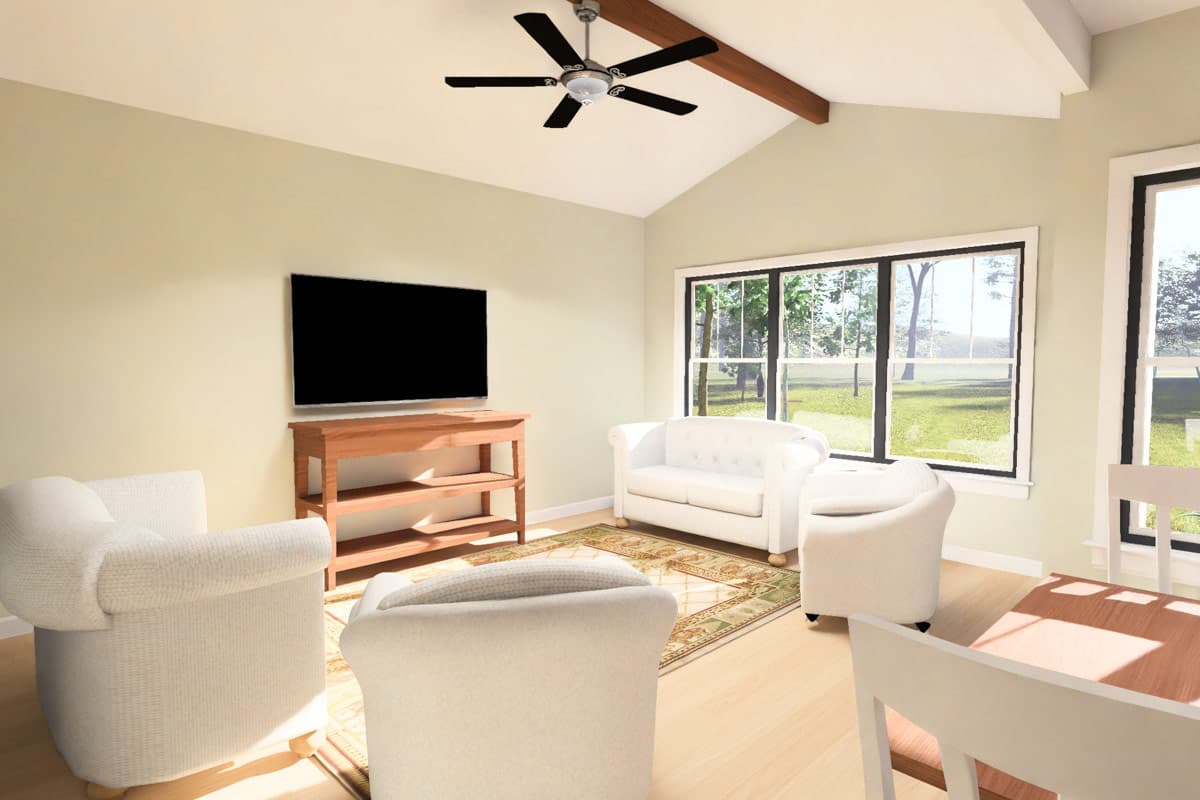

  • The heart of the home features an open-concept living area where the kitchen, complete with a walk-in pantry, flows seamlessly into the main living spaces.

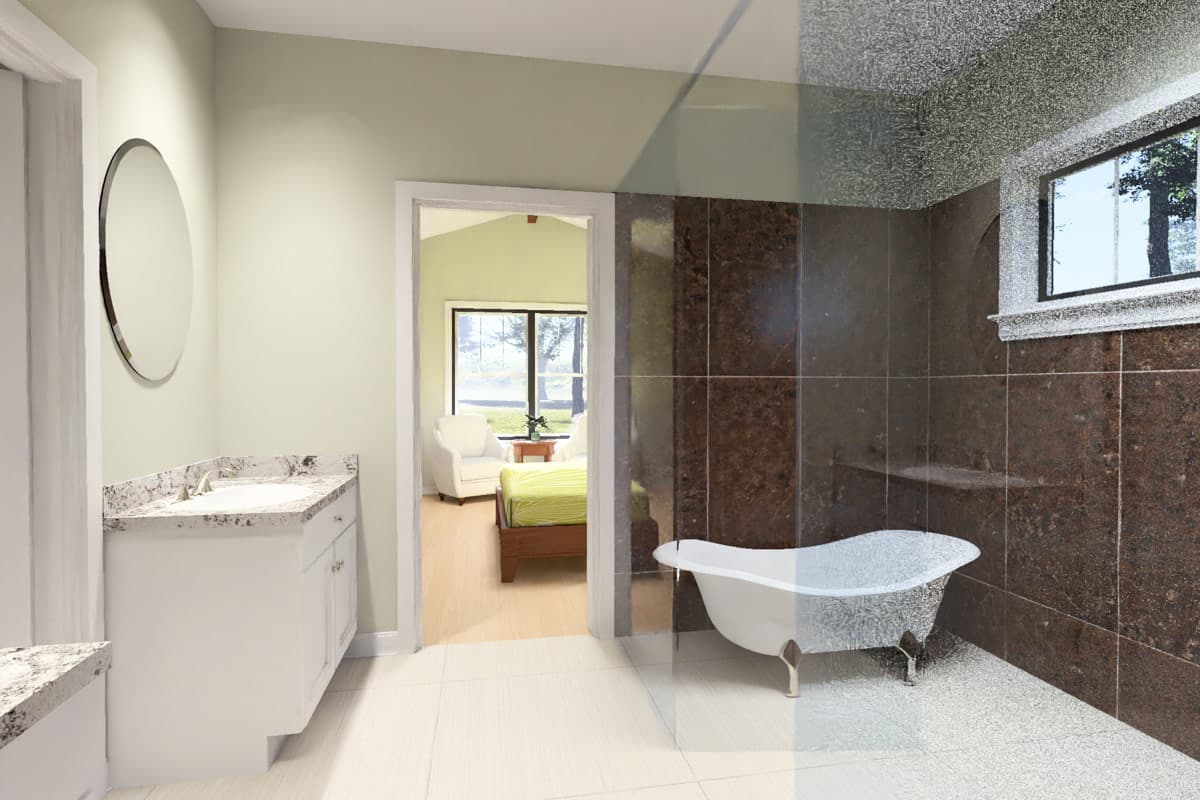

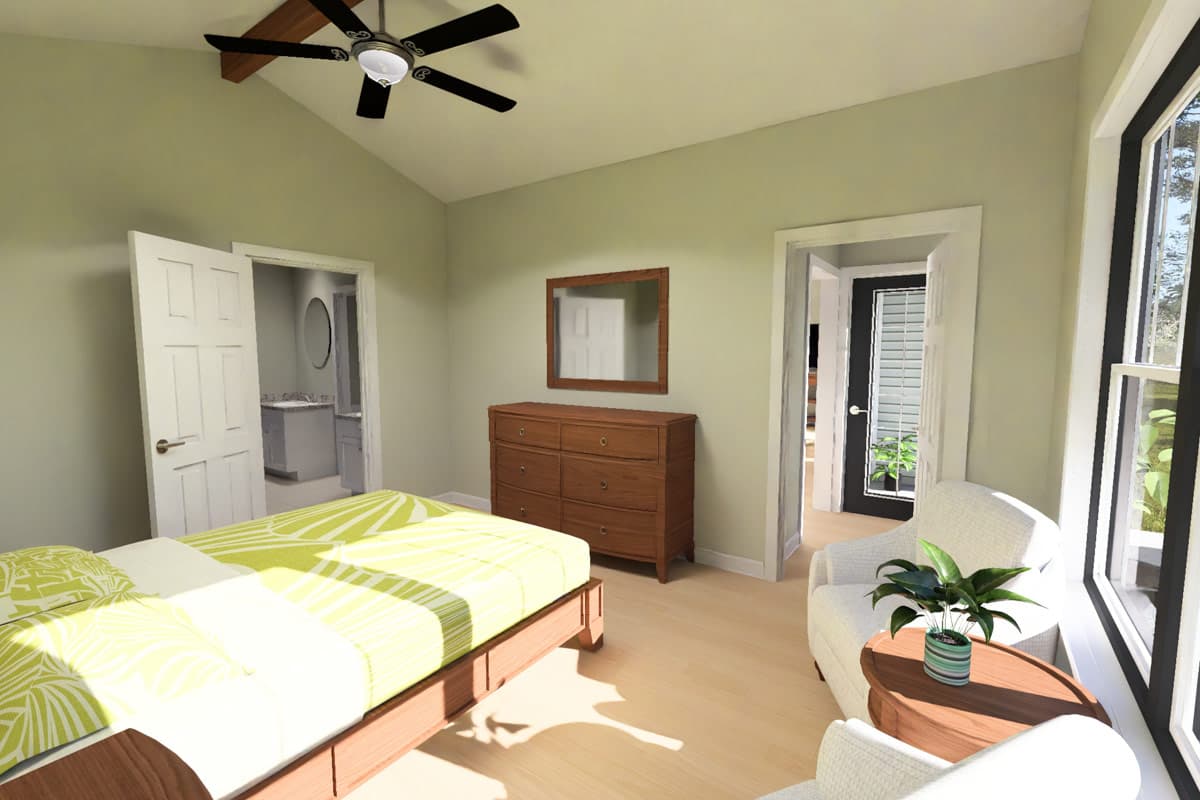

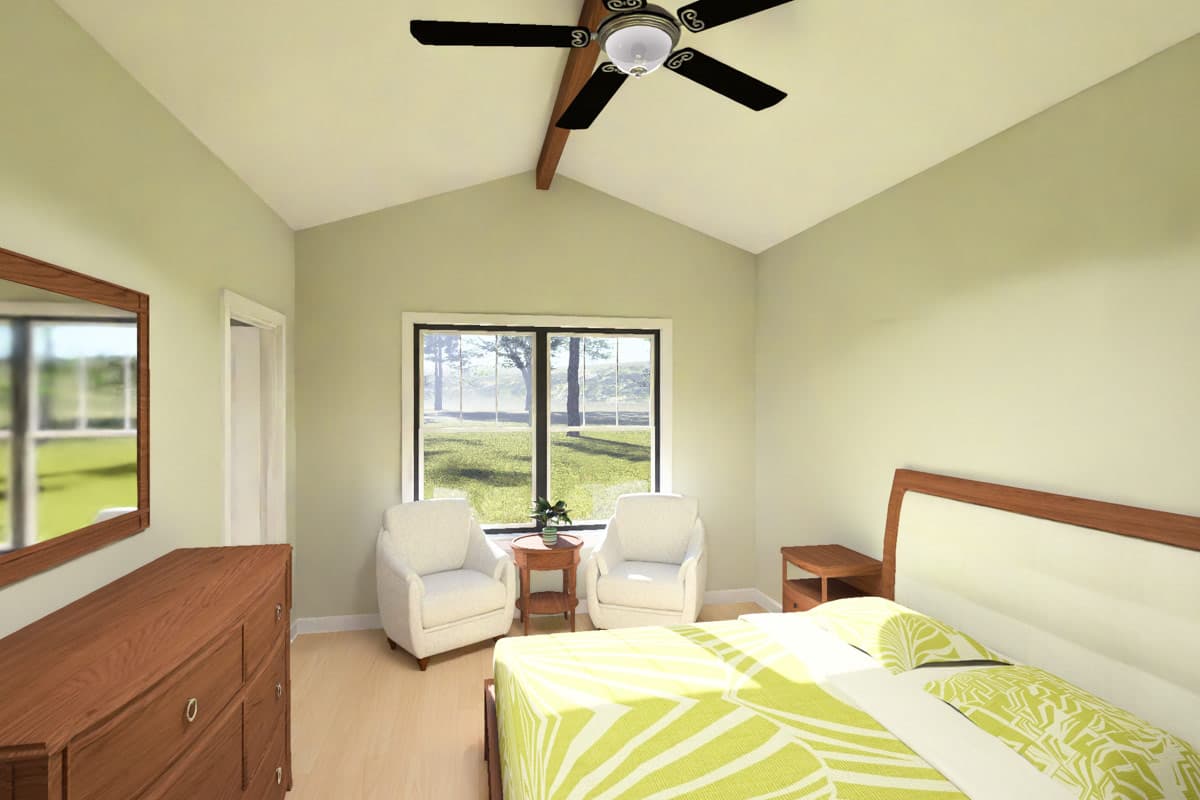

  • A private primary suite occupies a quiet corner of the home, providing a relaxing retreat away from the two versatile secondary bedrooms.

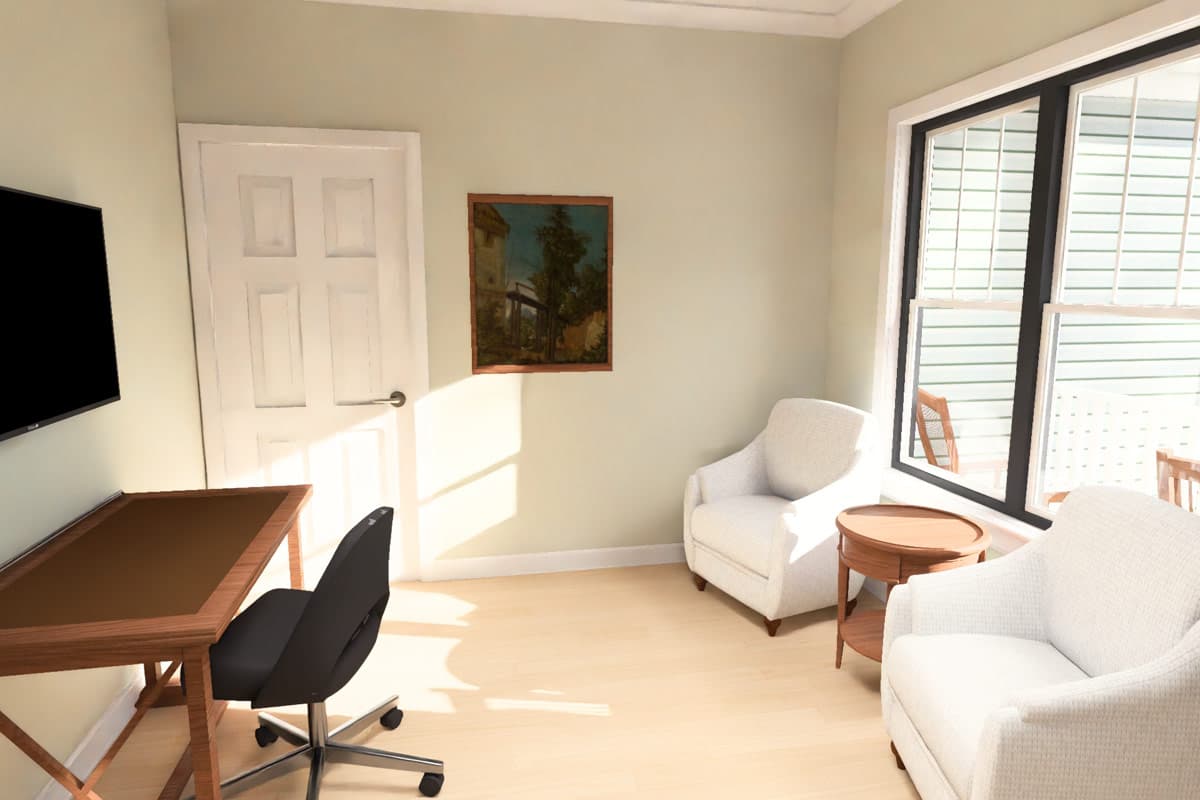

  • Flexibility is built into the design, which includes a dedicated den or home office space perfect for remote work or a quiet reading room.

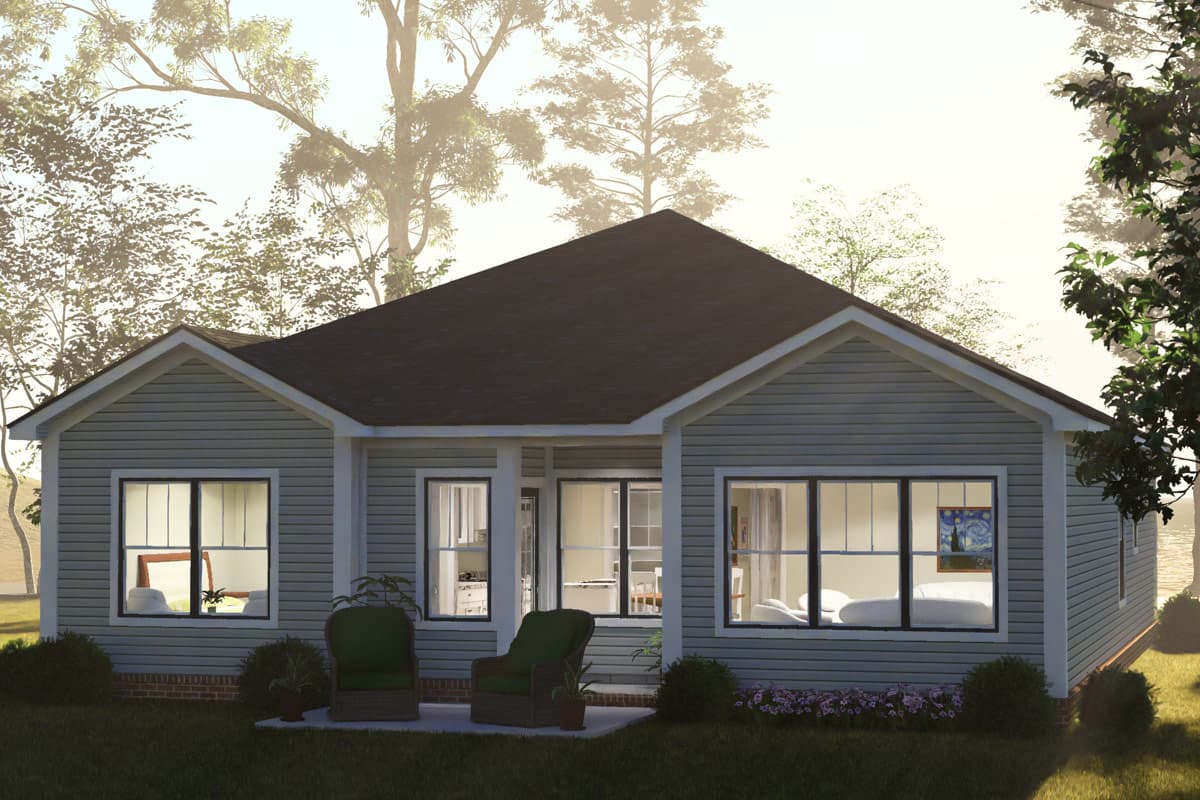

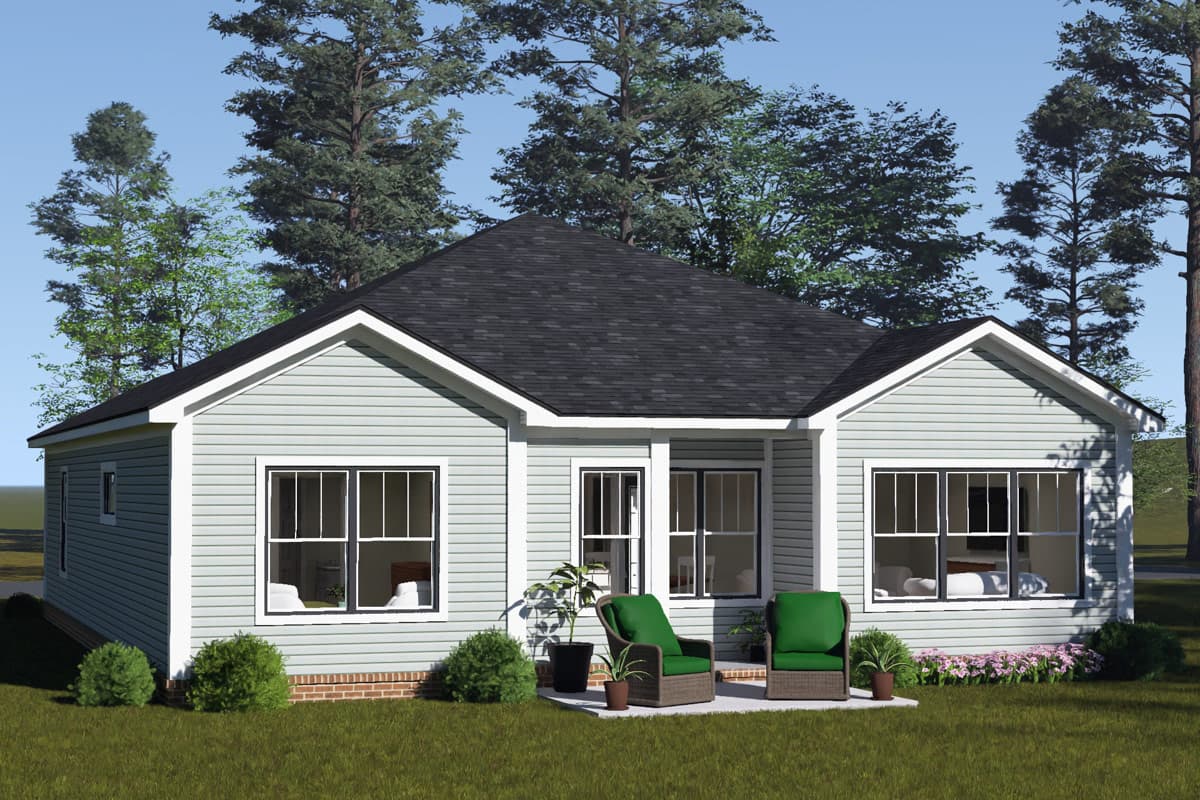

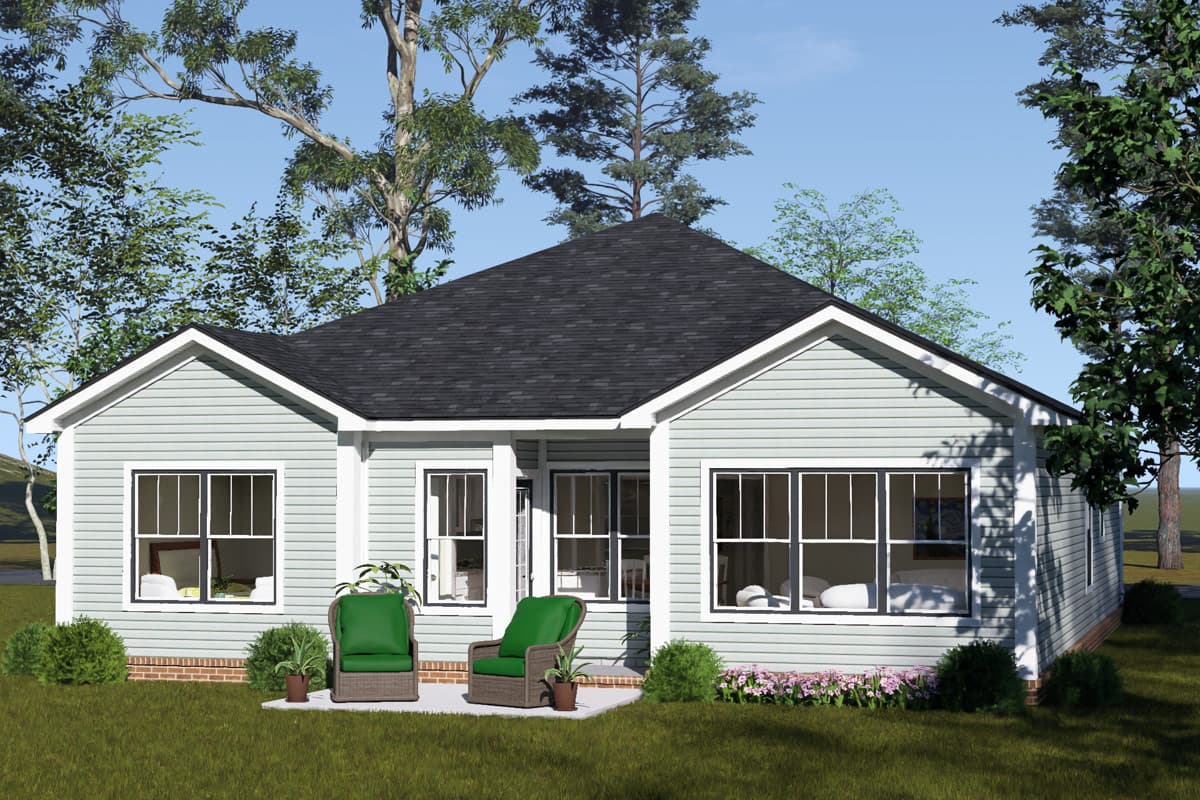

  • Outdoor living is extended through both a welcoming front porch and a private rear porch, ideal for enjoying the backyard scenery.

What's Included

  • Front elevation and construction notes
  • Rear and side elevations
  • Floor plan including electrical, window and door sizes, floor joist span direction and ceiling type notes (9' ceiling, vault, etc.)
  • Second floor plan (if applicable) with the same details as the first level floor plan
  • Typical wall section
  • Typical foundation details
  • Roof plan showing roof pitches, ridges and valleys, noted as 2" x 8" rafter or optional roof trusses
  • Foundation plan
  • Full building section
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Price Guarantee

Explore the costs

Discover the cost to build & furnish this home.

Need a modified version?

Get a free quote within 3 business days.

Square Footage Breakdown

Total Heated Area

1,370 sq. ft.

1st Floor

1,370 sq. ft.

Porch, Front

51 sq. ft.

Porch, Rear

22 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

36' 0"

Depth

49' 8"

Max Ridge Height

18' 6"

Garage

Type

Standard, Attached

Area

250 sq. ft.

Count

1 Cars

Entry Location

Front

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Split

Den

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections

Unlimited Build License
