Craftsman House Plan with Two Master Suites

Plan 60691ND

  • 3,734

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Stories

  • 3

    Cars

  • Have your choice of a first floor or lower level master suite in this exciting Craftsman house plan. Or use the lower level master as an in-law suite.
  • Splendidly detailed inside, the vaulted and beamed great room extends over 45' wide to include the dining area and kitchen.
  • A huge expanse of covered outdoor space wraps around the house with more on the lower level.
  • The spacious first floor master has a door to the deck while the lower level master has a door to the covered patio underneath it.
  • The lower level game room comes complete with a wet bar for entertaining and a windowless safe room for shelter from storms.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

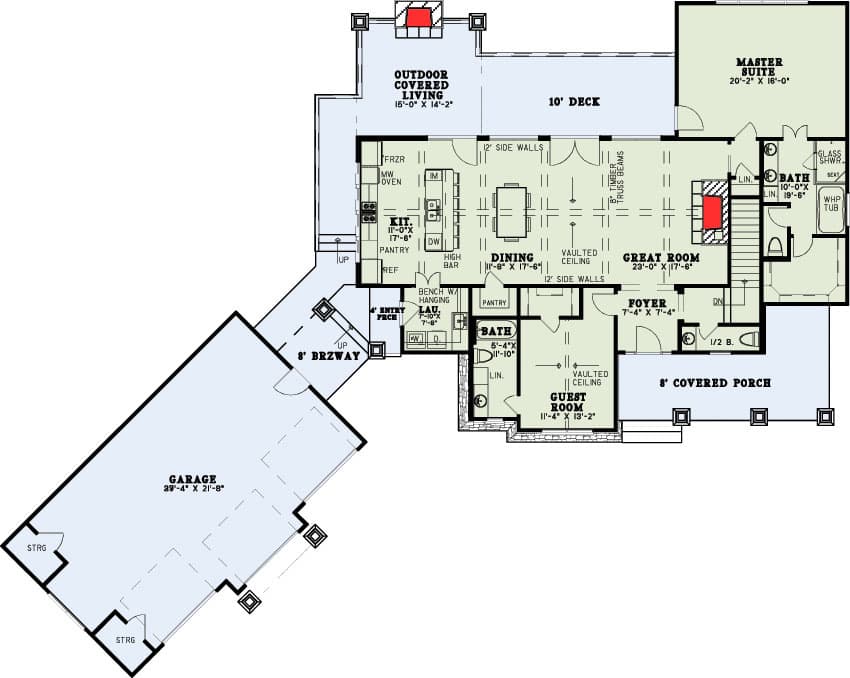

Craftsman House Plan with Two Master Suites - 60691ND floor plan - Main Level

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

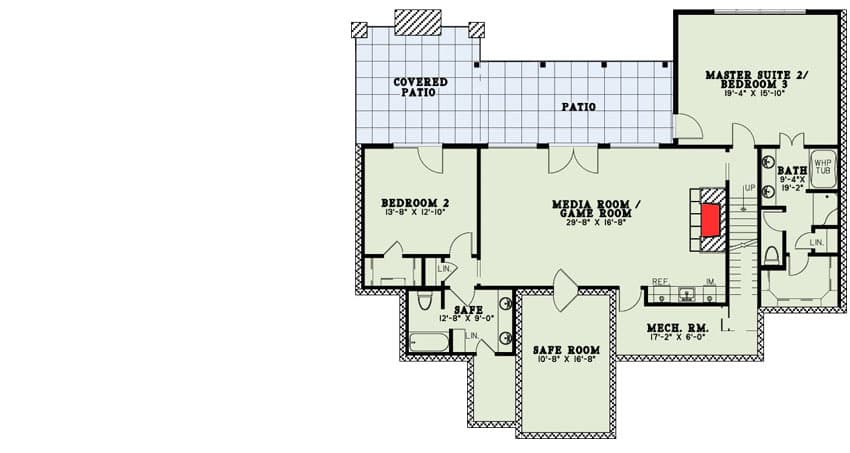

Craftsman House Plan with Two Master Suites - 60691ND floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,734 sq. ft.
  • Lower Level: 1,848 sq. ft.
  • 1st Floor: 1,886 sq. ft.
  • Porch, Combined: 797 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Basement, Walkout
  • Optional Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 102' 0"
  • Depth: 79' 3"
  • Max ridge height: 22' 7"

Garage

  • Type: Attached
  • Area: 917 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Great Room Vaulted
Dining Room Vaulted
Kitchen Vaulted
Guest Room Vaulted

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Craftsman House Plan with Two Master Suites

  • 3,734

    Heated s.f.

  • 4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,650
  • 5 Sets $1,750
  • 5 Sets + PDF $2,000
  • PDF - Unlimited Build $2,350
  • CAD Unlimited + PDF $3,300
  • View all purchase option online

About This Plan

  • Have your choice of a first floor or lower level master suite in this exciting Craftsman house plan. Or use the lower level master as an in-law suite.
  • Splendidly detailed inside, the vaulted and beamed great room extends over 45' wide to include the dining area and kitchen.
  • A huge expanse of covered outdoor space wraps around the house with more on the lower level.
  • The spacious first floor master has a door to the deck while the lower level master has a door to the covered patio underneath it.
  • The lower level game room comes complete with a wet bar for entertaining and a windowless safe room for shelter from storms.

Floor Plans

  • Main Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,734 sq. ft.
  • Lower Level: 1,848 sq. ft.
  • 1st Floor: 1,886 sq. ft.
  • Porch, Combined: 797 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Basement, Walkout
    • Optional Foundations: Daylight

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 102' 0"
  • Depth: 79' 3"
  • Max ridge height: 22' 7"

Garage

  • Type: Attached
  • Area: 917 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
