Plan 28109J

Craftsman House Plan with Two-Story Vaulted Great Room

Heated S.F.
2,768
Beds
4 - 5
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 28109J

Main Level
Main Level
2nd Floor
2nd Floor

Plan 28109J

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 28109J: Craftsman House Plan with Two-Story Vaulted Great Room - Floor Plan - Main Level - Country, Craftsman, Northwest, Traditional

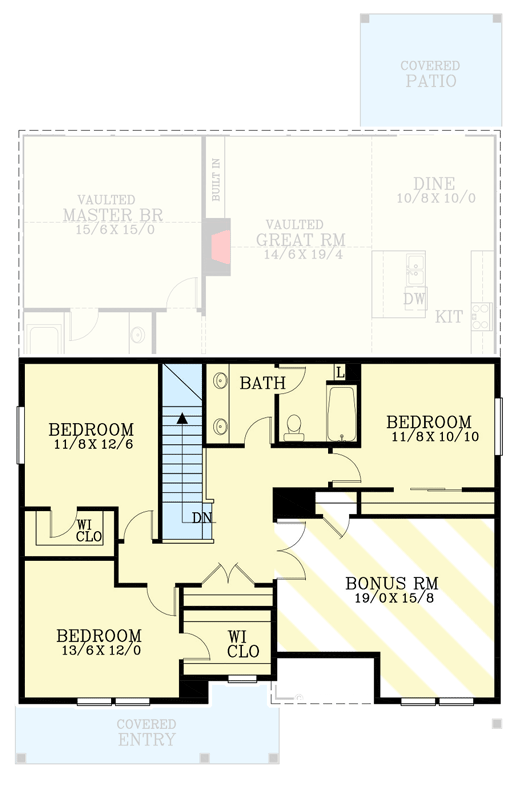

2nd Floor

Plan 28109J: Craftsman House Plan with Two-Story Vaulted Great Room - Floor Plan - 2nd Floor - Country, Craftsman, Northwest, Traditional

Plan Details

  • This 5 bed, 2.5 bath house plan has clapboard siding with shingle accents in the gable peaks and gives you 2,768 square feet of heated living area.
  • Inside, a combination of coffered and vaulted ceilings add an element of surprise overhead, while the open communal spaces enjoy the warmth of a fireplace and easy access to a covered patio.
  • French doors near the foyer reveal a study or guest bedroom.
  • The master bedroom is conveniently located on the main level and includes a 5-fixture bathroom and walk-in closet.
  • Upstairs, three bedrooms share a hall bathroom and a bonus room gives you additional flexibility.
  • Related Plans: Get an alternate version with house plans 28034J (2,526 sq ft.) and 28108J (2,037 sq. ft.).

What's Included

  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Wall section

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,768 sq. ft.

1st Floor

1,605 sq. ft.

2nd Floor

1,163 sq. ft.

Porch, Front

125 sq. ft.

Porch, Rear

120 sq. ft.

Covered Patio

120 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

50' 0"

Max Ridge Height

39' 3"

Garage

Type

Attached

Area

505 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Room

Ceiling Type

Height

Master Bedroom

9' 0''

Great Room

9' 0''

Roof Details

Primary Pitch

12 on 6

Secondary Pitch

12 on 10

Framing Type

Truss

Architectural Style

Country

Craftsman

Northwest

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Den

Flex Room

Home Office

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Optionally Finished Bonus Room

Two Story Great Room

Plan Collections
