Craftsman One Car Garage House Plan

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
1

Floor Plan

Plan 83684CRW

Floor Plan 1

Plan 83684CRW

M-F 9am-5pm EST |

1-203-761-8500

Plan 83684CRW: Craftsman One Car Garage House Plan - Floor Plan - - Craftsman, Traditional

Plan Details

  • This sleek craftsman one-car garage offers 258 square feet of versatile space.
  • A spacious front-entry garage door provides convenient access for vehicle storage or a dedicated workshop area.
  • With a generous 9-foot ceiling height, the interior provides ample vertical clearance for projects, shelving, or overhead storage solutions.
  • The structure is built on a sturdy slab foundation, ensuring durability and ease of maintenance for your property needs.

What's Included

  • Cover sheet with rendering
  • Foundation plan with details

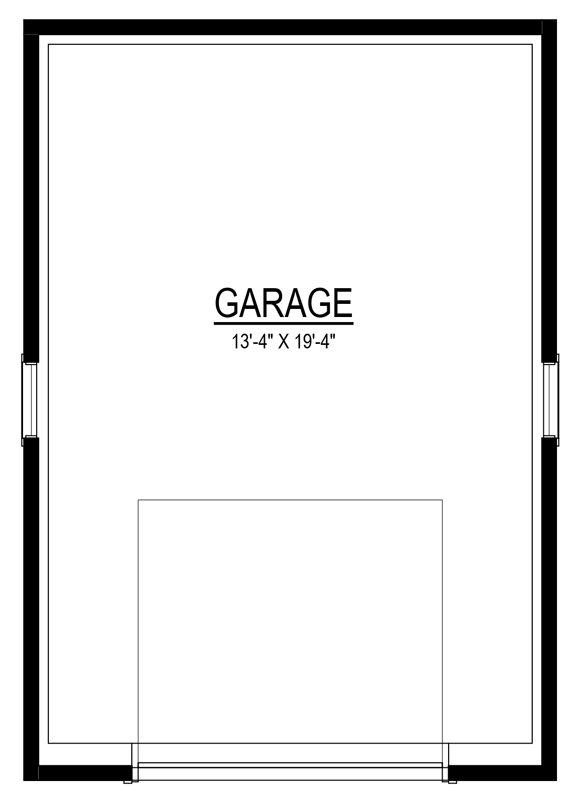

  • Detailed floor plan(s) (includes window & door sizes, plumbing fixture locations, detail notes, etc.)
  • Roof plan (birds eye view of roof with overhang/truss heel notes)

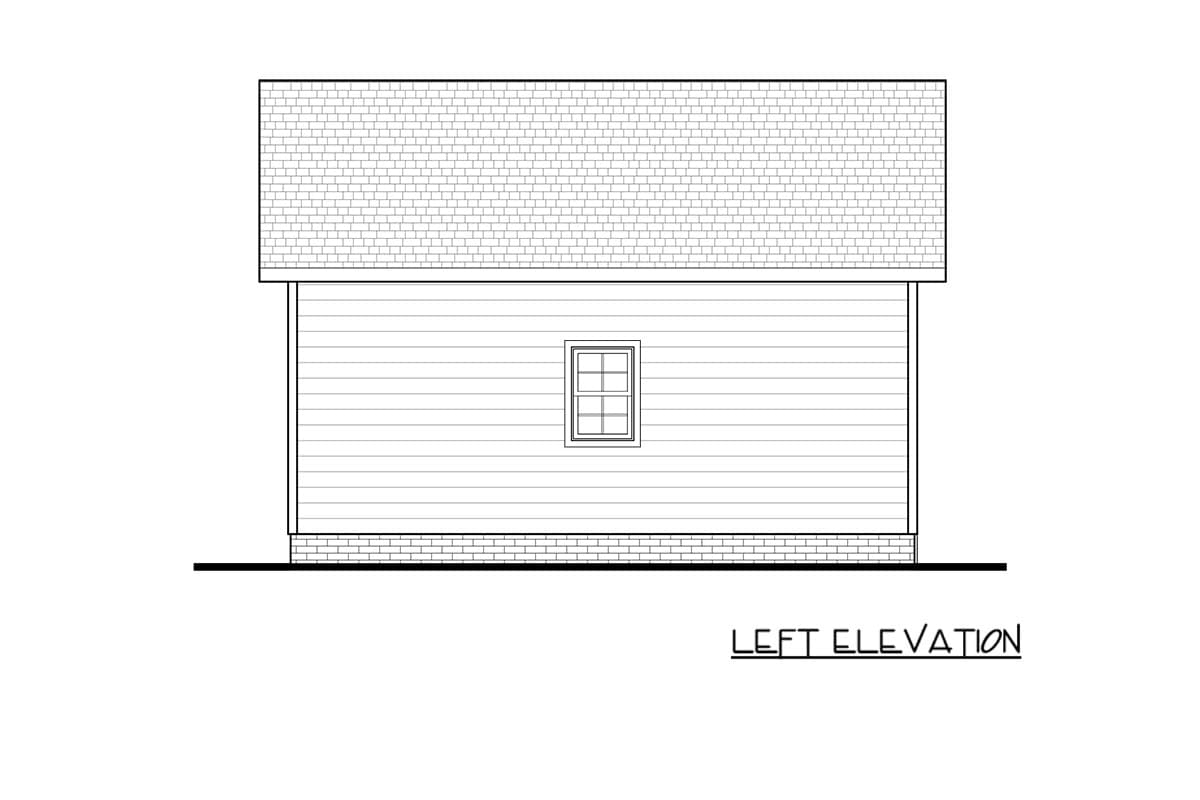

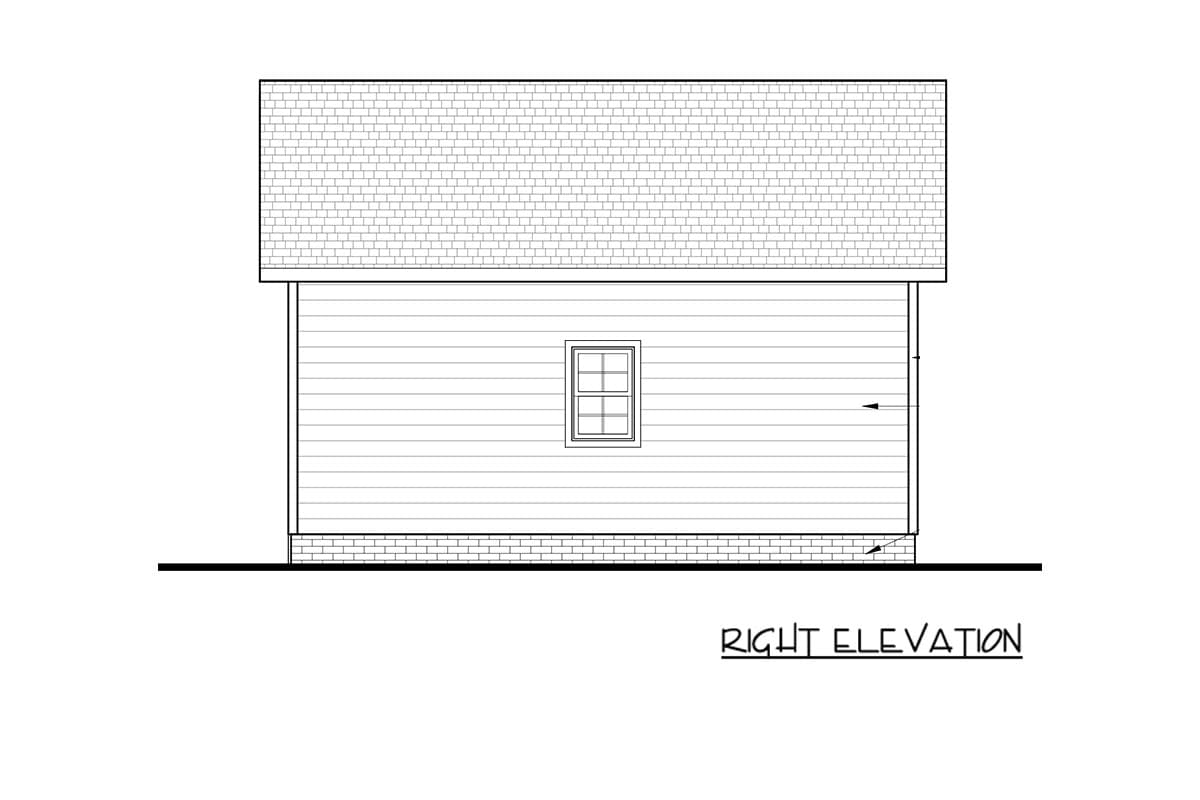

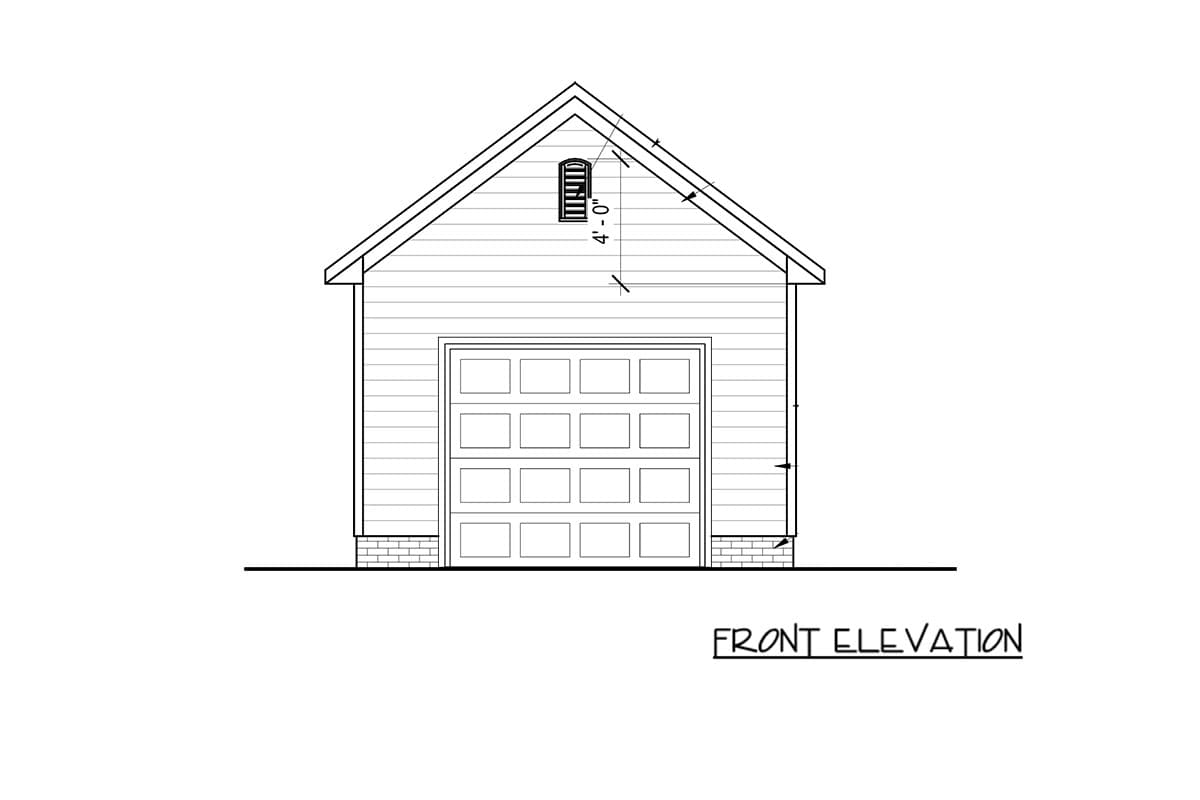

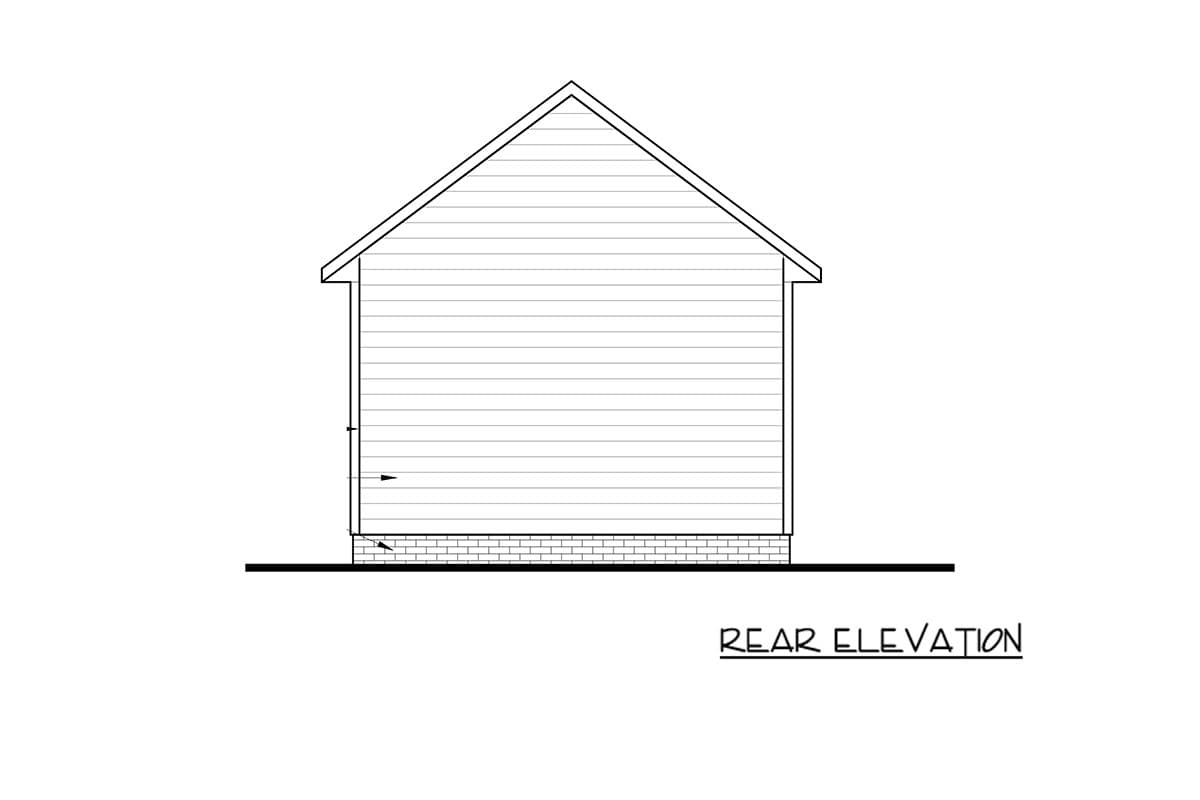

  • Four exterior views (front, rear, right, left)
  • Building section with Kitchen plan and misc. notes
  • Typical Wall Section
  • Some plans include a suggested electrical layout.
  • Please contact us for a specific plan's sheet index.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require.

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

14' 0"

Depth

20' 0"

Garage

Area

258 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

14' 0"

Depth

20' 0"

Garage

Area

258 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Craftsman

Traditional
