Craftsman Ranch Home Plan

Heated S.F.
2,320
Beds
3
Baths
2.5
Stories
1-2
Cars
2

Floor Plan

Plan 72686DA

Main Level
Main Level
Bonus
Bonus

Plan 72686DA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

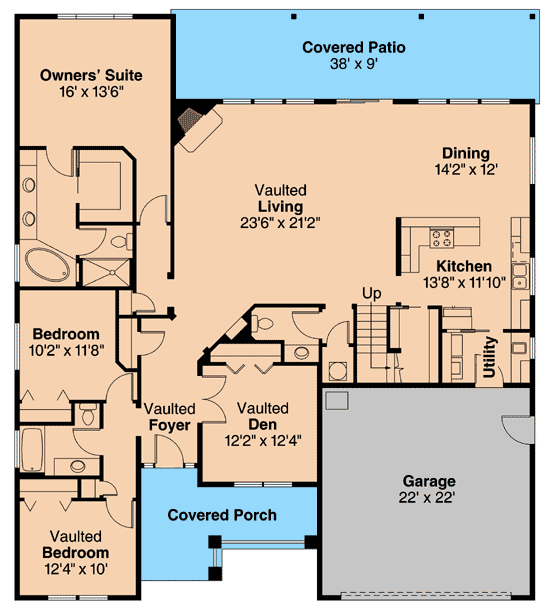

Plan 72686DA: Craftsman Ranch Home Plan - Floor Plan - Main Level - Craftsman, Northwest

Bonus

Plan 72686DA: Craftsman Ranch Home Plan - Floor Plan - Bonus - Craftsman, Northwest

Plan Details

  • Textured shake siding lends its eye-catching appeal to the front faзade of this updated Craftsman-style cottage.
  • Windows and a corner fireplace fill most of the rear wall in the vaulted living room, which is fully open to a richly glassed dining room.
  • Even the den is vaulted to expand the feel of the room.
  • Owners' suite amenities include a roomy walk-in closet, deep soaking tub and double vanity.
  • A bonus room over the garage offers even more space.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

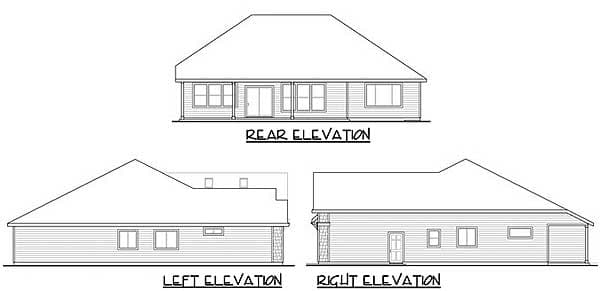

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,320 sq. ft.

1st Floor

2,320 sq. ft.

Bonus

299 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 0"

Depth

62' 0"

Max Ridge Height

24' 5"

Garage

Type

Attached

Area

512 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Den

Master Suite - 1st Floor

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

2,320 sq. ft.

1st Floor

2,320 sq. ft.

Bonus

299 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

55' 0"

Depth

62' 0"

Max Ridge Height

24' 5"

Garage

Type

Attached

Area

512 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Den

Master Suite - 1st Floor

Optionally Finished Bonus Room
