Plan 68508VR Craftsman Ranch Home Plan With Vaulted Interior

Craftsman Ranch Home Plan With Vaulted Interior

Plan 68508VR

  • 1,321

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Step in off the covered entry porch and enter the vaulted interior of this 3-bed Craftsman ranch home plan.
  • The family room flows into the kitchen and dining area and a fireplace adds an accent to the left wall.
  • A door in back opens to a rear deck.
  • The bedrooms are cluster on the left side of the home. The family bedrooms share a hall bath and the master suite has its own bath and walk-in closet.

This plan set has the following details:

Cover Page

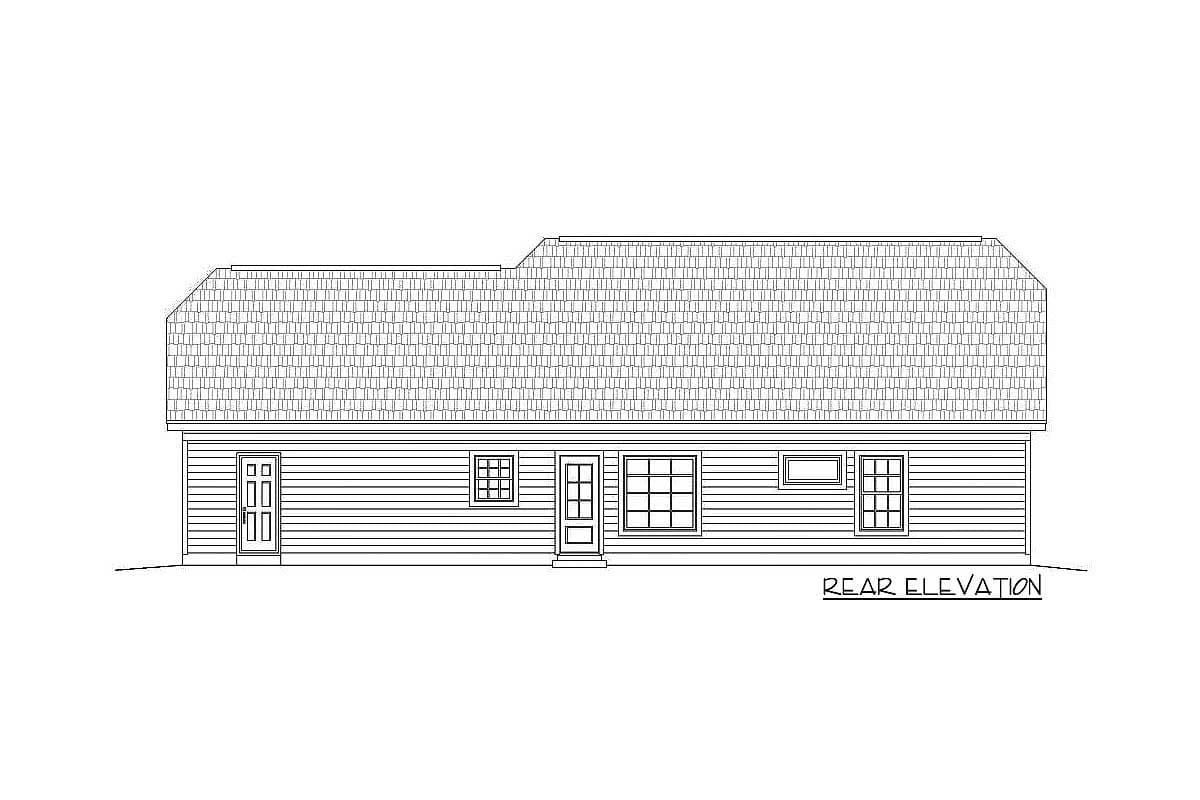

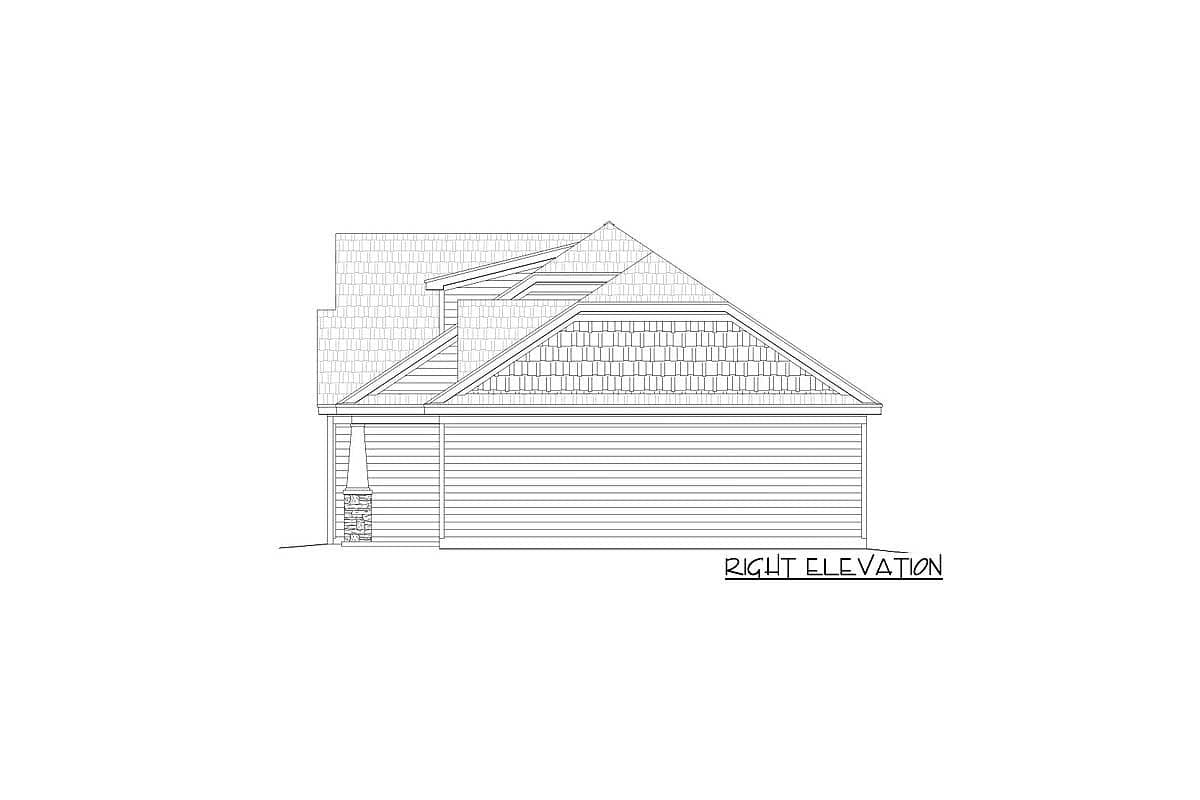

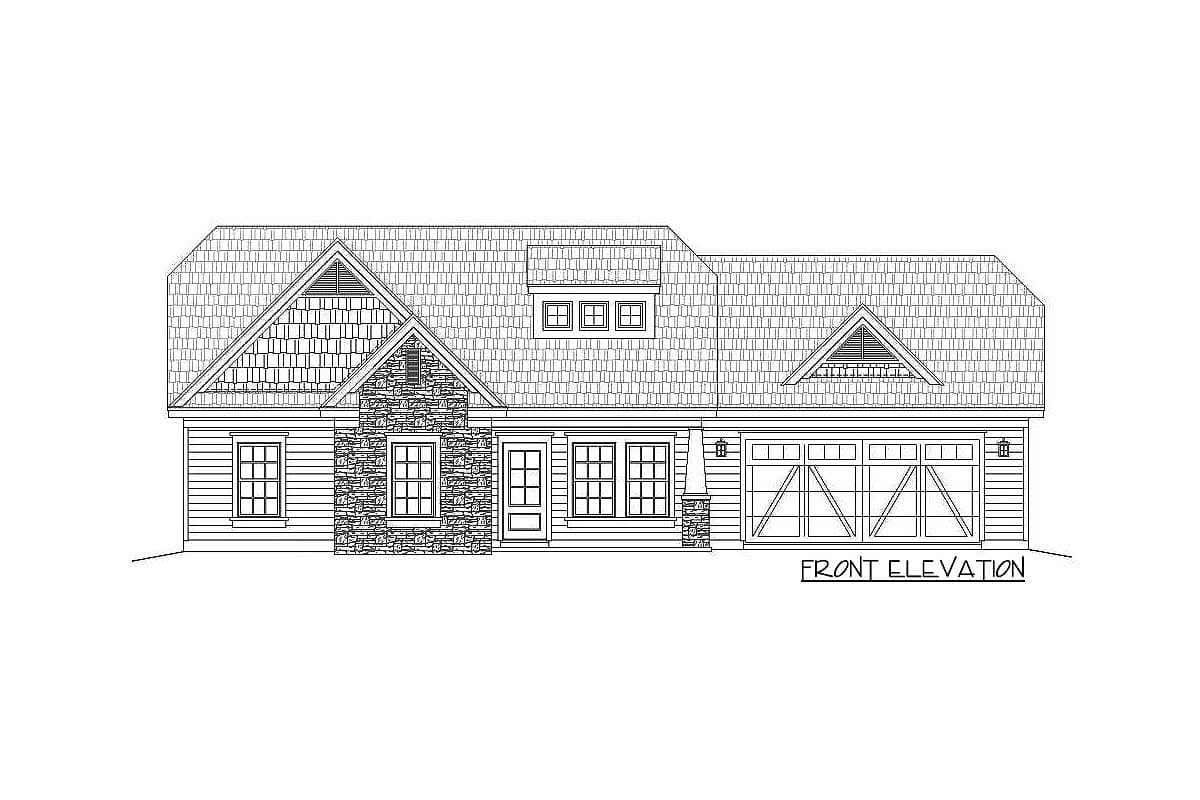

At least 4 exterior elevations

Floor plans

Foundation Plan (with no specifications of structural elements)

Roof Plan (with no specifications of structural elements)

Electrical plans for each floor plan

Typical Wall sections

Floor framing plans (It shows the framing information, regarding size and directions.  There is not a framing diagram)

Cross Sections

‘Some’ interior details/ elevations, such as cabinet elevations

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required


Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

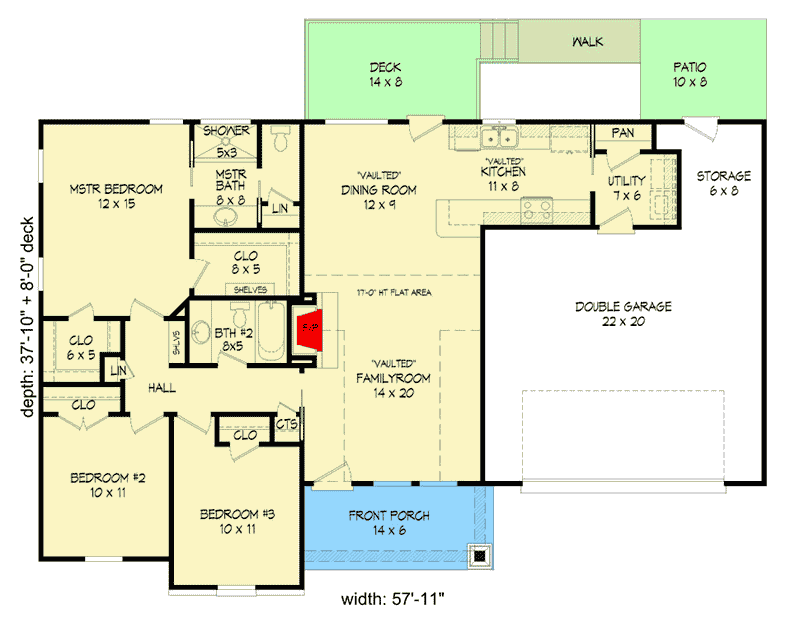

Craftsman Ranch Home Plan With Vaulted Interior - 68508VR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Craftsman Ranch Home Plan With Vaulted Interior - 68508VR floor plan - Optional

Plan details

Craftsman Ranch Home Plan With Vaulted Interior

  • 1,321

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Study Set – Digital $600
  • PDF - Single-Build $795
  • 5 Sets $895
  • 5 Sets + PDF $920
  • CAD - Single-Build $1,295
  • View all purchase option online

About This Plan

  • Step in off the covered entry porch and enter the vaulted interior of this 3-bed Craftsman ranch home plan.
  • The family room flows into the kitchen and dining area and a fireplace adds an accent to the left wall.
  • A door in back opens to a rear deck.
  • The bedrooms are cluster on the left side of the home. The family bedrooms share a hall bath and the master suite has its own bath and walk-in closet.

Floor Plans

  • Main Level

  • Optional

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,321 sq. ft.
  • 1st Floor: 1,321 sq. ft.
  • Deck & Porch: 292 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 57' 11"
  • Depth: 45' 10"
  • Max ridge height: 21' 6"

Garage

  • Type: Attached
  • Area: 520 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Framing Type: Stick
