Plan 890023AH
Craftsman Ranch House Plan
Heated S.F.
2,495
Beds
2
Baths
2.5
Stories
1
Cars
3
Videos
What's Included
Plan Details
  • Rustic wood trim tops each of the five front gables and the rear gable of this handsome Craftsman house plan.
  • Interior columns inside keep the sightlines open between rooms.
  • You can close off the hearth room with double doors to keep the noise down.
  • A two-way fireplace warms both the dining room and the great room with its gorgeous coffered ceiling.
  • The two bedrooms are split apart with the guest bedroom in front and the large master suite in back.
  • Pocket doors in the master walk-in closet open directly into the laundry room - a wonderful convenience.
What's Included

Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Craftsman Ranch House Plan

  • 2,495

    Heated s.f.

  • 2

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

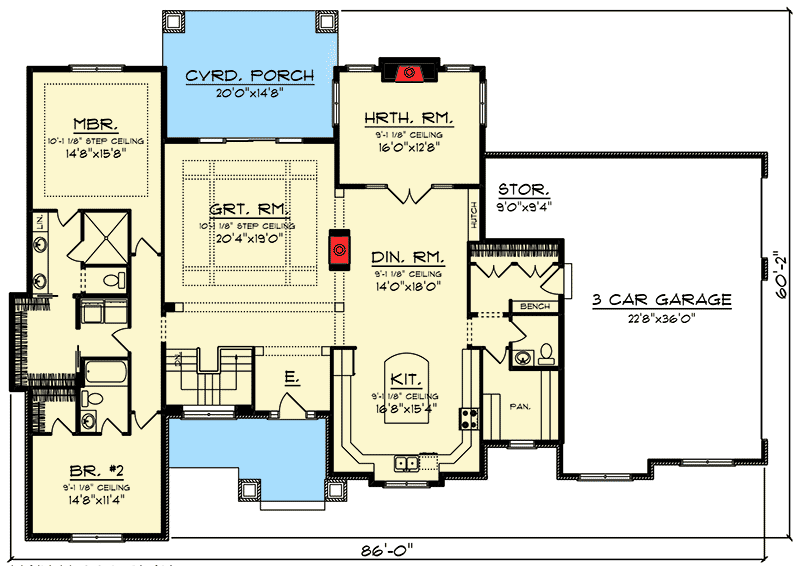

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,495 sq. ft.
  • 1st Floor: 2,495 sq. ft.

Dimensions

  • Width: 86' 0"
  • Depth: 60' 2"
  • Max ridge height: 26' 3"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 910 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
