Plan 444210GDN

Craftsman Ranch-style House Plan Under 50 Feet Wide with Multi-Level Bonus Room

Name: Plan 444210GDN: Craftsman Ranch-style House Plan Under 50 Feet Wide with Multi-Level Bonus Room
Brand: Architectural Designs
SKU: 444210GDN
Price: 1625.0 USD
Availability: InStock

Heated S.F.

2,108

Beds

Baths

Stories

Cars

Floor Plan

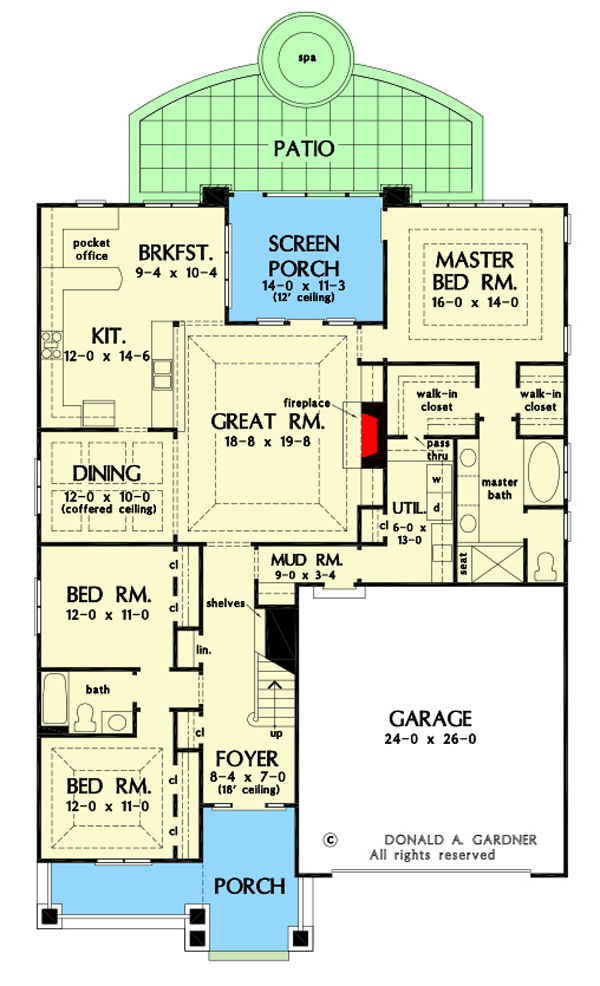

Main Level

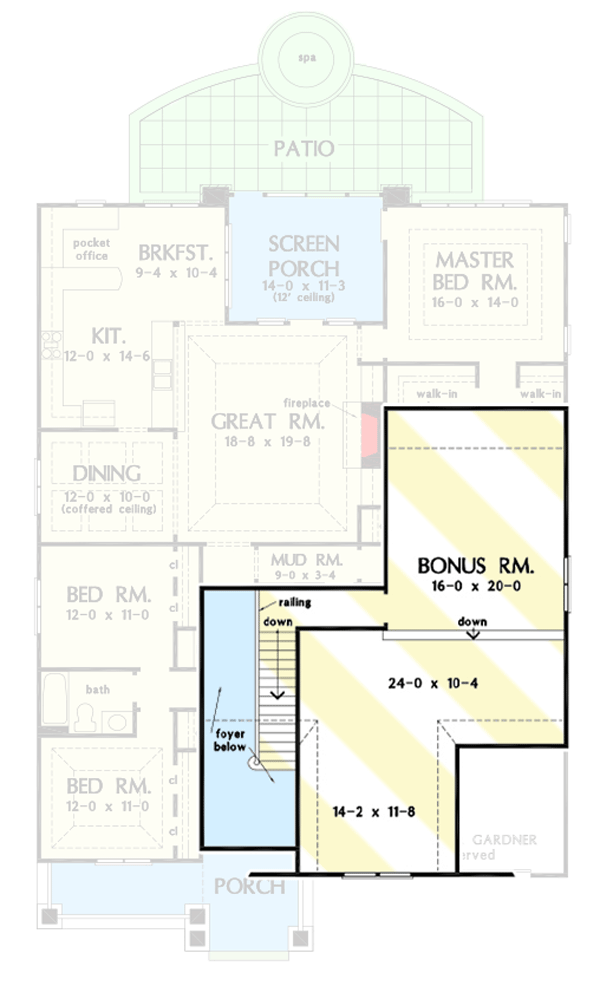

Bonus Room

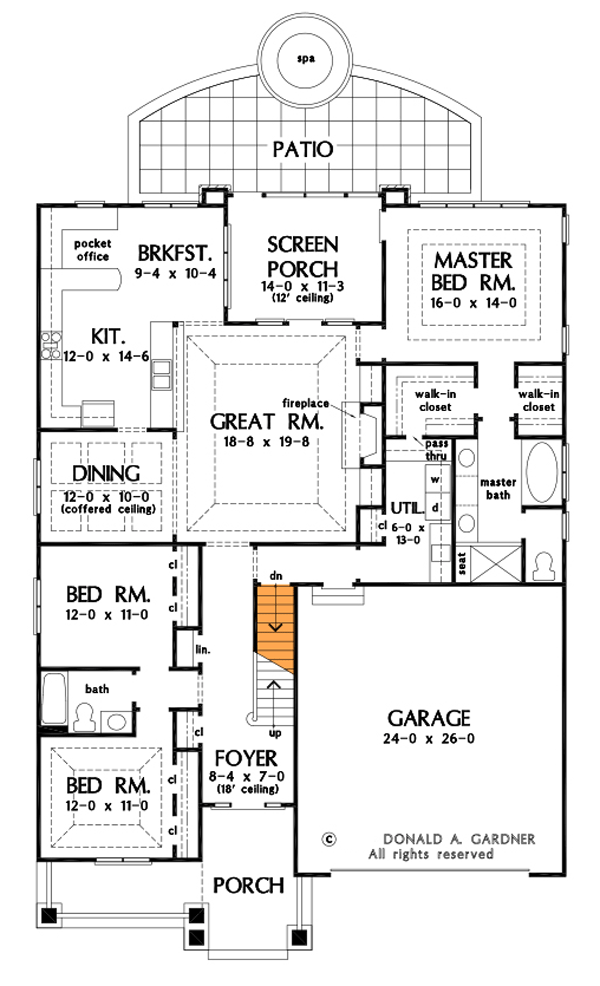

Basement Stair Location

Plan Details

This Craftsman styled ranch house plan includes many luxurious details in a small package at just under 50 feet wide. A 6' deep (and 25' wide) front porch adds to the curb appeal.
The dining room with elegant coffered ceiling is open to the great room and convenient to the spacious kitchen. A thoughtful pass-through from the kitchen to the great room with 14'6" tray ceiling emphasizes the open floor plan and ensures flow from room to room.
The master bedroom is topped with a 10'5" tray ceiling and includes unique attributes such as a pass-through from one of the walk-in closets to the utility room and access to the screened porch.
At the entrance from the garage is the mudroom and a utility room with a handy closet.
Upstairs, an enormous multi-level bonus space gives you 778 square feet of expansion space.

What's Included

Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
