Craftsman RV Garage

Plan 20131GA

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 3

    Cars

  • Stone, shakes and decorative wood trim give this garage plan a handsome exterior.
  • There are two garage bays for automobiles and a huge 16' high bay for your RV.
  • The RV bay has a work bench and storage at the back.
  • A man door off the 2 car bay leads to a patio.

Each plan set includes the following:

  •  Digital exterior rendering cover page
  •  Exterior elevation page
  •  Main floor plan page with electrical, 3-D floor plan, and window and door schedule
  •  Upper level floor plan page with upper floor framing schematic, and 3-D floor plan
  •  Cross sections and interior elevation page
  •  Roof framing plan with 3-D roof framing schematic
  •  IRC code specifications and methodologies
  •  General construction details

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

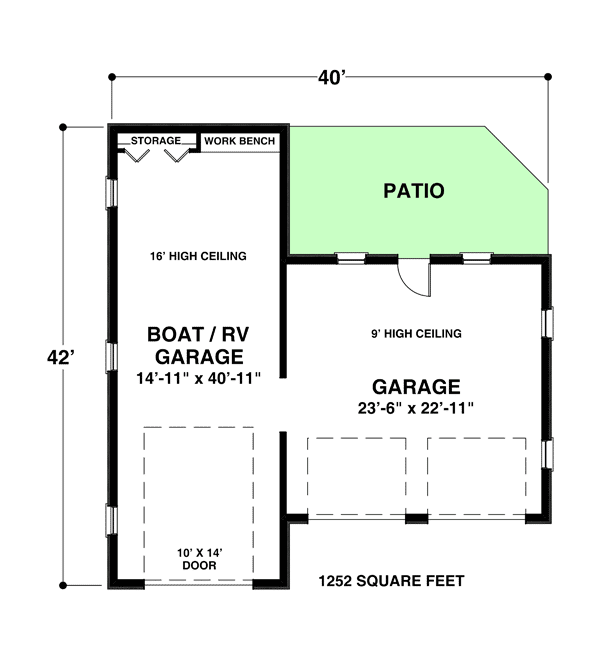

Craftsman RV Garage - 20131GA floor plan - Main Level

Craftsman RV Garage

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 0 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 42' 0"

Beds/Baths

  • Bedrooms: 0

Garage

  • Type: Detached, RV Garage
  • Area: 1252 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6
