Plan 42475DB

Craftsman Split-Level House Plan with Main Floor Master and Two-Car Garage

Heated S.F.
1,786
Beds
3
Baths
2.5
Stories
1
Cars
2

Floor Plan

Plan 42475DB

Main Level
Main Level
Lower Level
Lower Level

Plan 42475DB

M-F 9am-5pm EST |

1-203-761-8500

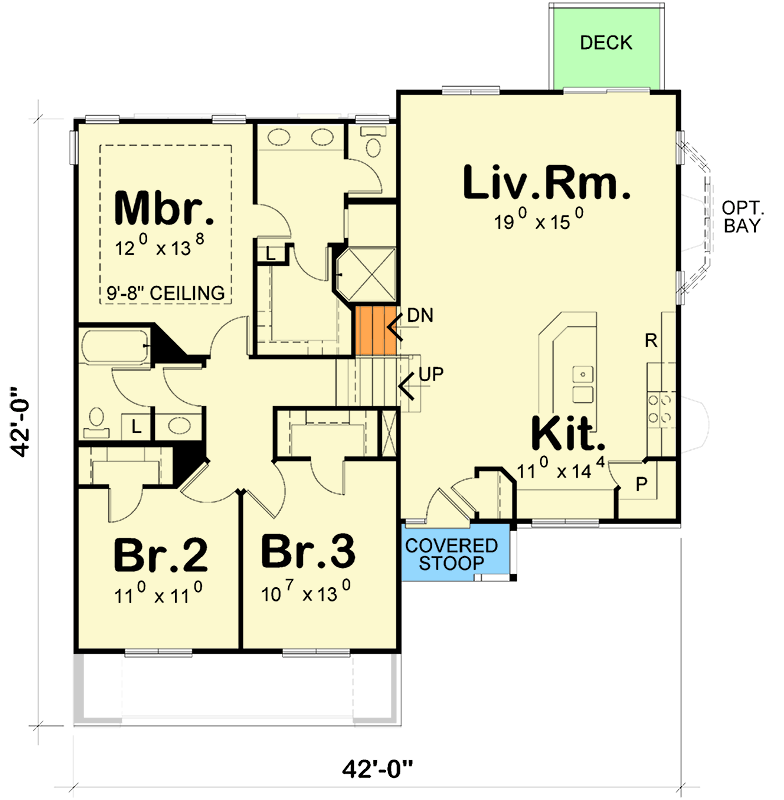

Main Level

Plan 42475DB: Craftsman Split-Level House Plan with Main Floor Master and Two-Car Garage - Floor Plan - Main Level - Craftsman, Traditional

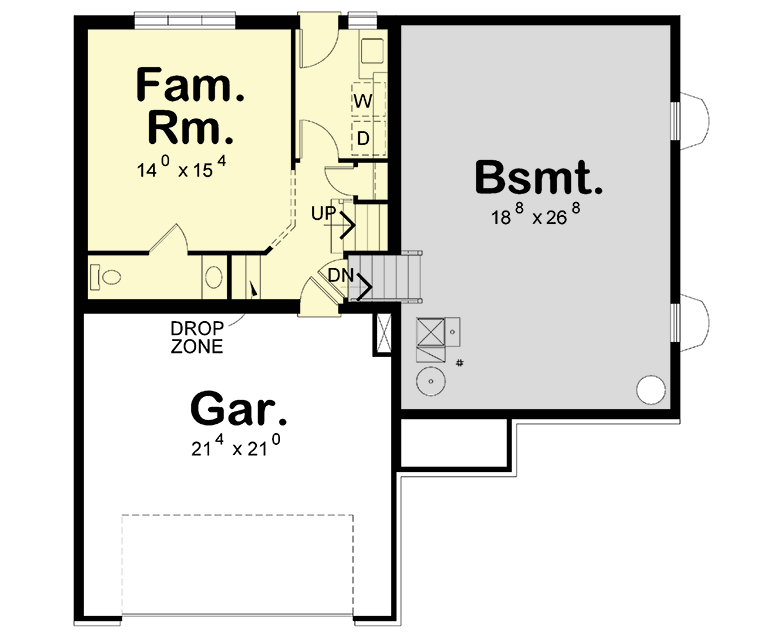

Lower Level

Plan 42475DB: Craftsman Split-Level House Plan with Main Floor Master and Two-Car Garage - Floor Plan - Lower Level - Craftsman, Traditional

Plan Details

  • This 1,786 sq. ft. Craftsman-Traditional split-level house plan features 3 bedrooms, 2.5 bathrooms, and an attached 459 sq. ft. two-car garage.
  • Step inside from the welcoming covered stoop to discover a thoughtfully designed split-level entry, guiding you to the heart of the home. The main living area unfolds into an open-concept layout, seamlessly connecting the kitchen and living room, enhanced by 9-foot ceilings.
  • The expansive living room, bathed in natural light from an optional bay window, flows effortlessly into the modern kitchen, creating an ideal space for daily life and casual gatherings. The kitchen boasts ample counter space and an efficient layout for culinary pursuits.
  • Retreat to the luxurious main-floor master suite, offering a private sanctuary with a generous layout and a well-appointed private bathroom. Two additional bedrooms are thoughtfully clustered on this level, sharing a full bathroom, ensuring comfort and privacy for family or guests.
  • A dedicated lower level provides additional finished space, including a convenient laundry area, ensuring household tasks are kept out of sight from the main living areas.
  • A charming covered stoop provides a welcoming entry, while a private deck extends from the living room, offering an inviting outdoor retreat for morning coffee or evening relaxation.

What's Included

  • General Notes

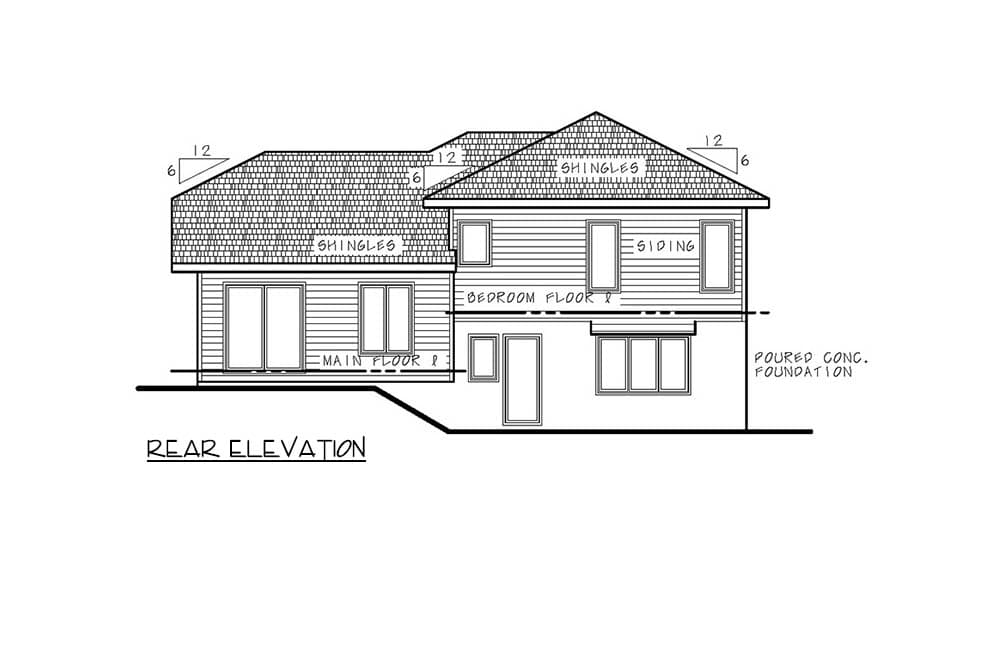

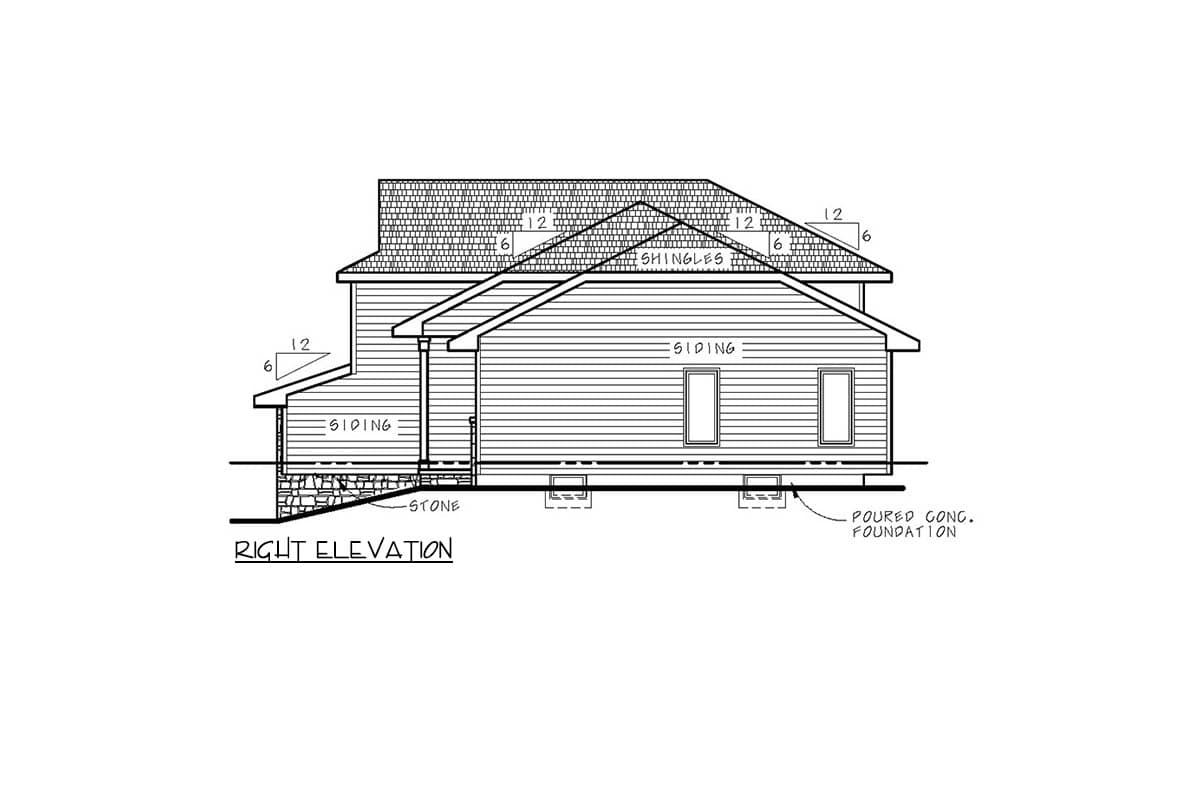

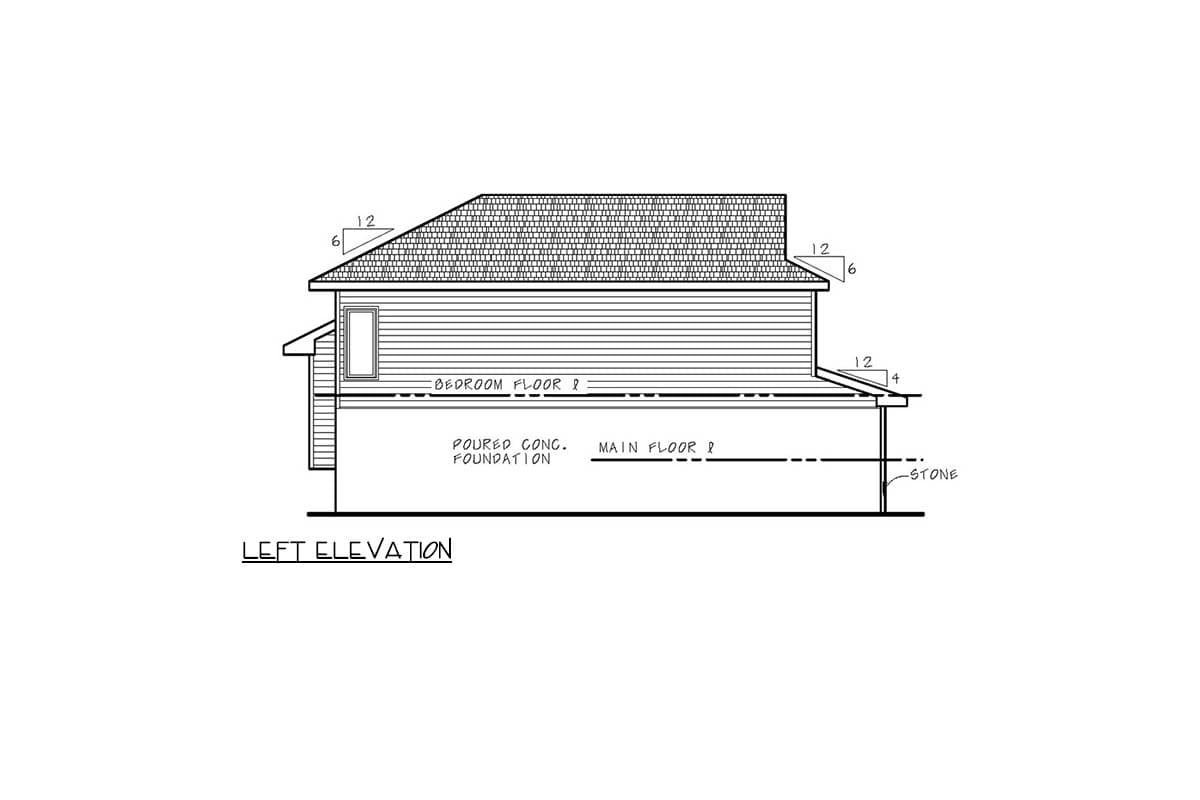

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,786 sq. ft.

Lower Level

367 sq. ft.

1st Floor

1,419 sq. ft.

Basement Unfinished

475 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

42' 0"

Garage

Type

Standard, Attached

Area

459 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Clustered

Laundry - Lower Level

Master Suite - 1st Floor

Split Level

Square Footage Breakdown

Total Heated Area

1,786 sq. ft.

Lower Level

367 sq. ft.

1st Floor

1,419 sq. ft.

Basement Unfinished

475 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

42' 0"

Depth

42' 0"

Garage

Type

Standard, Attached

Area

459 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Craftsman

Traditional

Special Features

Bedrooms - Clustered

Laundry - Lower Level

Master Suite - 1st Floor

Split Level
