Plan 29913RL Craftsman Style 3-Car Detached Garage with 790 Square Feet of Parking

0 1 3
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Craftsman Style 3-Car Detached Garage with 790 Square Feet of Parking

Plan 29913RL

  • 0

    Heated s.f.

  • 1

    Stories

  • 3

    Cars

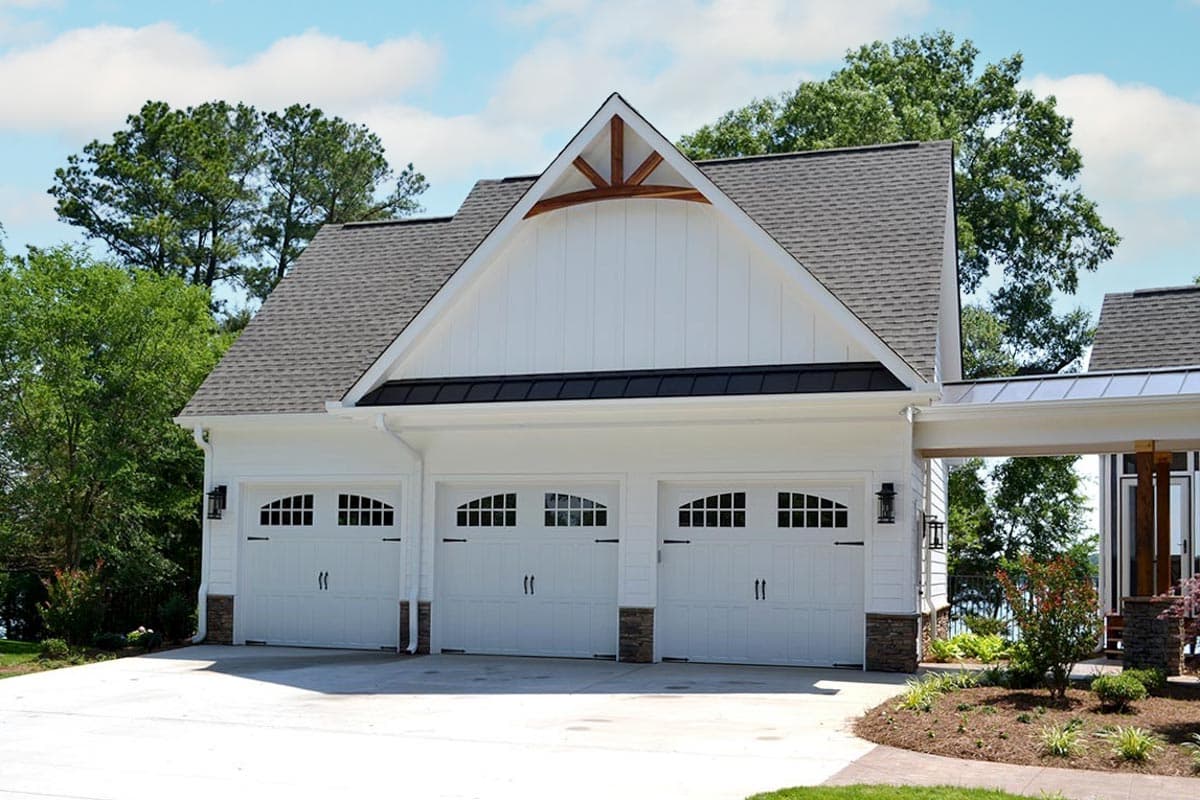

  • This Craftsman-style, detached or stand alone 3-car garage has three matching garage doors in front with an attractive gable over the second and third bays with a decorative bracket at the peak.
  • The garage plan delivers 790 square feet of parking space inside with just two supports keeping the entire space from being wide open.
  • A man door is located on the right side.

Each plan set includes the following:

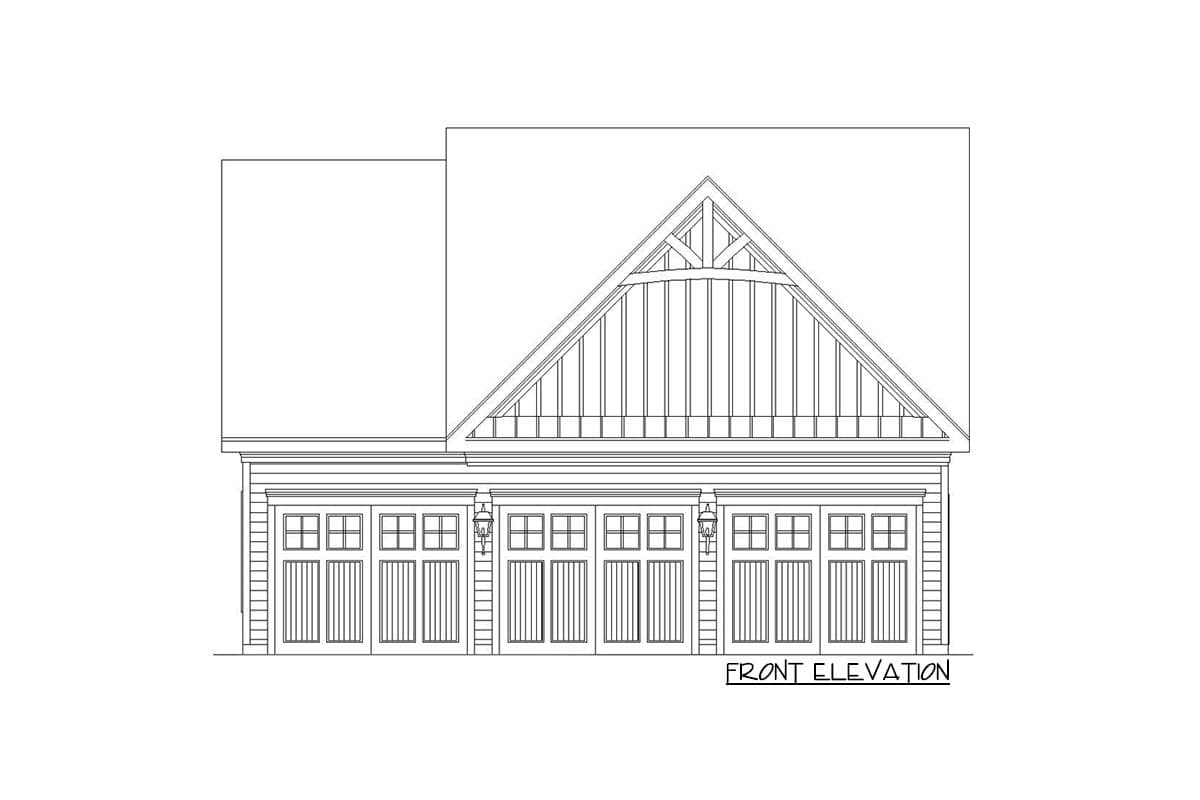

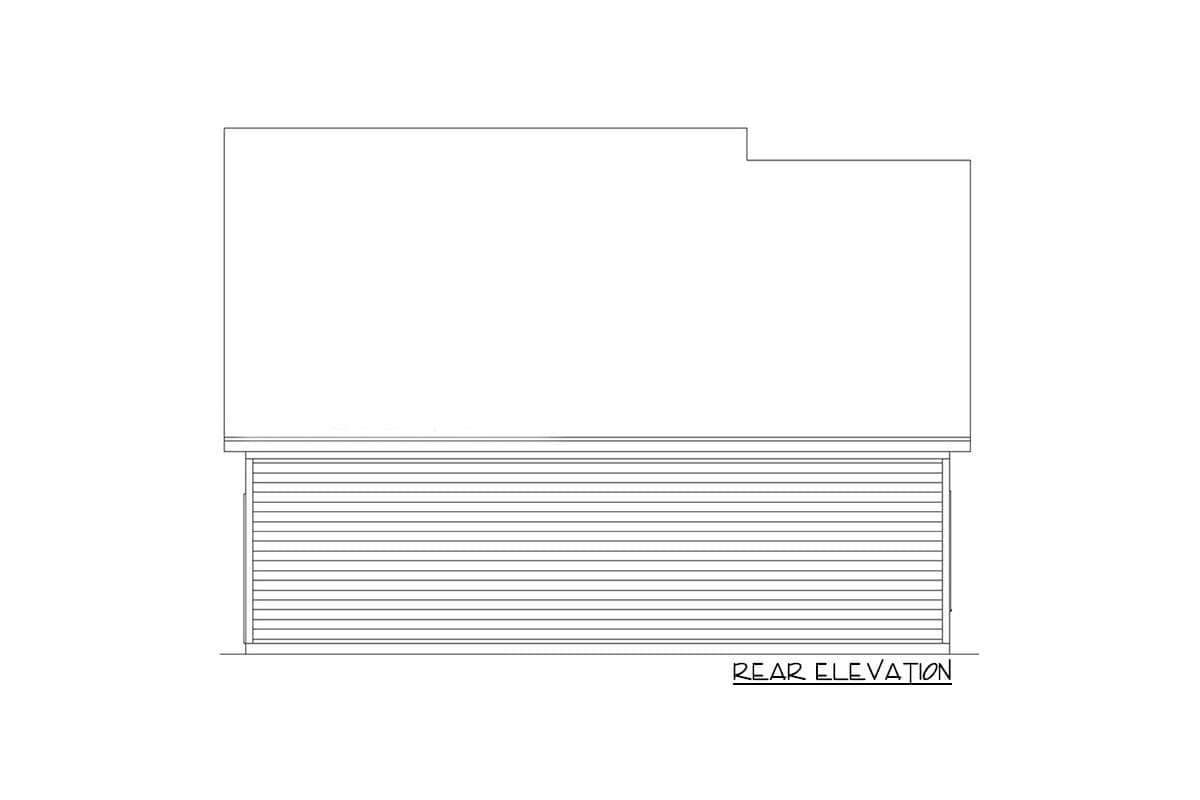

  • All 4 elevations (front, rear, left, right)
  • 2D Roof overview
  • 3D Roof overview
  • Main Level Layout
  • Basement Level Layout
  • Cross-Section
  • Typical Details
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

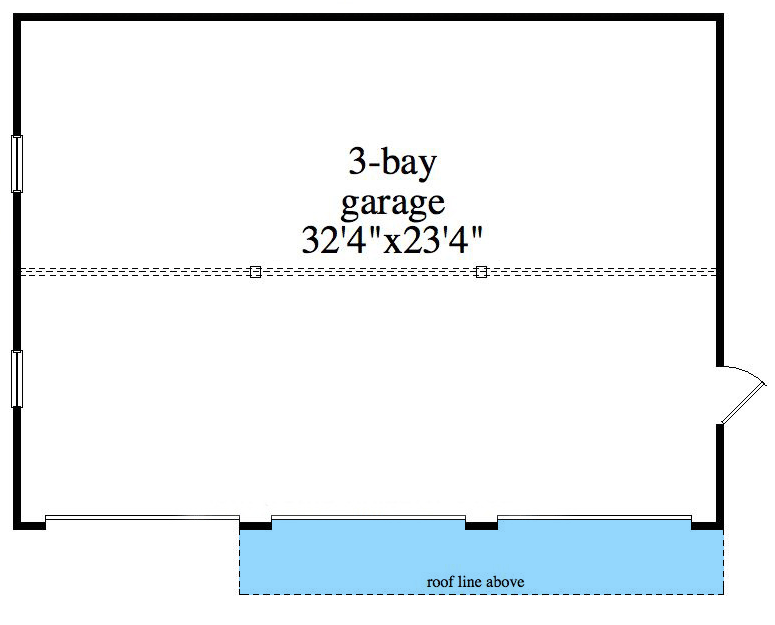

Craftsman Style 3-Car Detached Garage with 790 Square Feet of Parking - 29913RL floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 33' 0"
  • Depth: 24' 0"
  • Max ridge height: 24' 8"

Garage

  • Type: Detached
  • Area: 790 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 1"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick Or Truss

Architectural Style

Plan Collections

Craftsman Style 3-Car Detached Garage with 790 Square Feet of Parking

  • 0

    Heated s.f.

  • Beds

  • 0

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $500
  • 5 Sets + PDF $650
  • PDF - Unlimited Build $800
  • CAD - Single-Build $1,000
  • View all purchase option online

About This Plan

  • This Craftsman-style, detached or stand alone 3-car garage has three matching garage doors in front with an attractive gable over the second and third bays with a decorative bracket at the peak.
  • The garage plan delivers 790 square feet of parking space inside with just two supports keeping the entire space from being wide open.
  • A man door is located on the right side.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 33' 0"
  • Depth: 24' 0"
  • Max ridge height: 24' 8"

Garage

  • Type: Detached
  • Area: 790 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 1"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick Or Truss
Plan 29913RL
View this and more for this plan by visiting www.architechtecturaldesigns.com/29913RL
|
