Plan 36017DK

Craftsman Style Under 2500 Square Feet

Heated S.F.
2,454
Beds
3
Baths
1.5
Stories
2
Cars
2

Floor Plan

Plan 36017DK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 36017DK

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 36017DK: Craftsman Style Under 2500 Square Feet - Floor Plan - Main Level - Craftsman, Northwest

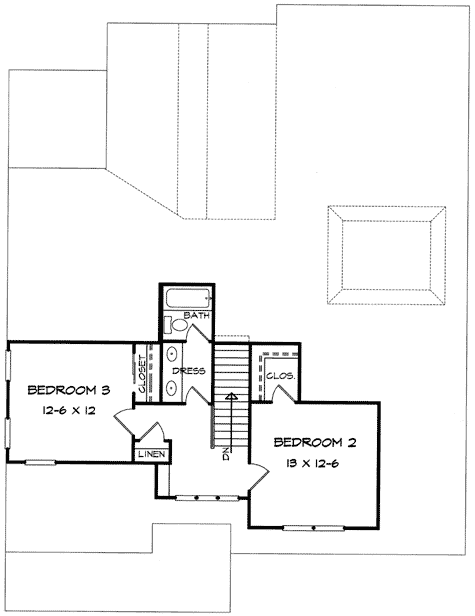

2nd Floor

Plan 36017DK: Craftsman Style Under 2500 Square Feet - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

  • Sturdy columns support the wide front porch of this Craftsman home plan with charming details.
  • The large kitchen is placed between the breakfast nook and the formal dining room with columns.
  • A walk-in pantry has all the space you need for storage.
  • Vaulted ceilings in the family room make the space seem huge and a fireplace will warm your nights.
  • Tray ceilings add elegance to the first floor master suite with its twin walk-in closets
  • Two bedrooms on the second floor share a hall bath.

What's Included

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,454 sq. ft.

1st Floor

1,868 sq. ft.

2nd Floor

586 sq. ft.

Porch, Front

243 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

47' 0"

Depth

62' 0"

Max Ridge Height

30' 6"

Garage

Type

Attached

Area

468 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Breakfast Nook

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Walk-in Pantry
