Craftsman with Lower level

Plan 89807AH

  • 2,942

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • This Craftsman style home plan features stone and shingle siding with a column front porch (22'4" by 14') that's perfect for that swing you've always wanted.
  • A vaulted ceiling draws you into the home where you'll find a den with French doors to your left and a half bath to your right.
  • Directly ahead, the great room with fireplace and built-in cabinets overlooks the stairwell leading to the lower level.
  • The kitchen to the right includes a breakfast bar that overlooks the dining area and sunroom.
  • The master suite is found at the back left of the home where a corner Jacuzzi tub is perfect after a long day at work.
  • The master closet is 5'-10"x 5'-11".
  • The lower level with a recreation room that's spacious enough for the kids to stretch out without disturbing mom and dad, also includes two additional bedrooms a full bath.
  • A two-stall garage completes this home.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

Plans include the following:

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Floor Plan

Plan details



Craftsman with Lower level

  • 2,942

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $1,081
  • 8 Sets $1,122
  • Reproducible Set $1,352
  • PDF - Single-Build $1,352
  • CAD - Single-Build $2,162
  • View all purchase option online

About This Plan

  • This Craftsman style home plan features stone and shingle siding with a column front porch (22'4" by 14') that's perfect for that swing you've always wanted.
  • A vaulted ceiling draws you into the home where you'll find a den with French doors to your left and a half bath to your right.
  • Directly ahead, the great room with fireplace and built-in cabinets overlooks the stairwell leading to the lower level.
  • The kitchen to the right includes a breakfast bar that overlooks the dining area and sunroom.
  • The master suite is found at the back left of the home where a corner Jacuzzi tub is perfect after a long day at work.
  • The master closet is 5'-10"x 5'-11".
  • The lower level with a recreation room that's spacious enough for the kids to stretch out without disturbing mom and dad, also includes two additional bedrooms a full bath.
  • A two-stall garage completes this home.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

Floor Plans

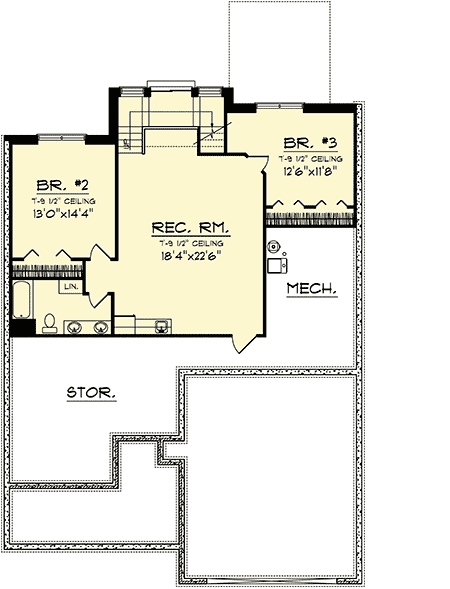

  • Basement

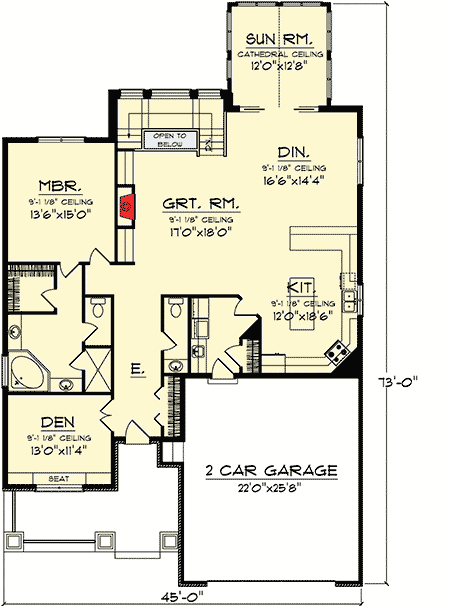

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,942 sq. ft.
  • Lower Level: 1,006 sq. ft.
  • 1st Floor: 1,936 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Daylight
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 45' 0"
  • Depth: 73' 0"
  • Max ridge height: 28' 10"

Garage

  • Type: Attached
  • Area: 594 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
