Craftsman With Open Concept Floor Plan

Plan 89987AH

  • 1,796

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 3

    Cars

  • An open-concept floor plan provides plenty of living space for any family.
  • The master features a step ceiling, spacious walk-in closet and dual sinks.
  • Two additional bedrooms lie to the left of the entry and share a full bath.
  • HOUSE PLAN VIDEO: See this house plan from every angle in our YouTube video.


Plans include the following:

  • General Notes

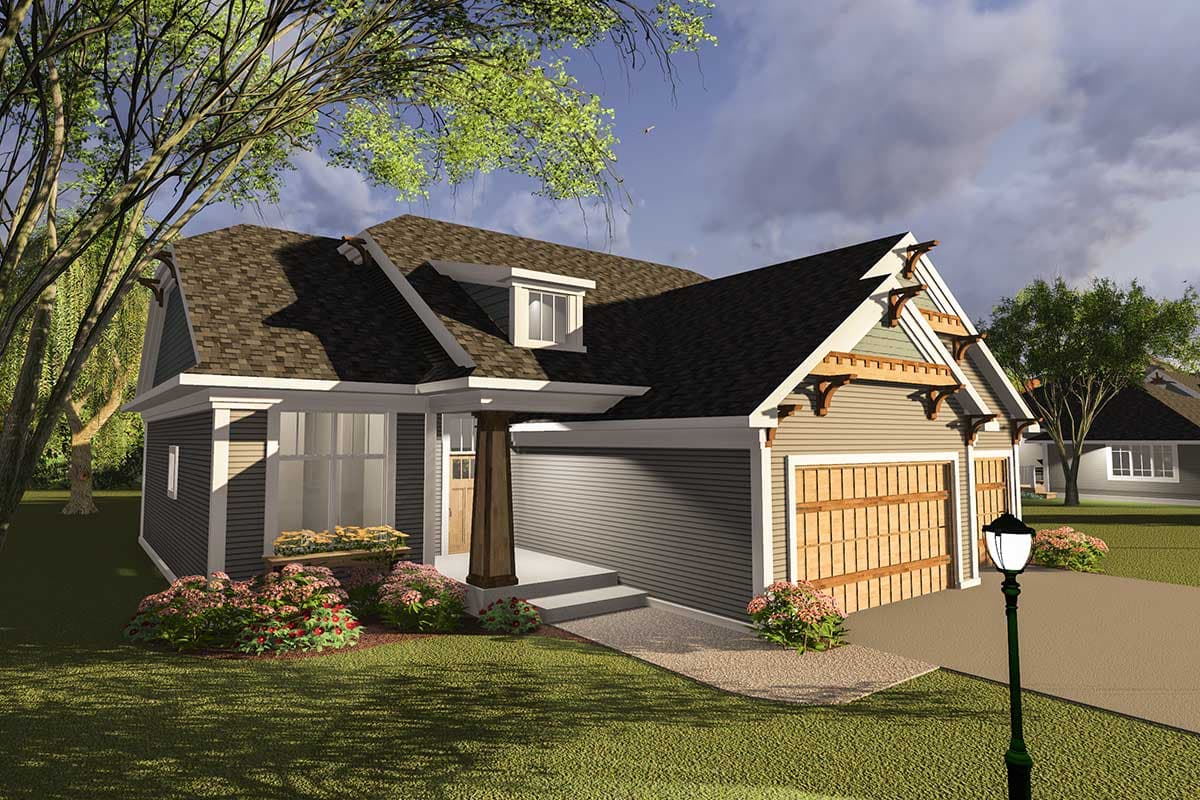

  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What is NOT included in the plans:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Floor Plan

Plan details



Craftsman With Open Concept Floor Plan

  • 1,796

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • 5 Sets $949
  • 8 Sets $1,000
  • Reproducible Set $1,188
  • PDF - Single-Build $1,188
  • CAD - Single-Build $1,887
  • View all purchase option online

About This Plan

  • An open-concept floor plan provides plenty of living space for any family.
  • The master features a step ceiling, spacious walk-in closet and dual sinks.
  • Two additional bedrooms lie to the left of the entry and share a full bath.
  • HOUSE PLAN VIDEO: See this house plan from every angle in our YouTube video.


Floor Plans

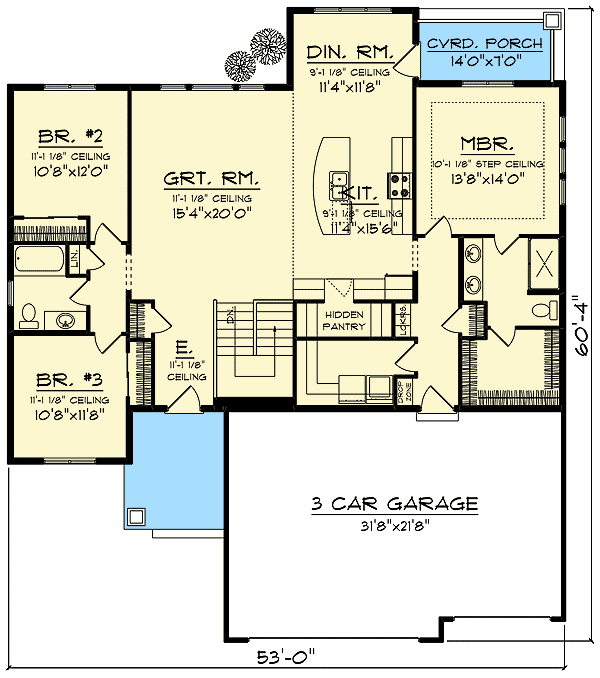

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,796 sq. ft.
  • 1st Floor: 1,796 sq. ft.
  • Porch, Combined: 208 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 53' 0"
  • Depth: 60' 4"
  • Max ridge height: 26' 4"

Garage

  • Type: Attached
  • Area: 686 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 8 on 12
  • Framing Type: Truss
