Plan 59182ND

Crafty Cottage

Heated S.F.
1,747
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 59182ND

Main Level
Main Level

Plan 59182ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

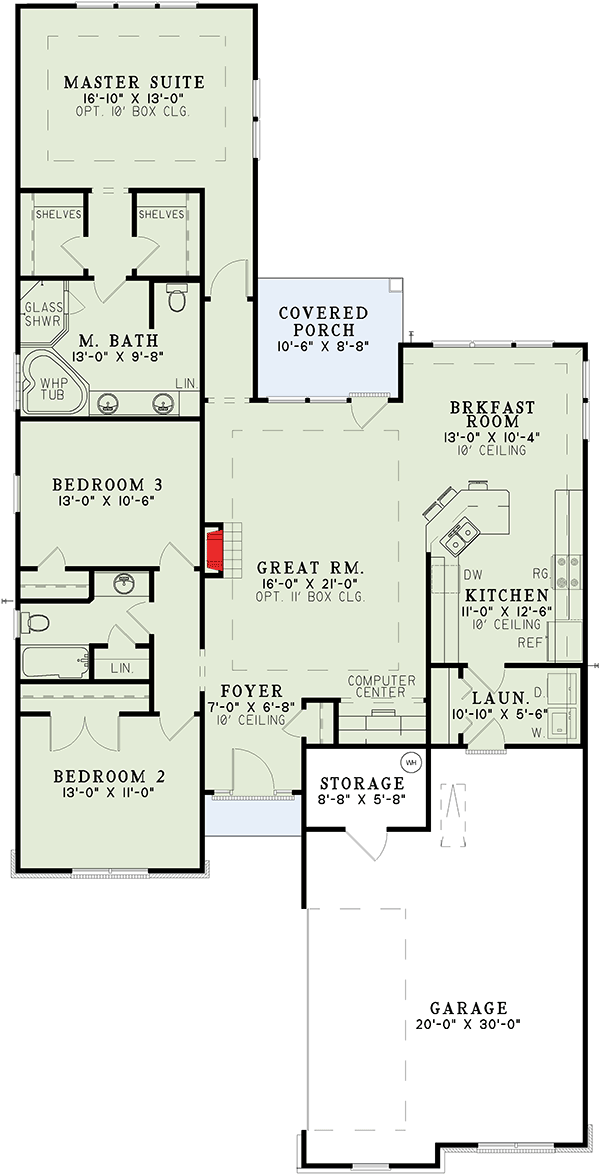

Plan 59182ND: Crafty Cottage - Floor Plan - Main Level - Cottage, Country, Craftsman

Plan Details

  • This crafty design combines a rustic exterior with an elegant interior.
  • Ten-foot ceilings and an abundance of windows enhance the family areas for plenty of natural lighting.
  • The breakfast room and kitchen are combined and enjoy a bar counter for additional seating.
  • A large laundry room with pantry is located between the kitchen and garage access for convenience.
  • On the opposite side of the home are two bedrooms, a full bath and a luxurious master suite with 10' boxed ceiling, his and her walk in closets. The master bath feature double vanities, whirlpool tub and glass shower.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)

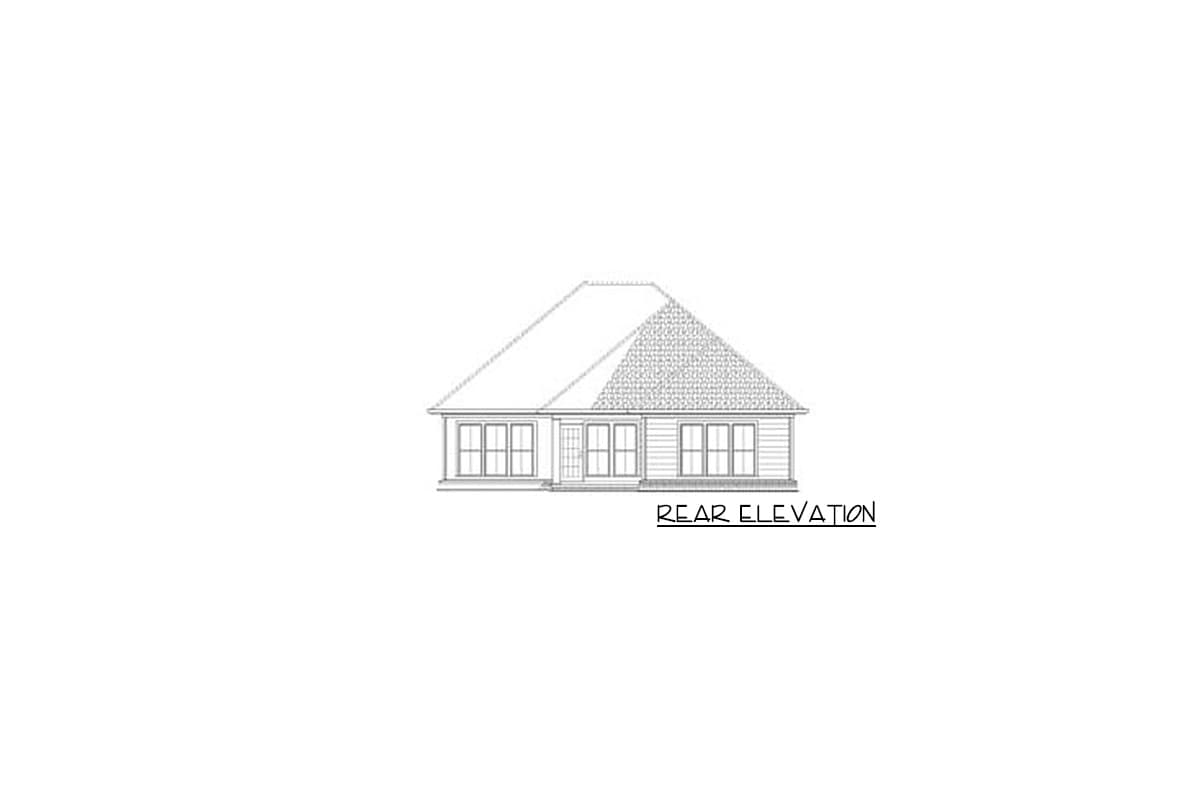

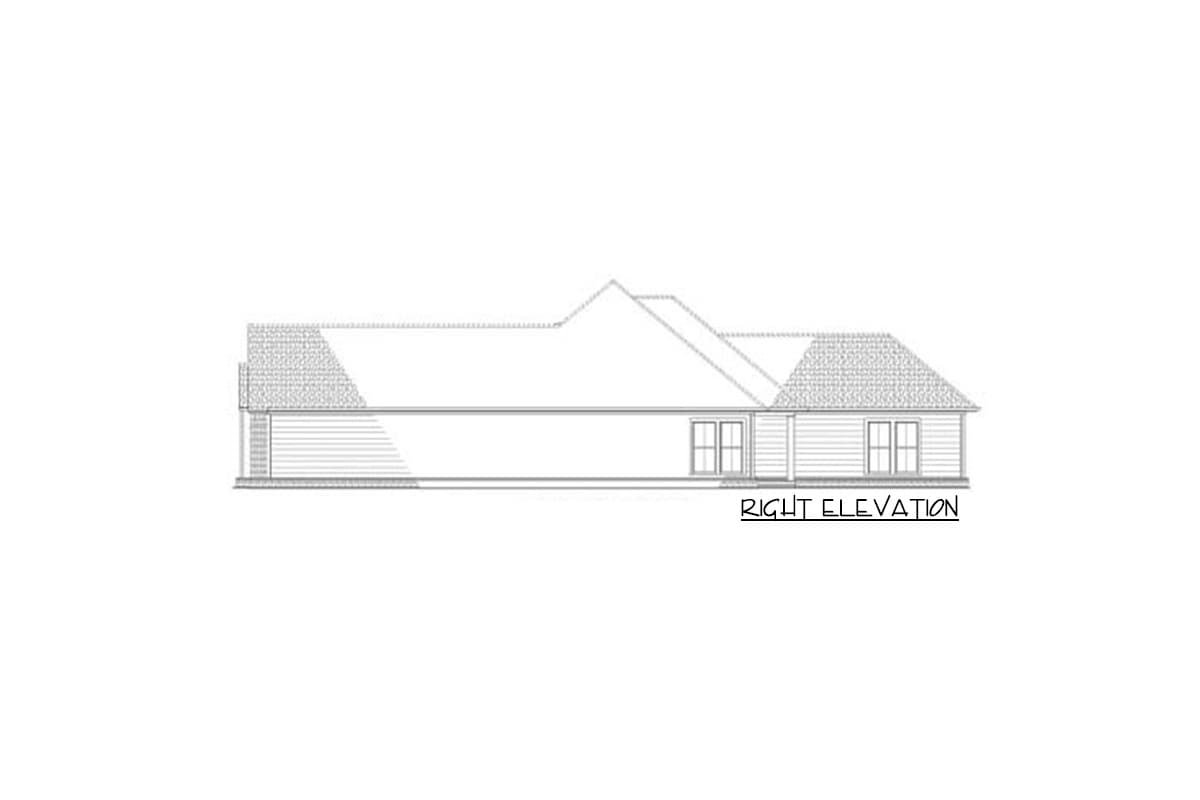

  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,747 sq. ft.

1st Floor

1,747 sq. ft.

Porch, Rear

91 sq. ft.

Entry

20 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

41' 4"

Depth

84' 2"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

649 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,747 sq. ft.

1st Floor

1,747 sq. ft.

Porch, Rear

91 sq. ft.

Entry

20 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

41' 4"

Depth

84' 2"

Max Ridge Height

23' 3"

Garage

Type

Attached

Area

649 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Cottage

Country

Craftsman

Special Features

Bedrooms - Clustered

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery
