Plan 72858DA

Delightful Vaulted Ceilings

Pageloader

Delightful Vaulted Ceilings

Plan 72858DA

  • 1,791

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • Full of Craftsman charm, this three bedroom home design is welcoming from first glance.
  • Entering, you first step into a foyer with an extra tall 10' ceiling.
  • To the right is a vaulted den with double windows that face front.
  • The spacious vaulted living room gets a fireplace tucked into the corner.
  • On the left side of the home, the bedroom wing has the owners' suite towards the rear.
  • Two good-sized bedrooms share the hall bathroom.
  • Bonus space lies at the top of the stairs.

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:

Artist's Rendering
An artist's drawing of the home, usually viewed from the front, and general construction notes.

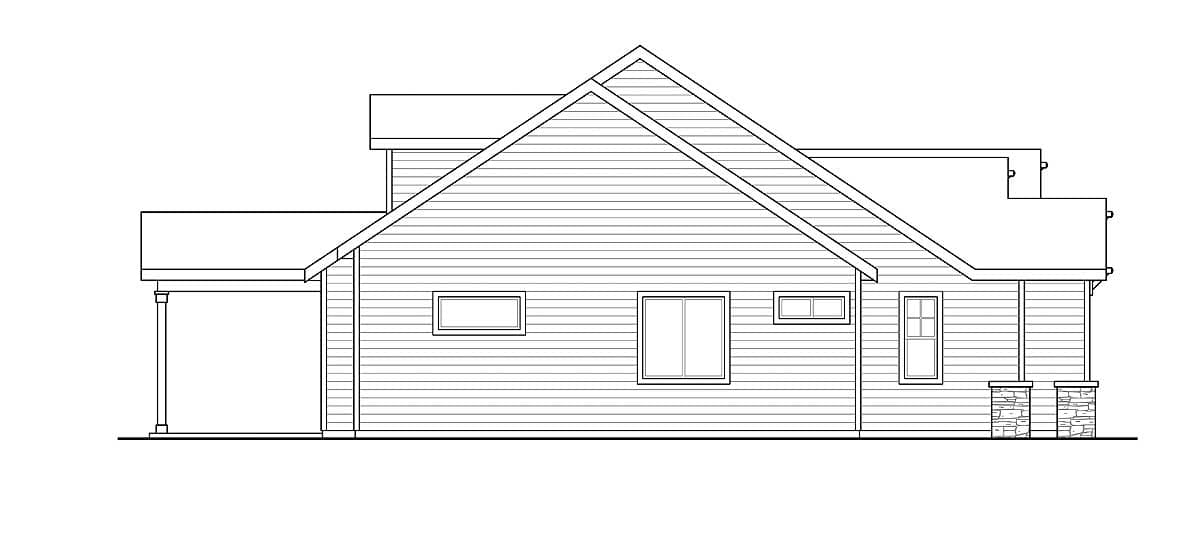

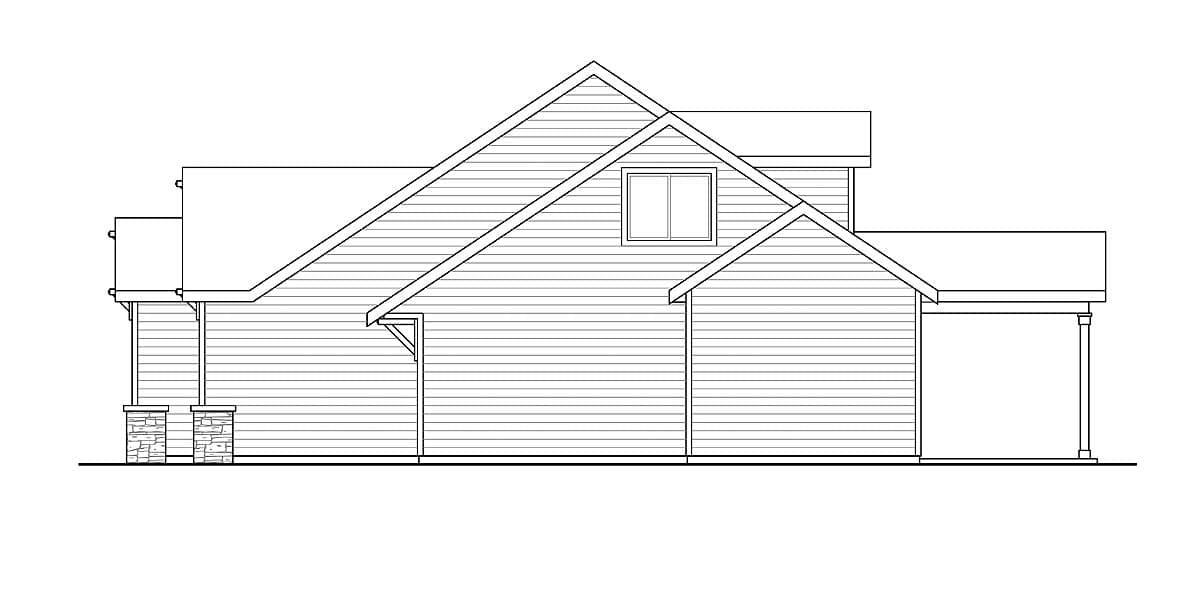

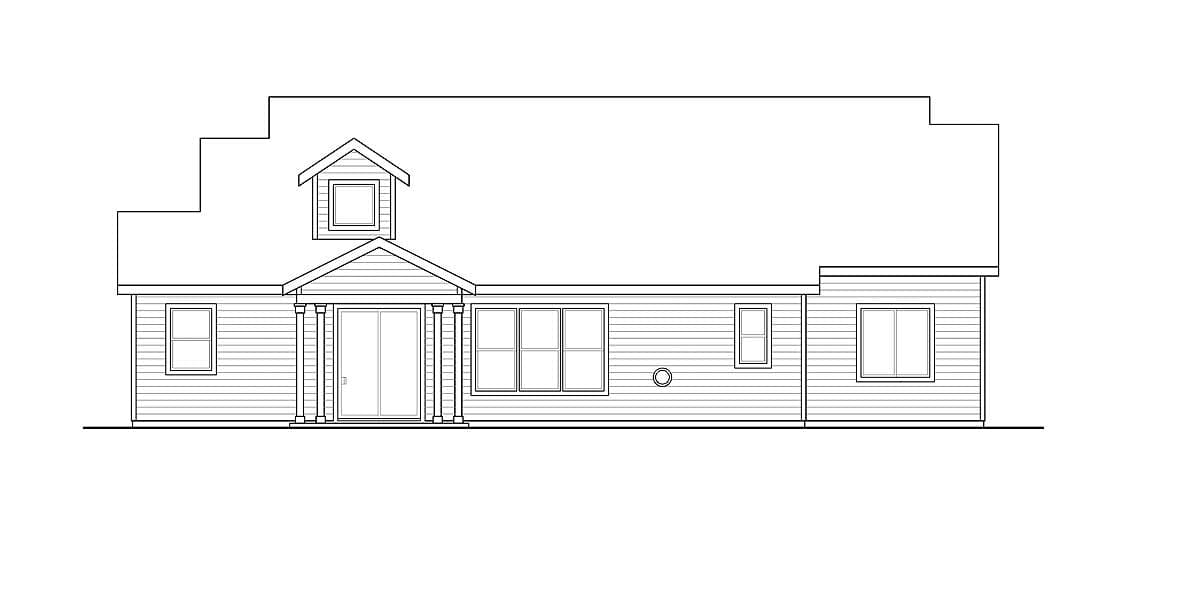

Elevations
Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.

Main Floor Plan
Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.

Second Floor Plan (if any)
Shows the second floor in the same detail as the main floor. Includes second floor framing and details.

Foundation Plan
Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.

Roof Framing Plan
Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.

Section
Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.

Electrical Plan
A schematic layout of all lighting, switches and electrical outlets.

Plan details



Delightful Vaulted Ceilings

  • 1,791

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • 1 Set $700
  • PDF Light $915
  • 5 Sets $915
  • 5 Sets PLUS $1,020
  • 8 Sets $1,070
  • PDF - single-use $1,890
  • CAD $2,025
  • CAD - multi-use $2,245
  • View all purchase option online

About This Plan

  • Full of Craftsman charm, this three bedroom home design is welcoming from first glance.
  • Entering, you first step into a foyer with an extra tall 10' ceiling.
  • To the right is a vaulted den with double windows that face front.
  • The spacious vaulted living room gets a fireplace tucked into the corner.
  • On the left side of the home, the bedroom wing has the owners' suite towards the rear.
  • Two good-sized bedrooms share the hall bathroom.
  • Bonus space lies at the top of the stairs.

Floor Plans

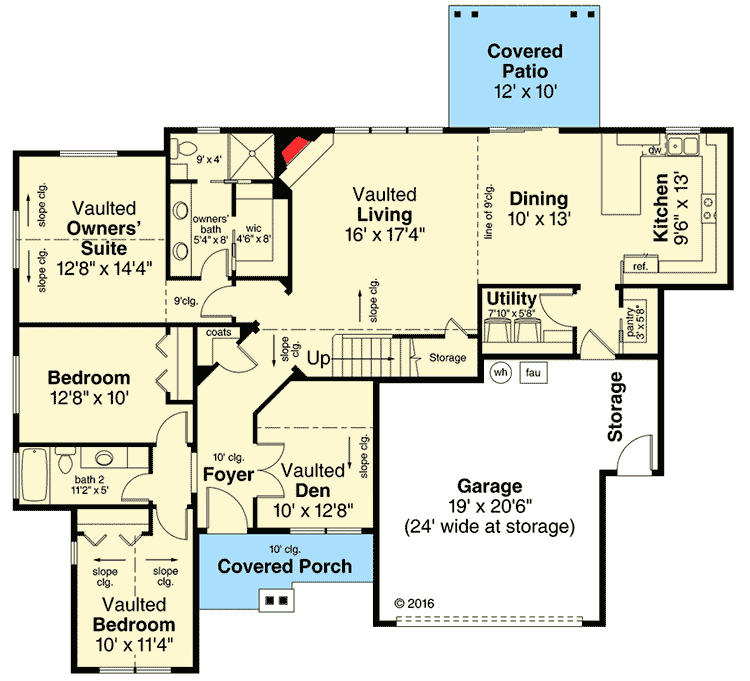

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,791 sq. ft.
  • 1st Floor: 1,791 sq. ft.
  • Bonus: 277 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 62' 0"
  • Depth: 57' 0"
  • Max ridge height: 24' 1"

Garage

  • Type: Attached
  • Area: 484 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick
