Deluxe Mountain Craftsman House Plan with 4-Car Garage

Plan 95080RW

4,663
Heated s.f.
4-5
Beds
3.5 - 5.5
Baths
1
Stories
4-6
Cars

The front entry leads you into the great room with views to the back deck and beyond. Exposed beams add a rustic element and a powder bath sits to the right for convenience.
The open layout promotes entertaining and family gatherings, while two kitchen islands maximize workspace. A sun room, just off the dining room, offers a quiet space to recharge.
French doors give way to a luxurious master bedroom, complete with an attached office, walk-in closet with a safe room, and a large bathroom with a freestanding tub in front of an oversized shower.
Bedrooms 2 and 3 share a Jack-and Jill bath, which the fourth bedroom can access from the hall.
An oversized mudroom helps maintain order when coming and going, and the car aficionado, or hobbyist, will delight in the 4-car garage.
The lower level features a walk-out patio, making this home a great choice for a sloped lot. Extra garage space is also provided, along with a media room, home theater, and guest suite.

The following details are included with this house plan:

Cover Page
4 elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

The following details are NOT included in the plans:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

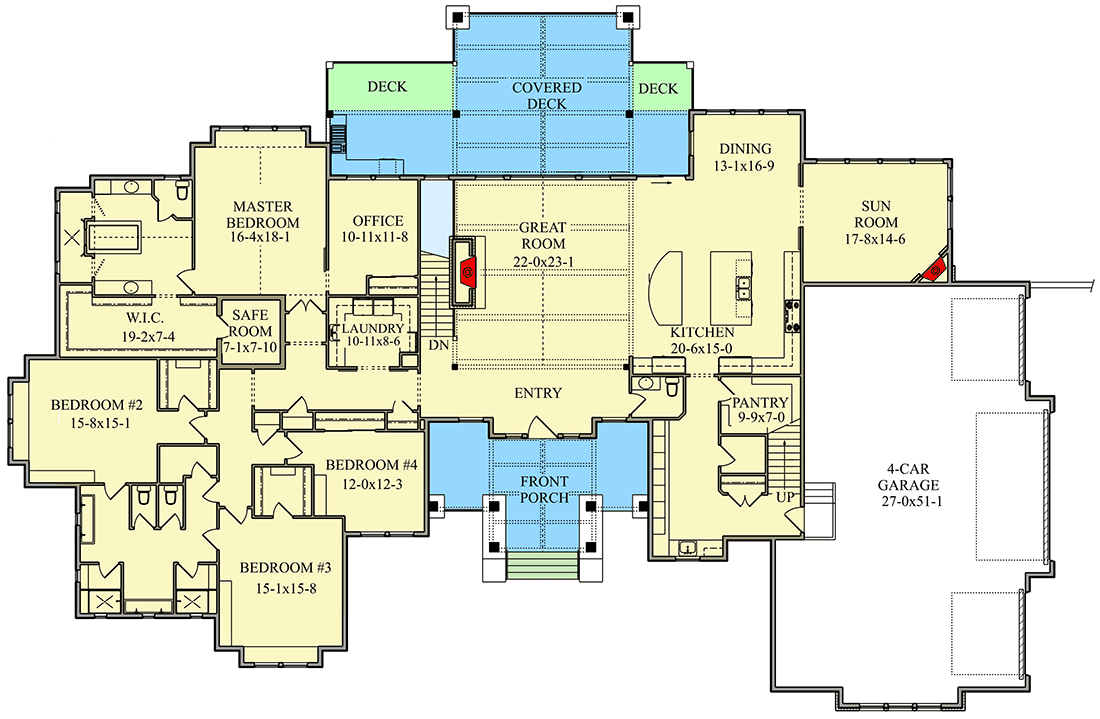

Deluxe Mountain Craftsman House Plan with 4-Car Garage - 95080RW floor plan - Main Level

Optional Bonus Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

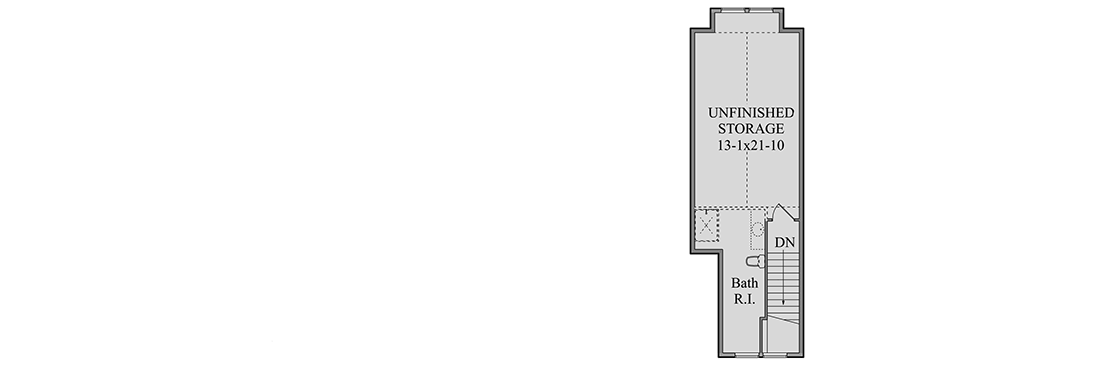

Deluxe Mountain Craftsman House Plan with 4-Car Garage - 95080RW floor plan - Optional Bonus Level

Optional Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

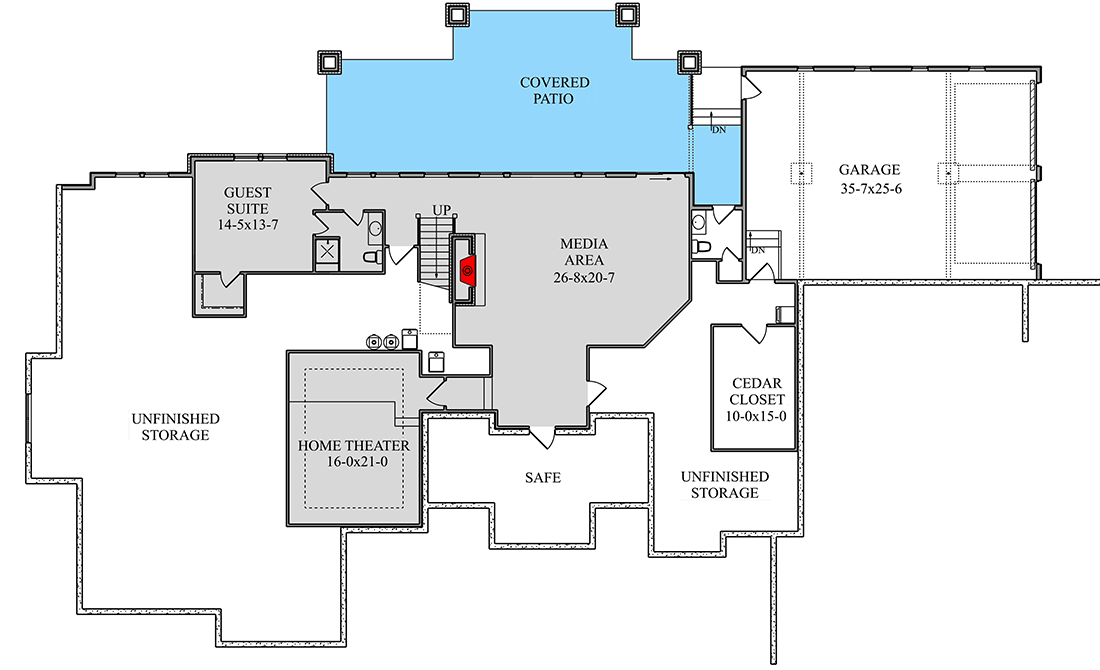

Deluxe Mountain Craftsman House Plan with 4-Car Garage - 95080RW floor plan - Optional Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 4,663 sq. ft.
1st Floor: 4,663 sq. ft.

Optional Lower Level: 1,792 sq. ft.
Basement Unfinished: 2,600 sq. ft.

Beds/Baths

Bedrooms: 4 or 5

Full bathrooms: 3, 4, or 5
Half bathrooms: 1

Foundation Type

Standard Foundations: Basement, Walkout

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 127' 9"
Depth: 85' 0"
Max ridge height: 26' 6"

Garage

Type: Drive Under, Attached
Area: 2501 sq. ft.
Count: 4, 5, or 6 Cars
Entry Location: Side

Ceiling Heights

Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 8' 0"

Roof Details

Primary Pitch: 10 on 12

Architectural Style

Special features

Plan Collections

Scroll


Deluxe Mountain Craftsman House Plan with 4-Car Garage 4,663 Heated s.f. 4-5 Beds 3.5 - 5.5 Baths 1 Floors 4 - 6 Car garage Buy This Plan PDF - Single-Build $3,300 PDF - Unlimited Build $4,950 CAD + PDF - Single Build $5,000 CAD - Unlimited Build $7,500 View all purchase option online About This Plan The front entry leads you into the great room with views to the back deck and beyond. Exposed beams add a rustic element and a powder bath sits to the right for convenience. The open layout promotes entertaining and family gatherings, while two kitchen islands maximize workspace. A sun room, just off the dining room, offers a quiet space to recharge. French doors give way to a luxurious master bedroom, complete with an attached office, walk-in closet with a safe room, and a large bathroom with a freestanding tub in front of an oversized shower. Bedrooms 2 and 3 share a Jack-and Jill bath, which the fourth bedroom can access from the hall. An oversized mudroom helps maintain order when coming and going, and the car aficionado, or hobbyist, will delight in the 4-car garage. The lower level features a walk-out patio, making this home a great choice for a sloped lot. Extra garage space is also provided, along with a media room, home theater, and guest suite. Floor Plans Main Level Optional Bonus Level Optional Lower Level Plan Details Square Footage Breakdown Total Heated Area: 4,663 sq. ft. 1st Floor: 4,663 sq. ft. Optional Lower Level: 1,792 sq. ft. Basement Unfinished: 2,600 sq. ft. Beds/Baths Bedrooms: 4 or 5 Full bathrooms: 3, 4, or 5 Half bathrooms: 1 Foundation Type Standard Foundations: Basement, Walkout Exterior Walls Standard Type(s): 2x6 Dimensions Width: 127' 9" Depth: 85' 0" Max ridge height: 26' 6" Garage Type: Drive Under, Attached Area: 2501 sq. ft. Count: 4, 5, or 6 Cars Entry Location: Side Ceiling Heights Floor / Height: Lower Level / 10' 0" First Floor / 10' 0" Second Floor / 8' 0" Roof Primary Pitch: 10 on 12
