Den or Study Option

Plan 59440ND

  • 1,359

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

  • Throughout this home plan, you'll feel the openness achieved by the grandeur of 9' ceilings.
  • A covered rear porch makes entertaining friends and family a breeze, and perfect for a delicious summer barbecue.
  • Elegant french doors lead you back inside where you'll enjoy conversation in your spacious great room, conveniently accessible to the dining area and kitchen.
  • An additional third bedroom can be converted to a den or study to accommodate everyone.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

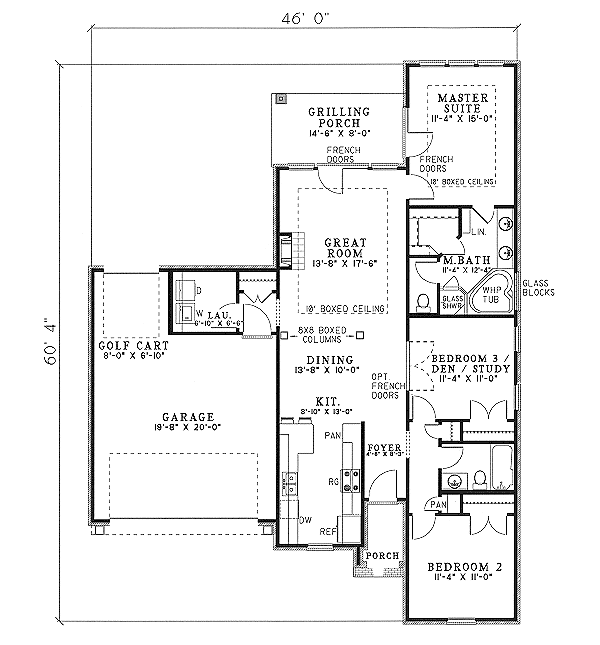

Den or Study Option - 59440ND floor plan - Main Level

Den or Study Option

  • 1,359

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,359 sq. ft.
  • 1st Floor: 1,359 sq. ft.

Dimensions

  • Width: 46' 0"
  • Depth: 60' 5"
  • Max ridge height: 23' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 393 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
All house plans are copyright ©2024 by the architects and designers represented on our web site

Den or Study Option

  • 1,359

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Den or Study Option

  • 1,359

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 1,359 sq. ft.
  • 1st Floor: 1,359 sq. ft.

Dimensions

  • Width: 46' 0"
  • Depth: 60' 5"
  • Max ridge height: 23' 7"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 393 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

    Main Level
