Detached 1170 Square Foot 3-Car Garage with Full-Height Storage Above

Heated S.F.
0
Beds
0
Baths
0
Stories
2
Cars
3

Floor Plan

Plan 550012LAN

Main Level
Main Level
2nd Floor
2nd Floor

Plan 550012LAN

M-F 9am-5pm EST |

1-203-761-8500

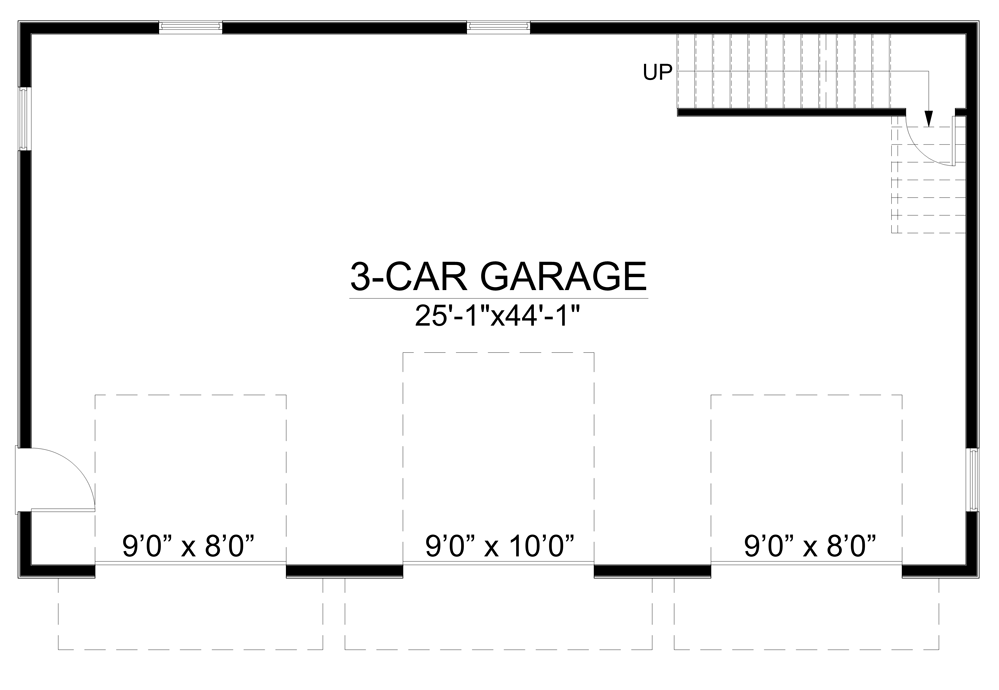

Main Level

Plan 550012LAN: Detached 1170 Square Foot 3-Car Garage with Full-Height Storage Above - Floor Plan - Main Level - European, Traditional, Victorian

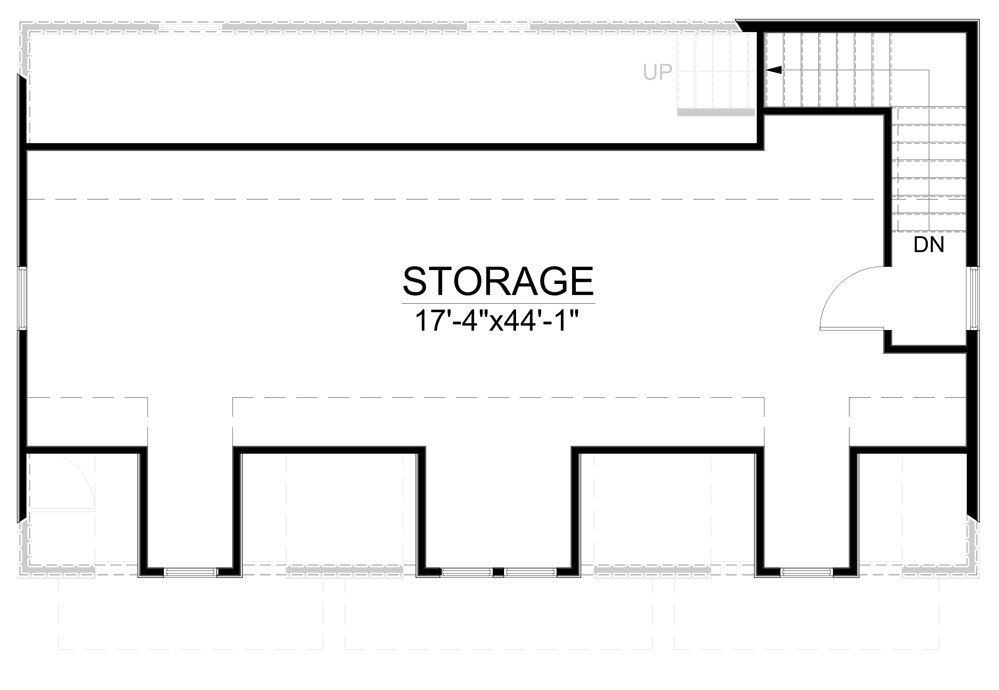

2nd Floor

Plan 550012LAN: Detached 1170 Square Foot 3-Car Garage with Full-Height Storage Above - Floor Plan - 2nd Floor - European, Traditional, Victorian

Plan Details

  • This detached garage plan gives you 1,170 square feet of parking space set behind three garage bays and 746 square feet of storage above with 8' ceilings.
  • The left and right garage bays have 9' by 8' overhead doors and the center bay has a larger 9' by 10' overhead door and can accommodate larger vehicles. The ceilings are 12'3" across the entire ground level.
  • Stairs along the back, leaving the bulk of the area open to store vehicles and gear.
  • Related Plan: Get a 2-car version with garage plan 550011LAN.

What's Included

  • Detailed dimensioned floor plan(s)
  • Building sections
  • Attic plan (when applicable)

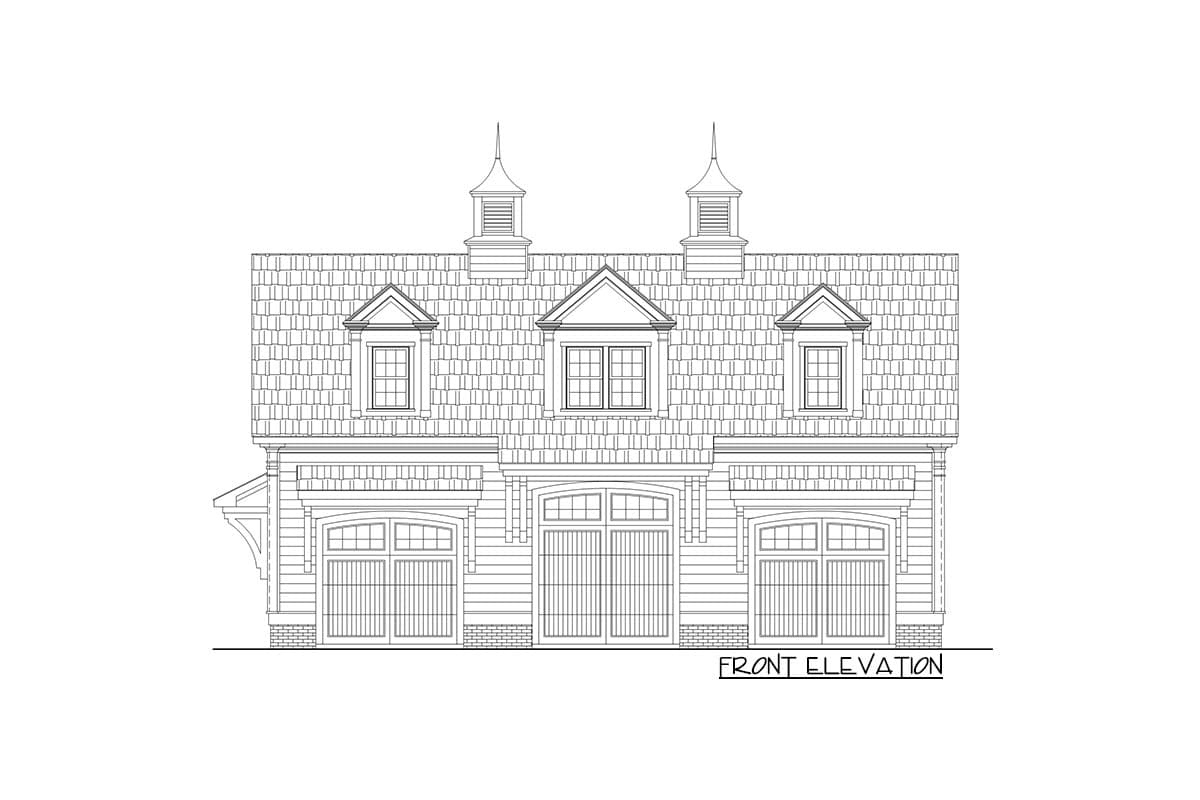

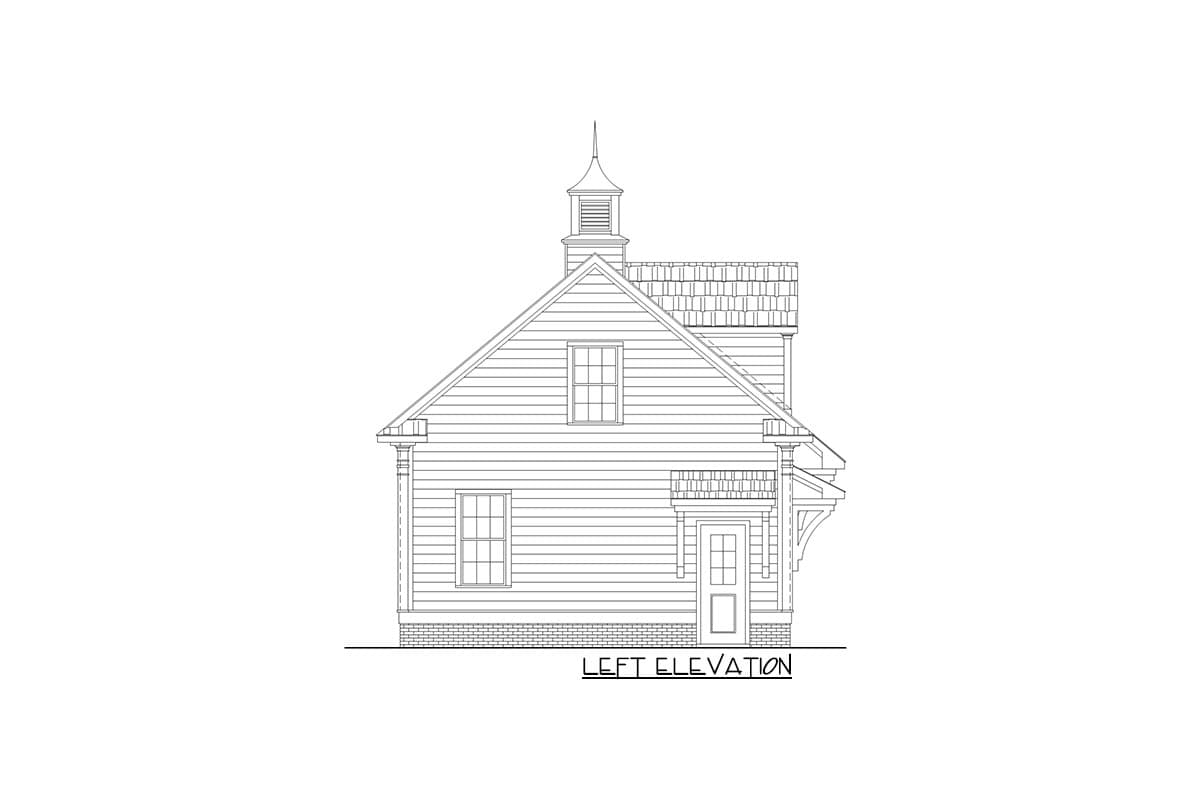

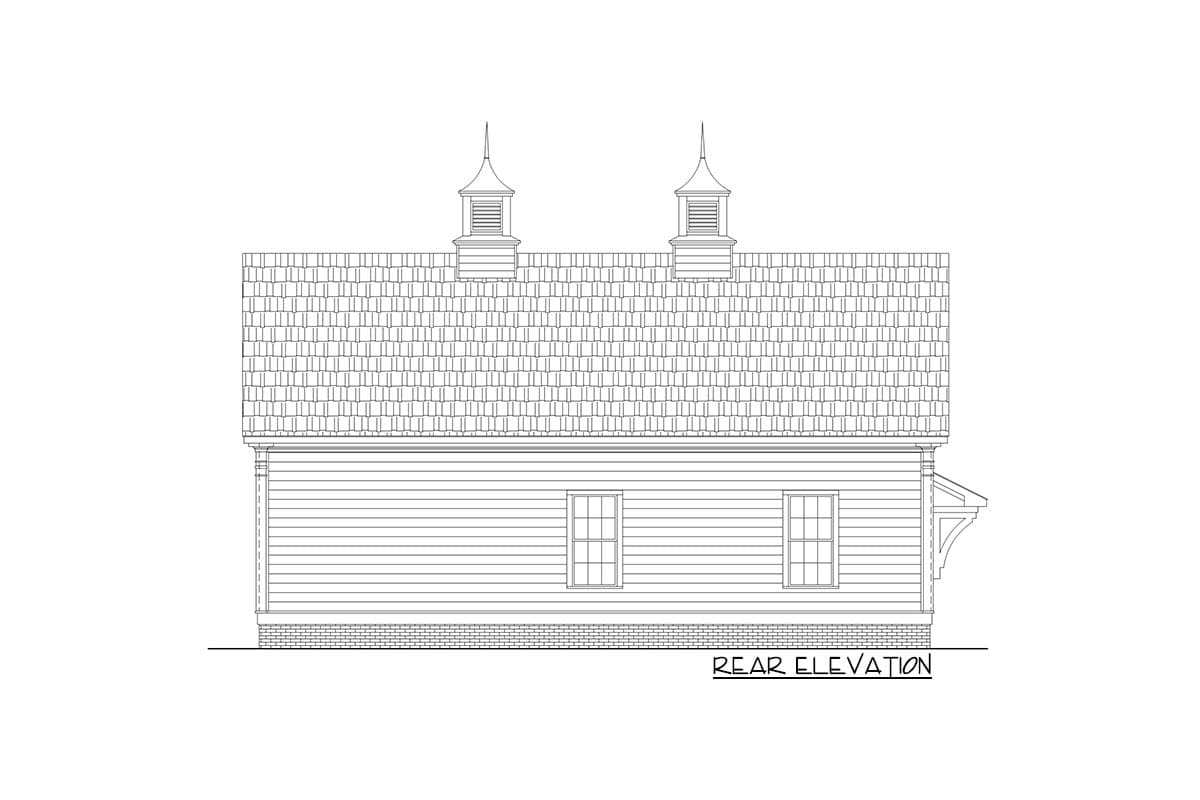

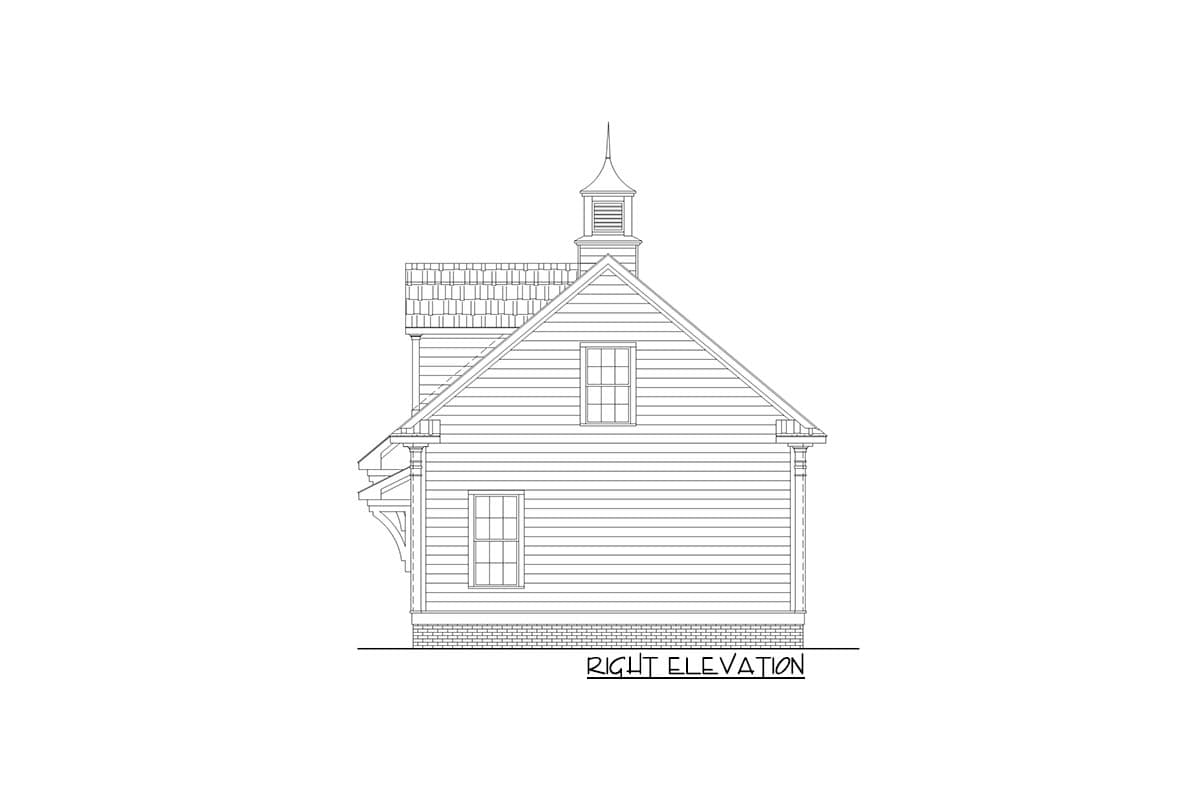

  • All four exterior elevations (plus exterior elevations and sections for detached garage, when included)
  • Typical wall sections and details
  • Roof plan and roof framing details
  • Suggested electrical layout plan

What's Not Included

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Storage

746 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4 or 2x6

Dimensions

Width

45' 0"

Depth

26' 0"

Max Ridge Height

26' 2"

Garage

Type

Detached

Area

1170 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

12' 3"

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

European

Traditional

Victorian

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Storage

746 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4 or 2x6

Dimensions

Width

45' 0"

Depth

26' 0"

Max Ridge Height

26' 2"

Garage

Type

Detached

Area

1170 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

12' 3"

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick And Truss

Architectural Style

European

Traditional

Victorian
