Detached 2-Car Garage with Walkup Attic Storage

Plan 360082DK

  • 0

    Heated s.f.

  • 2

    Stories

  • 2

    Cars

  • This 2-car detached garage has 2 garage doors with an attractive-shed dormer that lets light into the storage above.
  • Stairs run along the back and take you to the open attic area above.
  • Light streams in from the dormer in front - and windows on each side - creating a light-filled storage space with high 10' ceilings.
  • The exterior walls are 2x6 on the main floor and 2x4 on the upper floor.
  • Related Plan: Convert the upstairs to 1-bed apartment with plan 360099DK.

This plan includes the following elements:

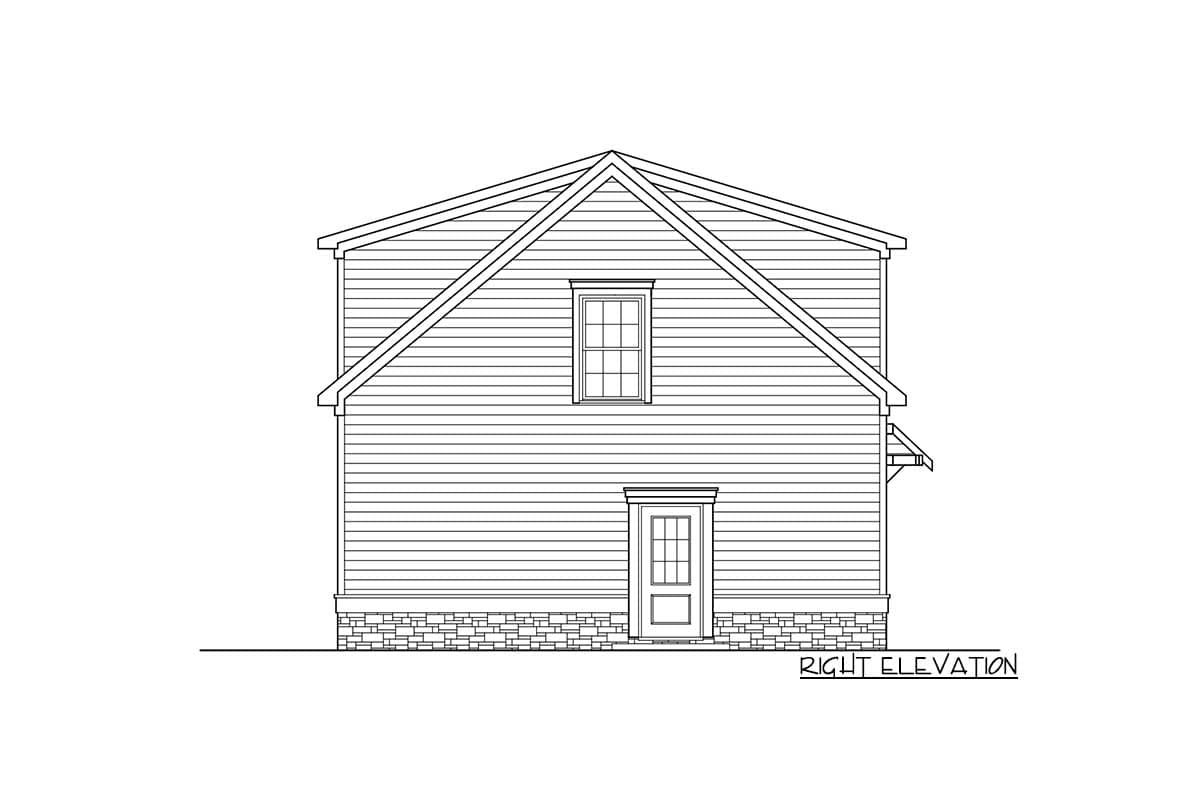

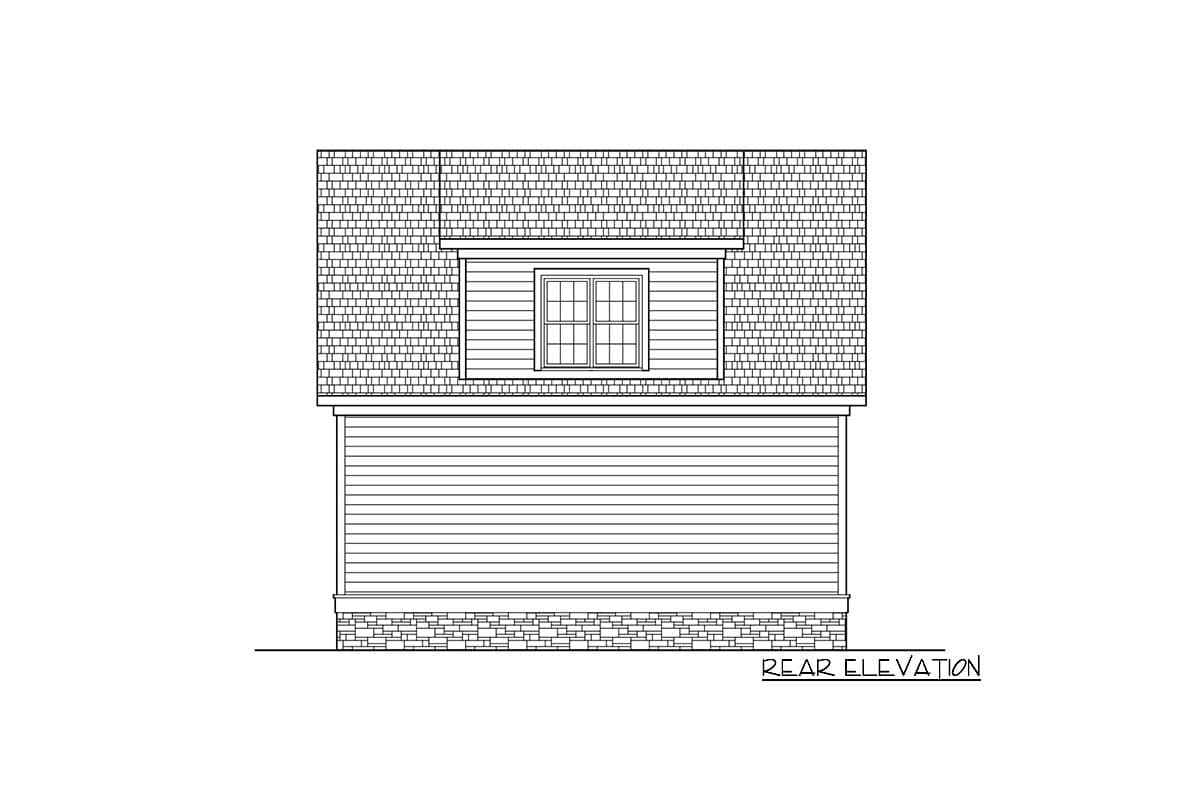

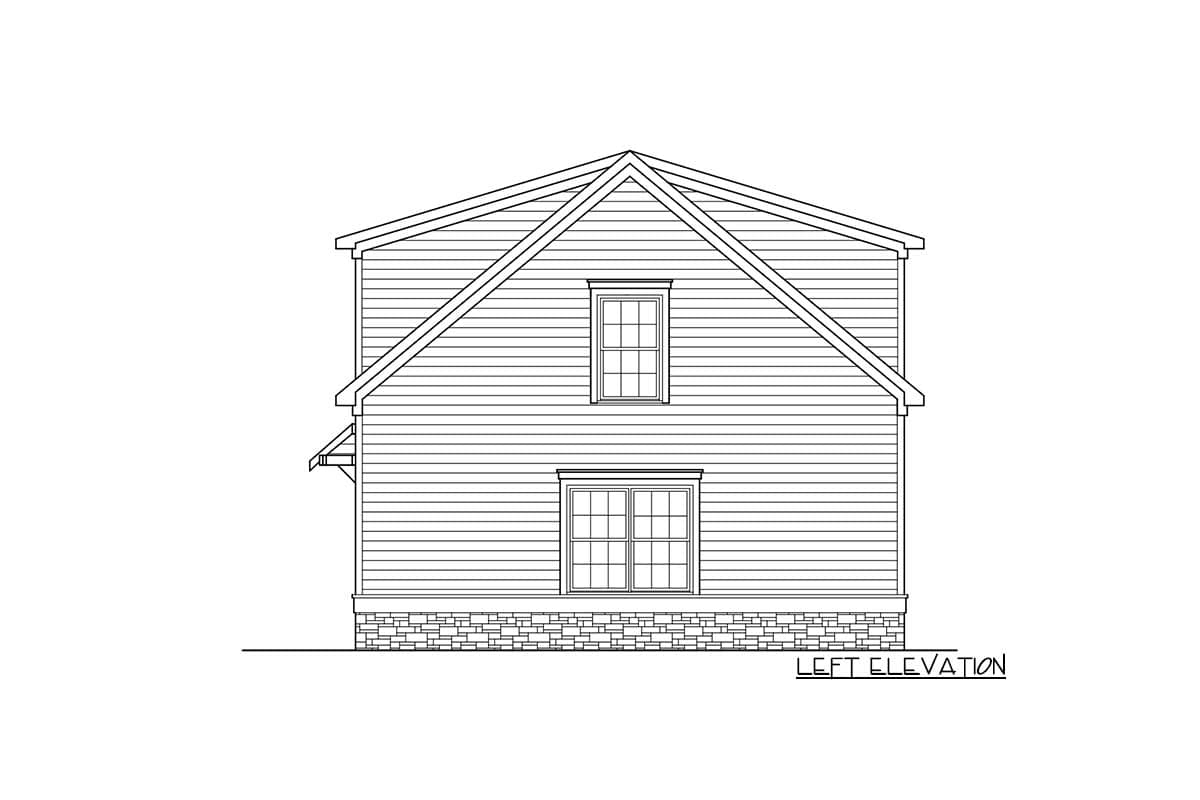

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

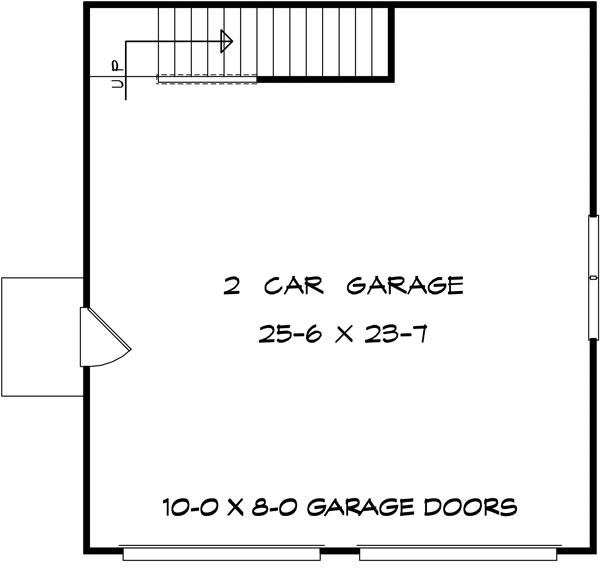

Detached 2-Car Garage with Walkup Attic Storage - 360082DK floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

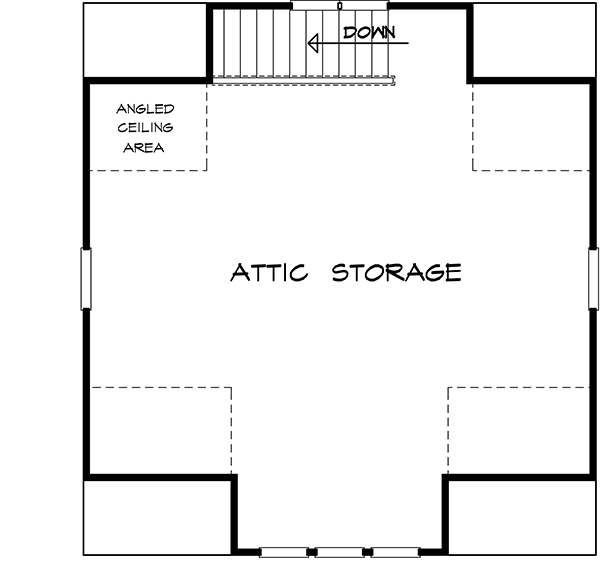

Detached 2-Car Garage with Walkup Attic Storage - 360082DK floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.
  • Storage: 590 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 26' 0"
  • Depth: 28' 0"
  • Max ridge height: 25' 3"

Garage

  • Type: Detached
  • Area: 728 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 10' 0"

Roof Details
