Plan 360073DK

Detached 3-Car Craftsman-Style Garage with Over 1100 Square Feet of Parking Plus Storage

Heated S.F.
610
Beds
0
Baths
0
Stories
2
Cars
3

Floor Plan

Plan 360073DK

Main Level
Main Level
2nd Floor
2nd Floor

Plan 360073DK

M-F 9am-5pm EST |

1-203-761-8500

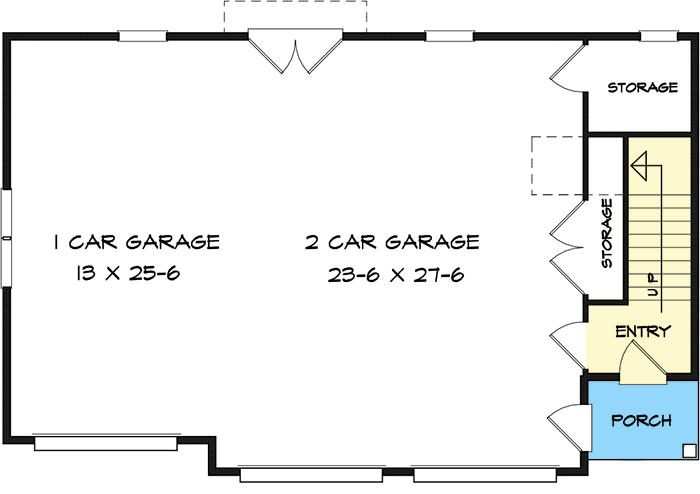

Main Level

Plan 360073DK: Detached 3-Car Craftsman-Style Garage with Over 1100 Square Feet of Parking Plus Storage - Floor Plan - Main Level - Craftsman

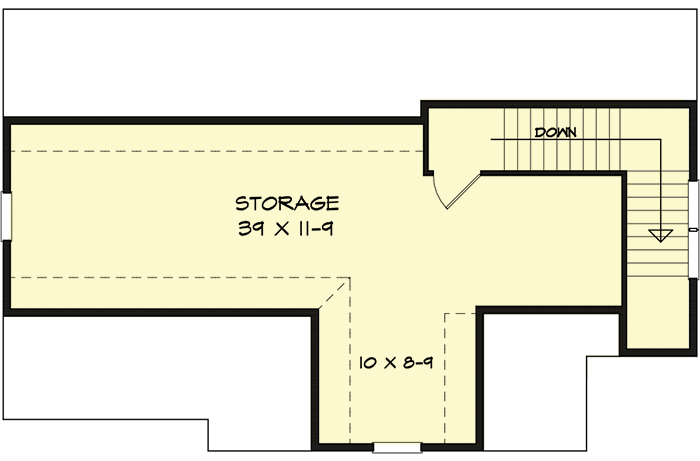

2nd Floor

Plan 360073DK: Detached 3-Car Craftsman-Style Garage with Over 1100 Square Feet of Parking Plus Storage - Floor Plan - 2nd Floor - Craftsman

Plan Details

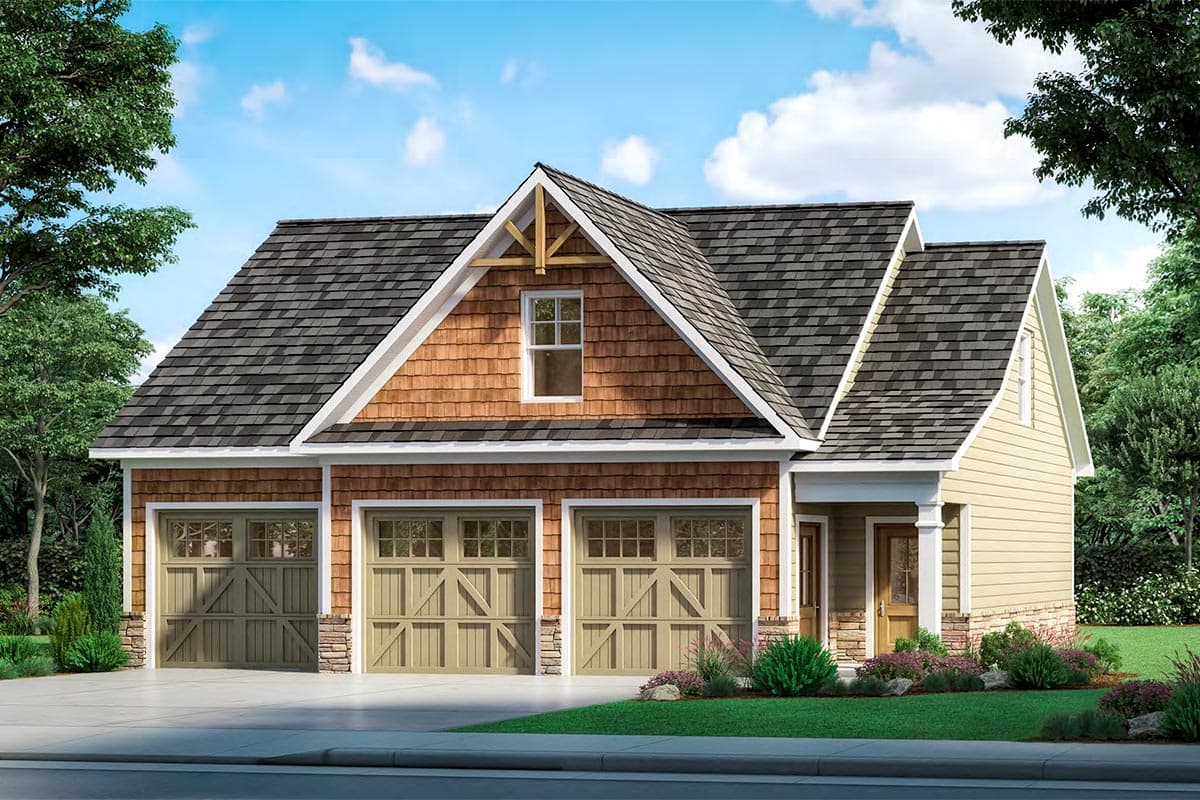

  • A cross-gable roof, decorated with timber framing and a blanket of shakes, sits atop this 3-car detached garage plan with a Craftsman-style exterior.
  • Three garage bays make for a roomy interior (1,164 square feet) with two dedicated storage rooms on the main level.

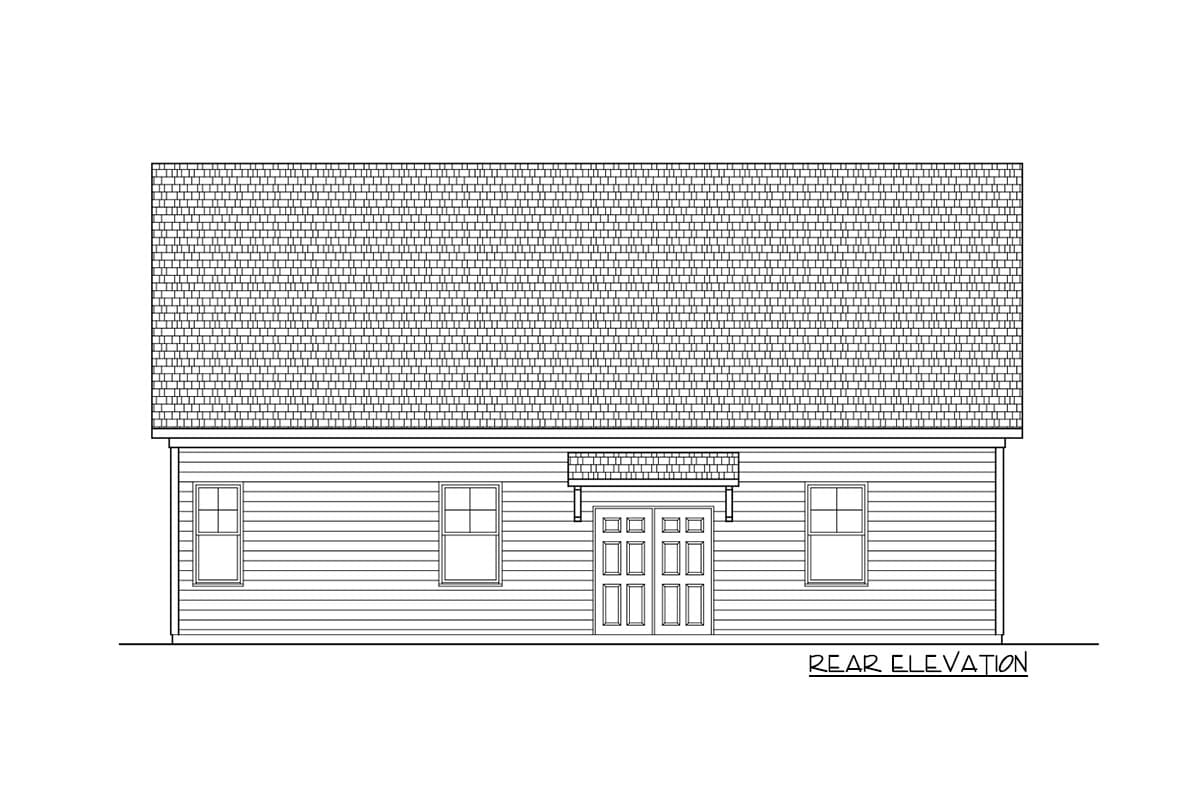

  • French doors provide access to the back of the lot.
  • Upstairs, 610 square feet of storage is available.

What's Included

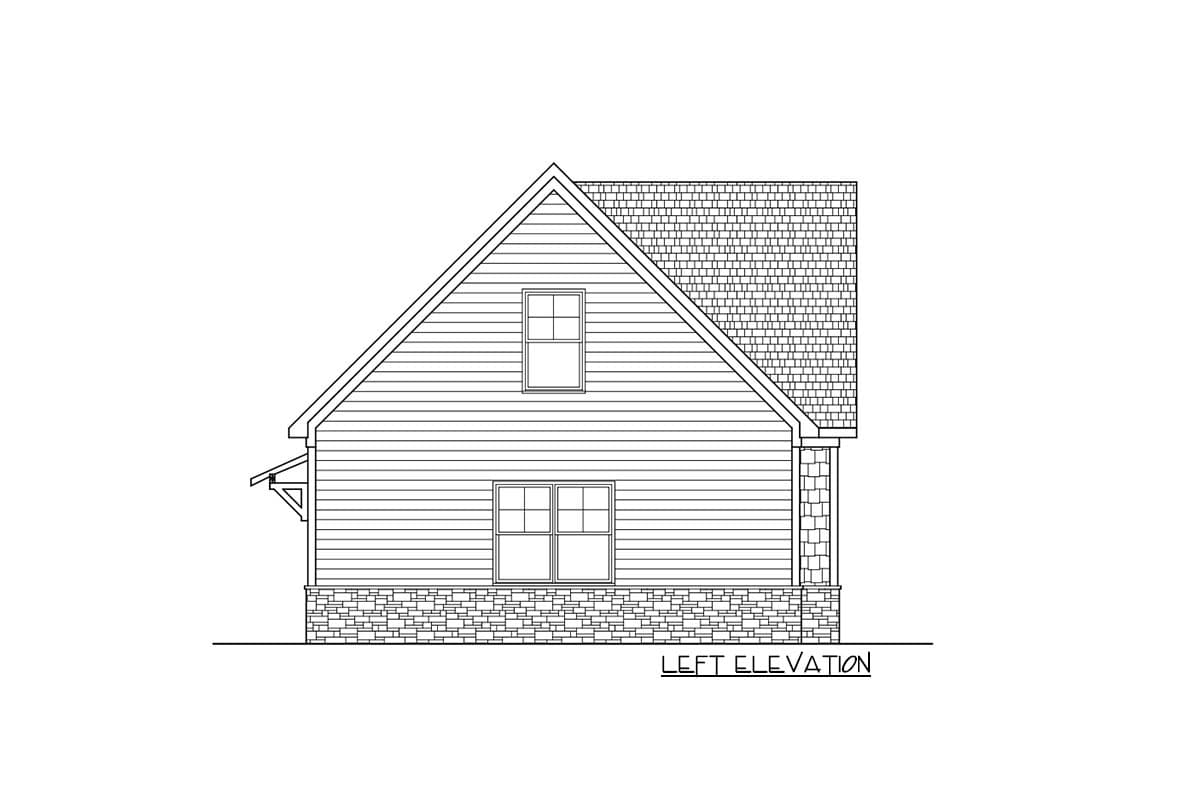

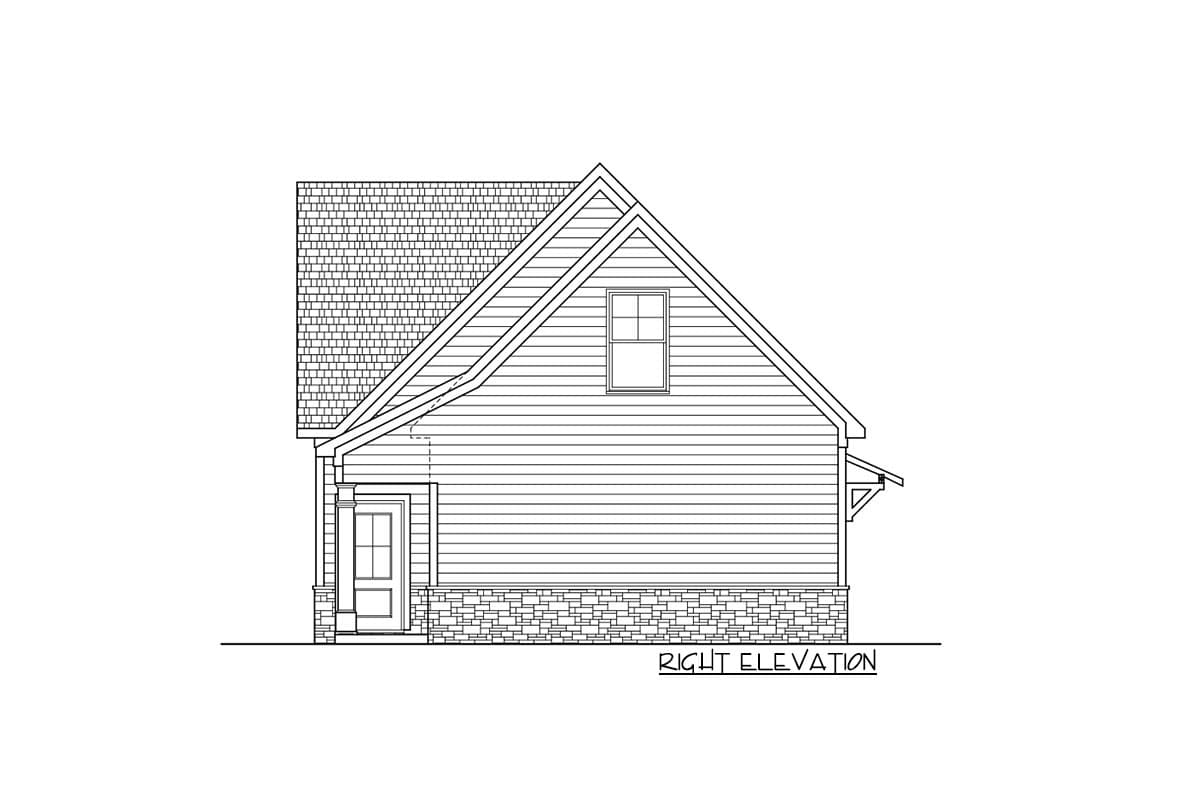

  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Price Match Guarantee
What's included?

FORMAT & LICENSE

Choose an option

$0

Not sure what to choose?

Pointer link icon

FOUNDATION

Choose an option

+$0

Not sure what to choose?

Pointer link icon

OPTIONS

Choose Additional Options

+$0

Not sure what to choose?

Pointer link icon

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

610 sq. ft.

2nd Floor

610 sq. ft.

Porch, Front

35 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

28' 0"

Max Ridge Height

24' 11"

Garage

Type

Detached

Area

1164 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Square Footage Breakdown

Total Heated Area

610 sq. ft.

2nd Floor

610 sq. ft.

Porch, Front

35 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

44' 0"

Depth

28' 0"

Max Ridge Height

24' 11"

Garage

Type

Detached

Area

1164 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman
