Plan 135082GRA
Detached Barn-Style Garage / Shop with Covered Porches
Heated S.F.
0
Stories
1
Cars
2-3
Plan Details

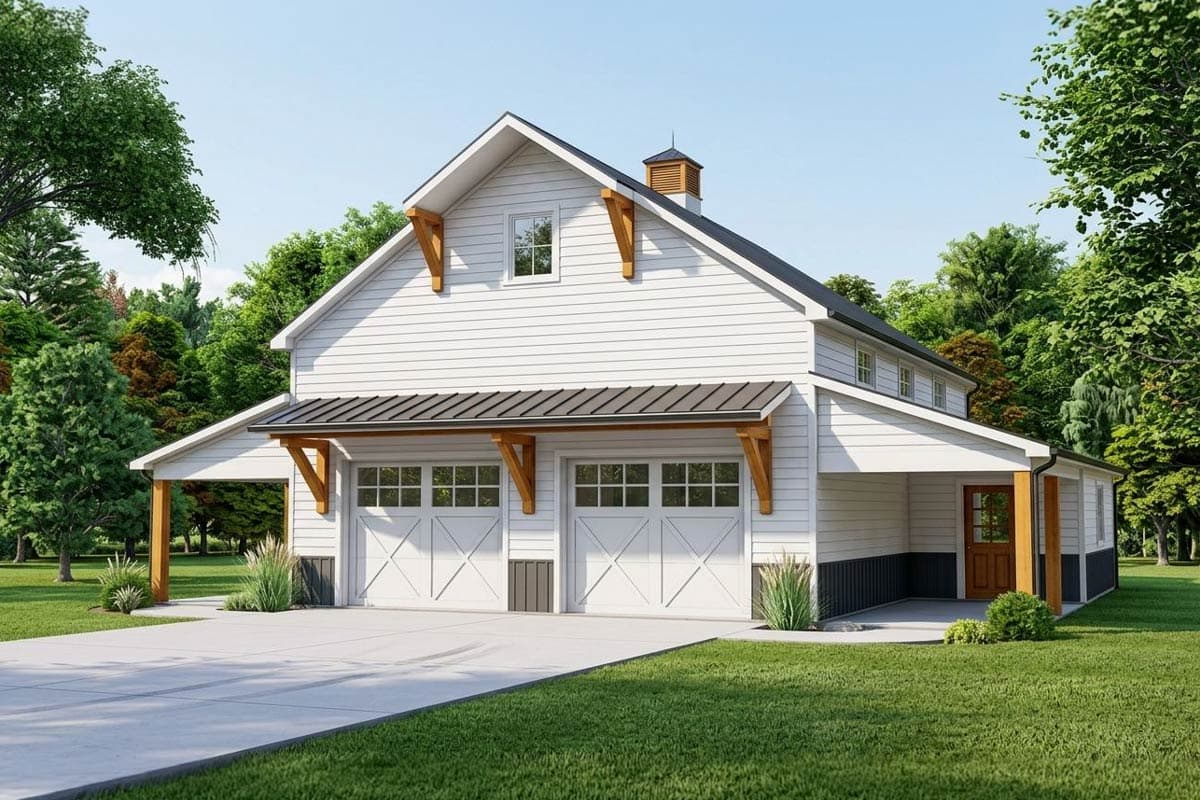

  • Wooden brackets support deep overhanging eaves and a rain awning on the exterior of this detached, Craftsman garage.
  • Three overhead doors, two in front and one in the rear, create an ideal space for a workshop or storage for lawn equipment.
  • The 29 ft. by 39 ft. space is flanked by covered porches, and the tall ceiling allows for clerestory windows to brighten the interior.
What's Included
  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Detached Barn-Style Garage / Shop with Covered Porches

  • 0

    Heated s.f.

  • Beds

  • 0

    Baths

  • 1

    Floors

  • 2 - 3

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 0 sq. ft.

Dimensions

  • Width: 50' 0"
  • Depth: 40' 0"
  • Max ridge height: 25' 6"

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Garage

  • Type: Detached
  • Area: 1200 sq. ft.
  • Count: 2 or 3 Cars
  • Entry Location: Rear, Front

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 15' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
