Detached Barn-Style Garage / Shop with Covered Porches

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
2- 3

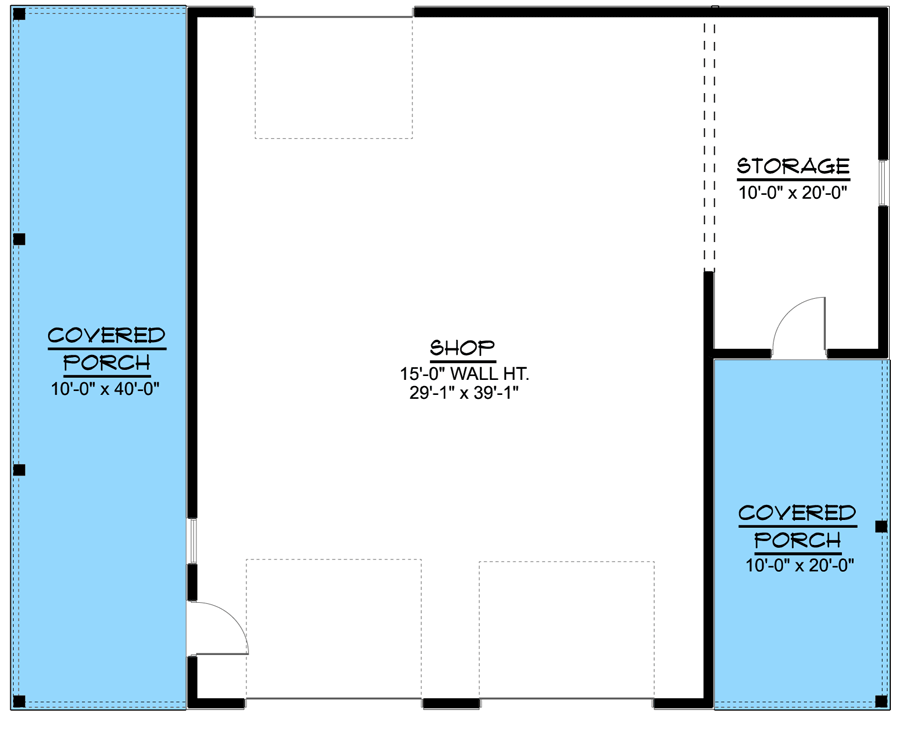

Floor Plan

Plan 135082GRA

Main Level
Main Level

Plan 135082GRA

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 135082GRA: Detached Barn-Style Garage / Shop with Covered Porches - Floor Plan - Main Level - Barndominium, Country, Farmhouse, Modern Farmhouse, Rustic

Plan Details

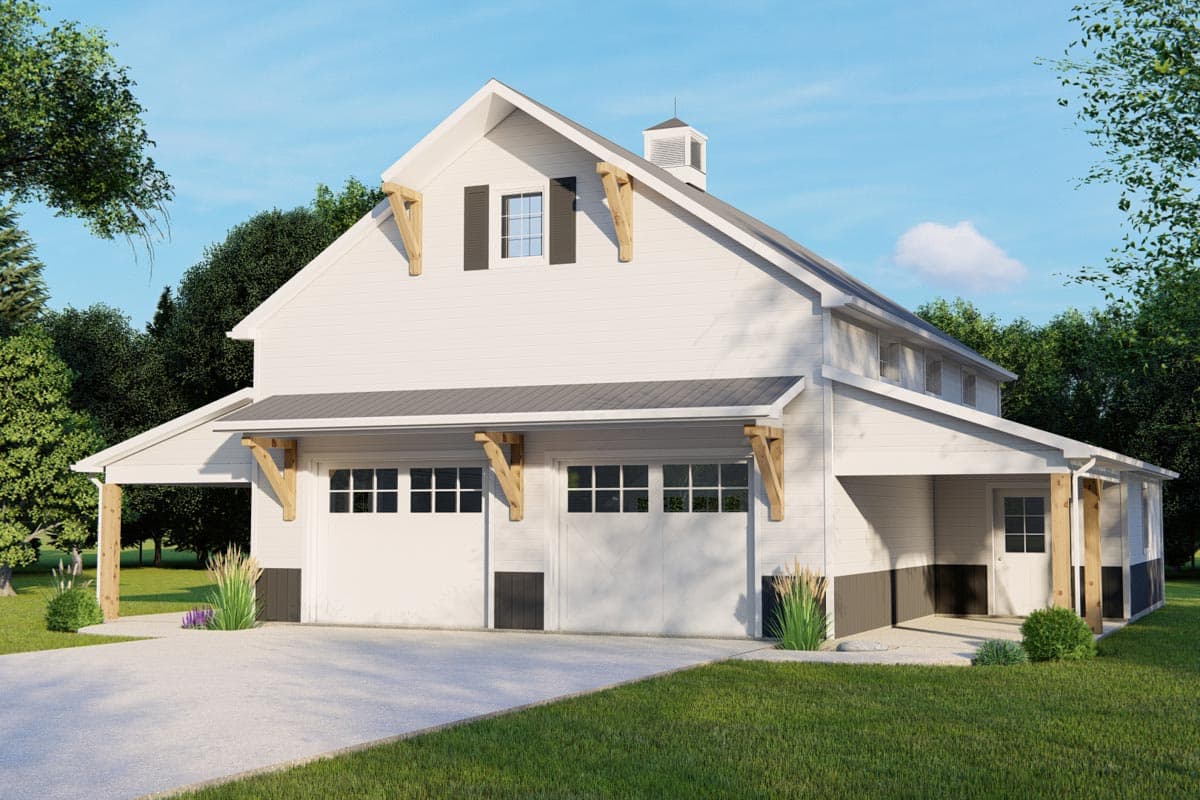

  • Wooden brackets support deep overhanging eaves and a rain awning on the exterior of this detached, Craftsman garage.
  • Three overhead doors, two in front and one in the rear, create an ideal space for a workshop or storage for lawn equipment.
  • The 29 ft. by 39 ft. space is flanked by covered porches, and the tall ceiling allows for clerestory windows to brighten the interior.

What's Included

  • Elevations
  • Fully Dimensioned Floor Plans
  • Roof Plan & Sections
  • Foundation plan
  • General Notes
  • Suggested Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
