Plan 95215RW
Detached Craftsman Garage with 1,176 Square Feet of Studio Space Above
Heated S.F.
1,176
Baths
1.5
Stories
1
Cars
3
What's Included
Plan Details
  • Craftsman details adorn the exterior of this detached garage that measures 35' by 40' in size with 1,176 square feet of living space.
  • Four overhead doors help make the ground level garage easily accessible and a man door opens into the shop area that includes a sink.
  • Upstairs, a spacious living area features a wet bar and access to a front and side sun deck.
  • A studio / bedroom completes the second-level living area and neighbors a 3/4 bathroom.
What's Included

  • Cover Page
  • 4 Elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Detached Craftsman Garage with 1,176 Square Feet of Studio Space Above

  • 1,176

    Heated s.f.

  • Beds

  • 1.5

    Baths

  • 1

    Floors

  • 3

    Car garage

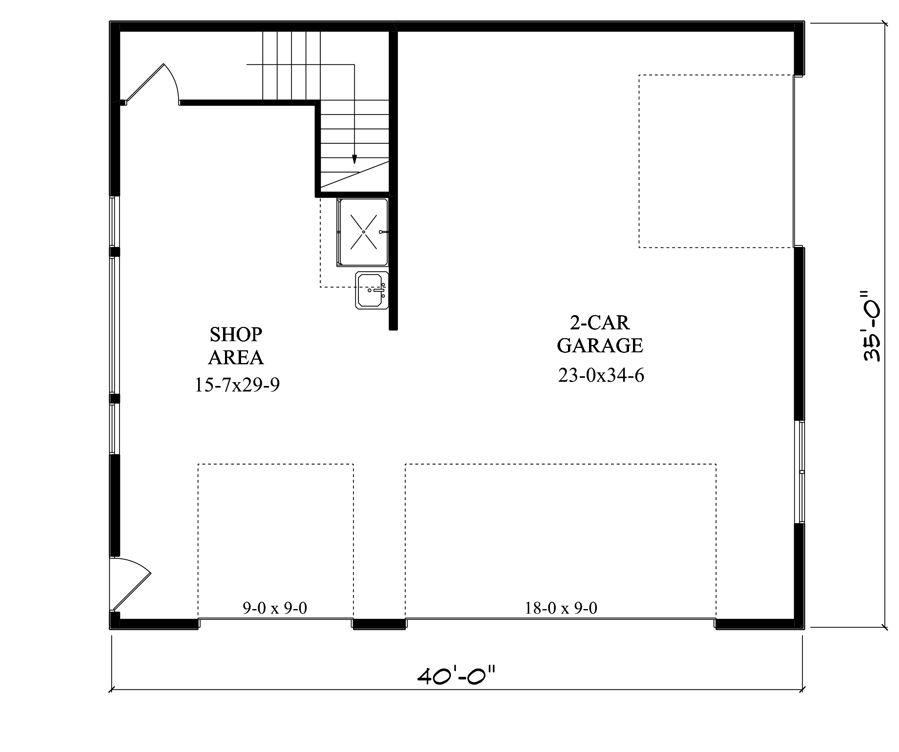

Floor Plan
