Detached Garage Plan with 2-Story Garden Room in Back

Plan 62344DJ

  • 730

    Heated s.f.

  • 2

    Stories

  • 2

    Cars

  • This 2-story garage plan with a 2-story garden room has country styling that can fit right in just about anywhere you want to build it.
  • Attic space above the garage - plus the 2-story garden room in the rear - are two great selling points to the plan.
  • The second story walls are built at 6' and the ceiling slopes up to approximately 10'.
  • The garden room has windows on 3 sides and a large sliding patio door on the rear.

Each plan set includes:


  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical wall section
  • Typical Stair section
  • Cabinets are shown on all plans.

These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

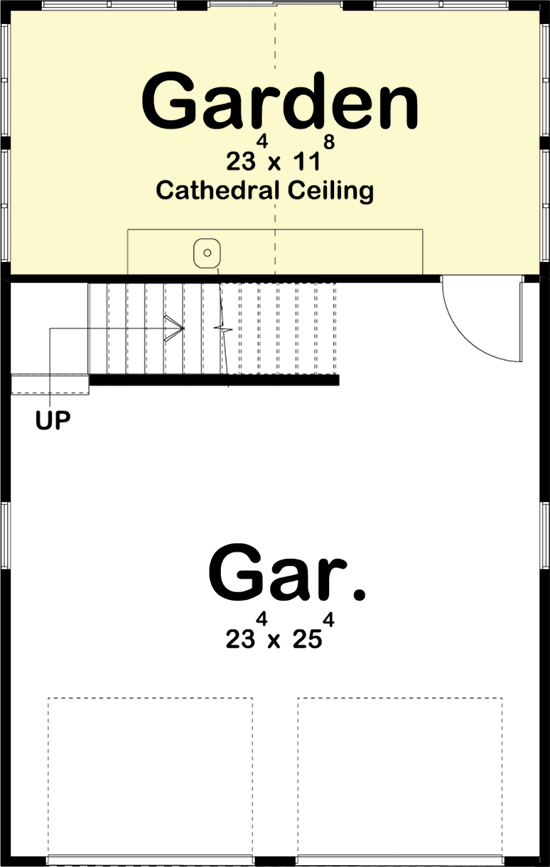

Detached Garage Plan with 2-Story Garden Room in Back - 62344DJ floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

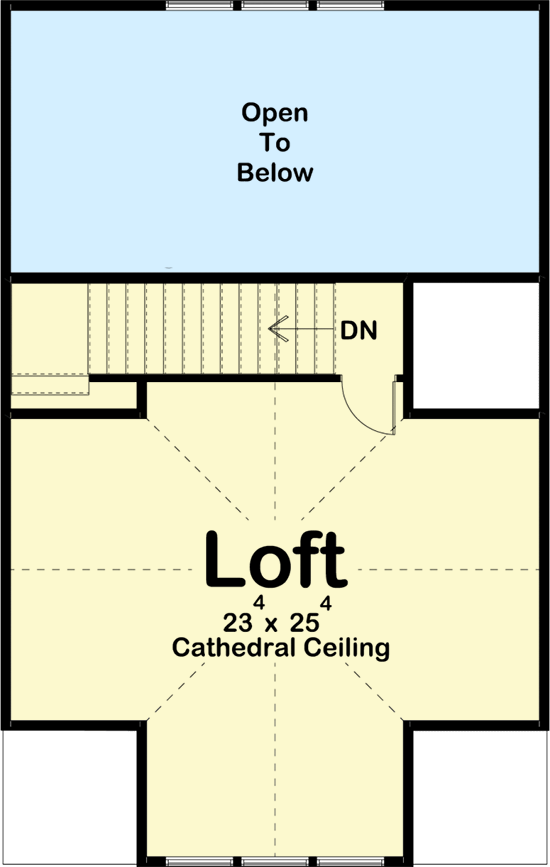

Detached Garage Plan with 2-Story Garden Room in Back - 62344DJ floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 730 sq. ft.
  • 1st Floor: 288 sq. ft.
  • 2nd Floor: 442 sq. ft.

Beds/Baths

  • Bedrooms:
  • Full bathrooms:

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 24' 0"
  • Depth: 38' 0"

Garage

  • Type: Detached
  • Area: 628 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 6' 0"
