Detached Garage Plan with Carport

Heated S.F.
0
Beds
0
Baths
0
Stories
1
Cars
2- 3

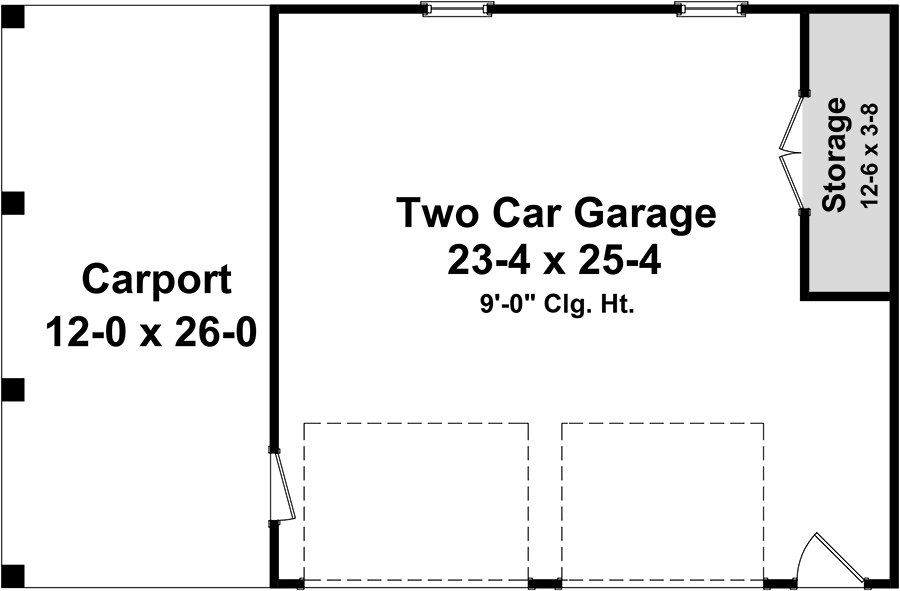

Floor Plan

Plan 51185MM

Main Level
Main Level

Plan 51185MM

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 51185MM: Detached Garage Plan with Carport - Floor Plan - Main Level - Traditional

Plan Details

This detached garage plan offers a great layout which provides for maximum flexibility.
You get ample space for your two vehicles protected from the weather in the enclosed portion of the plan. Park a third car under the carport.
A separate storage area is perfect for storing lawn equipment and tools.

What's Included

  • Cover Sheet: Showing architectural rendering of residence.
  • Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule.
  • Foundation Plan and Details
  • Electrical Plan with Symbols Legend: In general, each house plan set includes an electrical plan which will show the suggested locations of lights, receptacles, switches, etc.
  • Roof Drainage Plan: In general, each house plan set may include a roof drainage plan which will show the layout of all roof sections/planes.

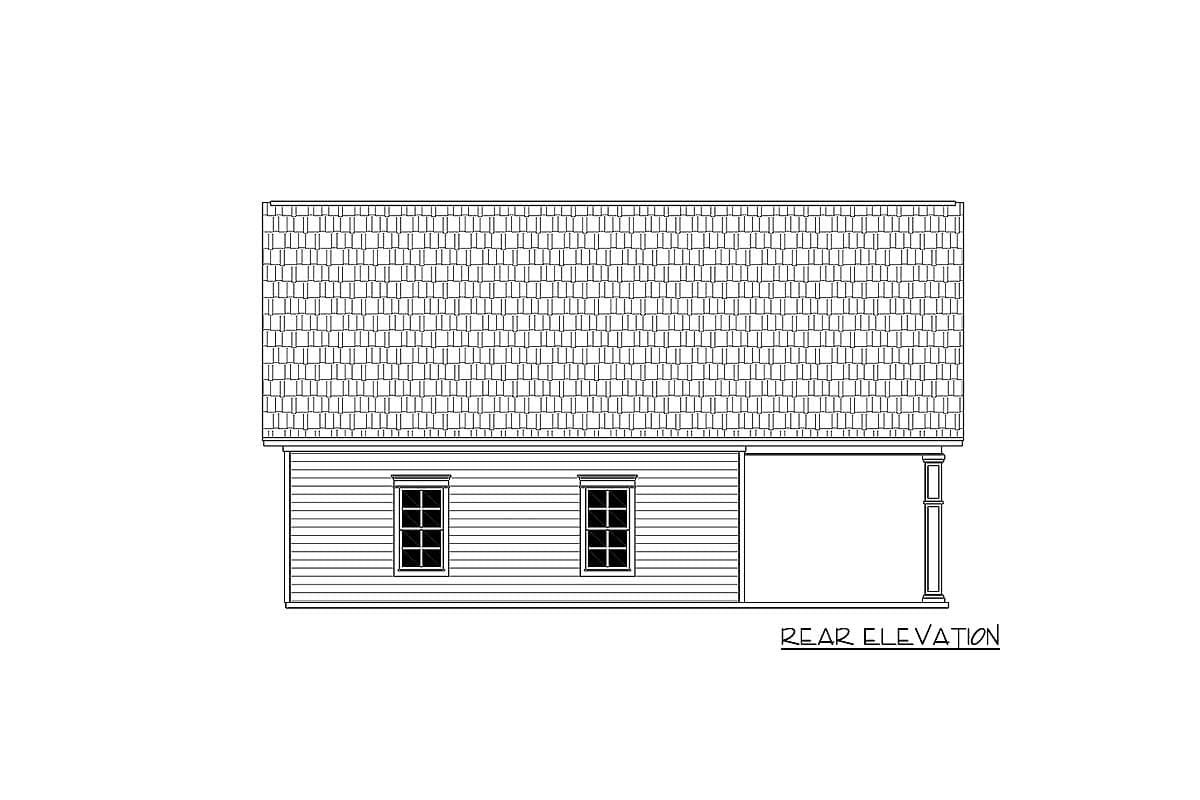

  • Exterior Elevations: In general, each house plan set includes all applicable front, side and rear elevations, as well as any special exterior details.
  • Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
  • Building Sections and Details


What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
