Plan 61410UT Detached Garage with RV/Boat Bay Plus Standard Vehicle Bay

0 0 0.5 1 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Detached Garage with RV/Boat Bay Plus Standard Vehicle Bay

Plan 61410UT

  • 0

    Heated s.f.

  • 0

    Beds

  • 0.5

    Baths

  • 1

    Stories

  • 2

    Cars

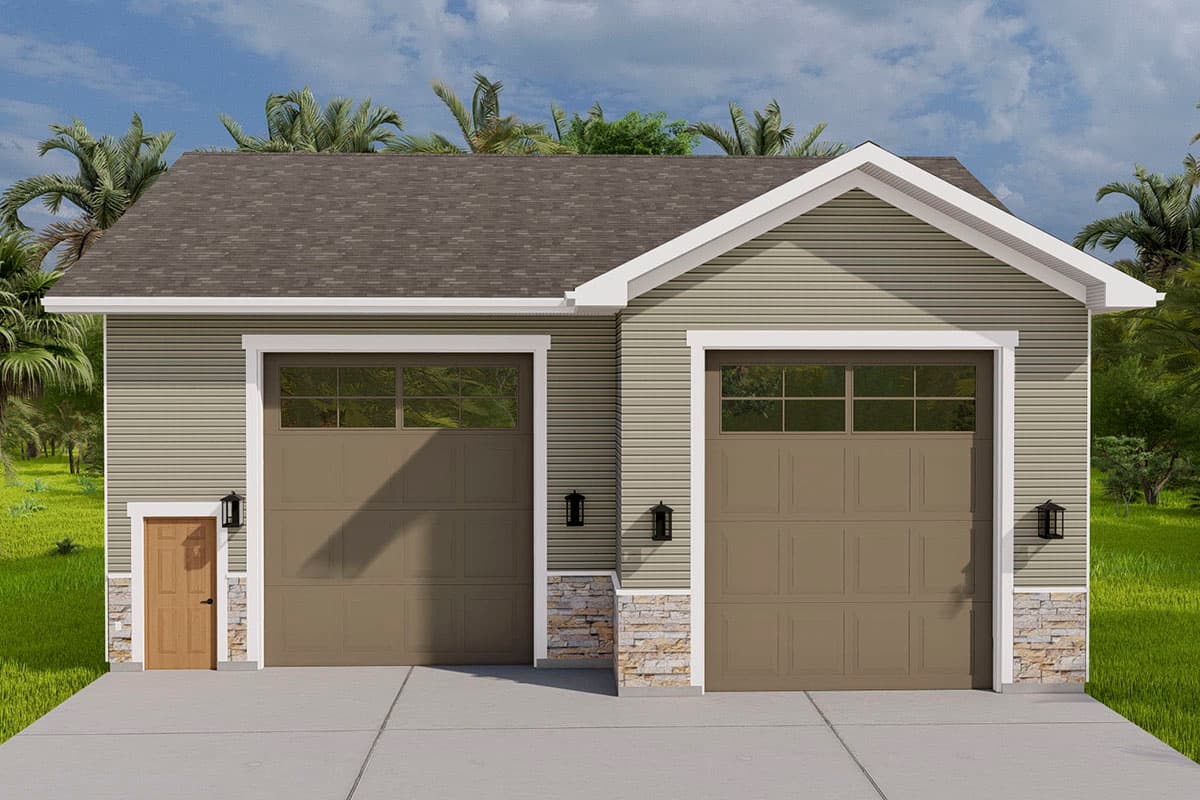

  • This detached garage plan gives you 1870 square feet of vehicle storage set behind two bays with 12' by 14' overhead garage doors.
  • A half bath is located inside on the left by the man door.

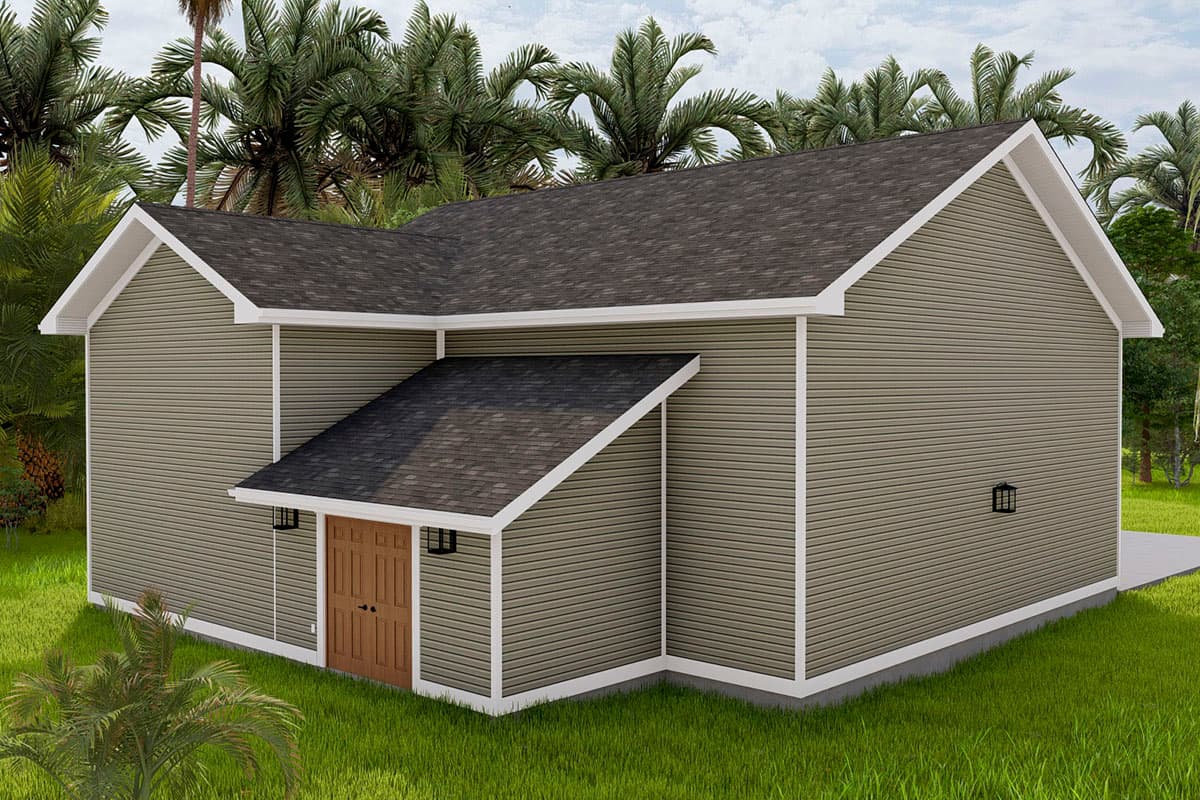

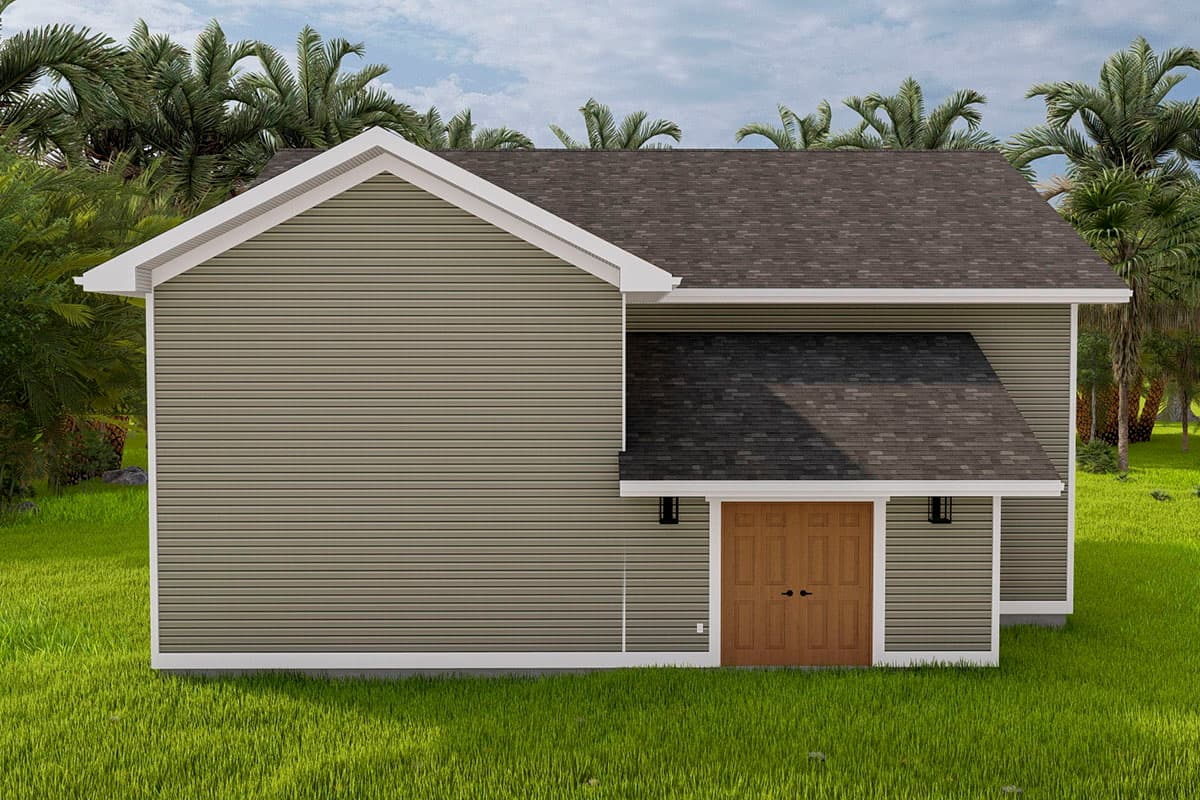

  • There is a dedicated storage room accessible from the back.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

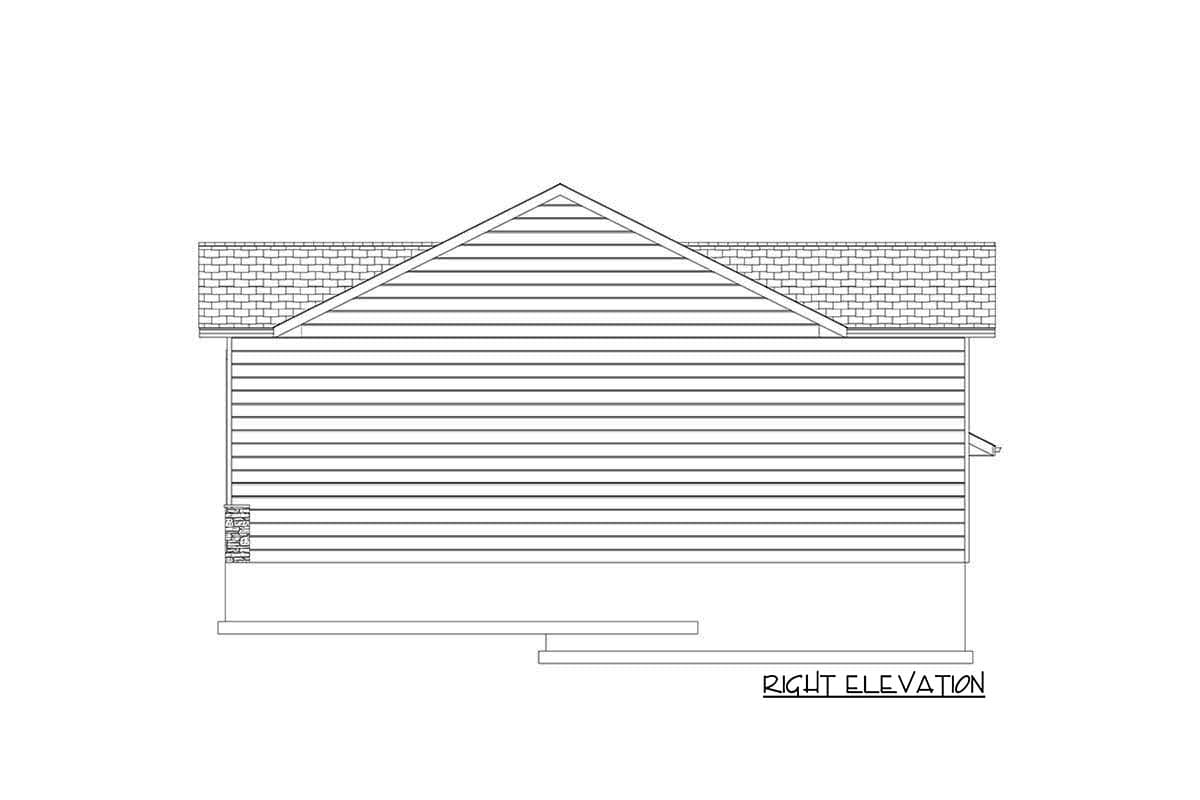

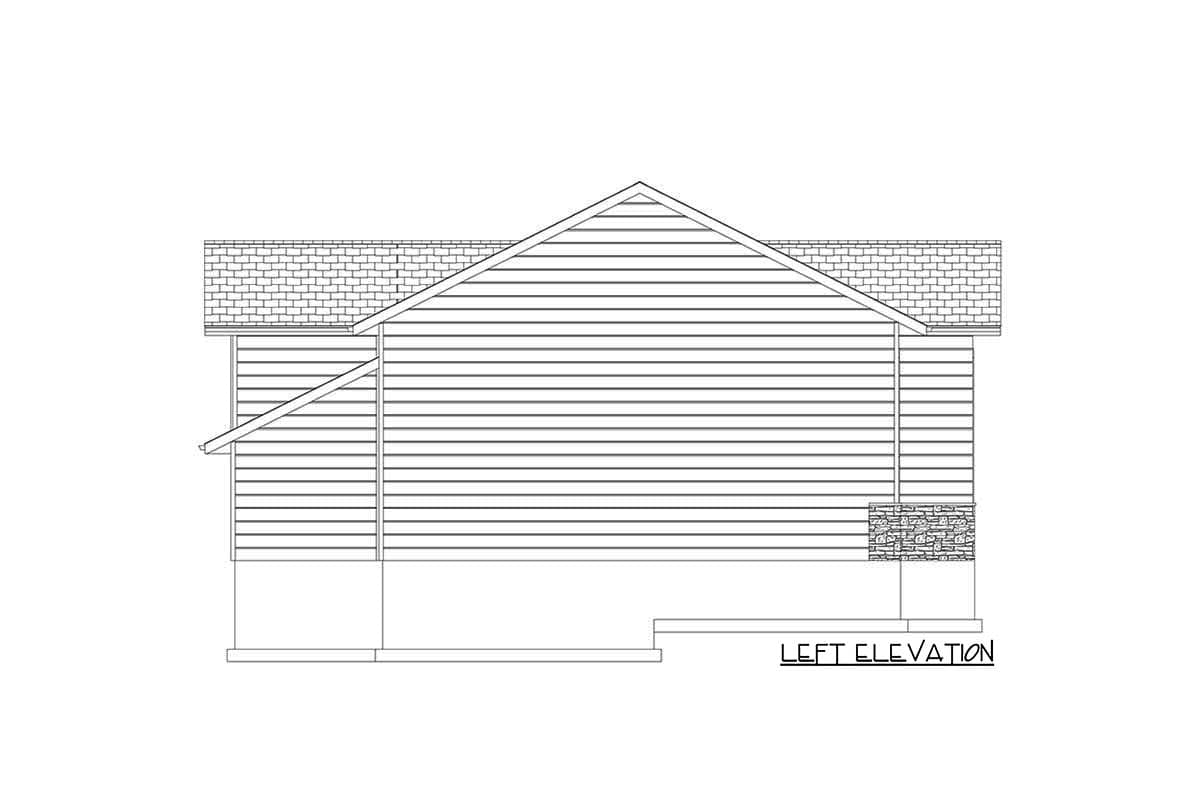

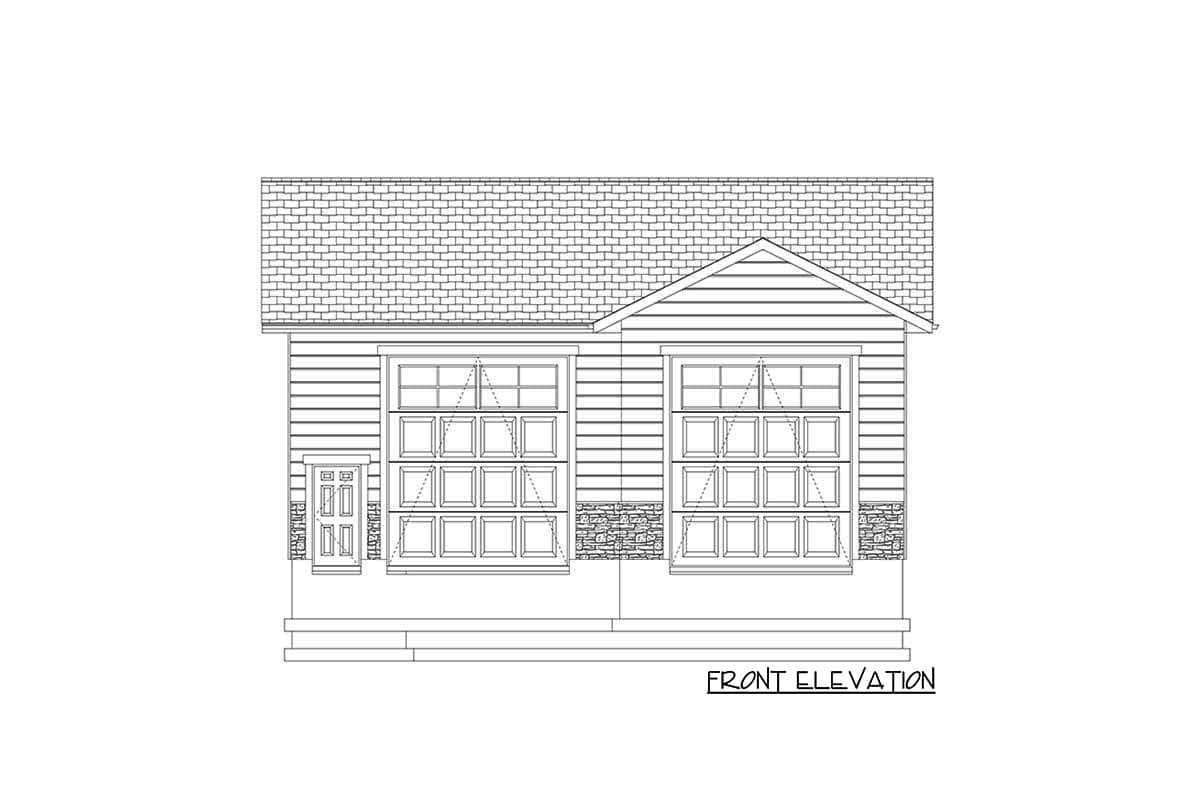

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

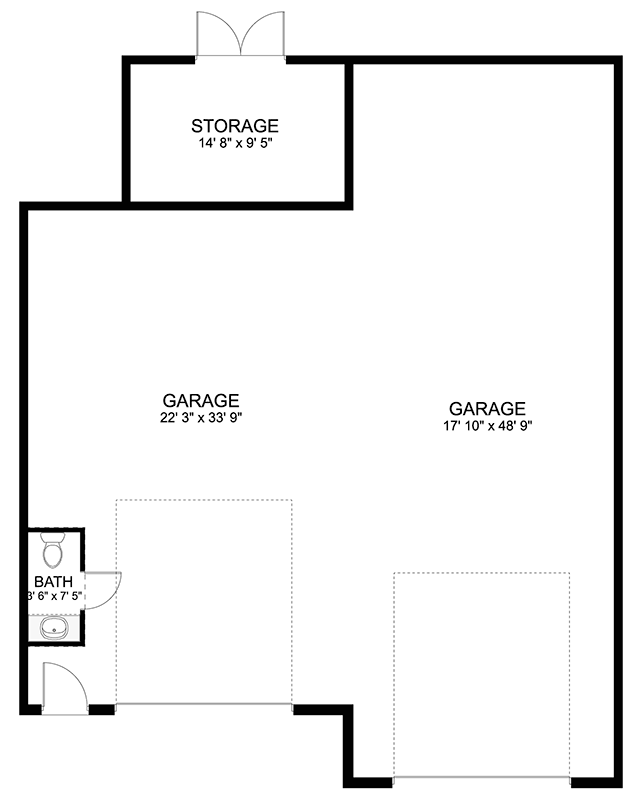

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Detached Garage with RV/Boat Bay Plus Standard Vehicle Bay - 61410UT floor plan - Main Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 41' 0"
  • Depth: 50' 0"
  • Max ridge height: 25' 7"

Garage

  • Type: RV Garage, Detached
  • Area: 1870 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 16' 0"

Roof Details

  • Primary Pitch: 6 on 12
  • Framing Type: Truss

Detached Garage with RV/Boat Bay Plus Standard Vehicle Bay

  • 0

    Heated s.f.

  • 0

    Beds

  • 0.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $700
  • PDF - Unlimited Build $825
  • 5 Sets + PDF $1,025
  • CAD - Single-Build $1,150
  • CAD Unlimited + PDF $1,275
  • View all purchase option online

About This Plan

  • This detached garage plan gives you 1870 square feet of vehicle storage set behind two bays with 12' by 14' overhead garage doors.
  • A half bath is located inside on the left by the man door.
  • There is a dedicated storage room accessible from the back.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 41' 0"
  • Depth: 50' 0"
  • Max ridge height: 25' 7"

Garage

  • Type: RV Garage, Detached
  • Area: 1870 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 16' 0"

Roof

  • Primary Pitch: 6 on 12
  • Framing Type: Truss
Plan 61410UT
View this and more for this plan by visiting www.architechtecturaldesigns.com/61410UT
|
