Detached Workshop with Dedicated Storage and Entertainer's Lanai
Heated S.F.
0
Baths
1
Stories
1
Cars
2
What's Included
Plan Details
  • This detached workshop is packed full of must-have amenities, and displays a fresh exterior with lap siding and stone accents.
  • Two garage doors open to reveal a workshop and dedicated storage space in this 44' by 24' design.
  • Enjoy entertaining beneath this vaulted lanai, complete with a wet bar and built-in TV cabinet.
  • A full bath is accessible from the lanai, making this plan ideal for a lot with a pool.
  • Related Plans: Get an alternate version with plans 680113VR and 68692VR.
What's Included

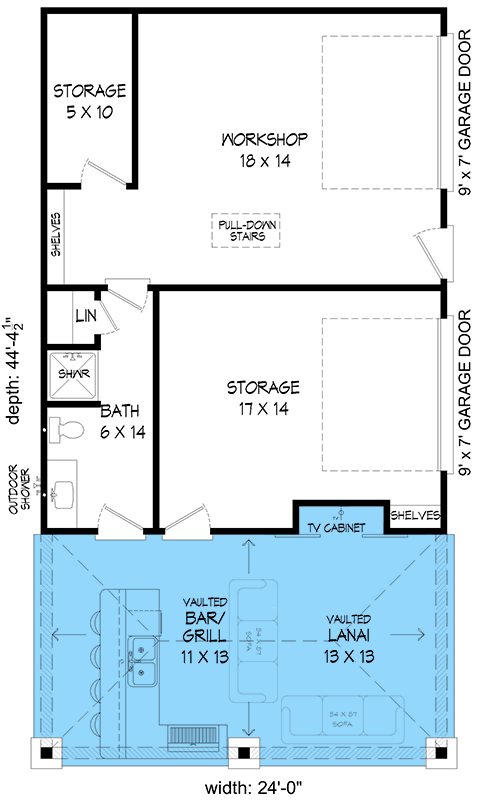

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

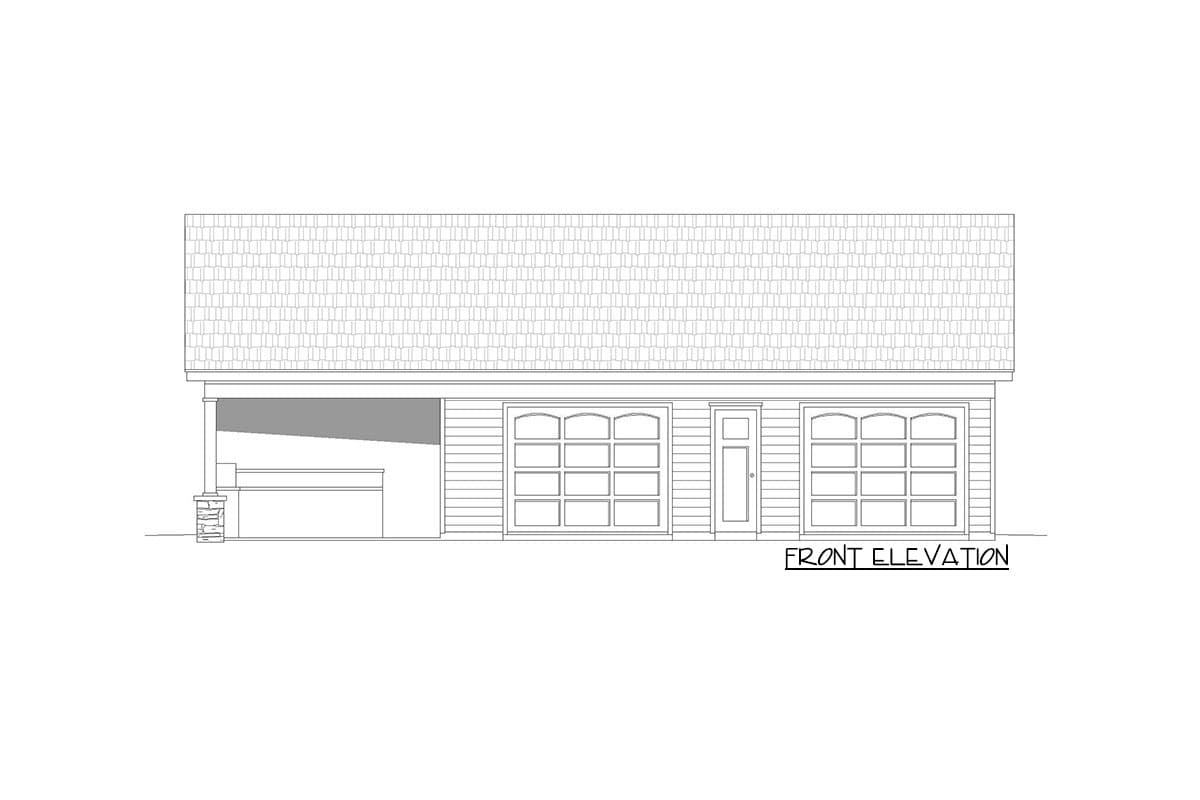

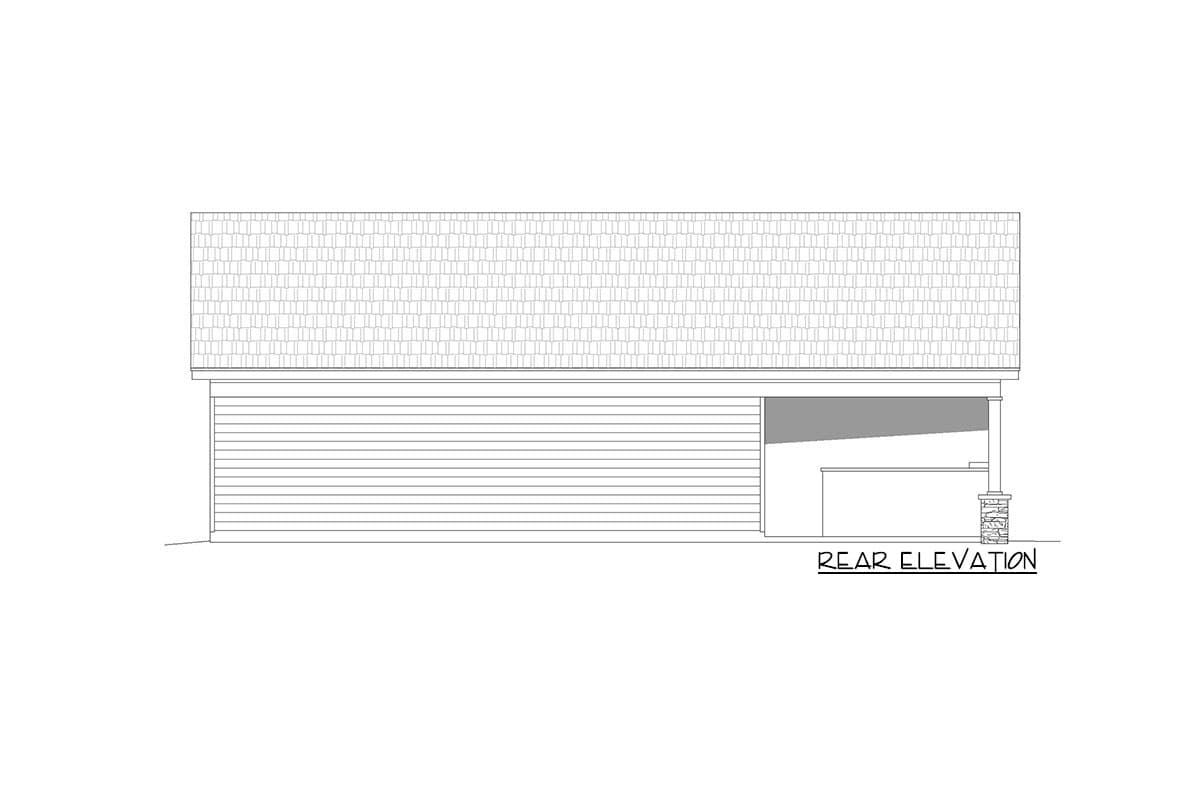

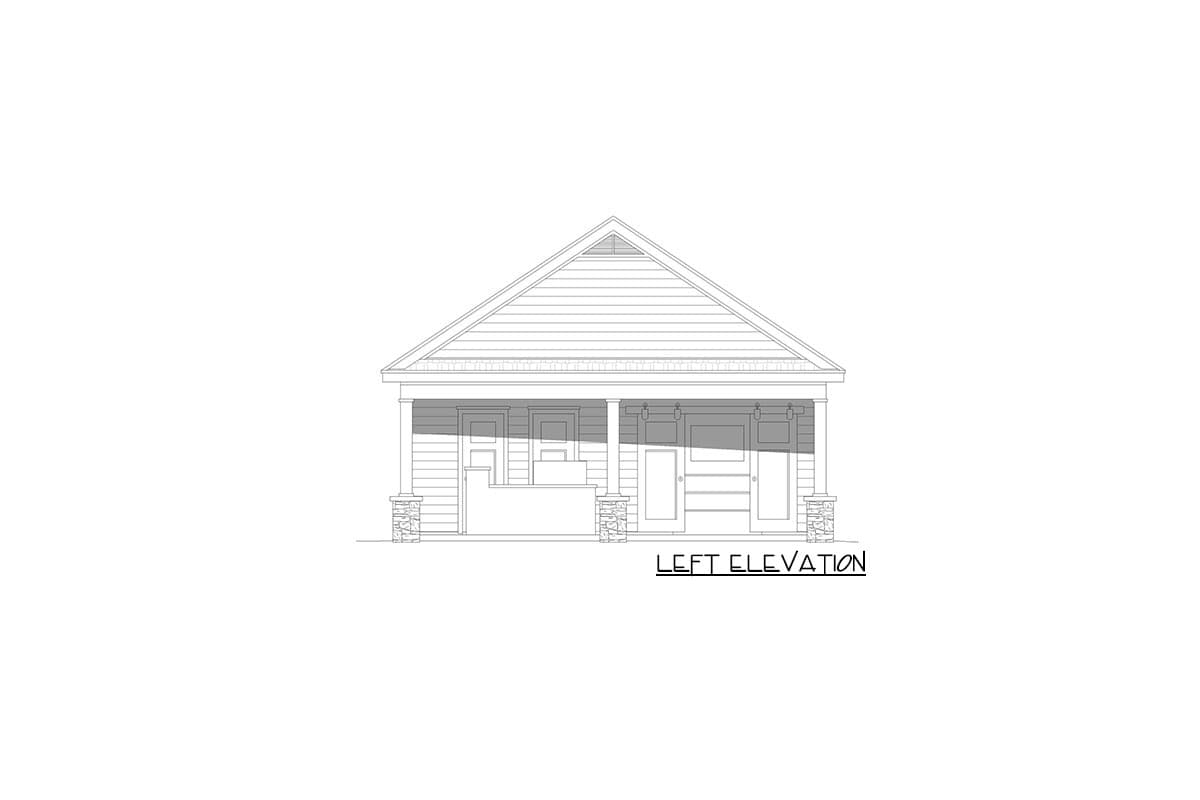

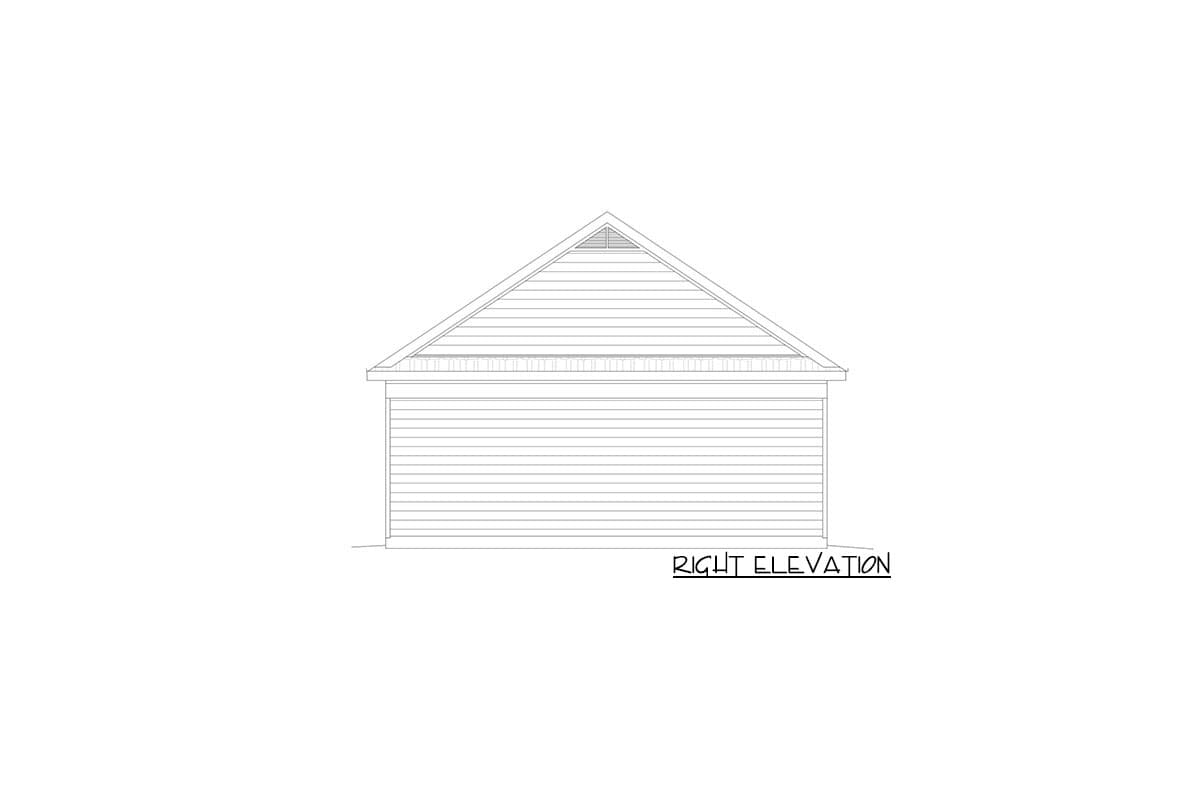

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Detached Workshop with Dedicated Storage and Entertainer's Lanai

  • 0

    Heated s.f.

  • Beds

  • 1

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 0 sq. ft.

Dimensions

  • Width: 24' 0"
  • Depth: 44' 5"
  • Max ridge height: 17' 10"

Beds/Baths

  • Bedrooms:
  • Full bathrooms: 1

Garage

  • Type: Attached
  • Area: 747 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
