Plan 68993VR
Double-Dormered Rustic Mountain Home Plan with 3 Bedrooms - 2393 Sq Ft
Heated S.F.
2,393
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • A timber-frame truss lends character to the front and side porches of this two-story rustic mountain house plan.
  • The sun-drenched interior features a two-story great room with a vaulted ceiling and floor to ceiling windows in the great room. The adjoining eat-in kitchen includes a large island with seating for five.
  • The master bedroom is located on the main floor and has a 4-fixture bathroom and a walk-in closet. Two more bedrooms are upstairs and share a bath. A rec room at the end of the hall completes the upstairs.
  • There's a storage area with access to the back in the 2-car garage.
  • Related Plan: Get an alternate version with house plan 680265VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions

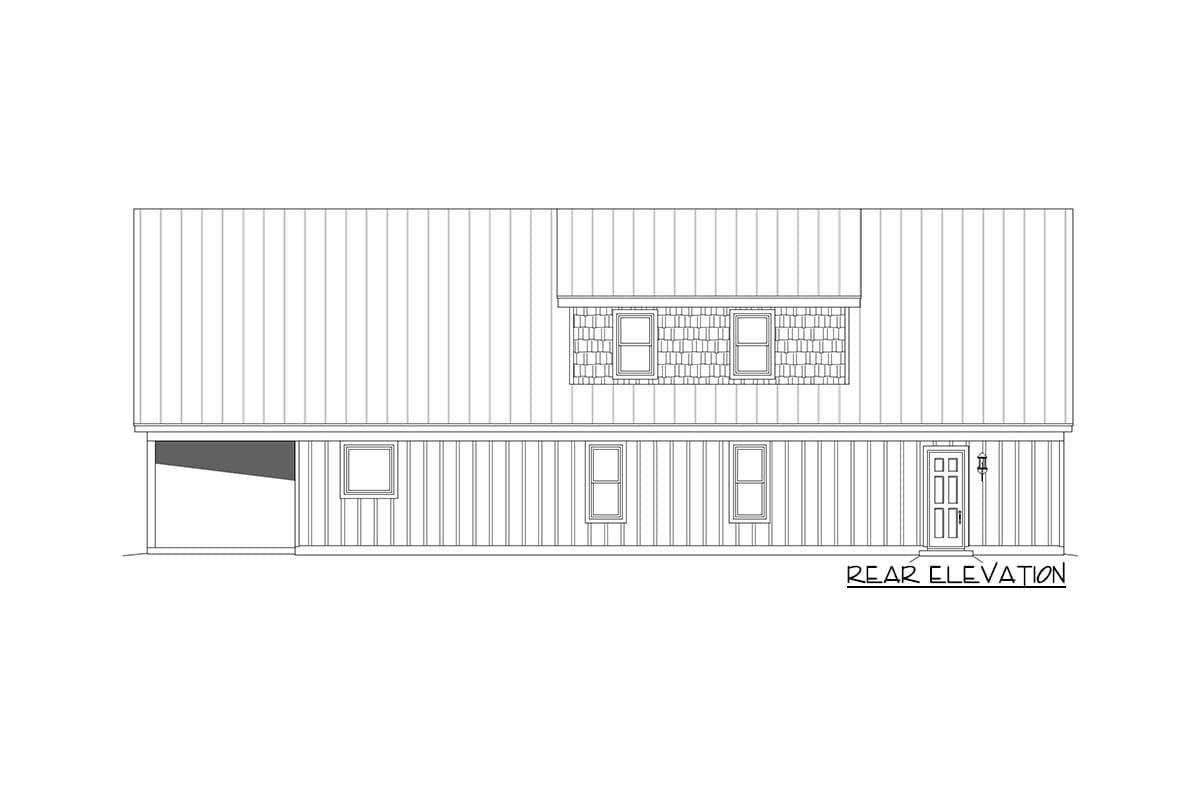

  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • A building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Double-Dormered Rustic Mountain Home Plan with 3 Bedrooms - 2393 Sq Ft

  • 2,393

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

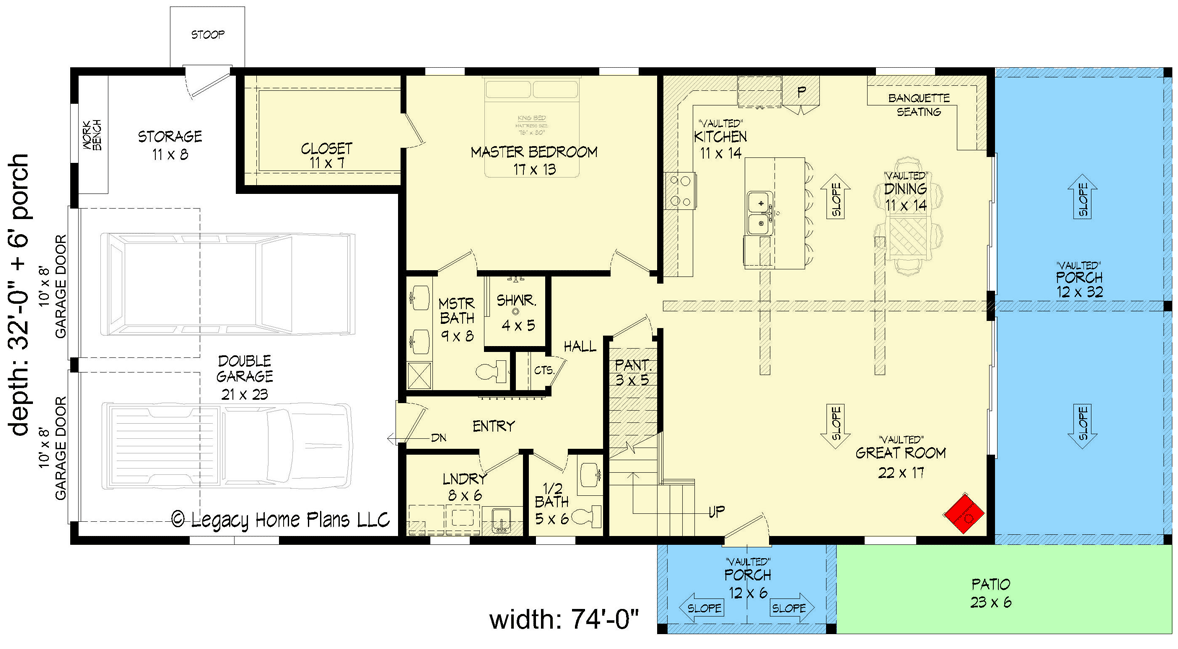

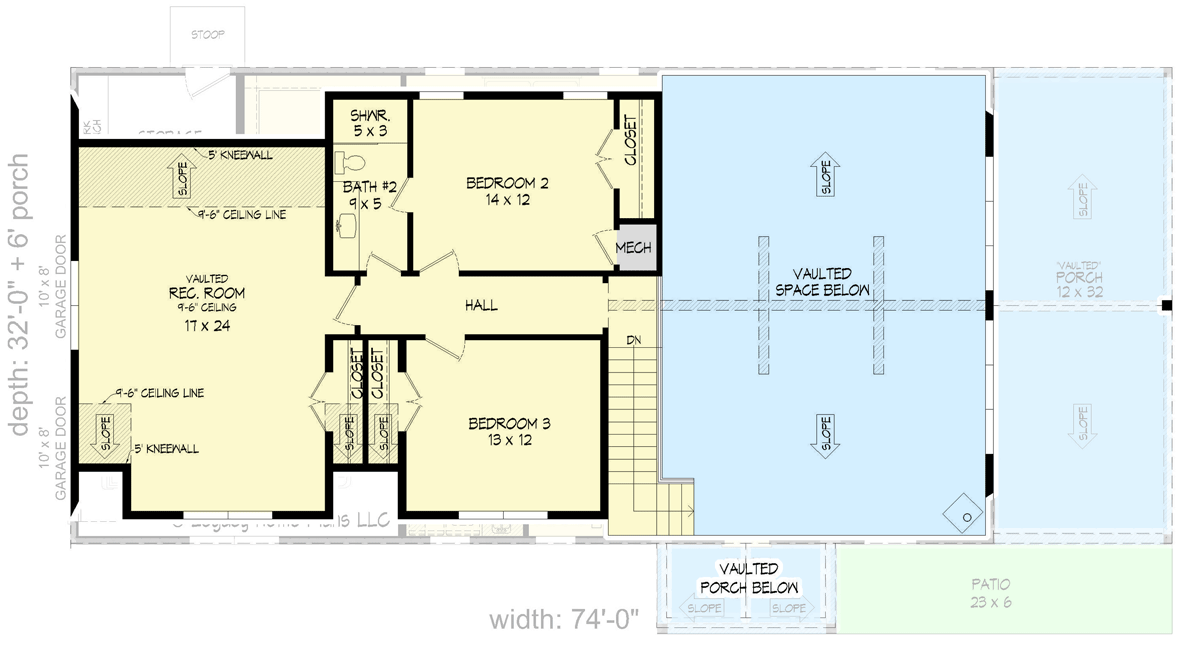

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,393 sq. ft.
  • 1st Floor: 1,372 sq. ft.
  • 2nd Floor: 1,021 sq. ft.

Dimensions

  • Width: 74' 0"
  • Depth: 38' 0"
  • Max ridge height: 27' 2"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 612 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 6"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 5 on 12
  • Framing Type: Stick
