Plan 57032HA
Dramatic Interior
Heated S.F.
2,409
Beds
4
Baths
2.5
Stories
2
Cars
3
What's Included
Plan Details
  • Double two-story bay windows adorn the wrap-around porch of this exciting home plan.
  • The study with double French doors and formal dining room with tray ceiling both flank the foyer and are set in bay windows.
  • An eating area, fireplace, Palladian windows, vaulted ceiling and balcony overlook are among the many amenities of the spacious morning room.
  • On the right of this home plan, the fully equipped laundry room connects the house with the three car garage.
  • On the left, the master suite has many features including a private five-fixture bathroom with whirlpool tub, a walk-in closet, vaulted ceiling, and porch access.
  • Three bedrooms compile the second floor and all share a hall bath. Two of these bedrooms are set in bay windows.
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan
  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Dramatic Interior

  • 2,409

    Heated s.f.

  • 4

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 3

    Car garage

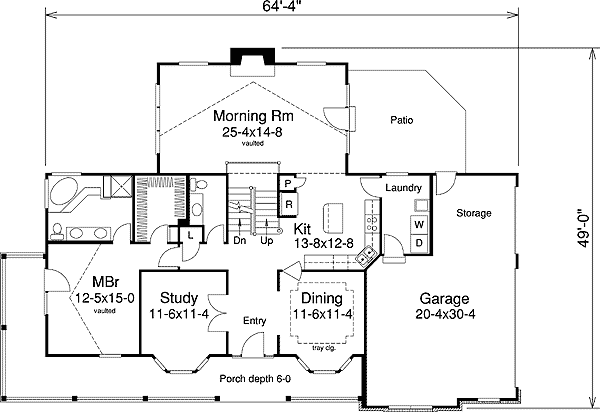

Floor Plan
