Plan 36157TX Dramatic Manor Home Plan

5,462 5 5.5 2 4
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Dramatic Manor Home Plan

Plan 36157TX

  • 5,462

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Stories

  • 4

    Cars

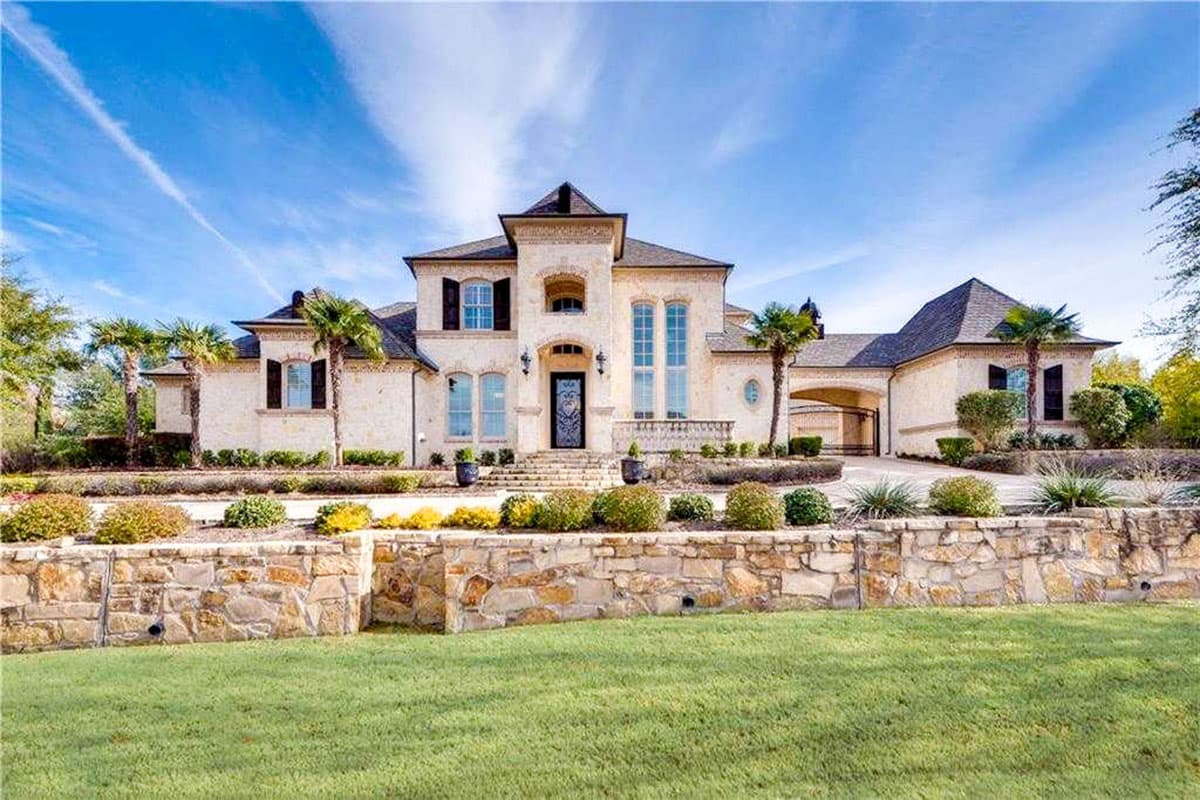

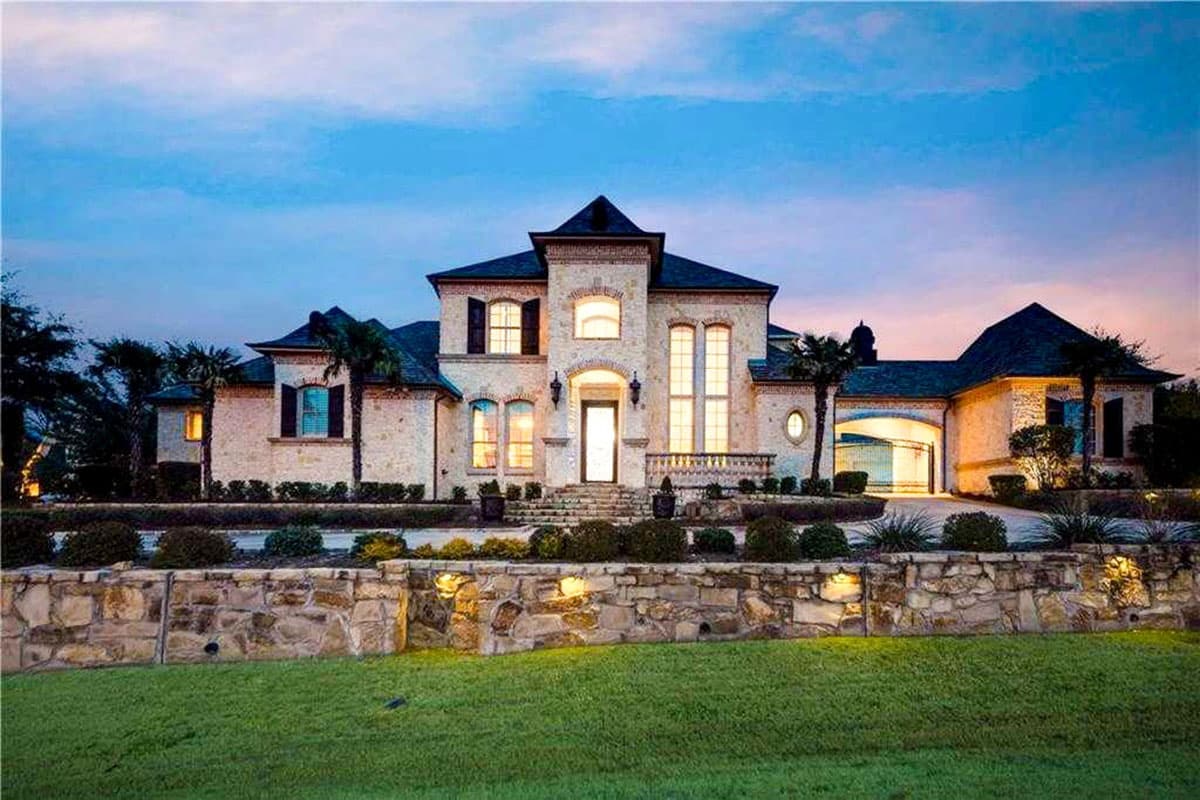

  • This dramatic manor home creates an imposing presence. You enter from the front porch into a 24' open ceiling entry.

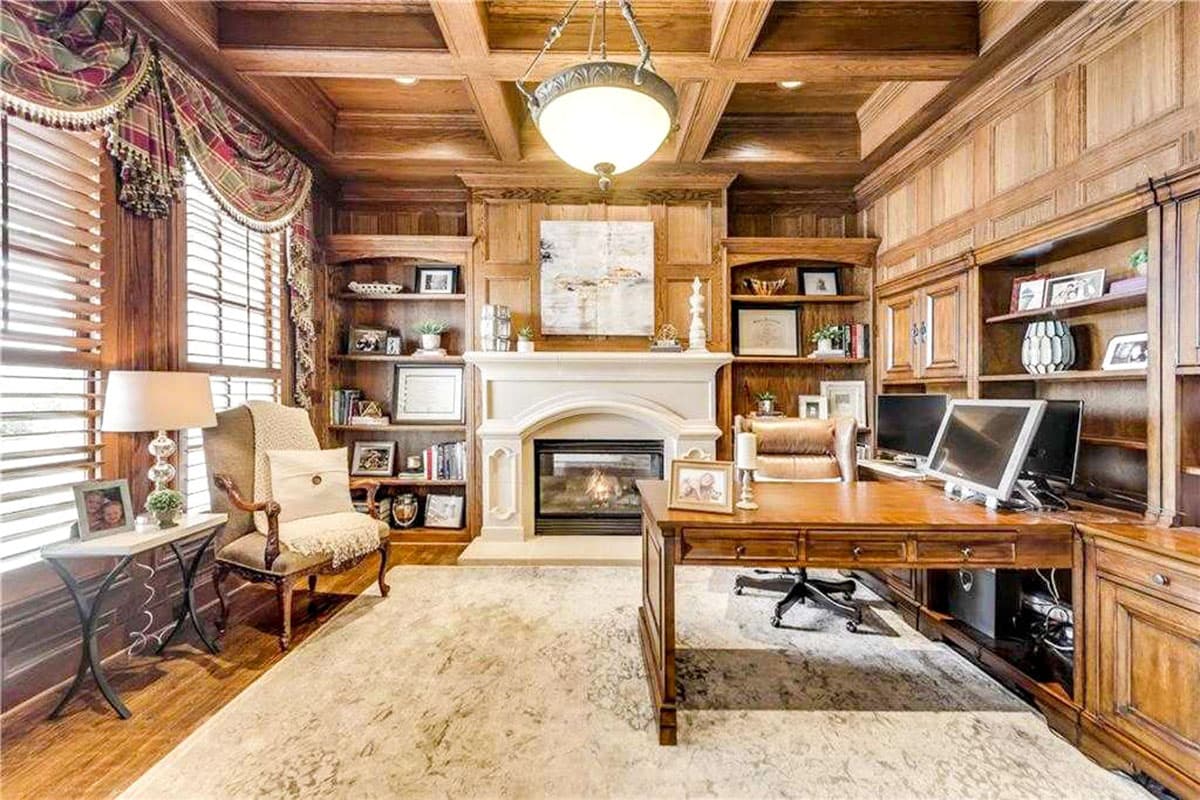

  • The study to the left with its 11' coffered ceiling and fireplace, makes a comforting getaway for reading or studying.

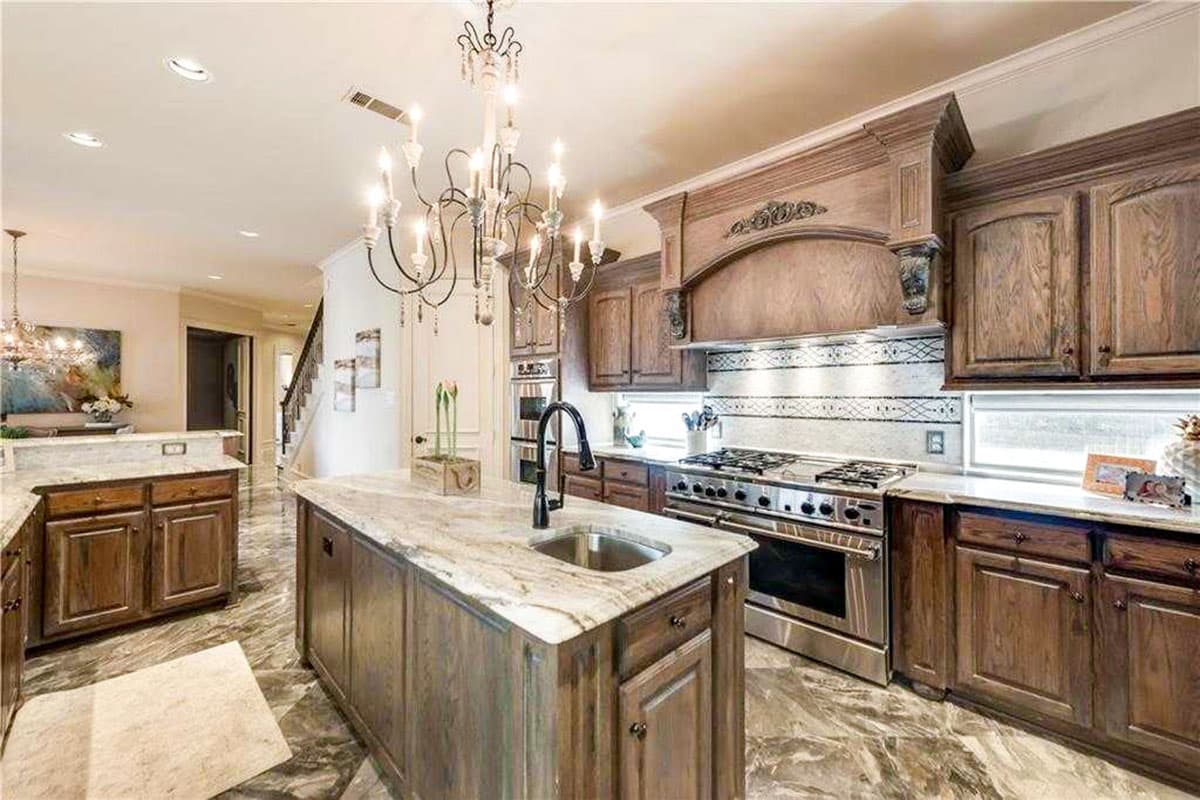

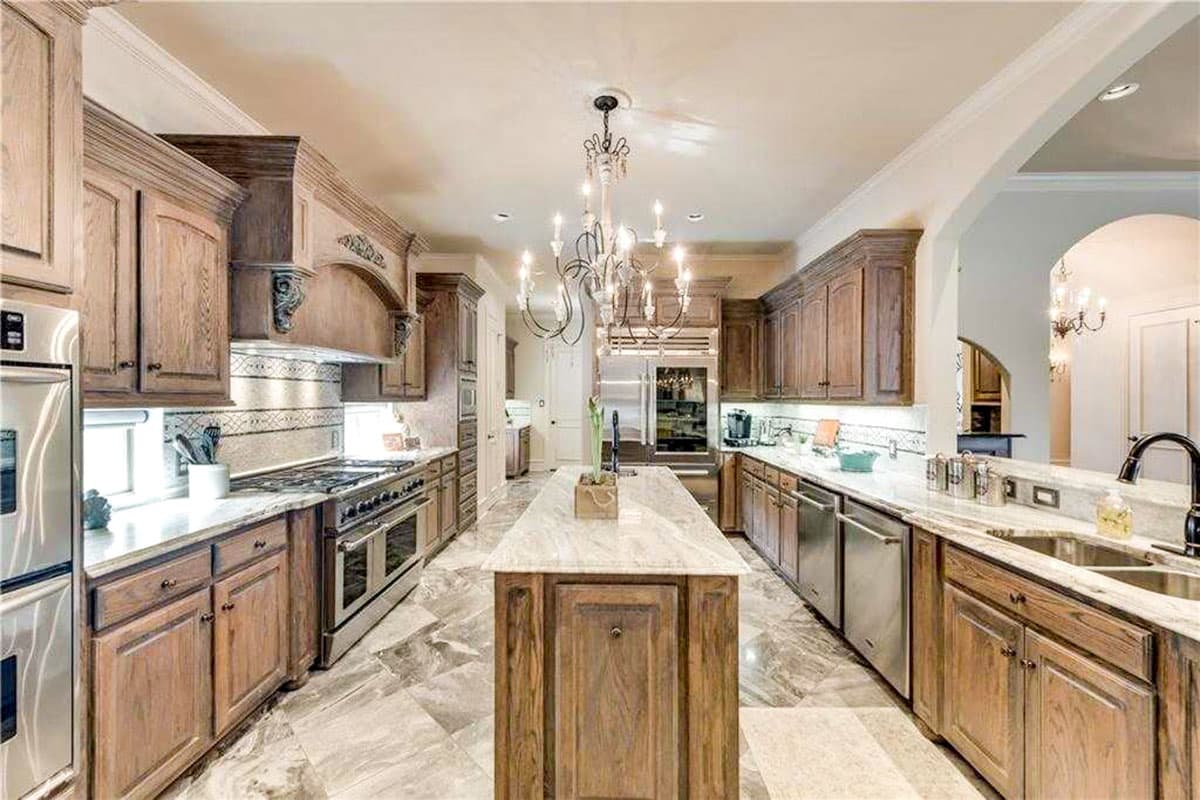

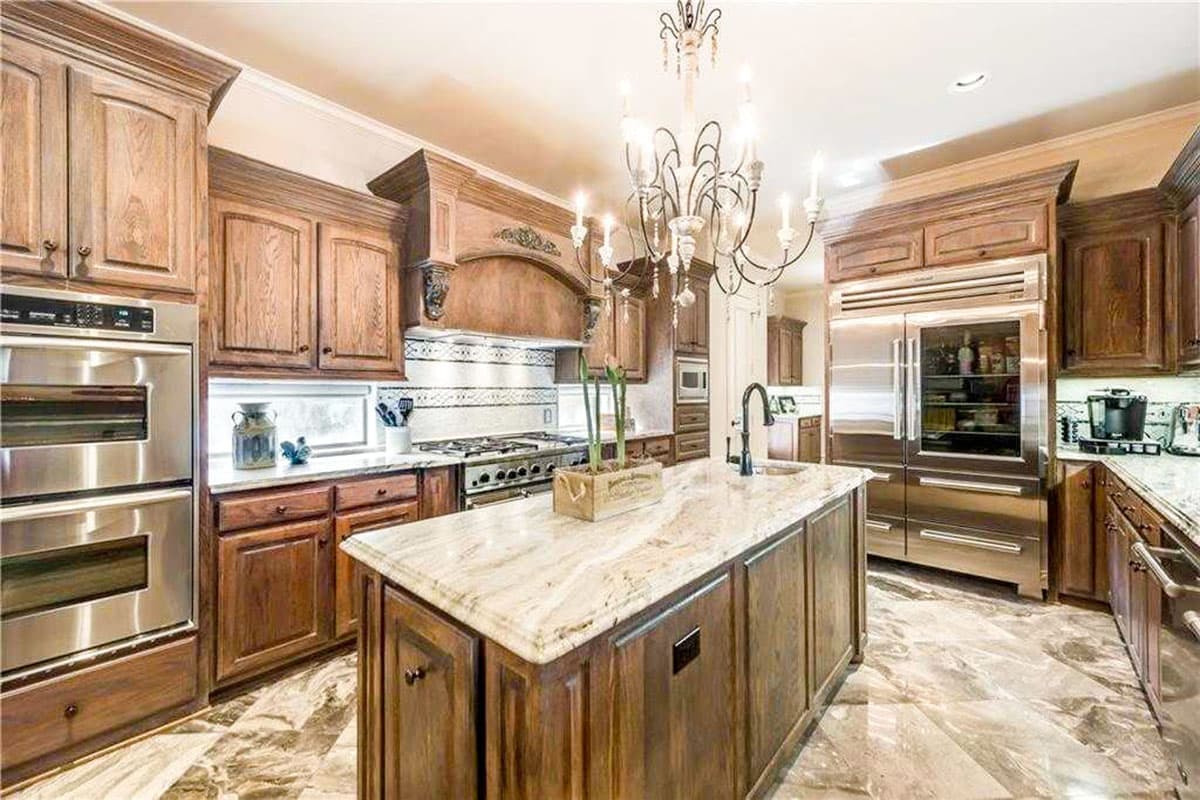

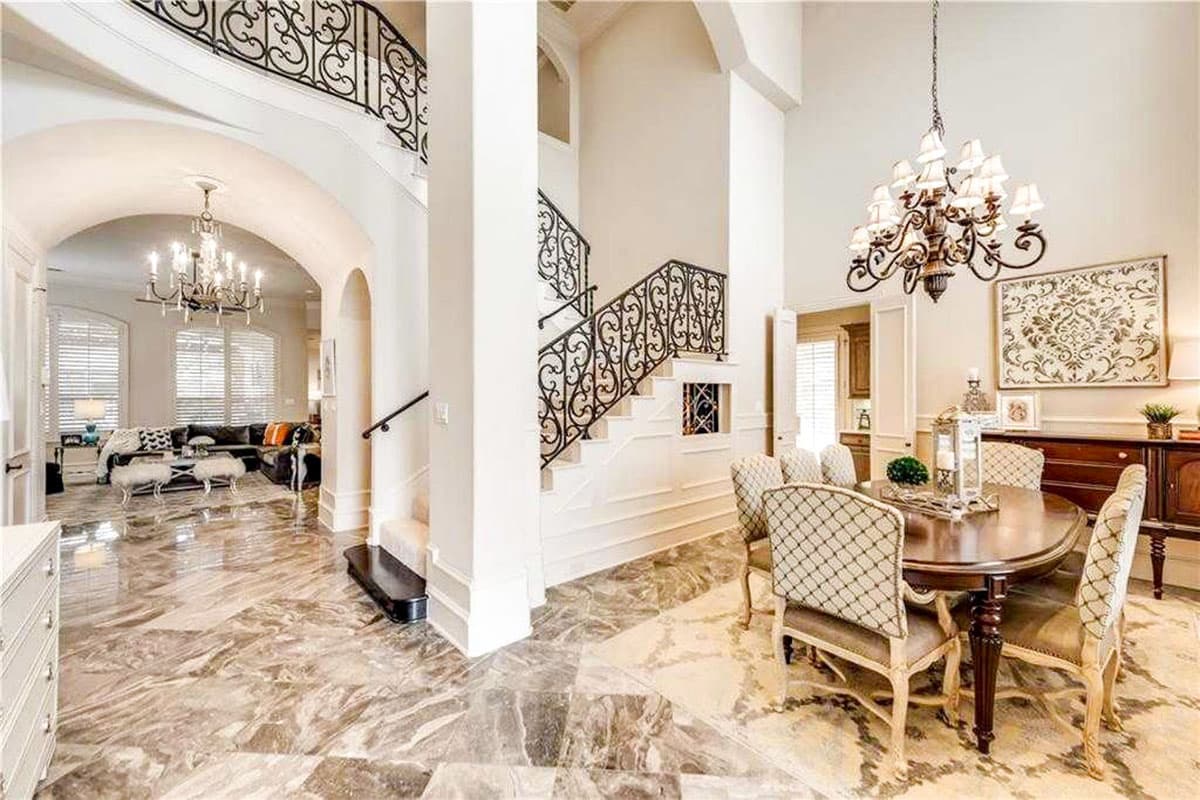

  • The dining room with its 22' high ceiling has a back entry to the utility and butler's pantry, through to the kitchen and remainder of the living areas.

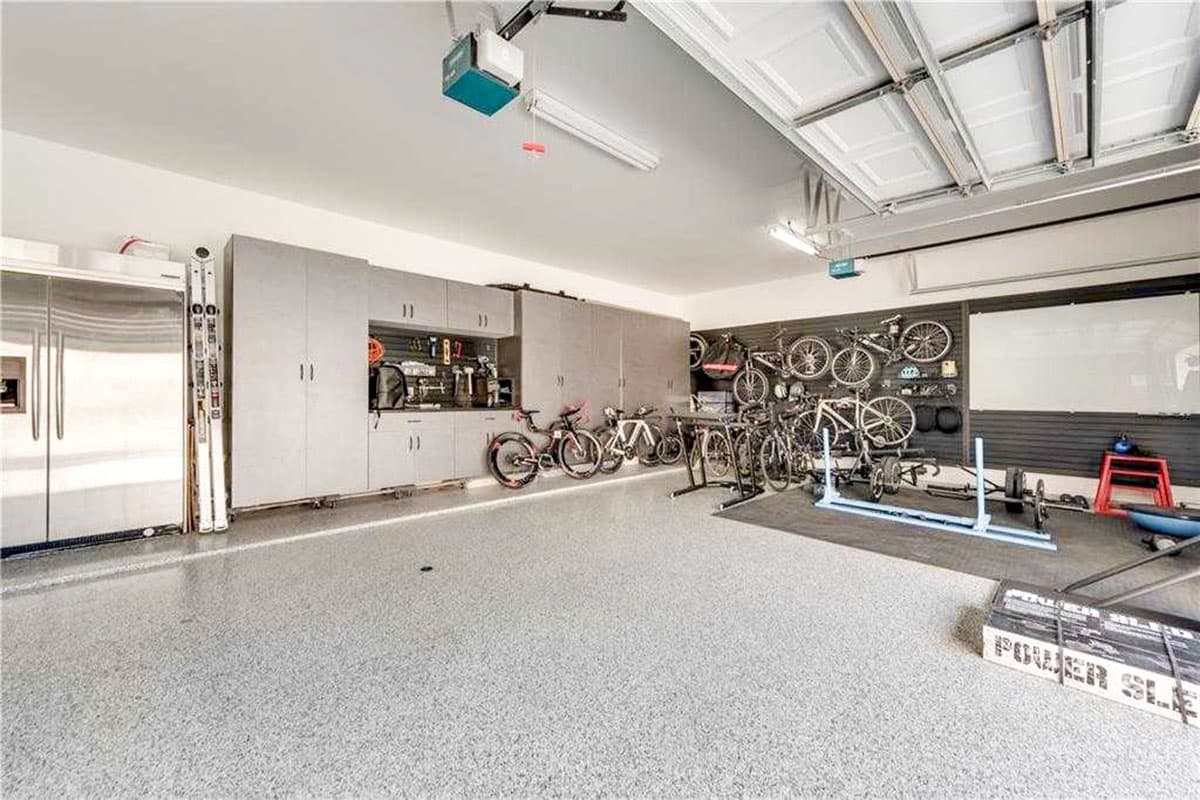

  • Off the butlery, the portico leads to a single car garage, and beyond the adjoining motor court is a three-car garage.

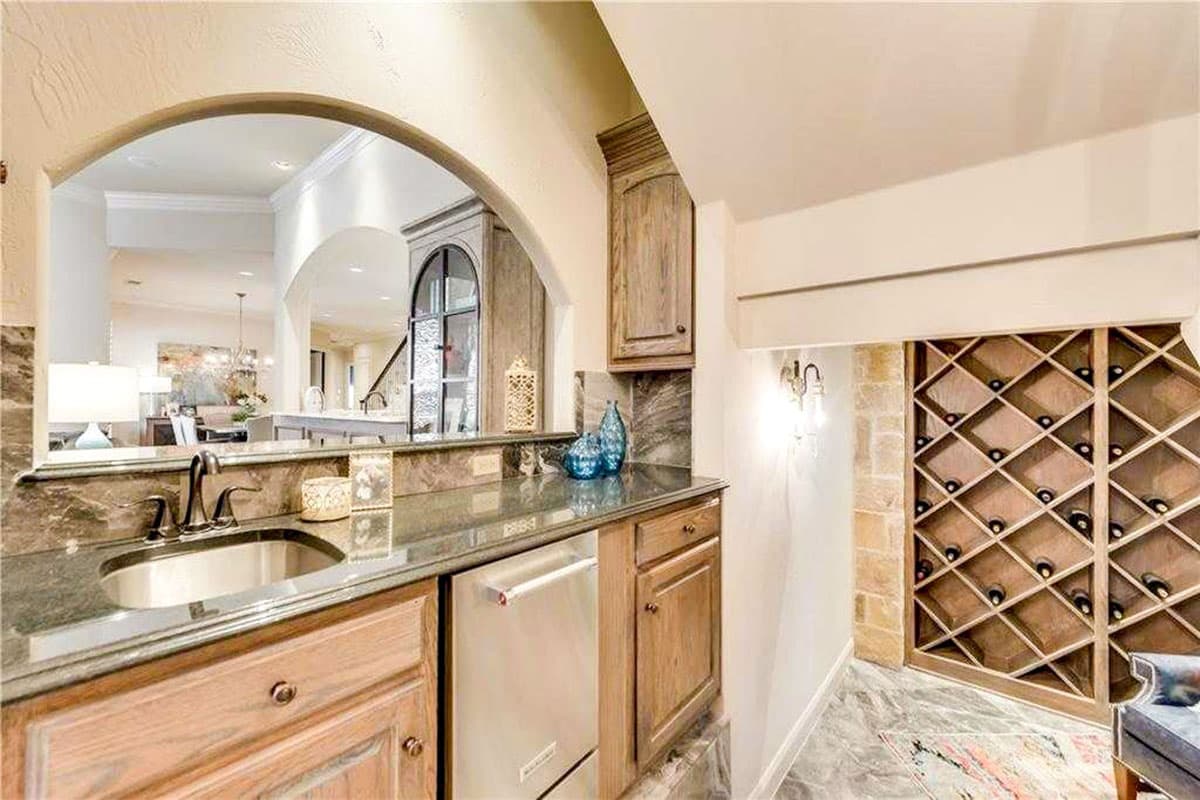

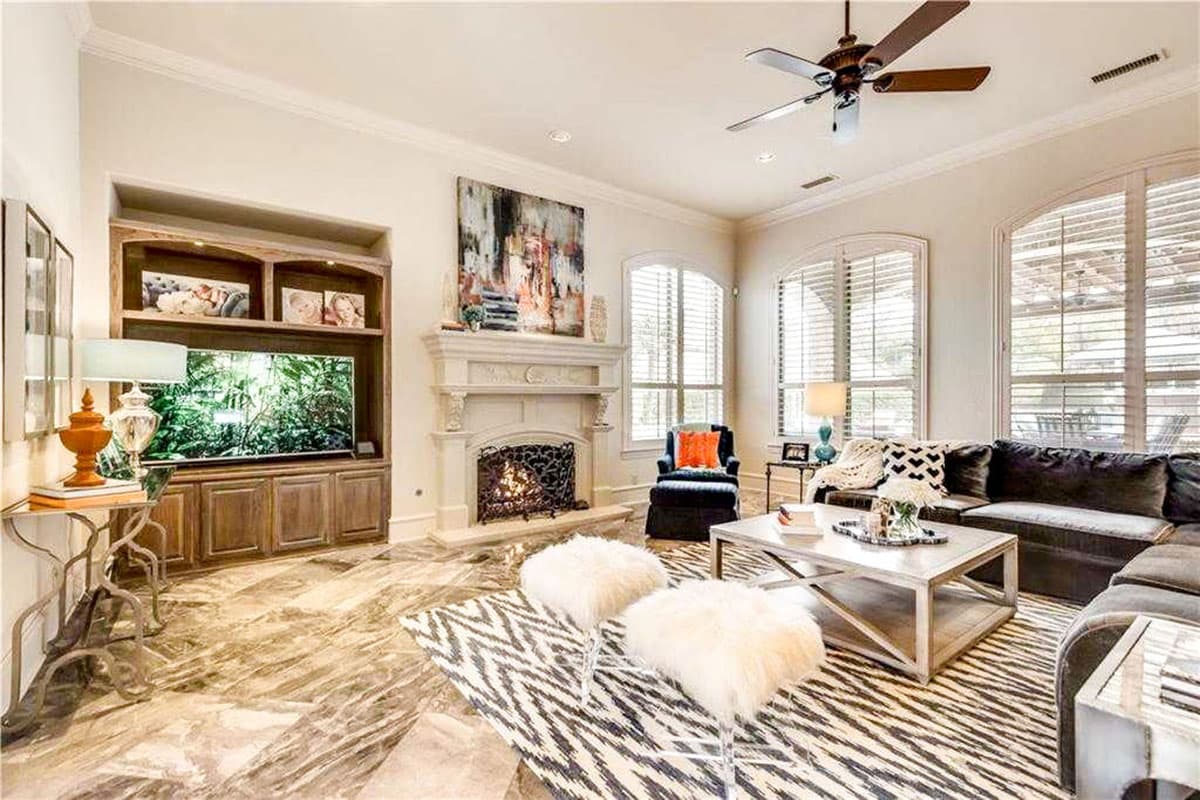

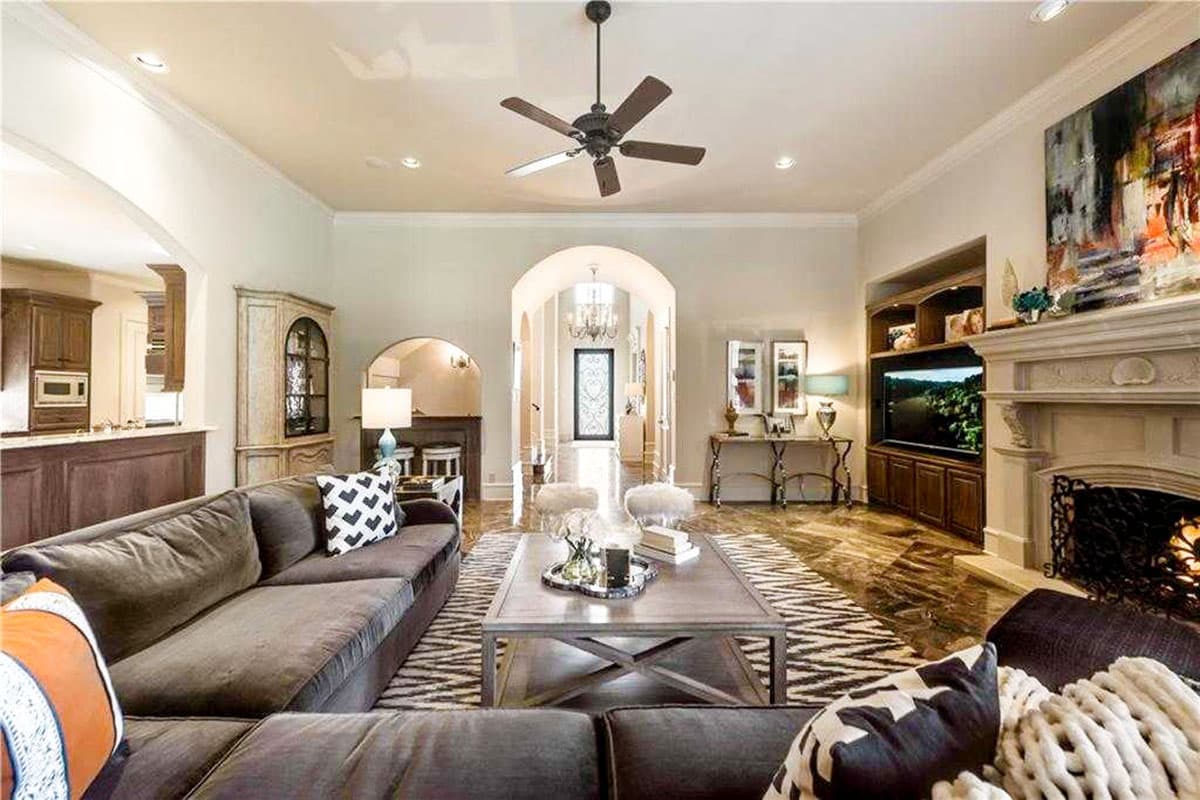

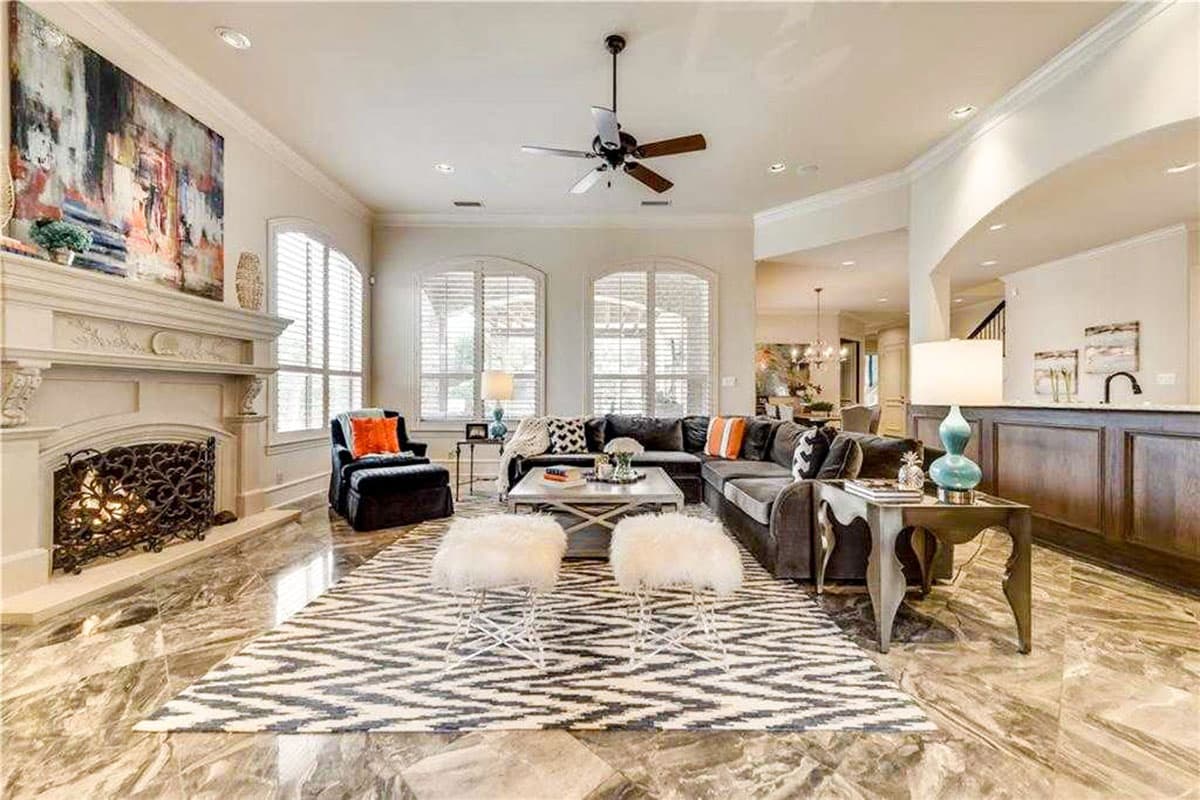

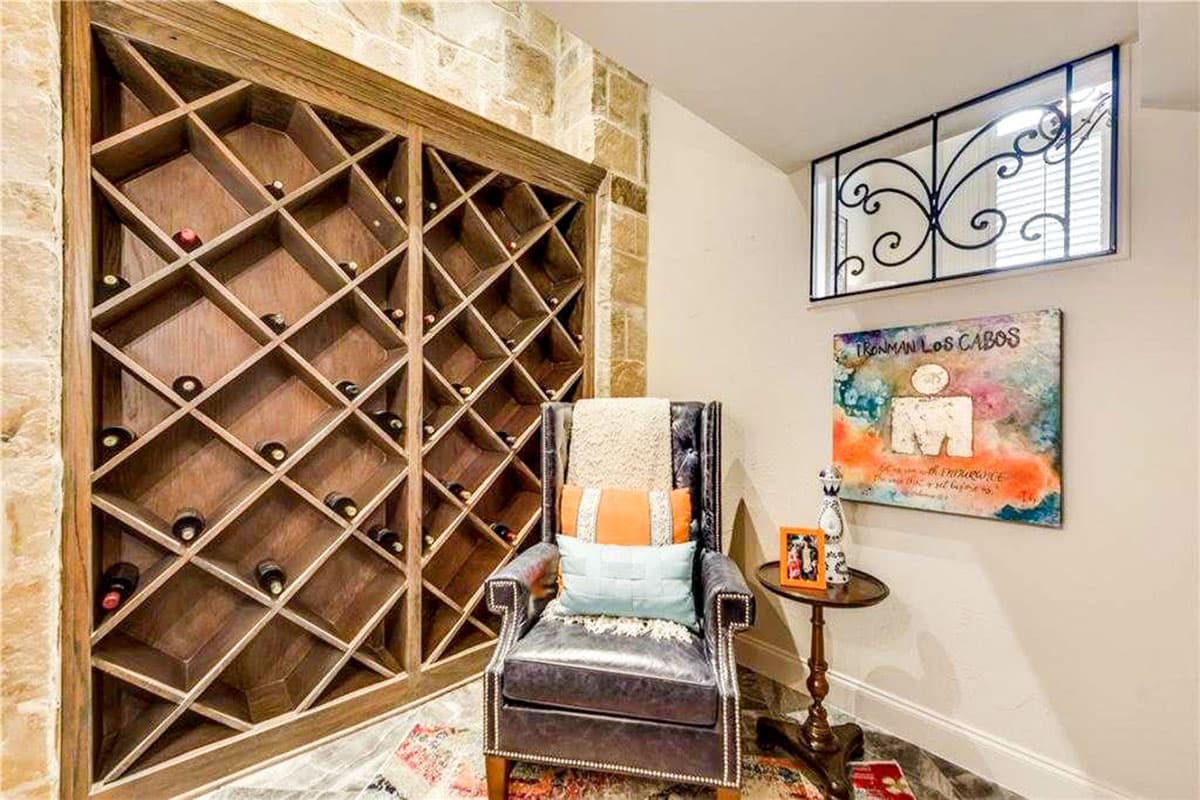

  • The home is made for entertaining with its wine room and bar off the large living room with cozy fireplace and built-in bookcases.

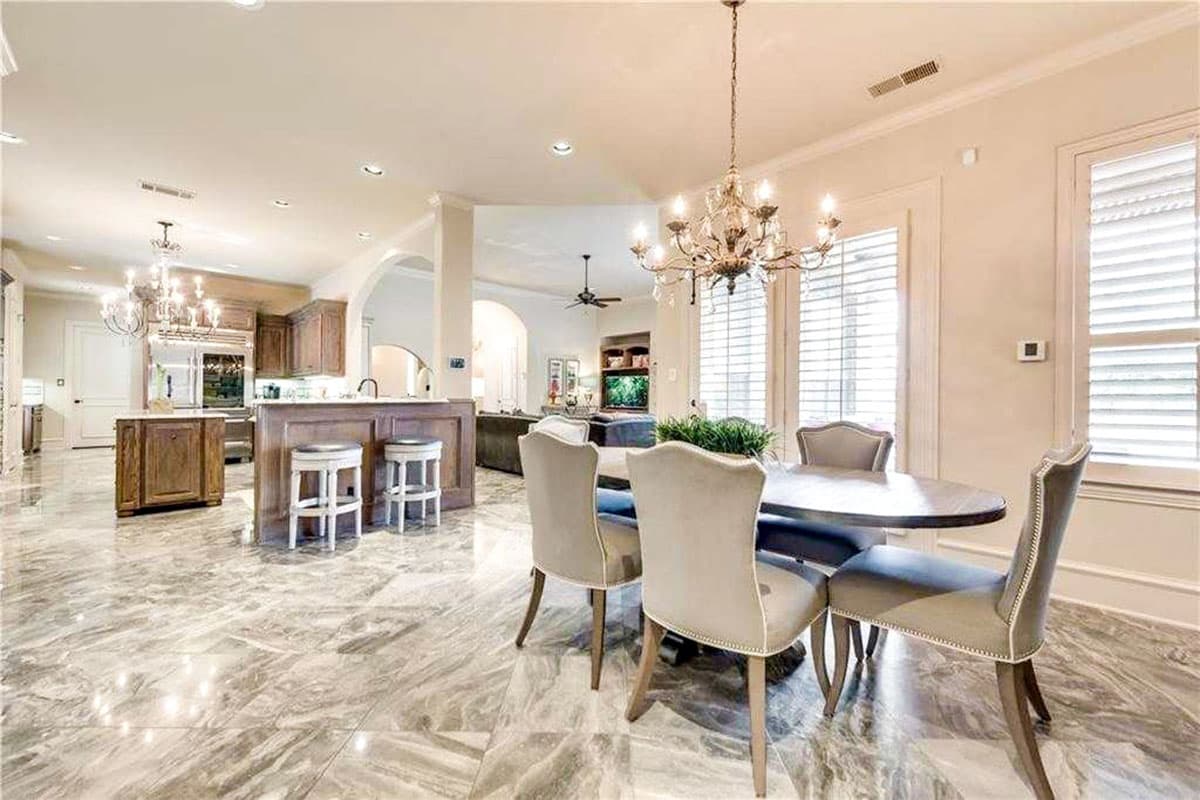

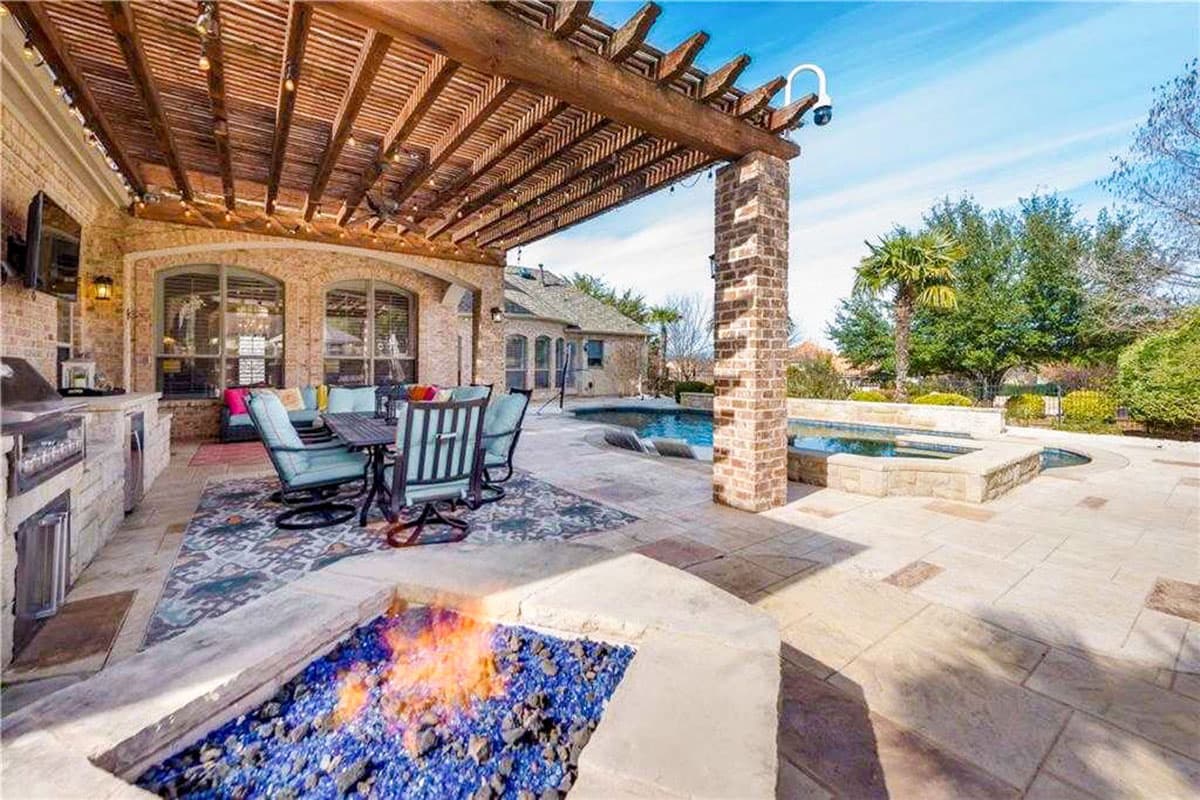

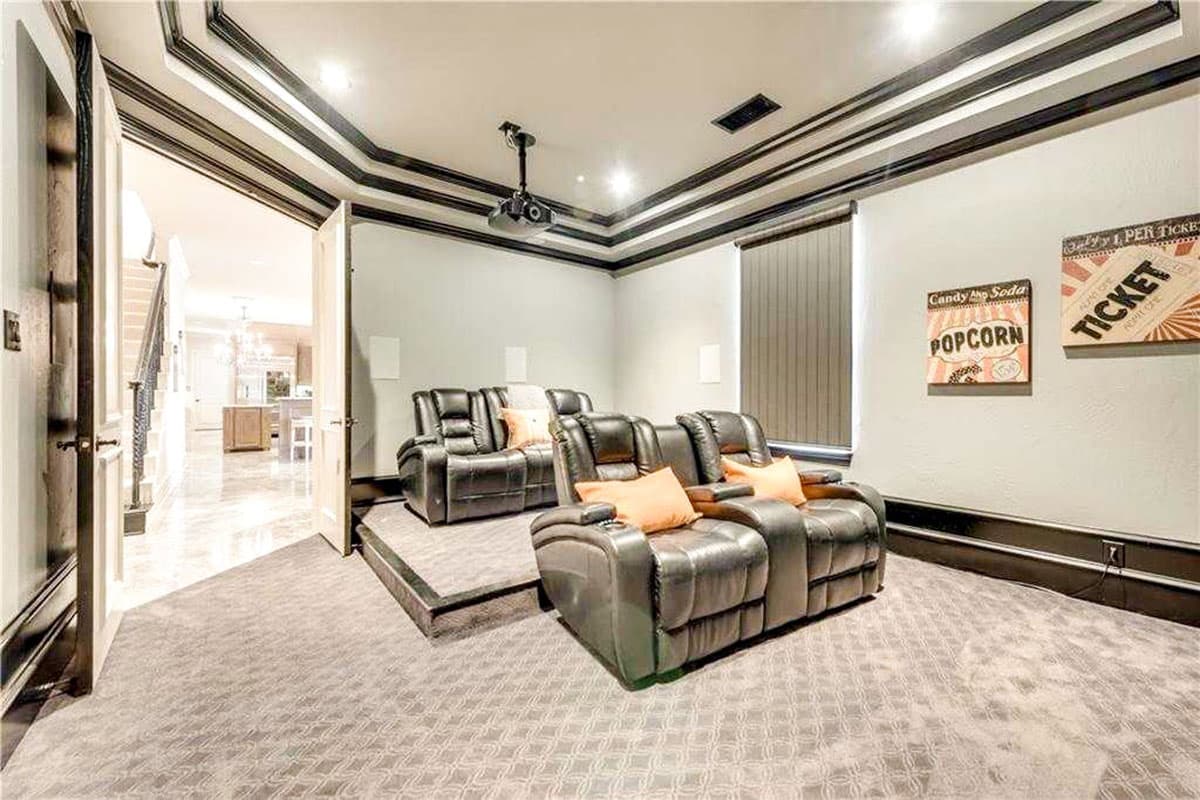

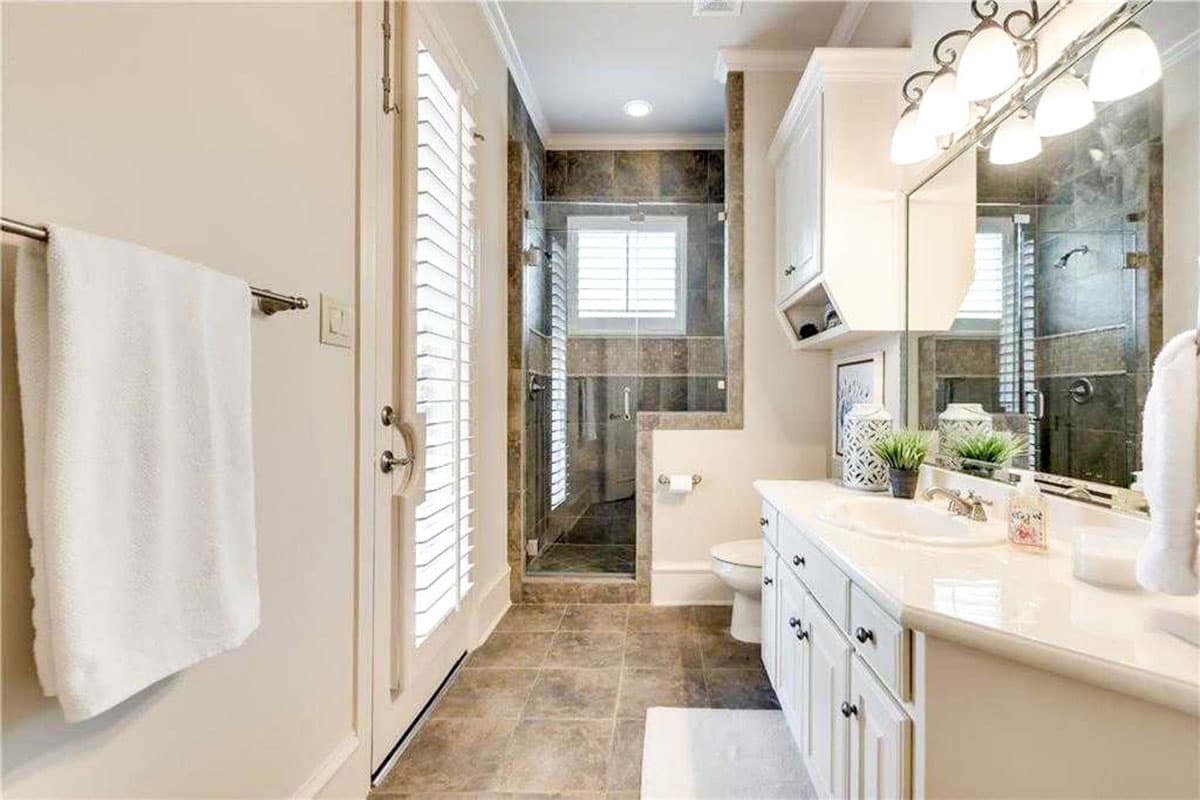

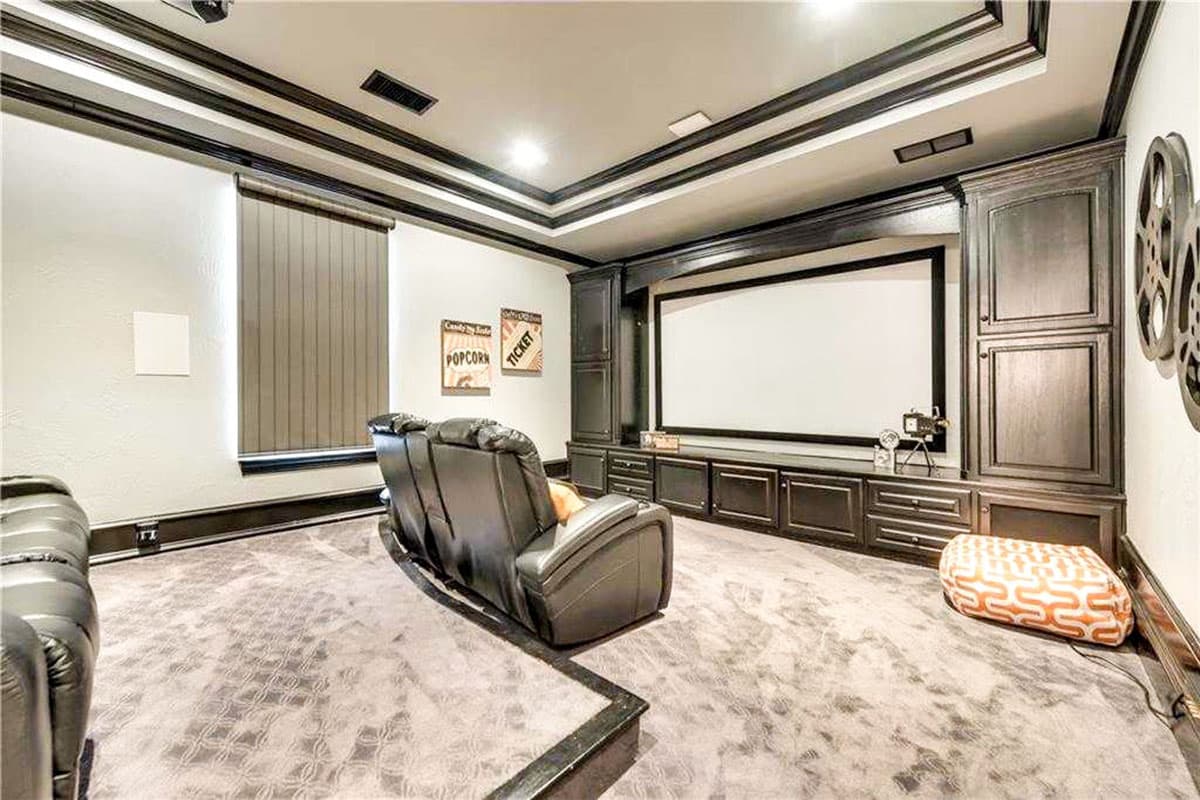

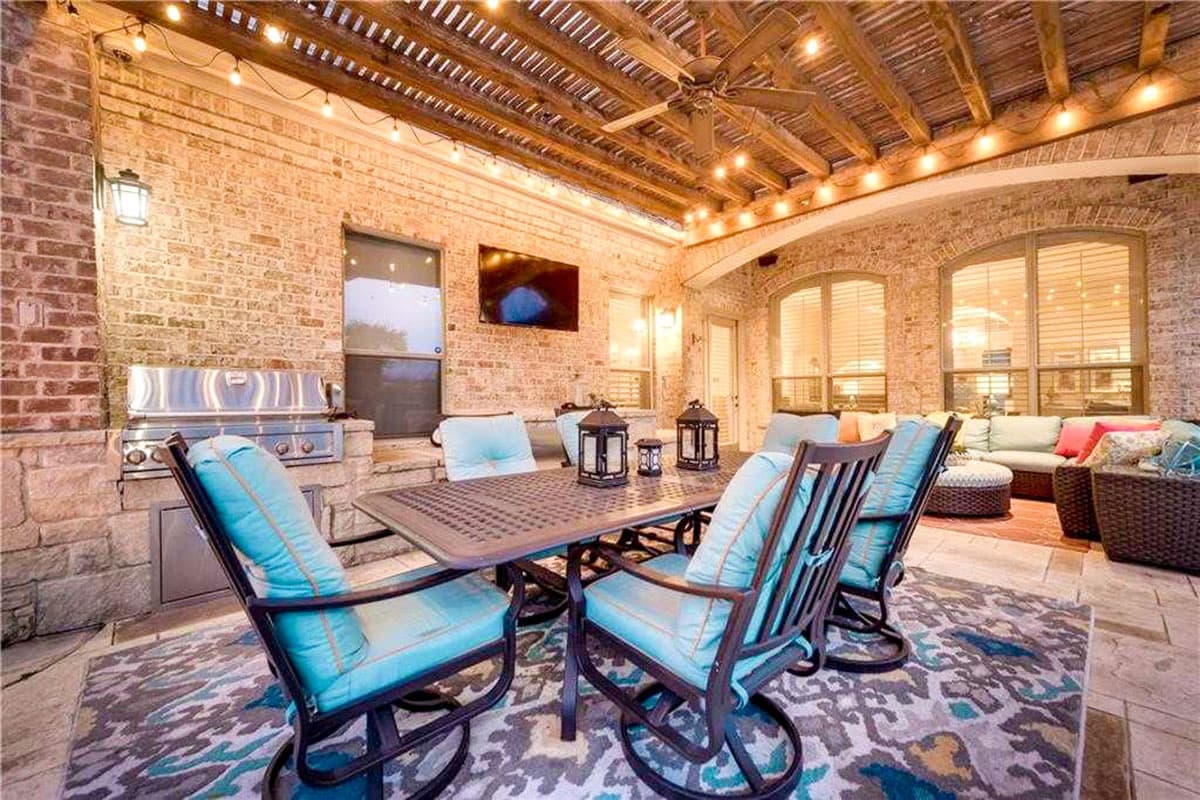

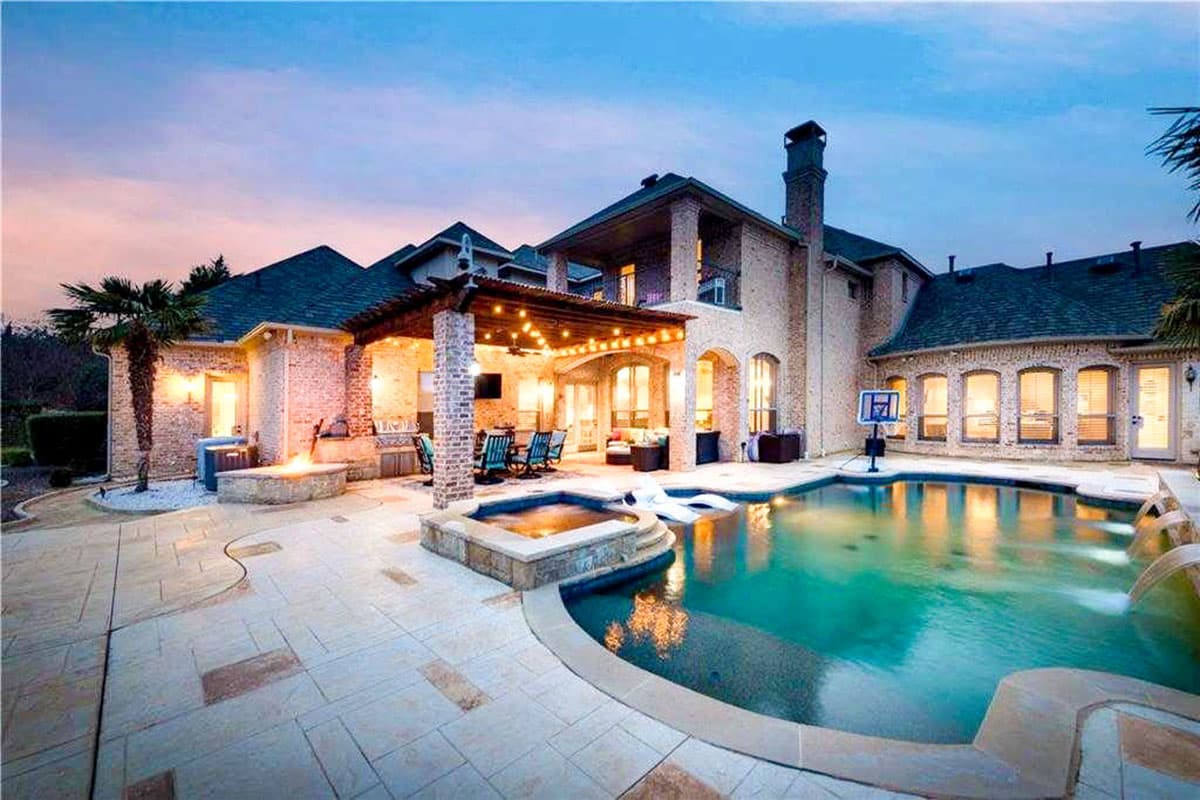

  • The breakfast area has a door to the patio perfect for enjoying that early morning cup of coffee or just enjoying nature. Behind the breakfast area is a media room and guest suite complete with a private bath.

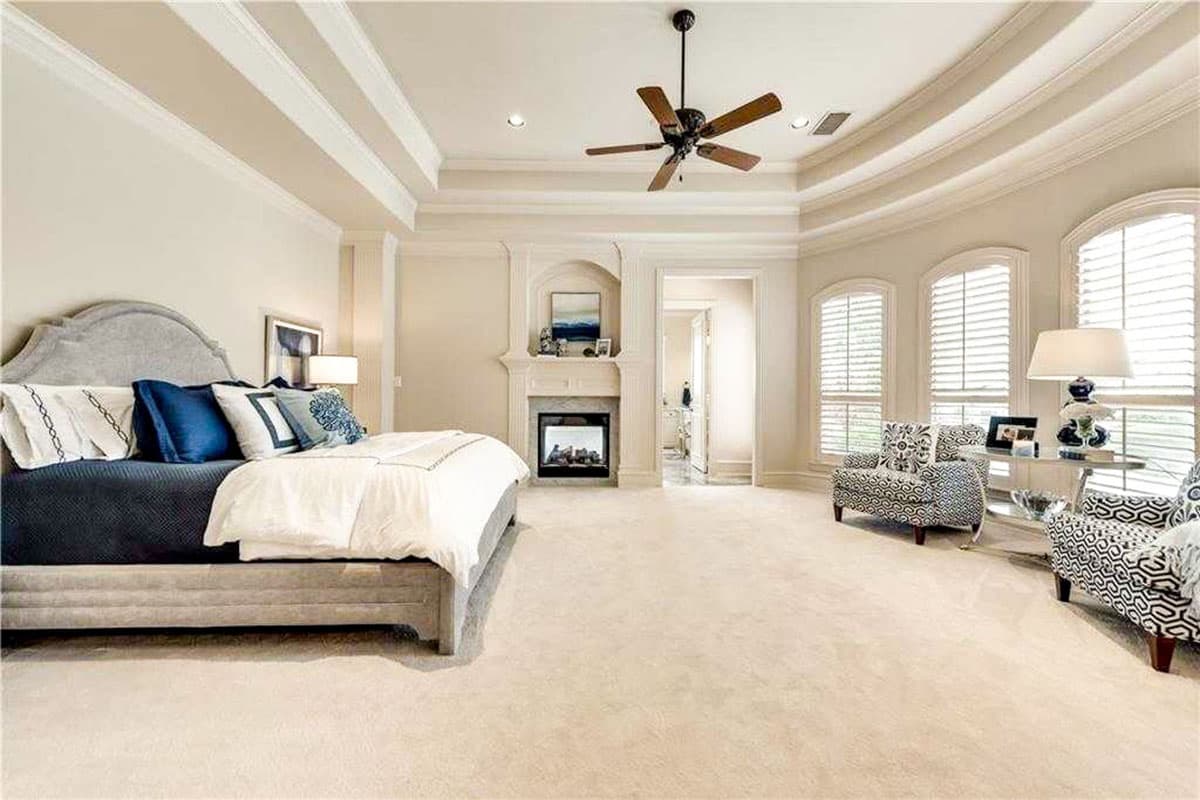

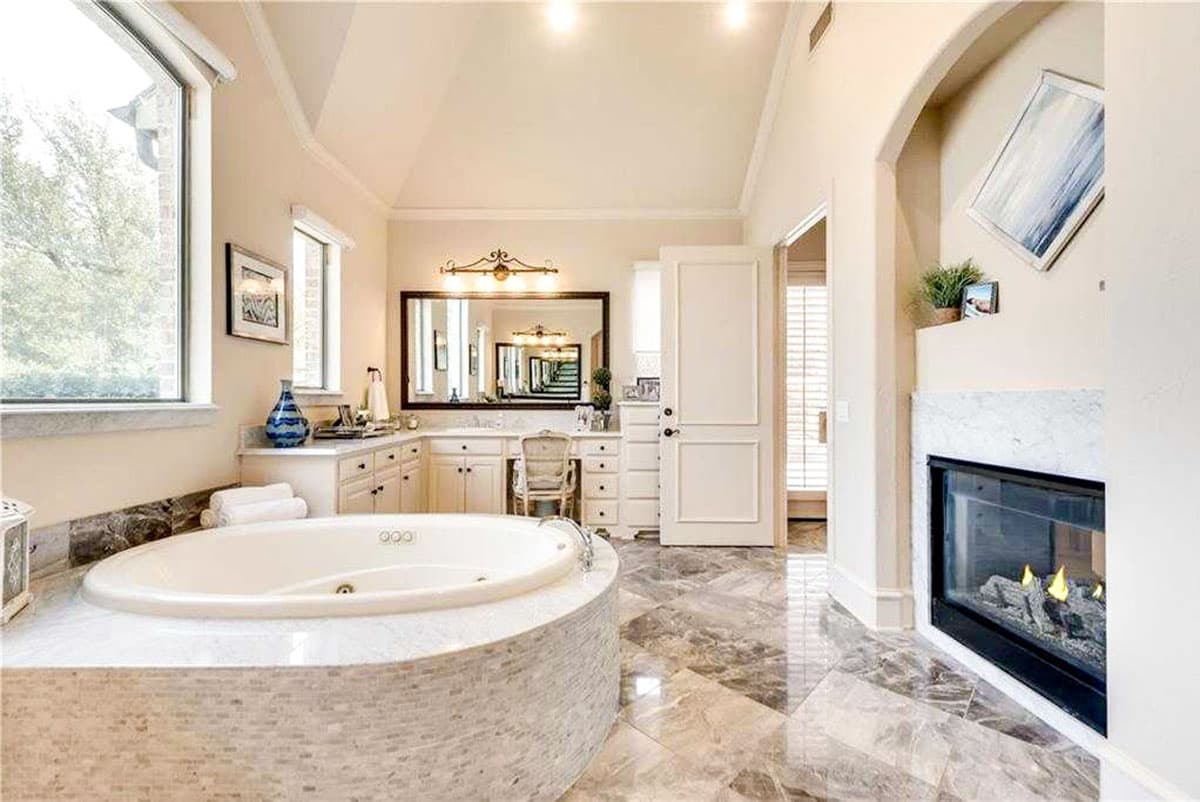

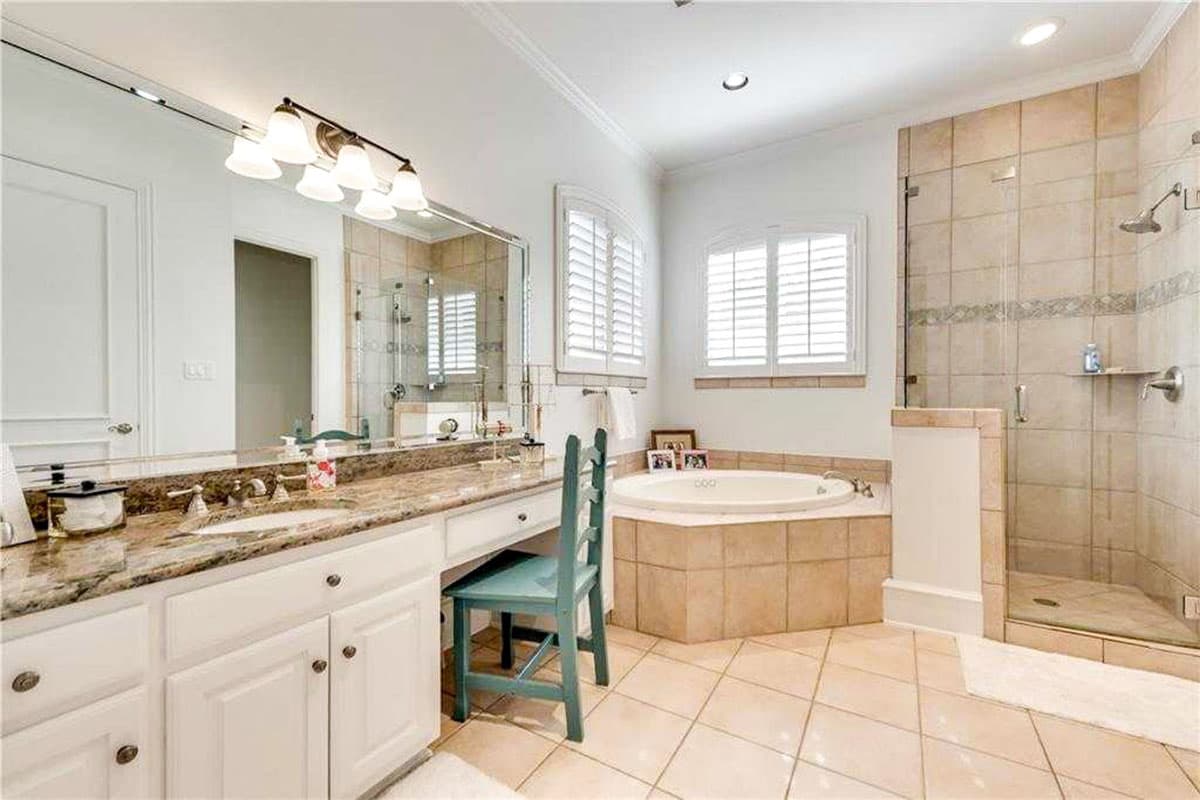

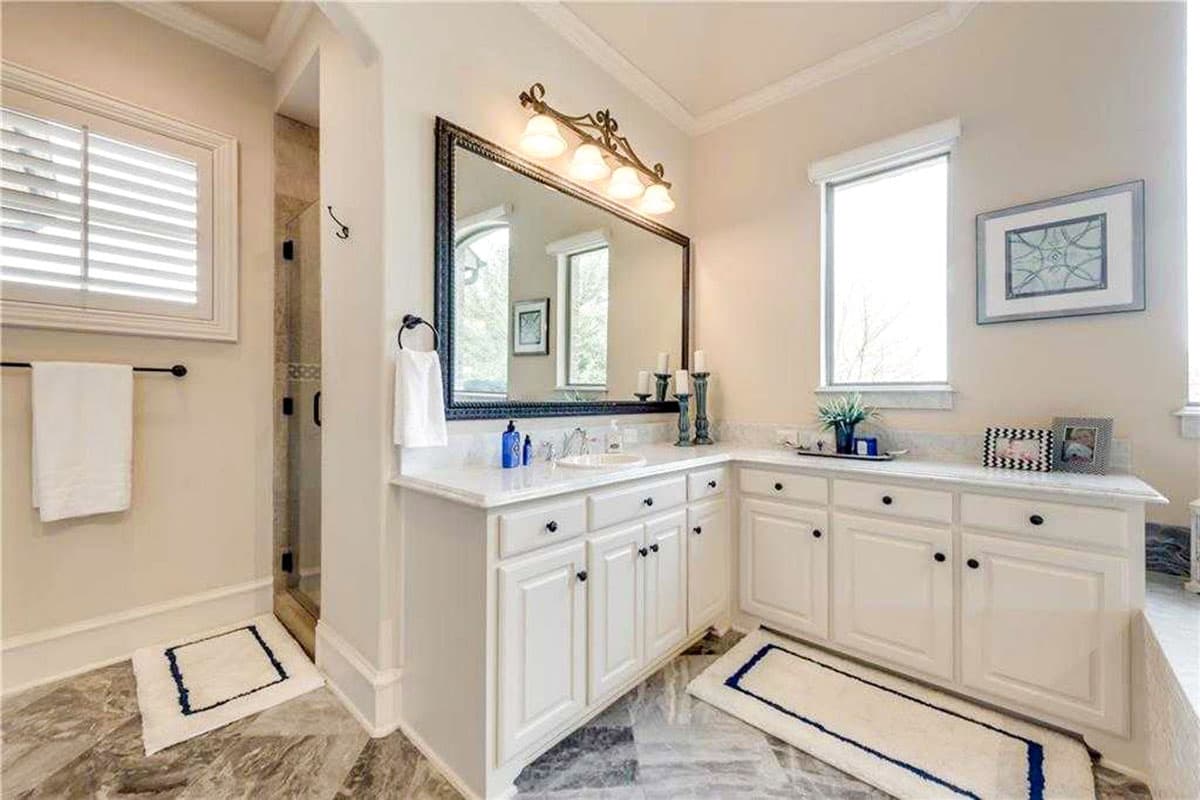

  • The master suite has its own bar, trey ceiling to 22', a vaulted master bath and large wardrobe.

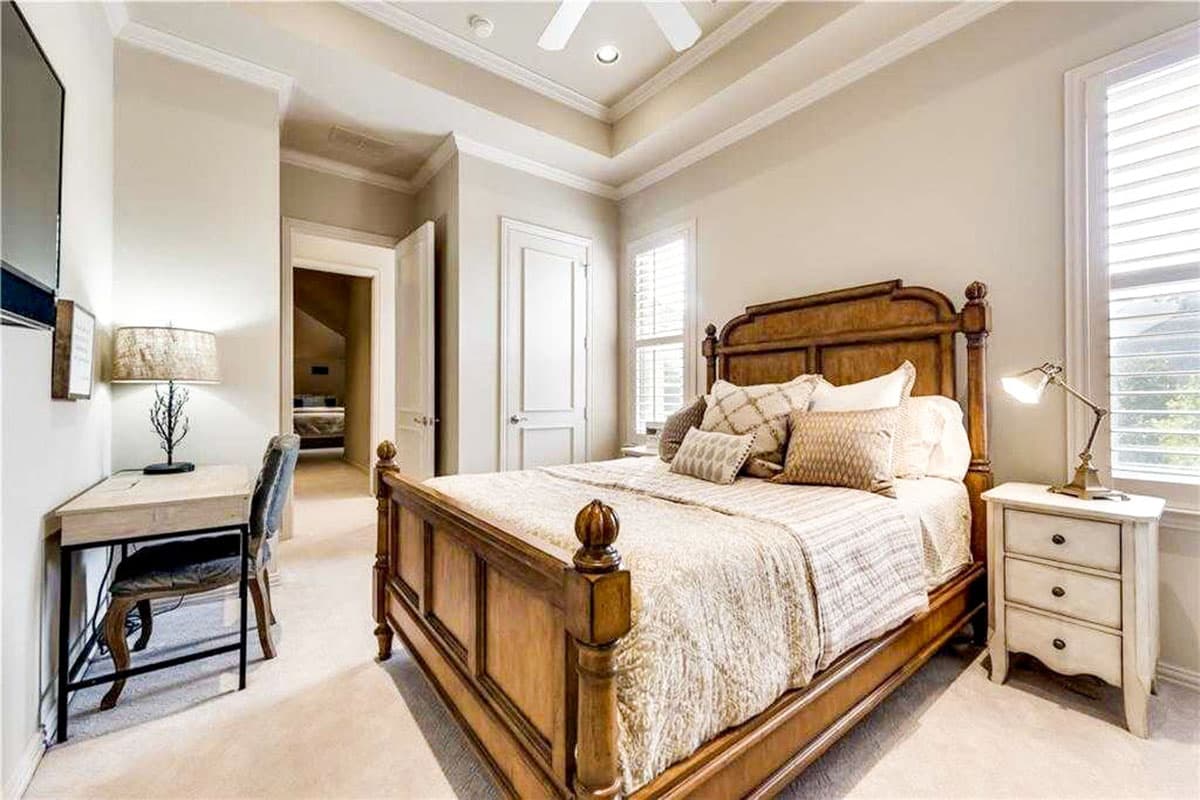

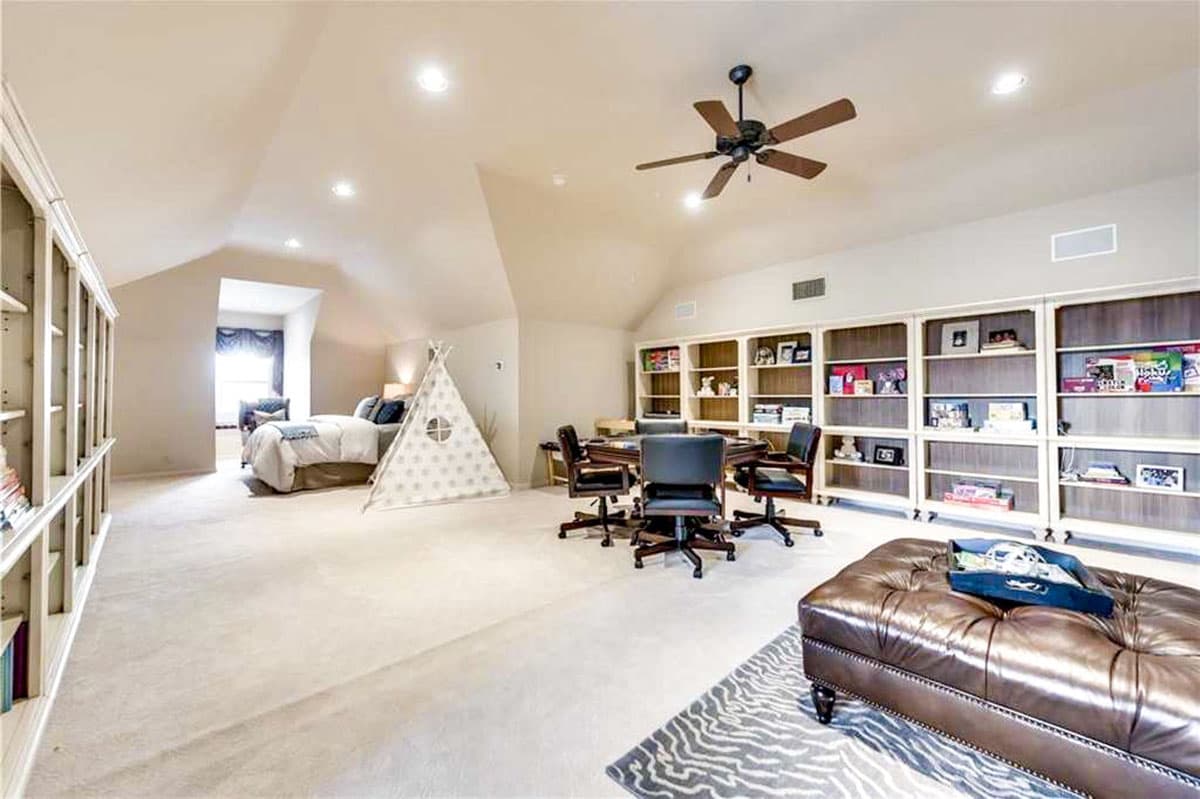

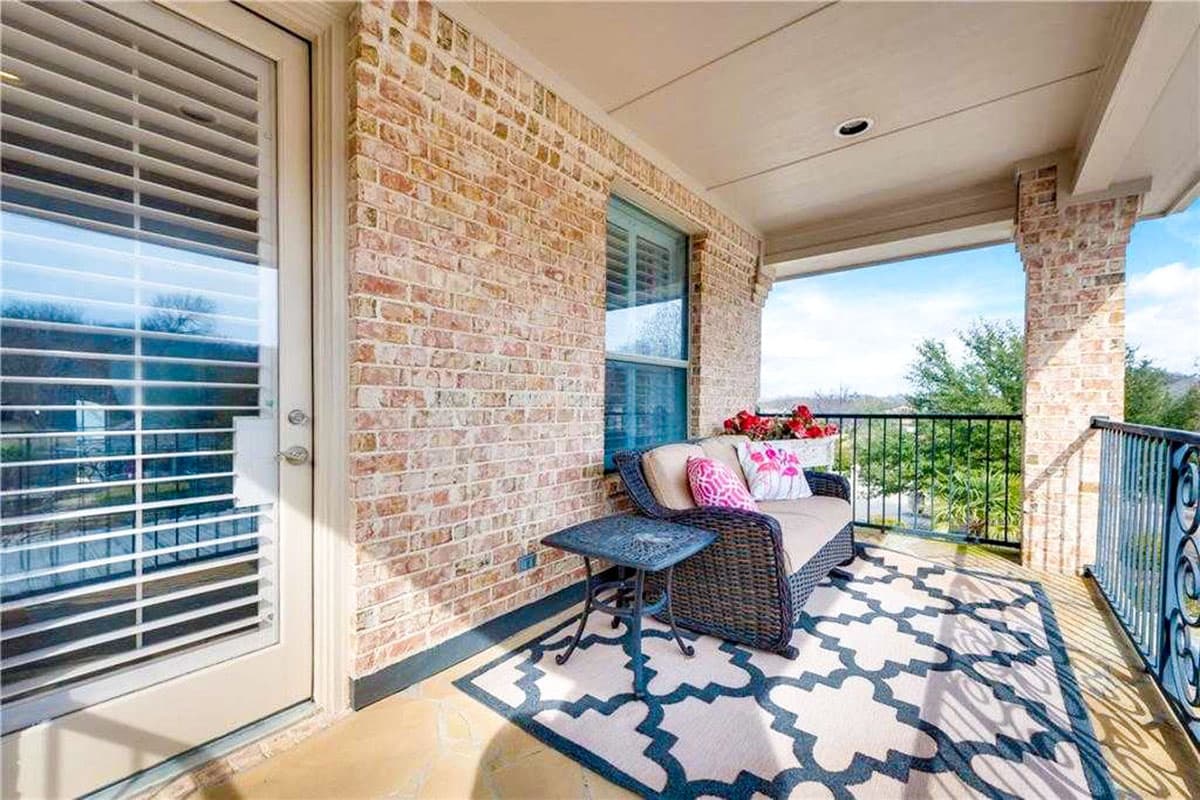

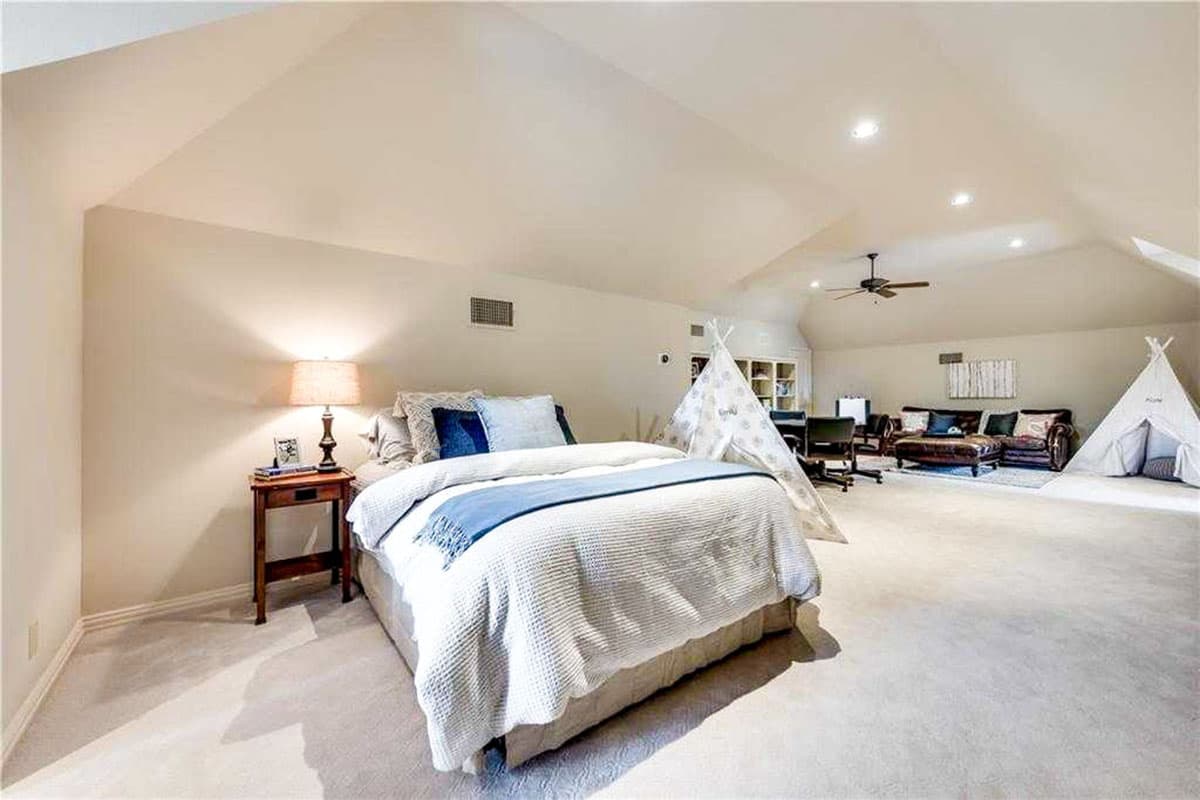

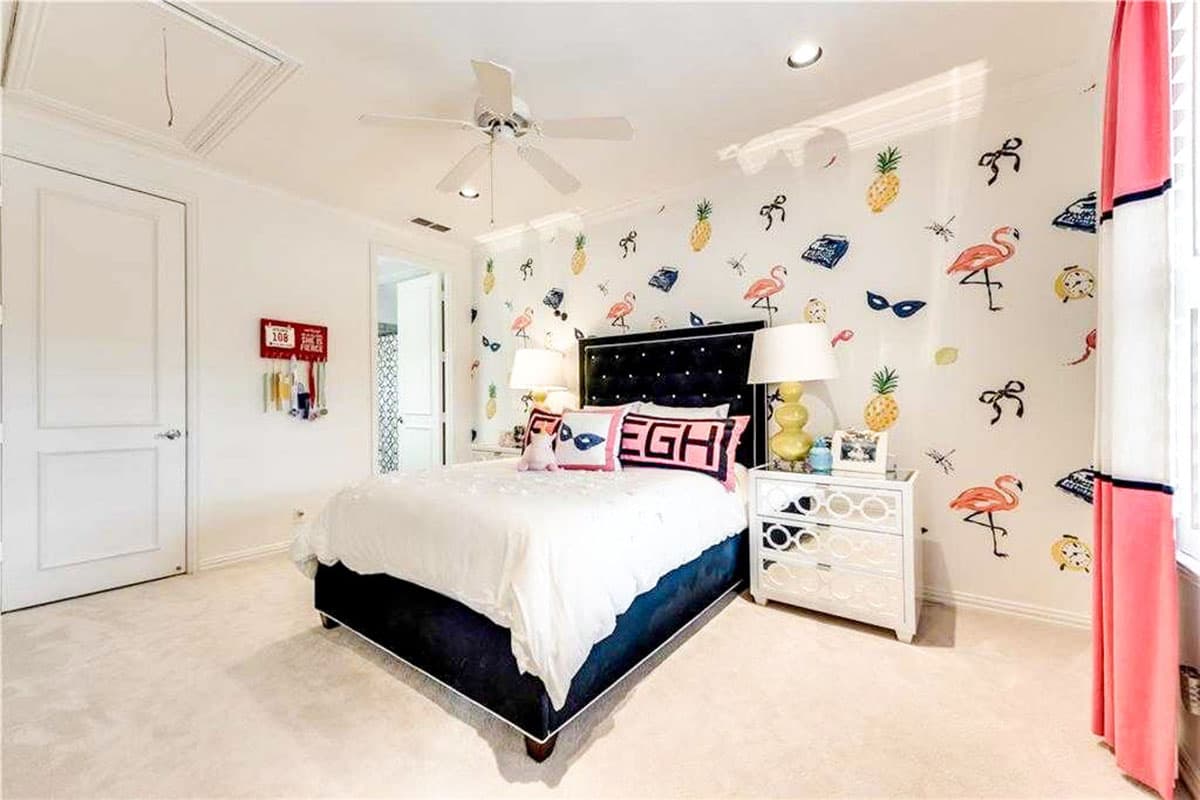

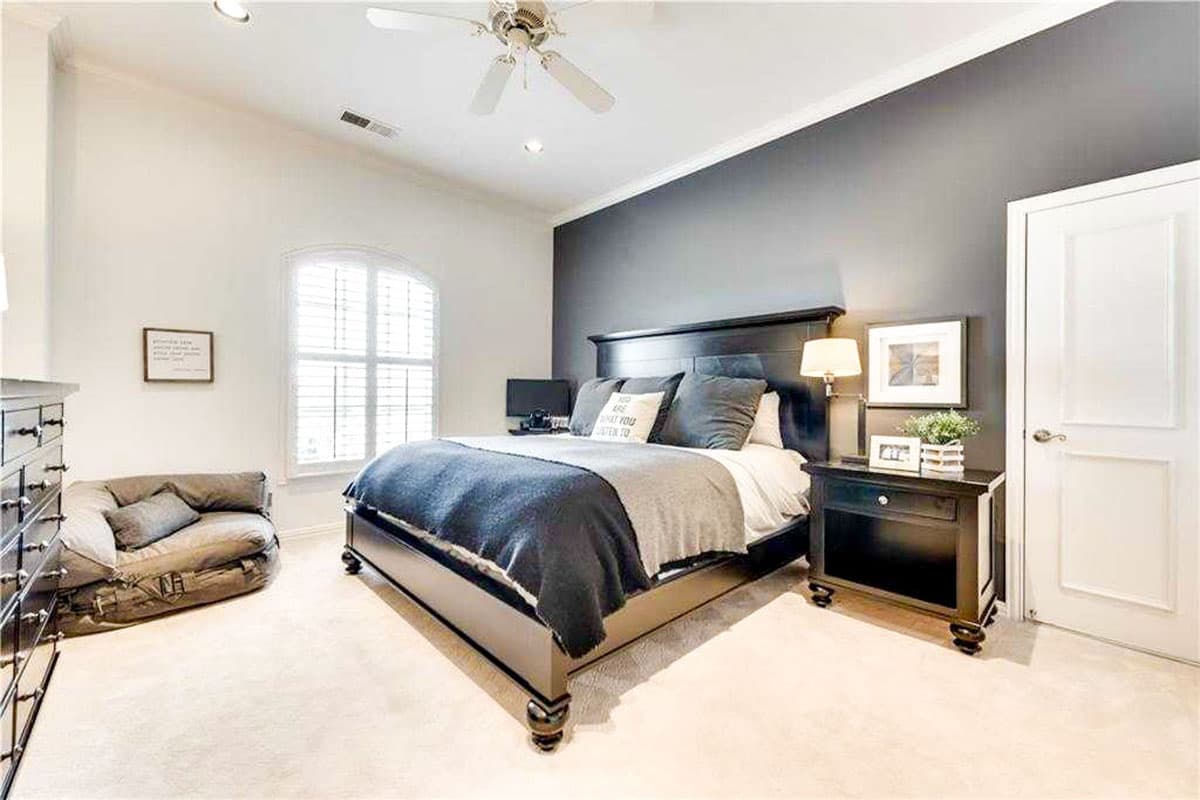

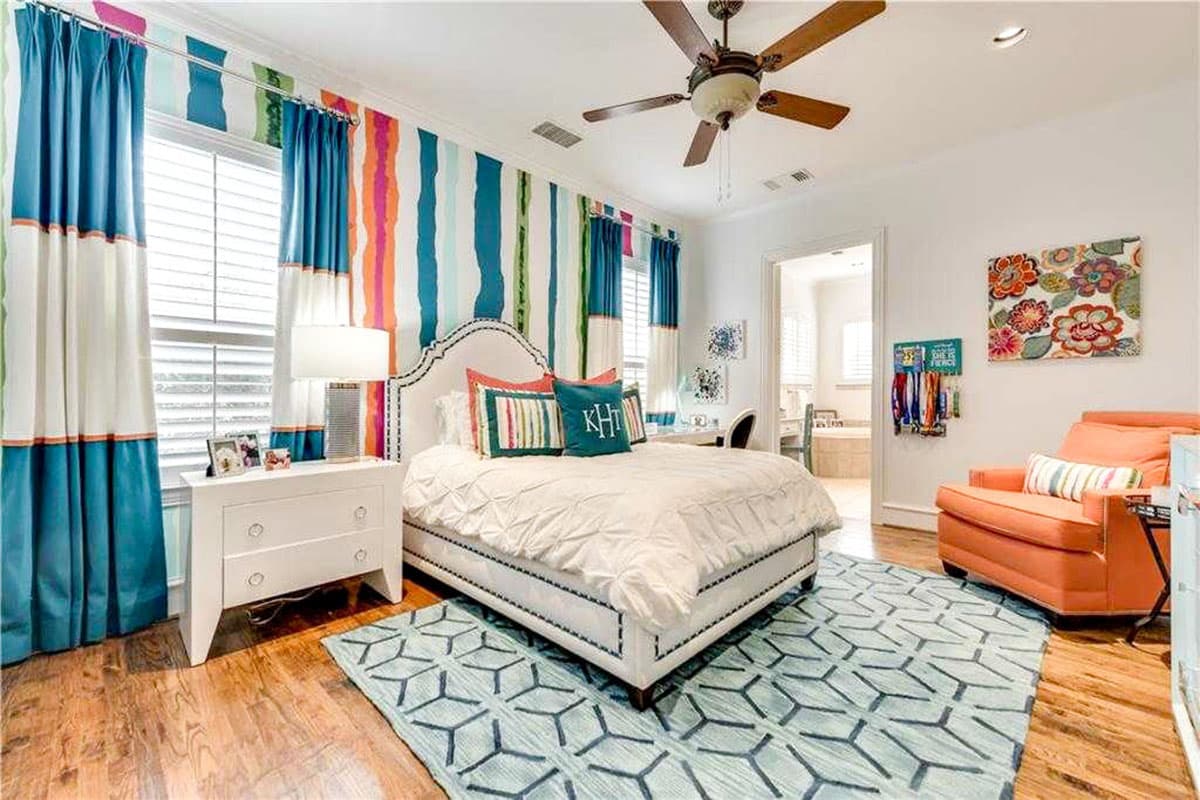

  • The second story has three bedrooms each with private bathroom, a game room, loggia and bonus room.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

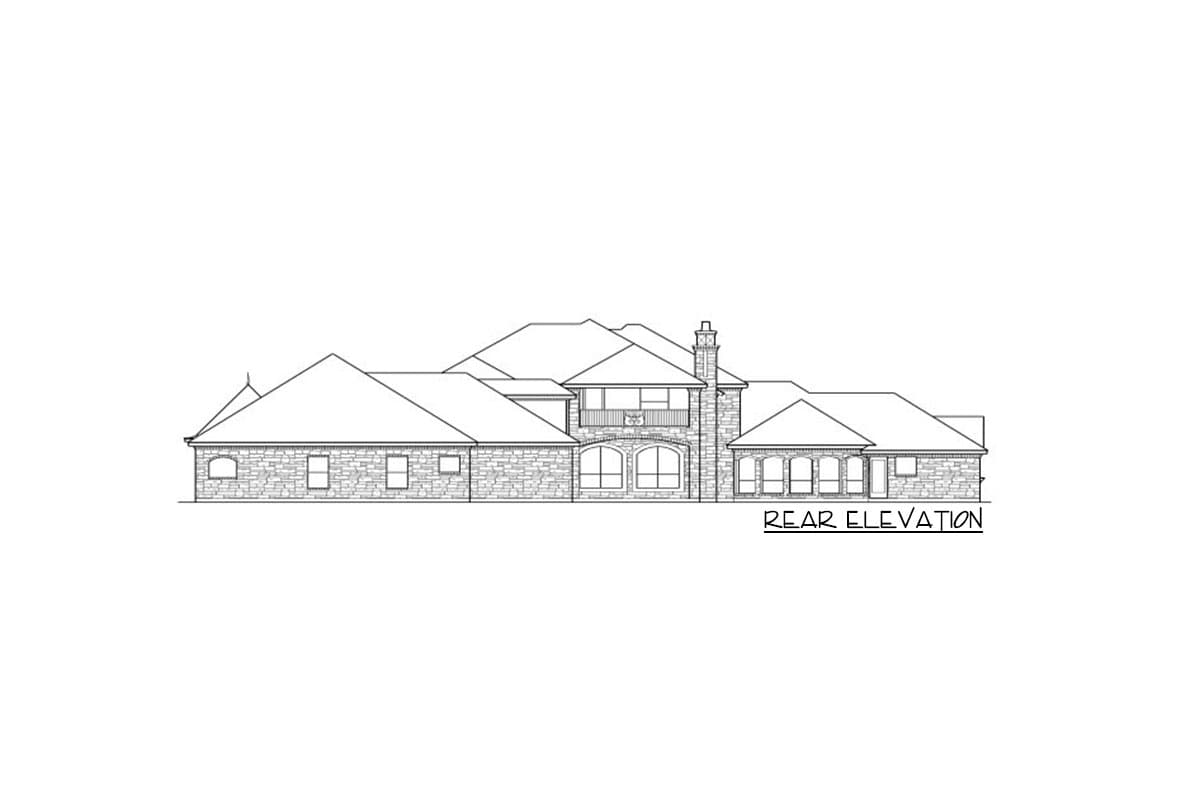

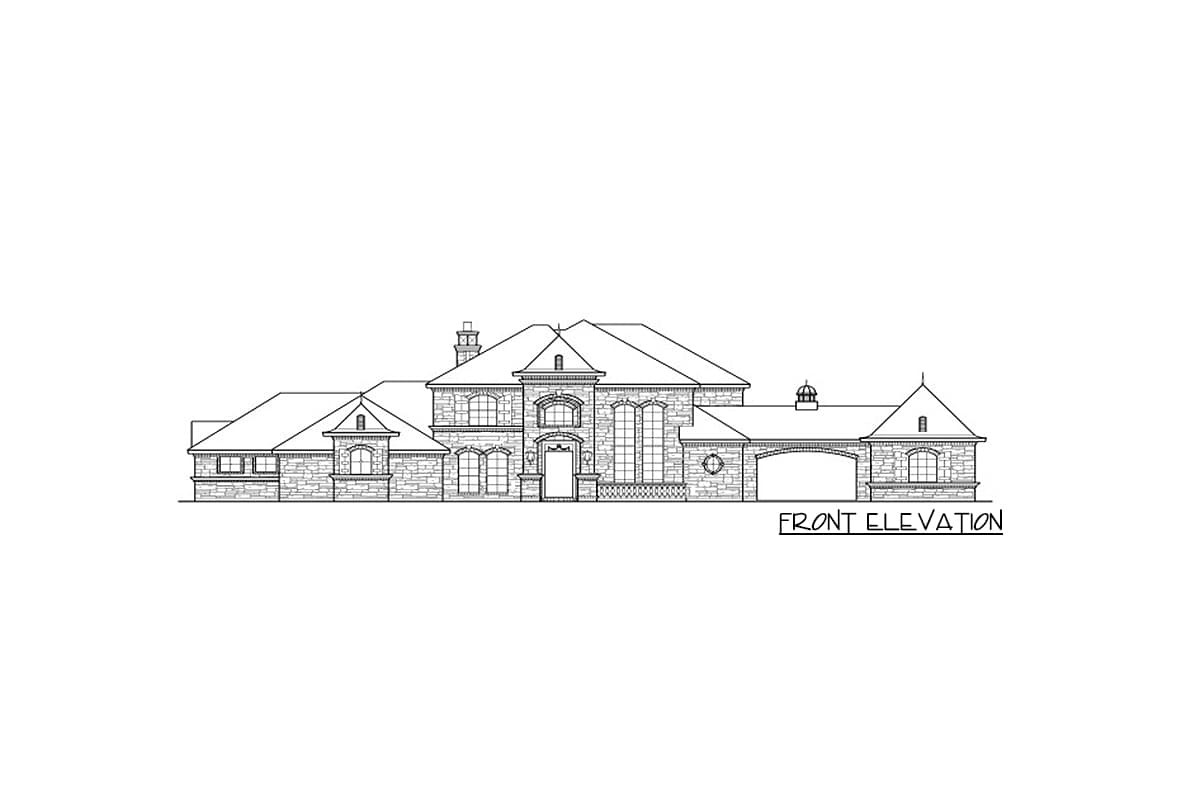

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

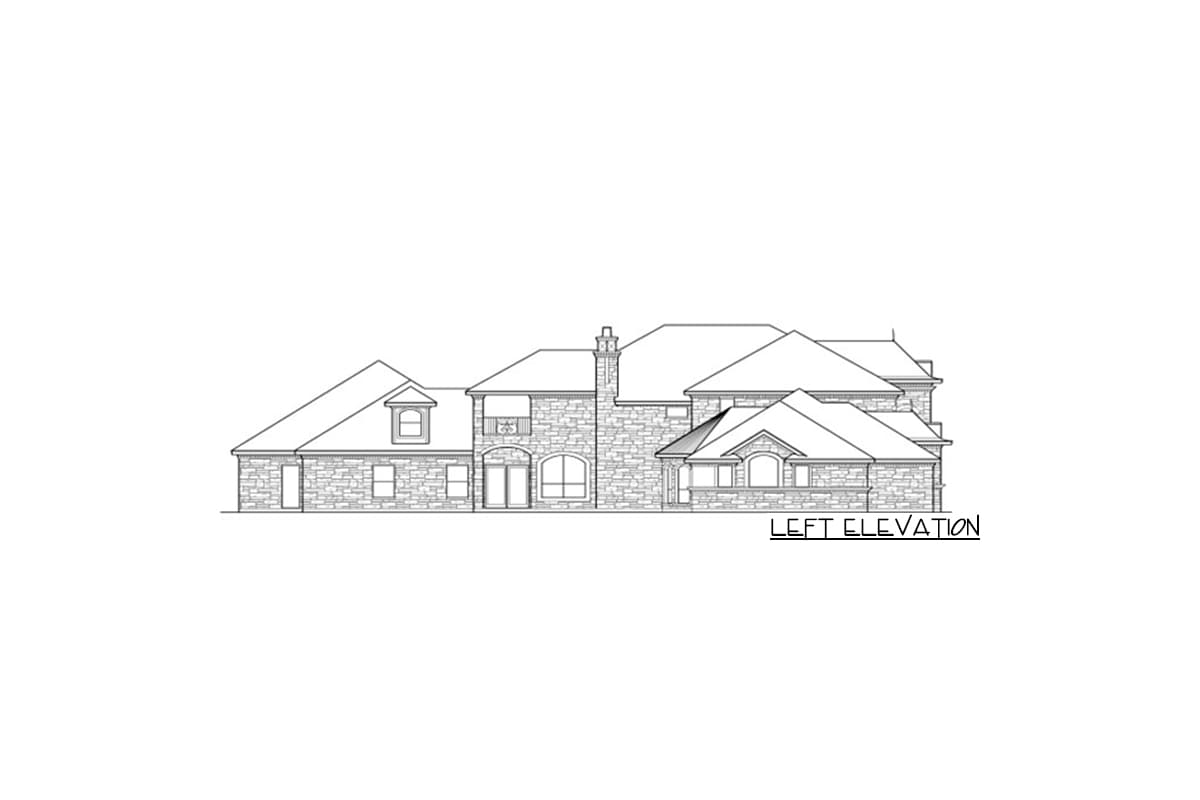

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

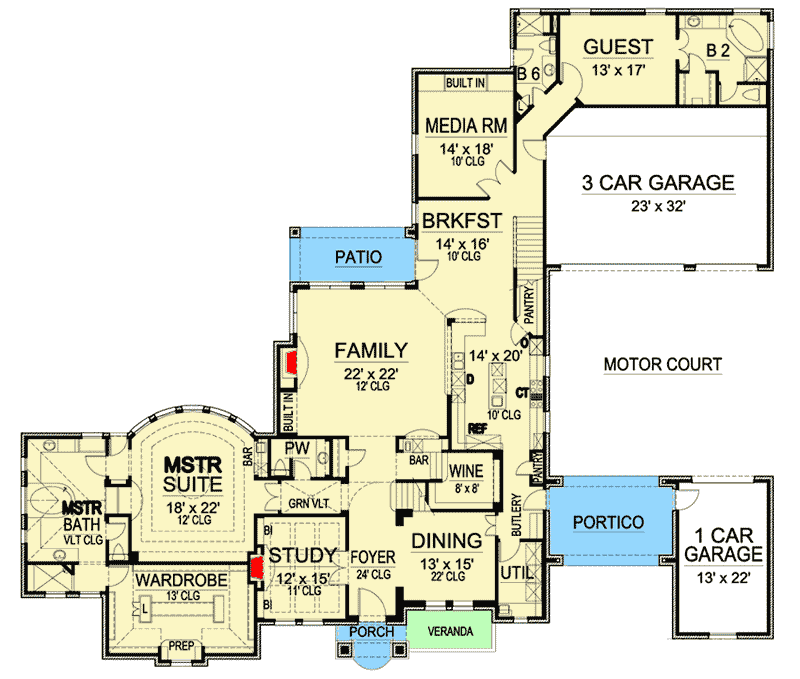

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Dramatic Manor Home Plan - 36157TX floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

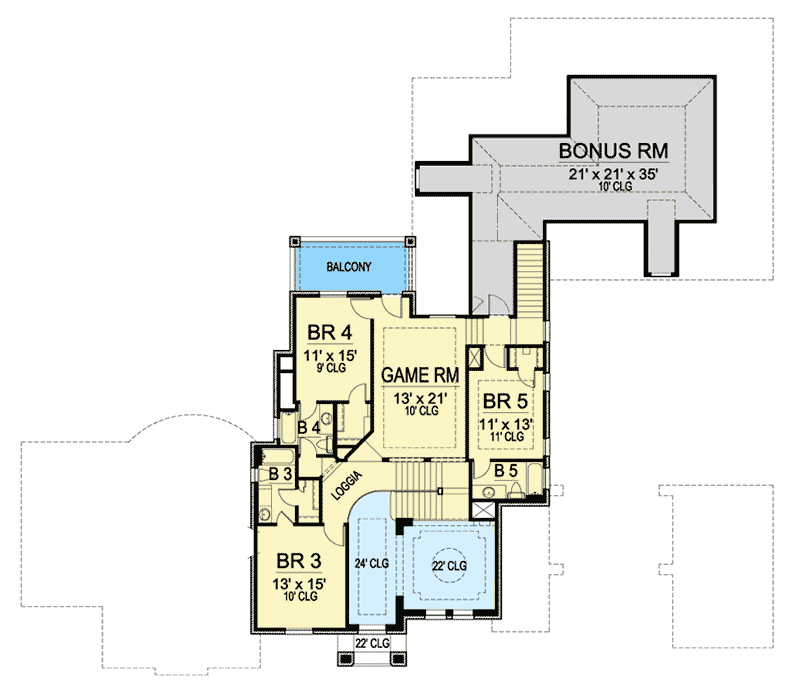

Dramatic Manor Home Plan - 36157TX floor plan - 2nd Floor

Plan details

Square Footage Breakdown

  • Total Heated Area: 5,462 sq. ft.
  • 1st Floor: 4,254 sq. ft.
  • 2nd Floor: 1,208 sq. ft.
  • Bonus: 814 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 110' 0"
  • Depth: 96' 0"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 1128 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"

Architectural Style

Special features

Plan Collections

Dramatic Manor Home Plan

  • 5,462

    Heated s.f.

  • 5

    Beds

  • 5.5

    Baths

  • 2

    Floors

  • 4

    Car garage

Buy This Plan
  • PDF - Single-Build $2,420
  • 5 Sets $2,620
  • CAD + PDF - Single Build $3,630
  • View all purchase option online

About This Plan

  • This dramatic manor home creates an imposing presence. You enter from the front porch into a 24' open ceiling entry.
  • The study to the left with its 11' coffered ceiling and fireplace, makes a comforting getaway for reading or studying.
  • The dining room with its 22' high ceiling has a back entry to the utility and butler's pantry, through to the kitchen and remainder of the living areas.
  • Off the butlery, the portico leads to a single car garage, and beyond the adjoining motor court is a three-car garage.
  • The home is made for entertaining with its wine room and bar off the large living room with cozy fireplace and built-in bookcases.
  • The breakfast area has a door to the patio perfect for enjoying that early morning cup of coffee or just enjoying nature. Behind the breakfast area is a media room and guest suite complete with a private bath.
  • The master suite has its own bar, trey ceiling to 22', a vaulted master bath and large wardrobe.
  • The second story has three bedrooms each with private bathroom, a game room, loggia and bonus room.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,462 sq. ft.
  • 1st Floor: 4,254 sq. ft.
  • 2nd Floor: 1,208 sq. ft.
  • Bonus: 814 sq. ft.

Beds/Baths

  • Bedrooms: 5
  • Full bathrooms: 5
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 110' 0"
  • Depth: 96' 0"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 1128 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Rear

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 10' 0"
Plan 36157TX
View this and more for this plan by visiting www.architechtecturaldesigns.com/36157TX
|
