Plan 26698GG

Dramatic Vaulted Great Room

Heated S.F.
2,938
Beds
3 - 5
Baths
3.5 - 5.5
Stories
2
Cars
2

Floor Plan

Plan 26698GG

Main Level
Main Level
Second Level
Second Level
Optional Lower Level
Optional Lower Level

Plan 26698GG

M-F 9am-5pm EST |

1-203-761-8500

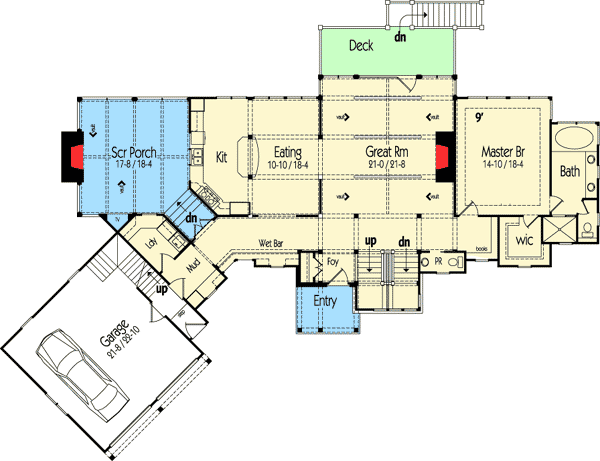

Main Level

Plan 26698GG: Dramatic Vaulted Great Room - Floor Plan - Main Level - Craftsman, Mountain, Northwest, Rustic

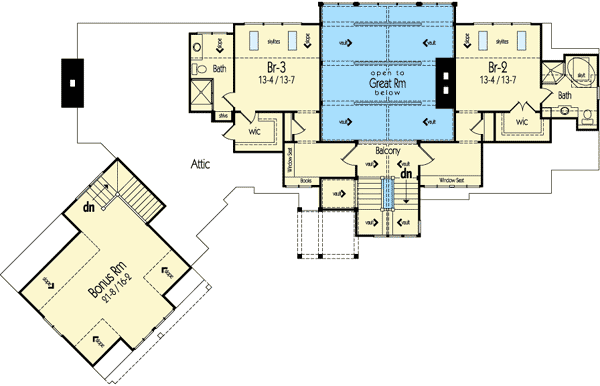

Second Level

Plan 26698GG: Dramatic Vaulted Great Room - Floor Plan - Second Level - Craftsman, Mountain, Northwest, Rustic

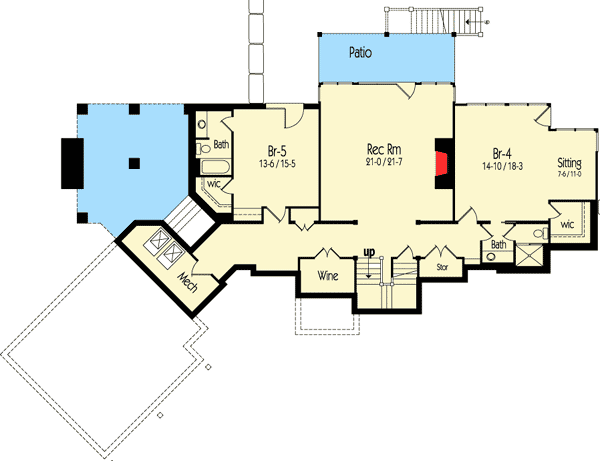

Optional Lower Level

Plan 26698GG: Dramatic Vaulted Great Room - Floor Plan - Optional Lower Level - Craftsman, Mountain, Northwest, Rustic

Plan Details

  • A beautiful vaulted and beamed ceiling tops the great room of this very livable Craftsman home.
  • The beams continue into the eating area that is open to the kitchen.
  • A wet bar on the side comes in handy when entertaining.
  • When you want some fresh air, a vaulted and beamed screened porch or uncovered deck await you.
  • The master bedroom is very spacious and has a tray ceiling and large bathroom.
  • On the second floor, an open rail balcony looks down on the great room below.
  • Each bedroom on this level has a huge walk-in closet, private bath and sloped ceilings.
  • The bonus room over the two car garage also has sloped ceilings.
  • Should you finish the lower level, plans come with an optional layout that has a huge rec room and two additional bedrooms and bathrooms, one of which would work well as an in-law suite.

What's Included

  • Cover Sheet
  • Floor Plans
  • Foundation
  • Elevations
  • Building Section
  • Doors and Windows
  • Roof Plan
  • Electrical Layout

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,938 sq. ft.

1st Floor

1,995 sq. ft.

2nd Floor

943 sq. ft.

Optional Lower Level

1,985 sq. ft.

Bonus

420 sq. ft.

Porch, Combined

454 sq. ft.

Deck

169 sq. ft.

Covered Patio

169 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

3, 4, or 5

Half bathrooms

1

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

94' 10"

Depth

59' 9"

Max Ridge Height

28' 1"

Garage

Type

Attached

Area

559 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

8' 6"

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Craftsman

Mountain

Northwest

Rustic

Special Features

Game/Rec Room

In-Law Suite

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Two Story Great Room

Wet Bar
