Plan 25774GE

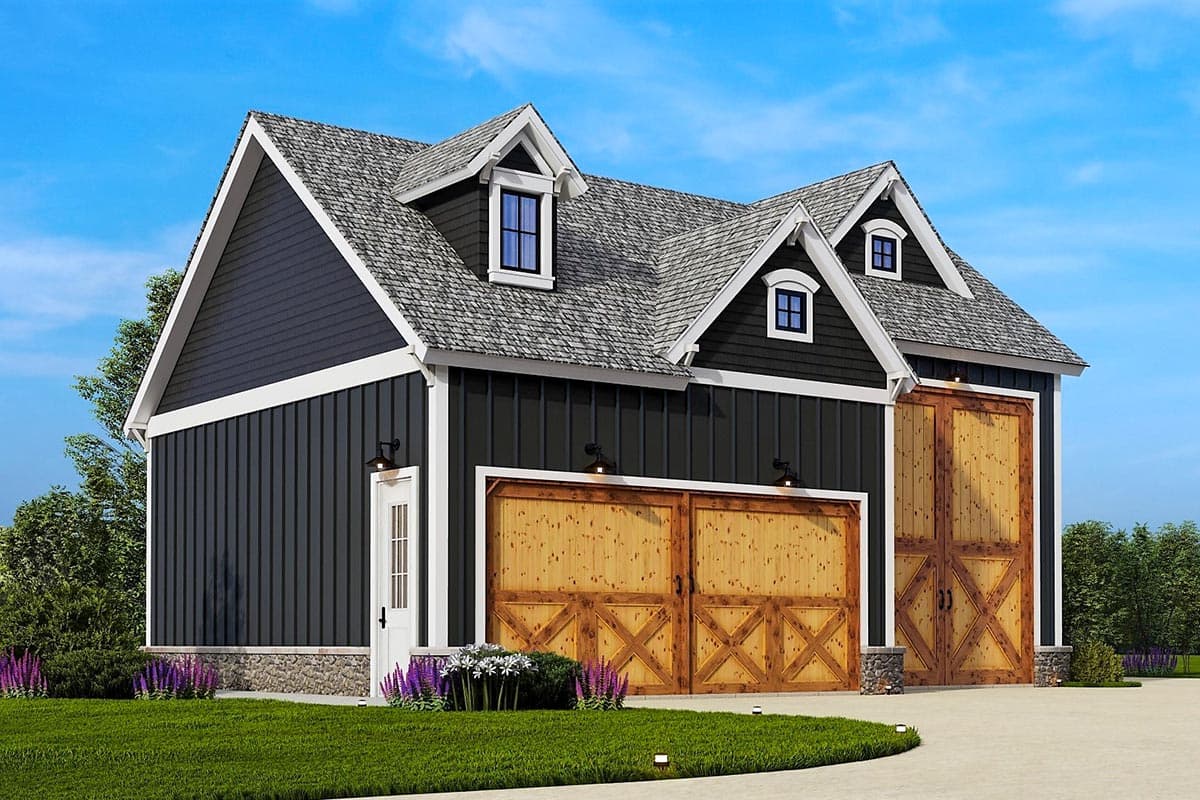

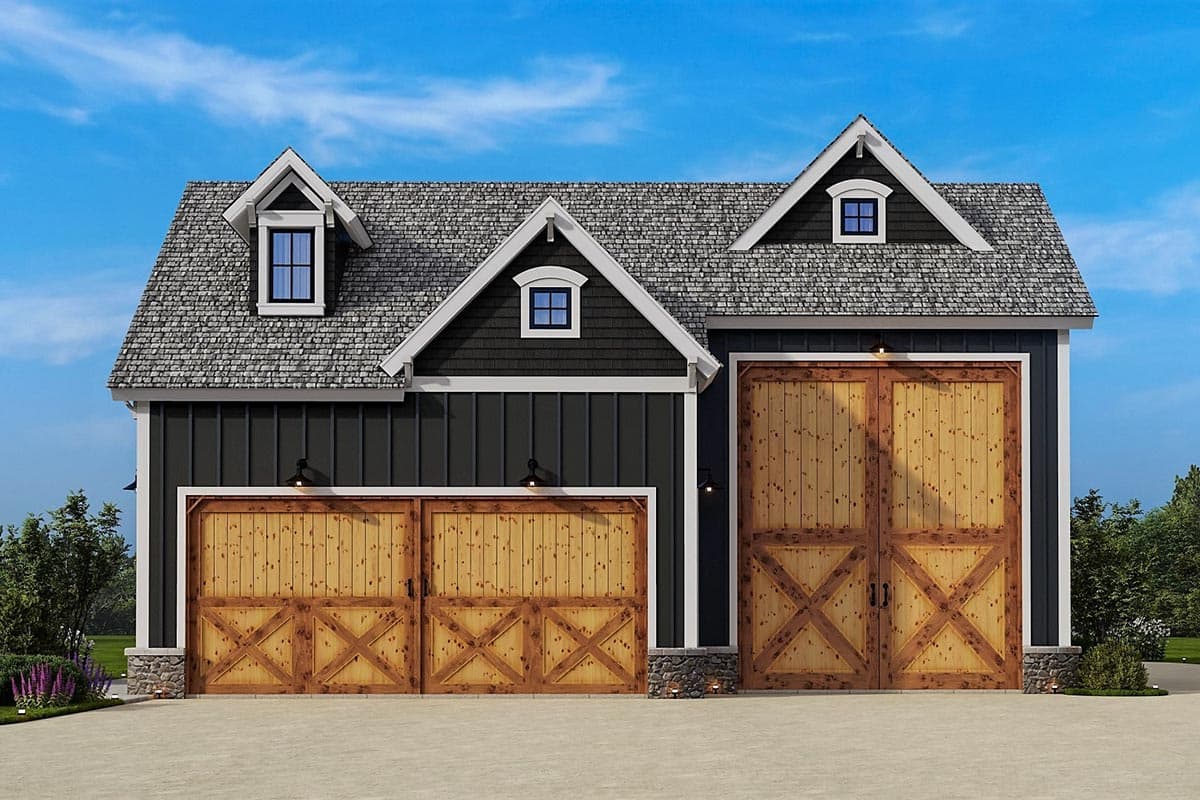

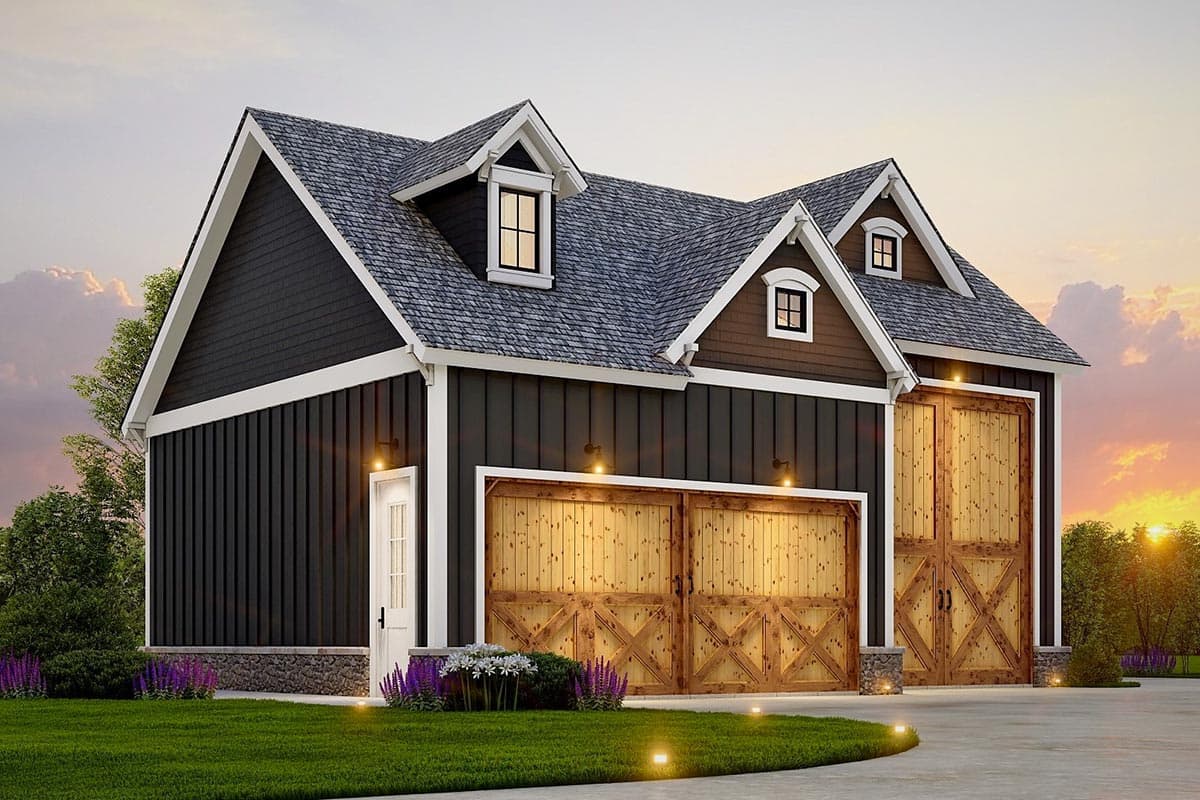

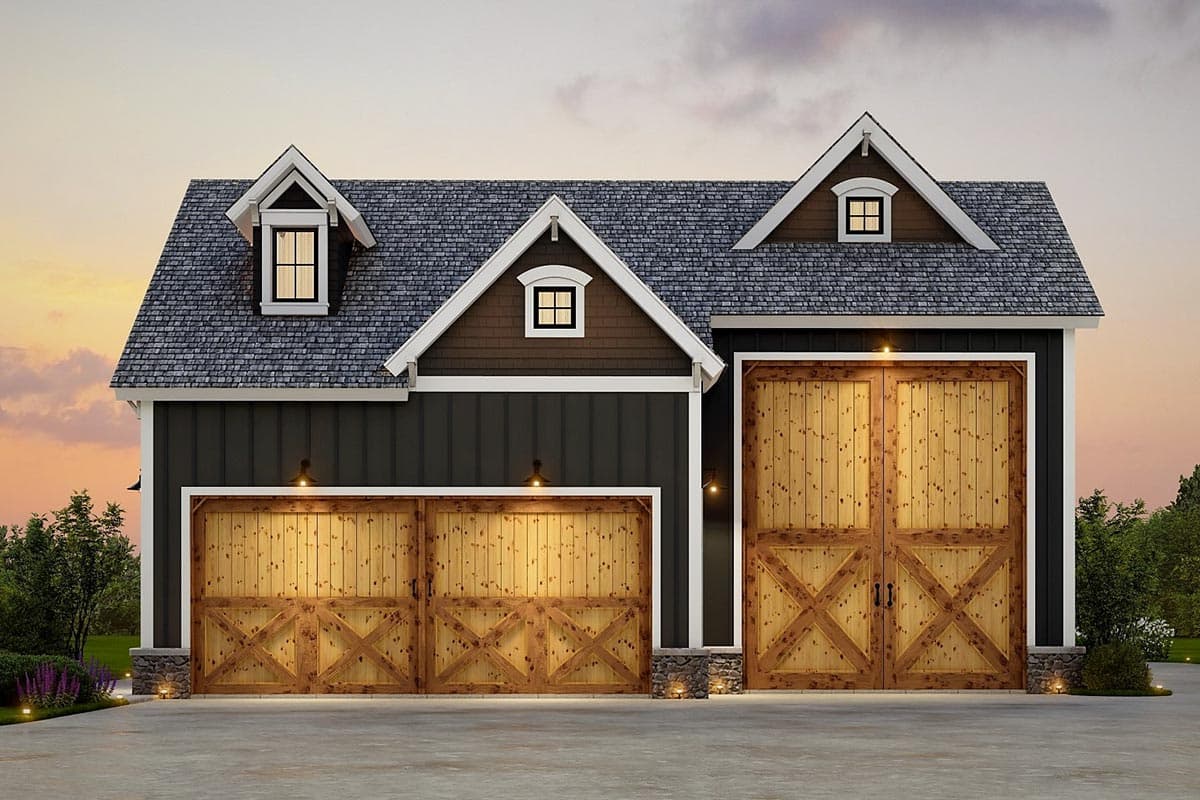

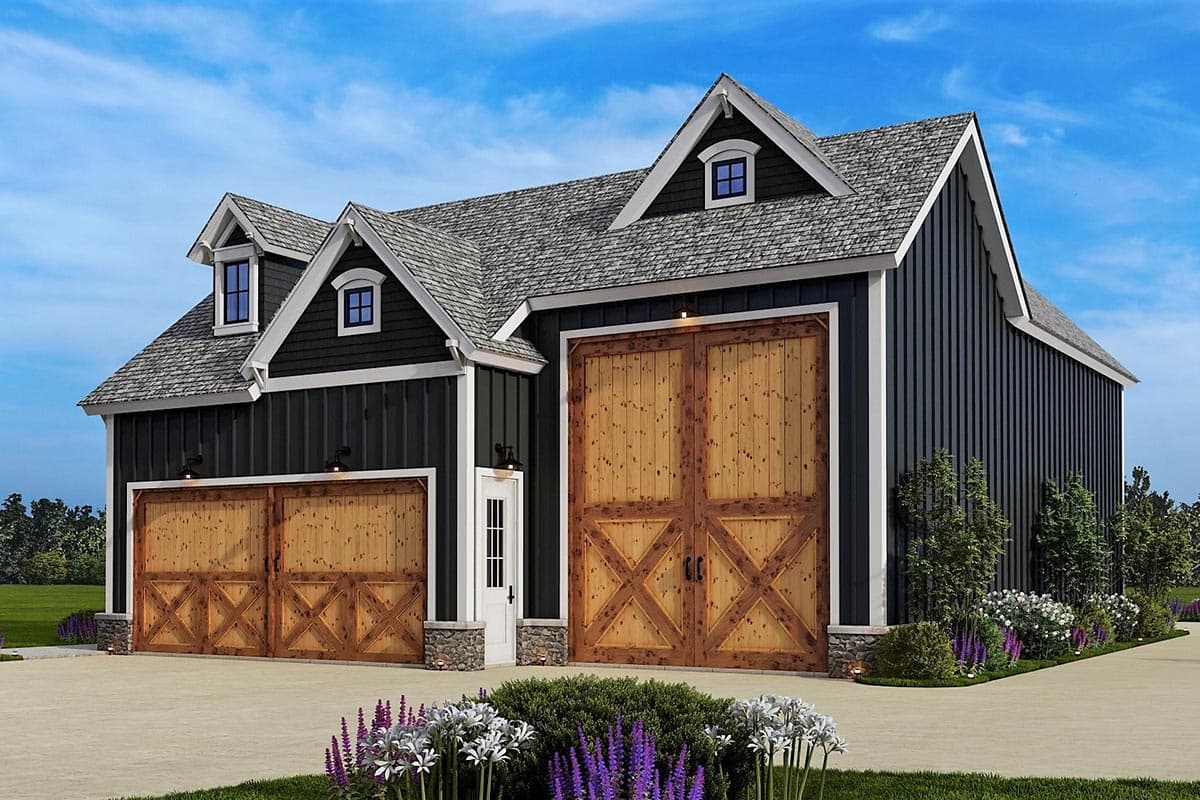

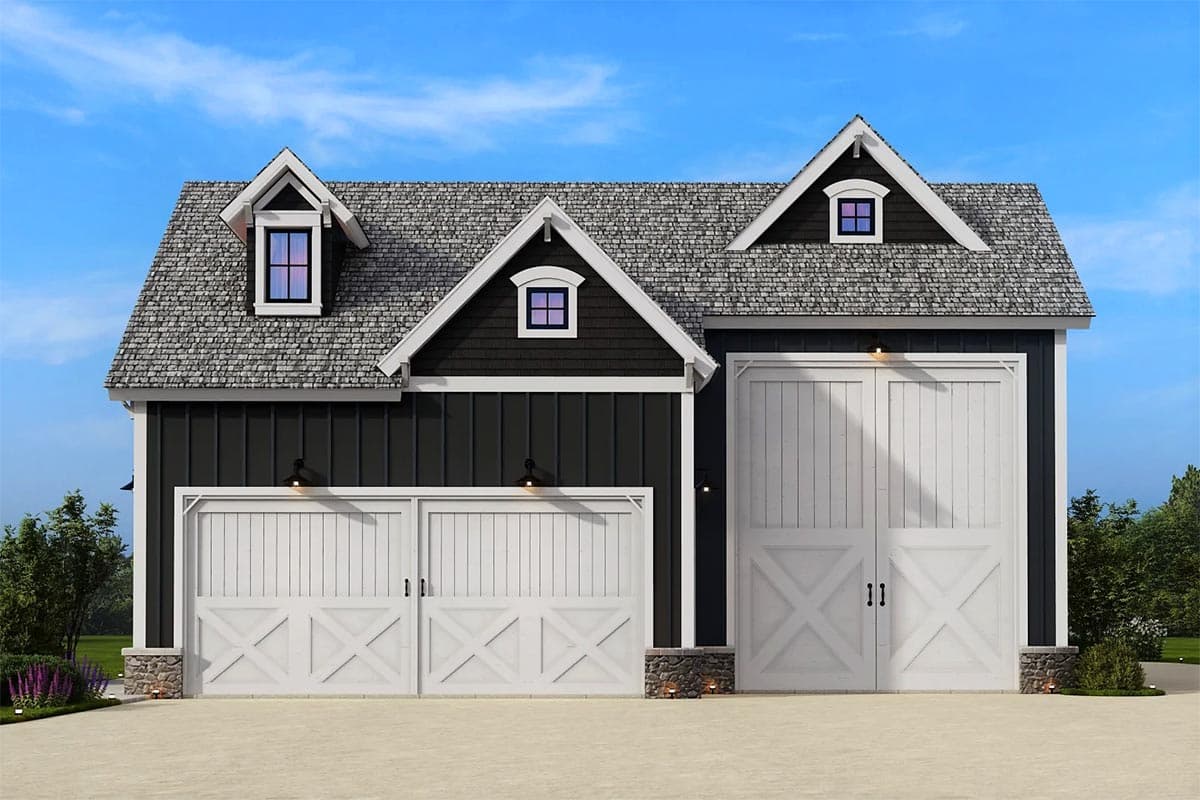

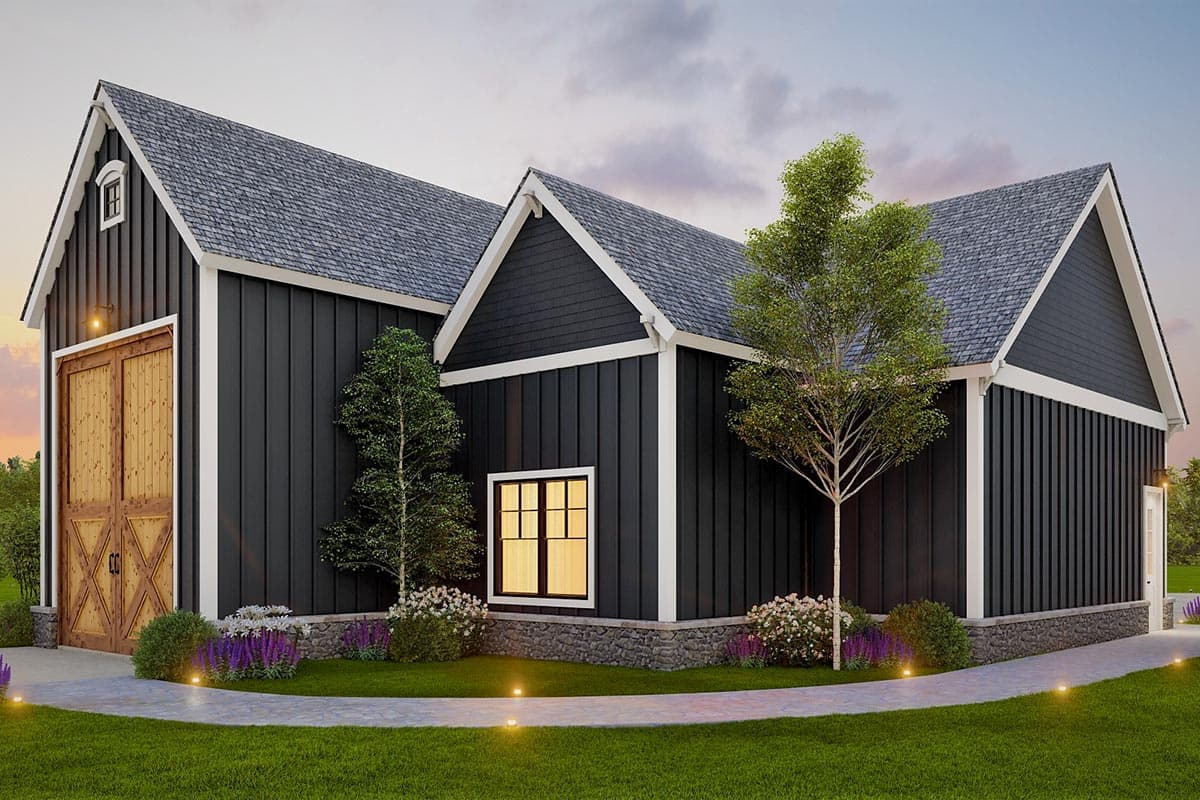

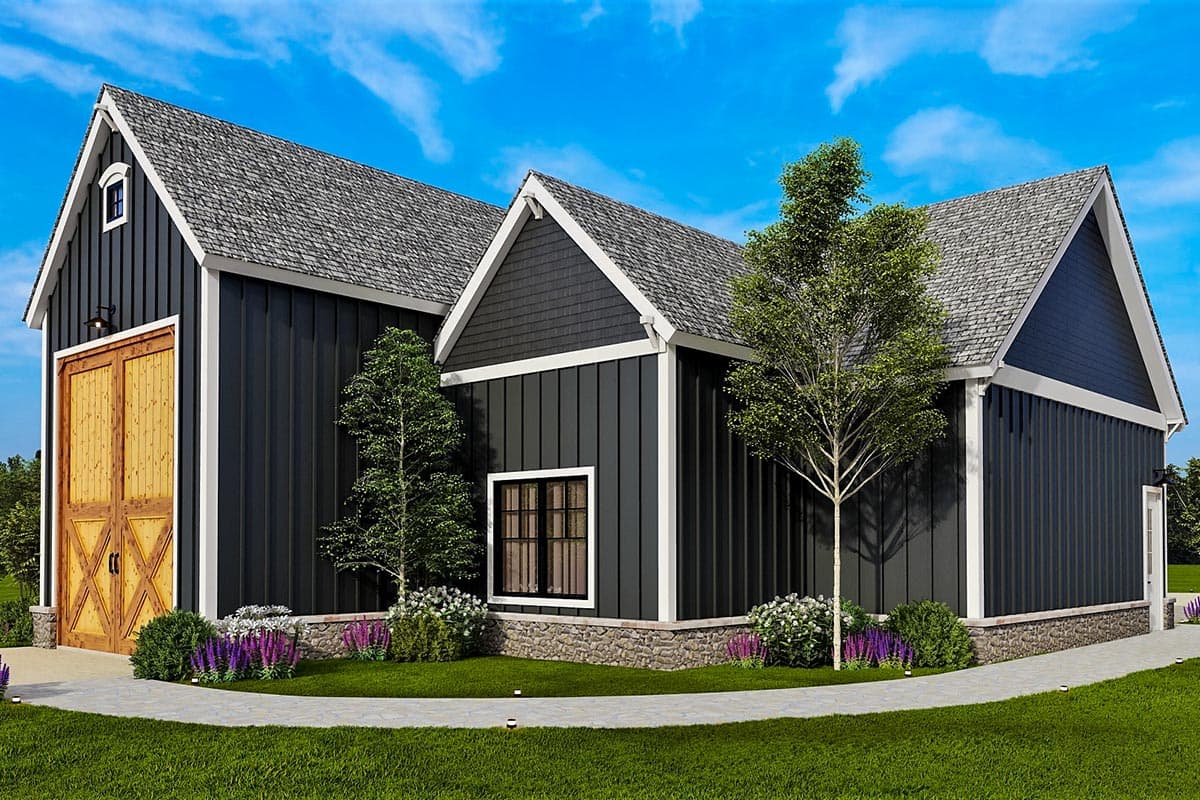

Drive-through RV Garage with Accompanying 2-car Garage
Heated S.F.
0
Beds
Baths
0
Stories
1
Cars
3
Floor Plan

Plan 25774GE

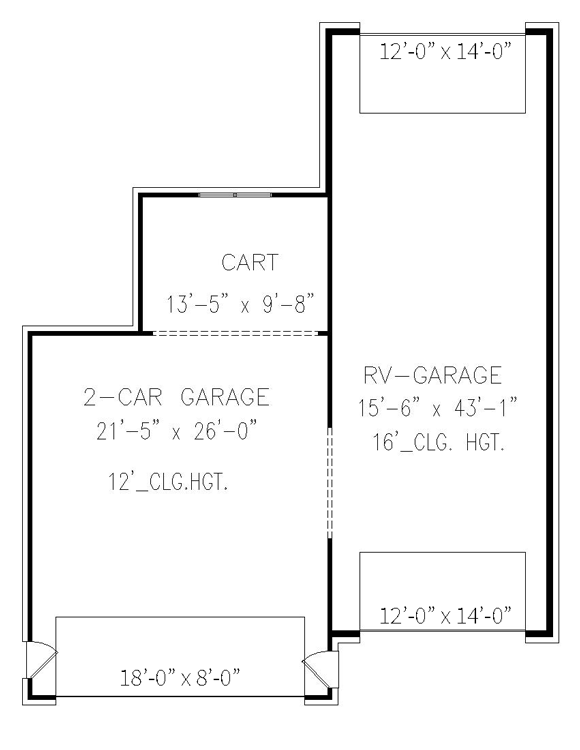

Main Level
slide image 0

Plan 25774GE

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details

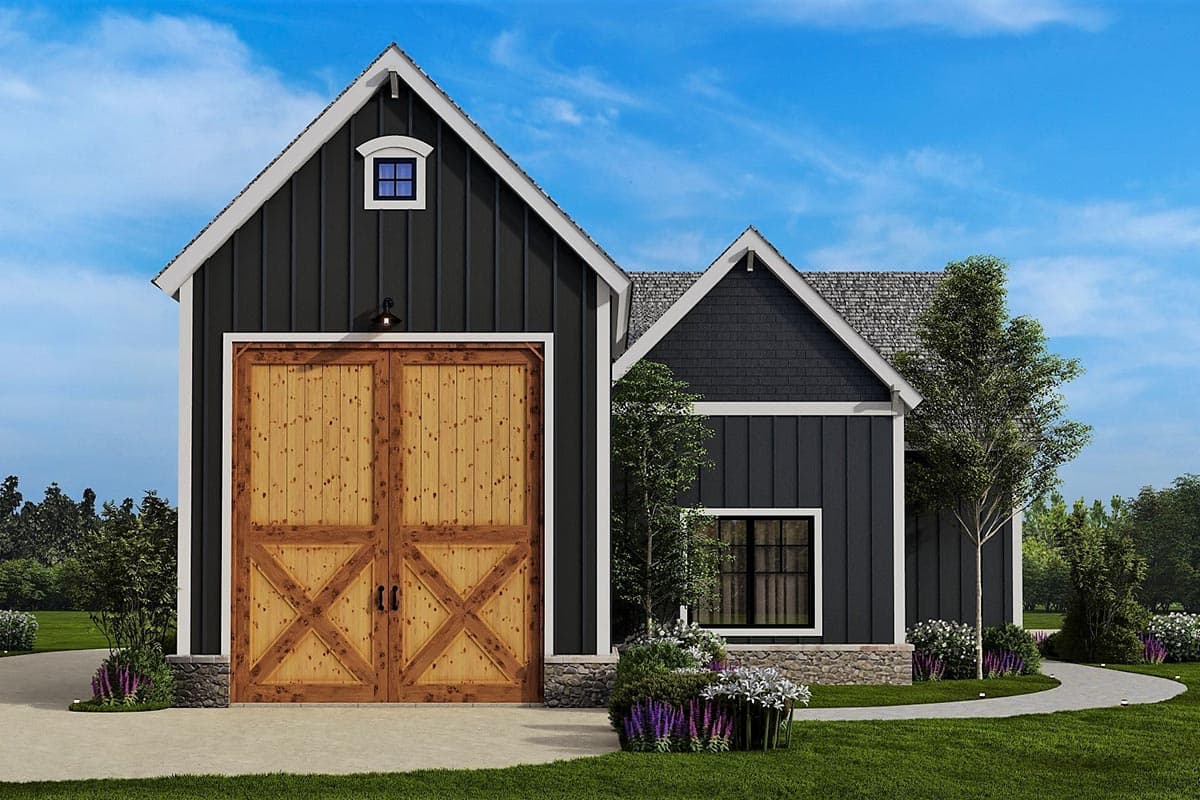

  • This garage plan gives you drive-through parking for an RV on the right. 16' ceilings give you plenty of height for your motorhome.
  • On the left, a 2-car garage has 12'1" ceilings inside and storage for a golf cart, smaller vehicles or garden equipment.
  • Person doors are on each side of the 2-car garage.
  • This garage was designed to accompany house plan 25743GE.

What's Included
  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 0"

Depth

48' 6"

Max Ridge Height

25' 2"

Garage

Type

Detached, RV Garage

Area

1434 sq. ft.

Count

3 Cars

Entry Location

Front, Rear

Ceiling Heights

RV - Garage

12' 1''

2 Car Garage

12' 1''

Square Footage Breakdown

Total Heated Area

0 sq. ft.

Beds/Baths

Bedrooms

0

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 0"

Depth

48' 6"

Max Ridge Height

25' 2"

Garage

Type

Detached, RV Garage

Area

1434 sq. ft.

Count

3 Cars

Entry Location

Front, Rear

Ceiling Heights

RV - Garage

12' 1''

2 Car Garage

12' 1''
