Plan 22050SL

Drive-Thru Garage with 16'-Wide Door

Pageloader

Drive-Thru Garage with 16'-Wide Door

Plan 22050SL

  • 0

    Heated s.f.

  • 0

    Beds

  • 1

    Stories

  • 2

    Cars

  • The perfect addition to any urban or rural home, this detached two-car garage plan enjoys a 9' ceiling.
  • With a 16'x8' overhead door in front and a 9'x8' overhead door in back, you will have easy access to vehicles and other equipment such as a riding lawn mower or trailer. This drive-thru garage plan is sure to suit your needs.

Each plan set includes the following:

  • Foundation plan
  • Fully dimensioned floor plans

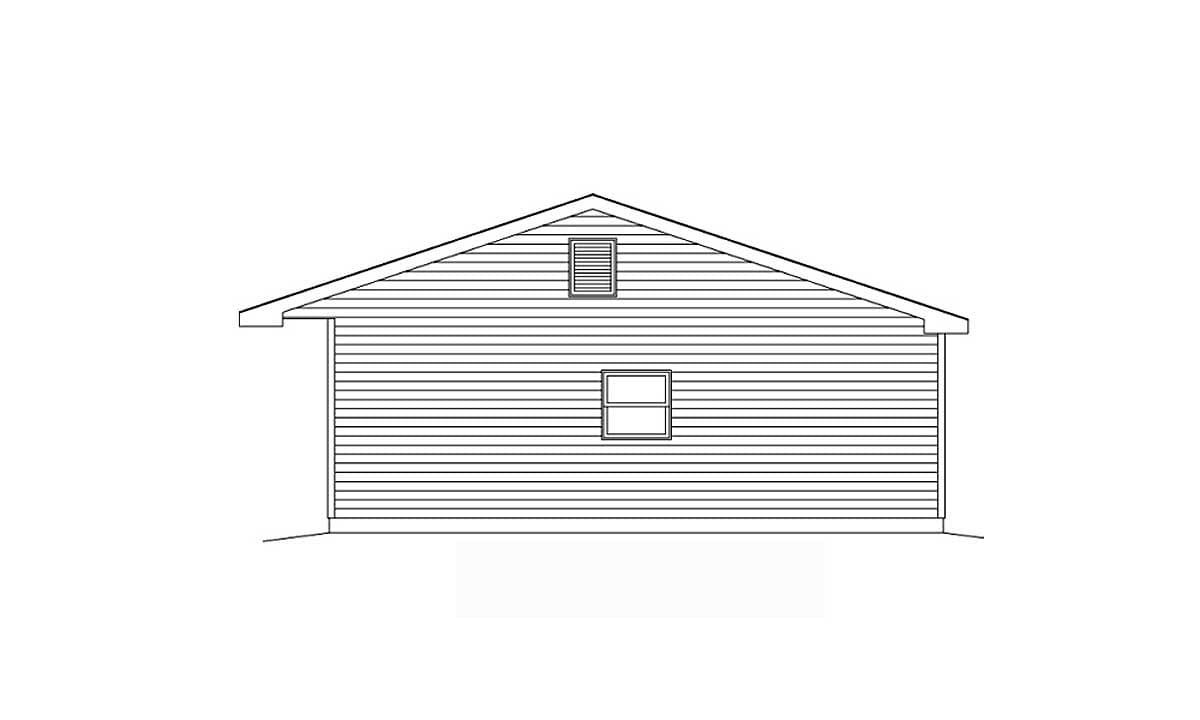

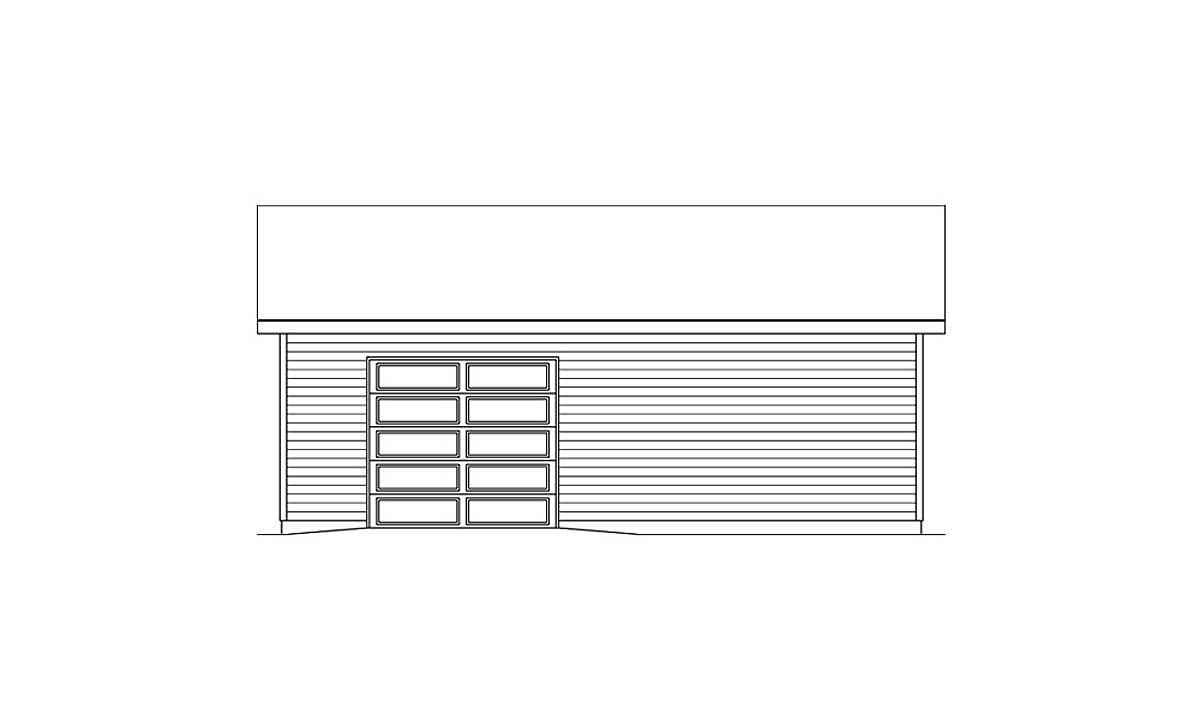

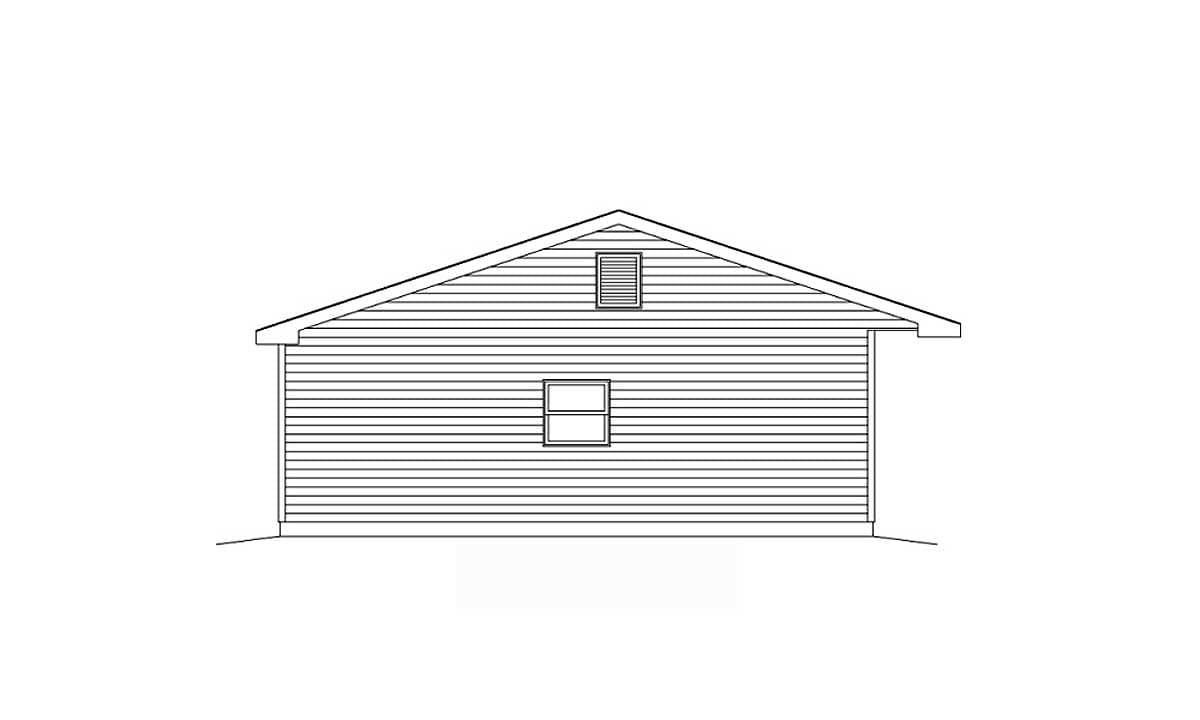

  • Exterior elevations
  • Roof plan
  • Electrical plan
  • Cabinet elevations
  • Building section
  • Typical stair and wall sections and other related details

Floor Plan

Plan details

Special features



Drive-Thru Garage with 16'-Wide Door

  • 0

    Heated s.f.

  • 0

    Beds

  • 0

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • 5 Sets $260
  • PDF - single-use $300
  • 8 Sets $325
  • CAD $425
  • PDF - multi-use $800
  • CAD - multi-use $925
  • View all purchase option online

About This Plan

  • The perfect addition to any urban or rural home, this detached two-car garage plan enjoys a 9' ceiling.
  • With a 16'x8' overhead door in front and a 9'x8' overhead door in back, you will have easy access to vehicles and other equipment such as a riding lawn mower or trailer. This drive-thru garage plan is sure to suit your needs.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 0 sq. ft.

Beds/Baths

  • Bedrooms: 0

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 30' 0"
  • Depth: 28' 0"
  • Max ridge height: 17' 0"

Garage

  • Type: Detached
  • Area: 840 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 4 on 12
  • Framing Type: Truss
