Plan 25842GE

Duplex Craftsman Cottage-Style House Plan - 3-Bed 2.5 Bath 1378 Sq Ft Per Unit

Heated S.F.
2,757
Units
2
Width
Depth
Tour

Floor Plan

Plan 25842GE

Main Level
Main Level
2nd Floor
2nd Floor

Plan 25842GE

M-F 9am-5pm EST |

1-203-761-8500

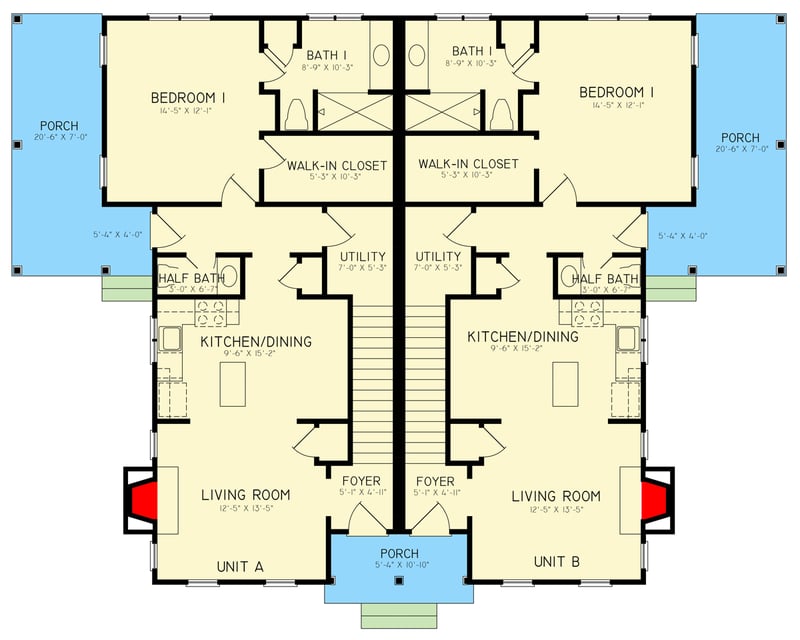

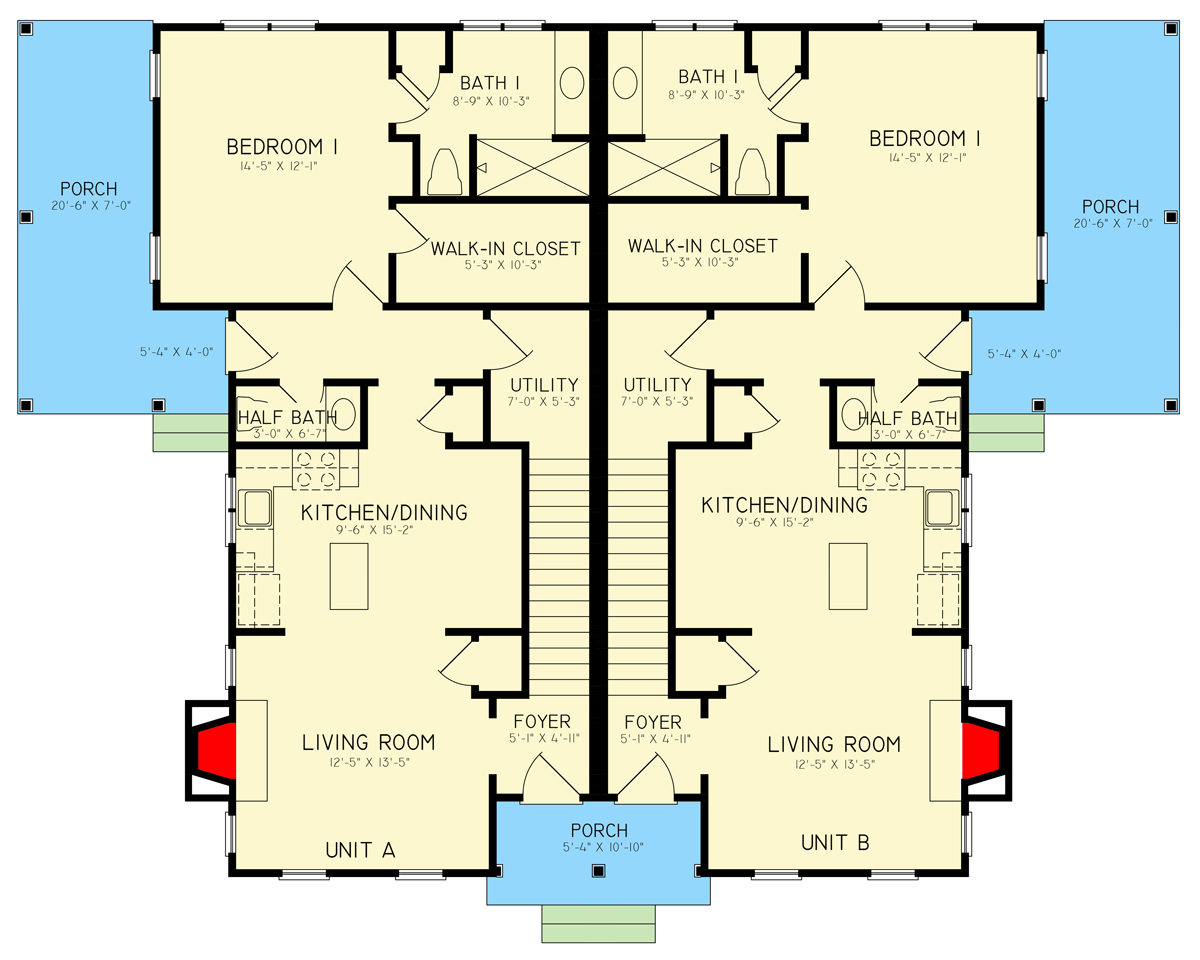

Main Level

Plan 25842GE: Duplex Craftsman Cottage-Style House Plan - 3-Bed 2.5 Bath 1378 Sq Ft Per Unit - Floor Plan - Main Level - Craftsman, Modern Farmhouse, New American

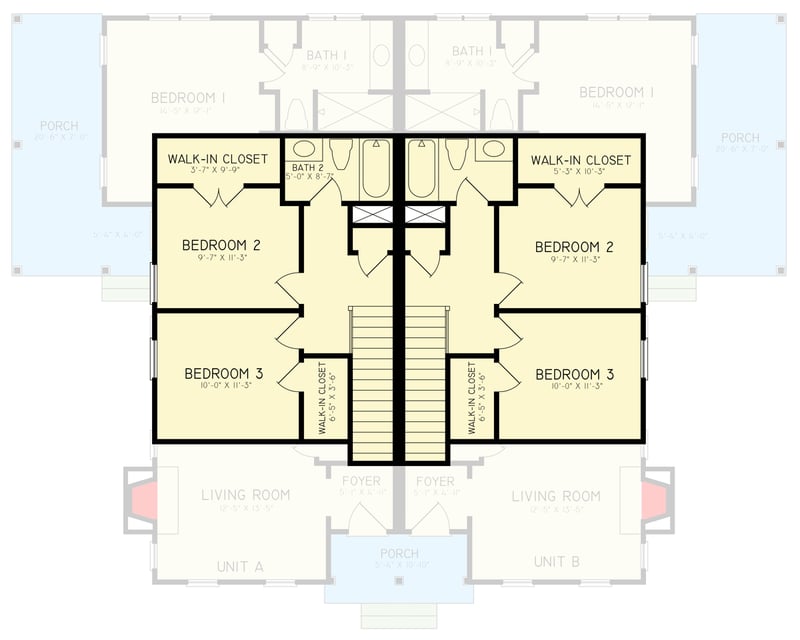

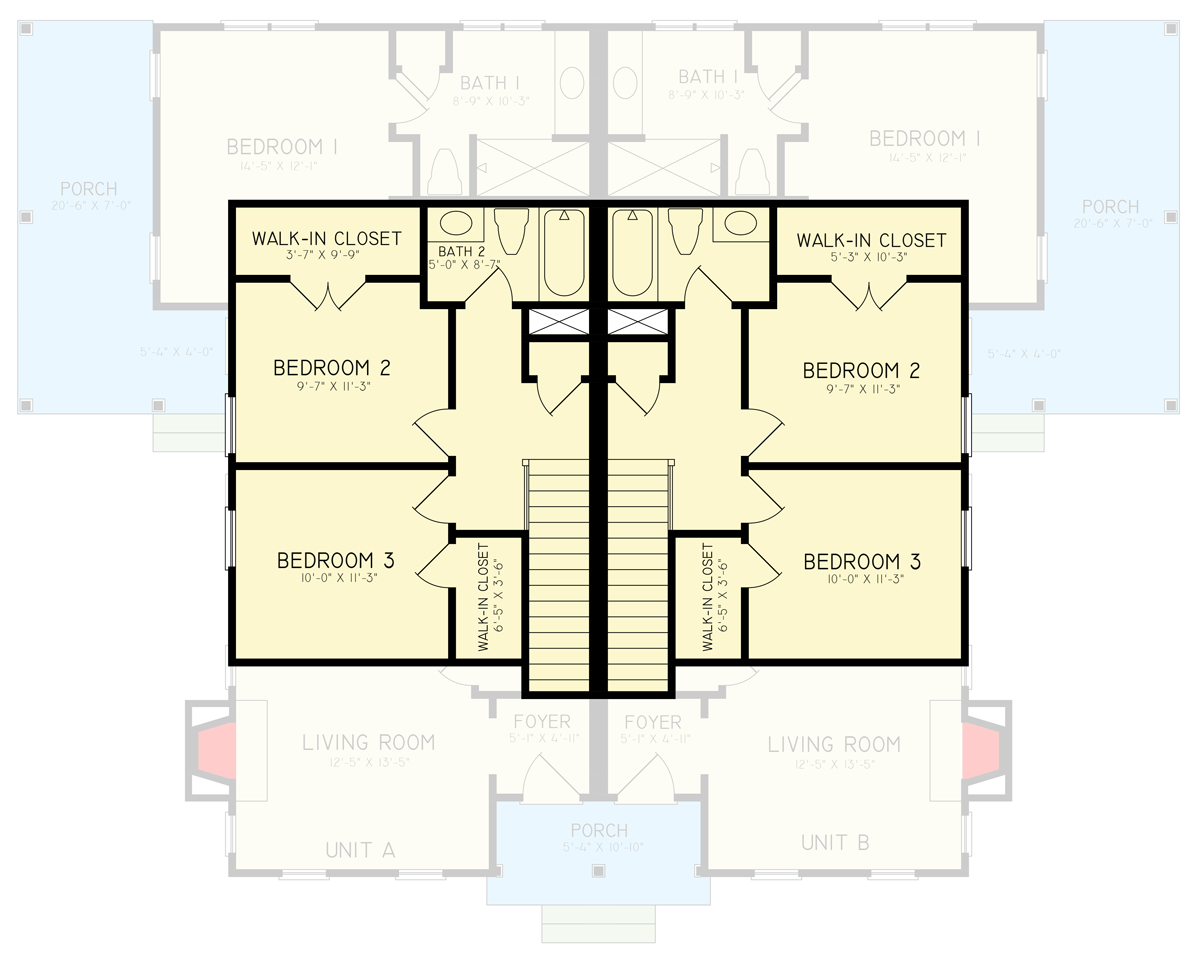

2nd Floor

Plan 25842GE: Duplex Craftsman Cottage-Style House Plan - 3-Bed 2.5 Bath 1378 Sq Ft Per Unit - Floor Plan - 2nd Floor - Craftsman, Modern Farmhouse, New American

Plan Details

  • This duplex house plan gives you 2 units each with 1378 square feet of heated living space (936 sq. ft. on the first floor, 443 sq. ft. on the second floor), 3 beds and 2.5 baths.
Unit Left
Heated Area
1,378Sq. Ft.
936 Sq. Ft. 1st
443 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
30'width
46'depth
25'height
Unfinished Areas
29 Sq. Ft. Porch, Front
165 Sq. Ft. Covered Patio
Unit Right
Heated Area
1,378Sq. Ft.
1871 Sq. Ft. 1st
885 Sq. Ft. 2nd
Beds
3Beds
Baths
2Full Baths
1Half Bath
Dimensions
30'width
46'depth
25'height
Unfinished Areas
29 Sq. Ft. Porch, Front
165 Sq. Ft. Covered Patio

What's Included

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

2,757 sq. ft.

1st Floor

1,871 sq. ft.

2nd Floor

885 sq. ft.

Porch, Combined

390 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

61' 2"

Depth

46' 6"

Max Ridge Height

25' 9"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Craftsman

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

2,757 sq. ft.

1st Floor

1,871 sq. ft.

2nd Floor

885 sq. ft.

Porch, Combined

390 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

61' 2"

Depth

46' 6"

Max Ridge Height

25' 9"

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Craftsman

Modern Farmhouse

New American

Special Features

Bedrooms - Split

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor
