Plan 8188LB

Duplex for a Down-Sloping Lot

Heated S.F.
4,673
Units
2
Width
Depth

Floor Plan

Plan 8188LB

Main Level
Main Level
Basement
Basement

Plan 8188LB

M-F 9am-5pm EST |

1-203-761-8500

Main Level

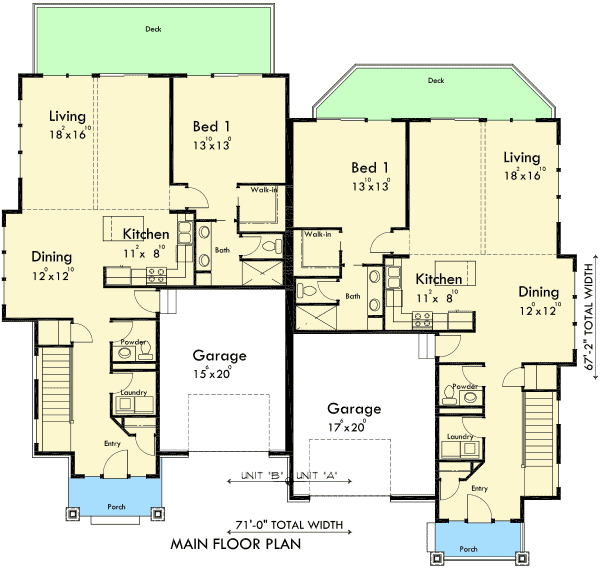

Plan 8188LB: Duplex for a Down-Sloping Lot - Floor Plan - Main Level

Basement

Plan 8188LB: Duplex for a Down-Sloping Lot - Floor Plan - Basement

Plan Details

  • This duplex house plan is designed for a lot that slopes to the rear and gives you two family units with a slight offset creating a dynamic front exterior. The back is designed to take advantage of your views.
  • Unit A (shown on the right) gives you 2,349 square feet of living space (1,270 on the main floor and 1,079 square feet on the lower level). The garage is 369 square feet. The upper deck is 165 square feet and the lower deck is 123 square feet.
  • Unit B (shown on the left) gives you 2,324 square feet of living space (1,278 on the main floor and 1,046 square feet on the lower level). The garage is 328 square feet. The upper deck is 250 square feet and the lower deck is 192 square feet.
Unit A
Heated Area
2,349Sq. Ft.
1079 Sq. Ft. LL
1270 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
369 Sq. Ft.
Dimensions
35' 6"width
67'depth
36'height
Unfinished Areas
50 Sq. Ft. Porch, Combined
288 Sq. Ft. Deck
369 Sq. Ft. Garage
Unit B
Heated Area
2,324Sq. Ft.
1046 Sq. Ft. LL
1278 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
1Half Bath
Cars
Attached
328 Sq. Ft.
Dimensions
35' 6"width
67'depth
36'height
Unfinished Areas
328 Sq. Ft. Garage
50 Sq. Ft. Porch, Combined
442 Sq. Ft. Deck

What's Included

  • Elevations (All 4 Sides: Front, Left, Rear, Right)
  • Dimensioned Foundation Plan
  • Dimensioned Floor Plan(s)
  • Upper Level Framing Plan & Notes (if applicable)
  • Building Sections
  • Roof Framing Plan/Truss Layout
  • Typical Notes & Details

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

4,673 sq. ft.

Lower Level

2,125 sq. ft.

1st Floor

2,548 sq. ft.

Porch, Front

100 sq. ft.

Deck

730 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 0"

Depth

67' 0"

Max Ridge Height

36' 0"

Garage

Type

Attached

Area

697 sq. ft.

Count

2 Cars

Entry Location

Front

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

4,673 sq. ft.

Lower Level

2,125 sq. ft.

1st Floor

2,548 sq. ft.

Porch, Front

100 sq. ft.

Deck

730 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

71' 0"

Depth

67' 0"

Max Ridge Height

36' 0"

Garage

Type

Attached

Area

697 sq. ft.

Count

2 Cars

Entry Location

Front

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Plan Collections

Photo Gallery
