Plan 59539ND

Duplex Home Plan with Identical 3 Bed 1870 Square Foot Units

Heated S.F.
3,740
Units
2
Width
Depth

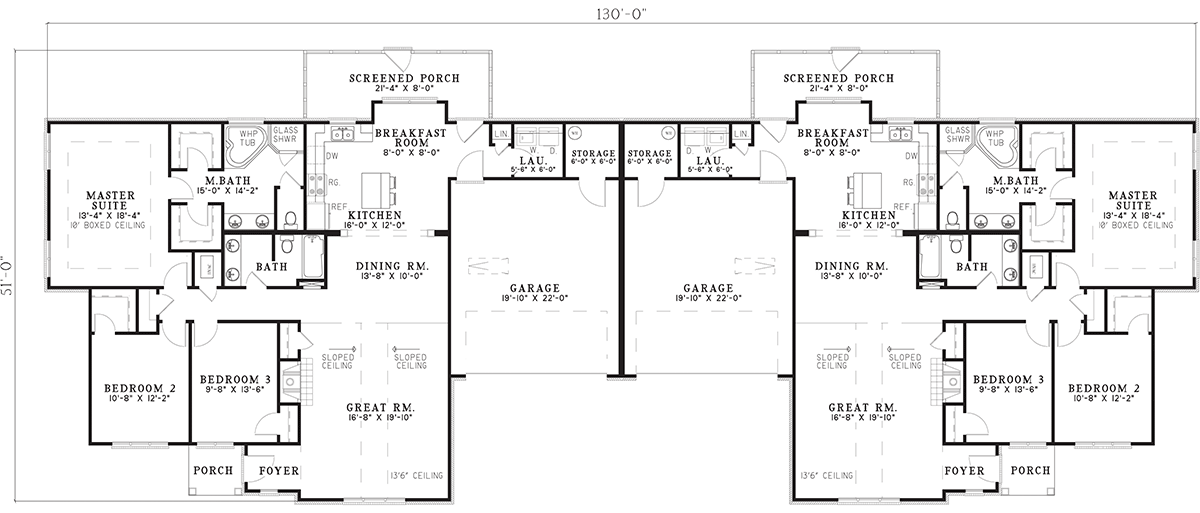

Floor Plan

Plan 59539ND

Main Level
Main Level

Plan 59539ND

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 59539ND: Duplex Home Plan with Identical 3 Bed 1870 Square Foot Units - Floor Plan - Main Level - Southern, Traditional

Plan Details

  • Two 1,870 square foot 3 bed, 2 bath units are attached and separated from each other by 463 square foot 2-car garages.
  • Bedrooms are clustered on the outside of each unit with the master suite in back.
  • An open concept layout - great room, dining room, kitchen - reveals itself in order as you step in from the foyer.
Unit A
Heated Area
1,870Sq. Ft.
1870 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
463 Sq. Ft.
Dimensions
65'width
51'depth
22'height
Unfinished Areas
463 Sq. Ft. Garage
Unit B
Heated Area
1,870Sq. Ft.
1870 Sq. Ft. 1st
Beds
3Beds
Baths
2Full Baths
Cars
Attached
463 Sq. Ft.
Dimensions
65'width
51'depth
22'height
Unfinished Areas
463 Sq. Ft. Garage

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,740 sq. ft.

1st Floor

3,740 sq. ft.

Porch, Combined

390 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

130' 0"

Depth

51' 0"

Max Ridge Height

21' 2"

Garage

Type

Attached

Area

926 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

3,740 sq. ft.

1st Floor

3,740 sq. ft.

Porch, Combined

390 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

130' 0"

Depth

51' 0"

Max Ridge Height

21' 2"

Garage

Type

Attached

Area

926 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Southern

Traditional

Special Features

Bedrooms - Clustered

Breakfast Nook

Laundry - Main Level

Master Suite - 1st Floor
