Plan 421539CHD
Duplex House Plan with 716 Square Foot 1-Bed Units
Heated S.F.
1,432
Units
2
Width
34' 3"
Depth
43' 10"
What's Included
Plan Details
  • This duplex house plan has a brick exterior with wood accents in one of the the two gable peeks and by the covered entries. Inside, it gives you matching 716 square foot 1 bed, 1 bath units.
  • The front of the home is open concept with the living room open to the kitchen with a peninsula.
  • The bedrooms are in back and have walk-in closets, a bathroom with 42" by 64" walk-in shower and dedicated side-by-side laundry to the side.
  • Duplex house plans offer the opportunity to generate rental income. With two separate living spaces, owners can rent out one unit while living in the other or rent out both units, creating a steady stream of rental income that can help offset carrying costs and provide a source of passive income.
Unit A
716 Sq. Ft.
716 Sq. Ft. 1st Floor
1 Beds
1 Full Bath
None
17' 1" w 43' 10" d
Unit B
716 Sq. Ft.
716 Sq. Ft. 1st Floor
1 Beds
1 Full Bath
None
17' 1" w 43' 10" d
What's Included
  • Cover Page
  • Foundation Plan with Notes and Footing Details
  • Dimensioned Floor Plans with Notes
  • Exterior Elevations and Roof Plan with Notes
  • Electrical Layout Plans with Legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Duplex House Plan with 716 Square Foot 1-Bed Units

  • 1,432

    Heated s.f.

  • 2

    Units

  • 34' 3"

    Width

  • 43' 10"

    Depth

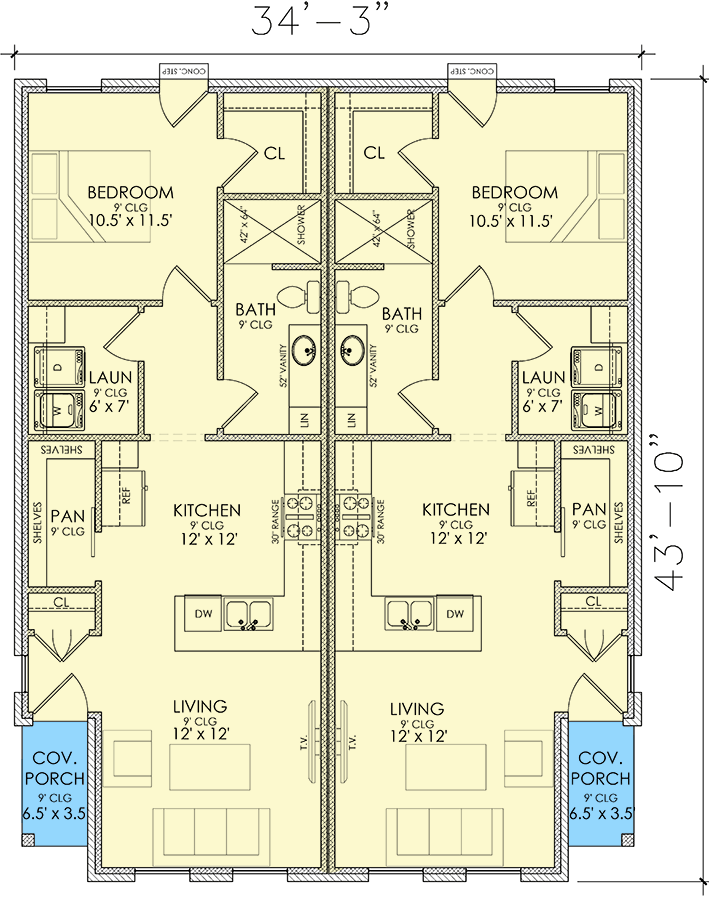

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,432 sq. ft.
  • 1st Floor: 1,432 sq. ft.

Dimensions

  • Width: 34' 3"
  • Depth: 43' 10"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
