Plan 100303GHR
EXCLUSIVE
Duplex House Plan with Matching 1106 Square Foot 3-Bed Units
Heated S.F.
2,212
Units
2
Width
40'
Depth
62'
What's Included
Plan Details
  • This duplex house plan gives you side-by-side 1,106 square foot 3 bed, 2 bath units.
  • Each unit is 20' wide and 62' deep and has a max ridge height of 20'.
  • The front of the home is open concept and gives you a galley kitchen, a dining area and living room.
  • Further back, lining the left side of the home, you'll find the three bedrooms with the master bedroom in back.
  • Related Plan: Get a smaller duplex and alternate elevation with plan 100305GHR (1,046 sq. ft. per unit).


Unit A
1,106 Sq. Ft.
1106 Sq. Ft. 1st Floor
3 Beds
2 Full Baths
None
20' w 62' d 20' h
Unit B
1,106 Sq. Ft.
1106 Sq. Ft. 1st Floor
3 Beds
2 Full Baths
None
20' w 62' d 20' h
What's Included
  • Cover sheet with area, door & window schedules
  • Dimensioned floorplans with general notes, window & door sizes
  • Interior cabinet elevation
  • Foundation outline (perimeter dimensions only. All other construction details to be handled locally based on site and soil conditions)
  • Roof plan (Birdseye view with pitches)
  • Cornice details

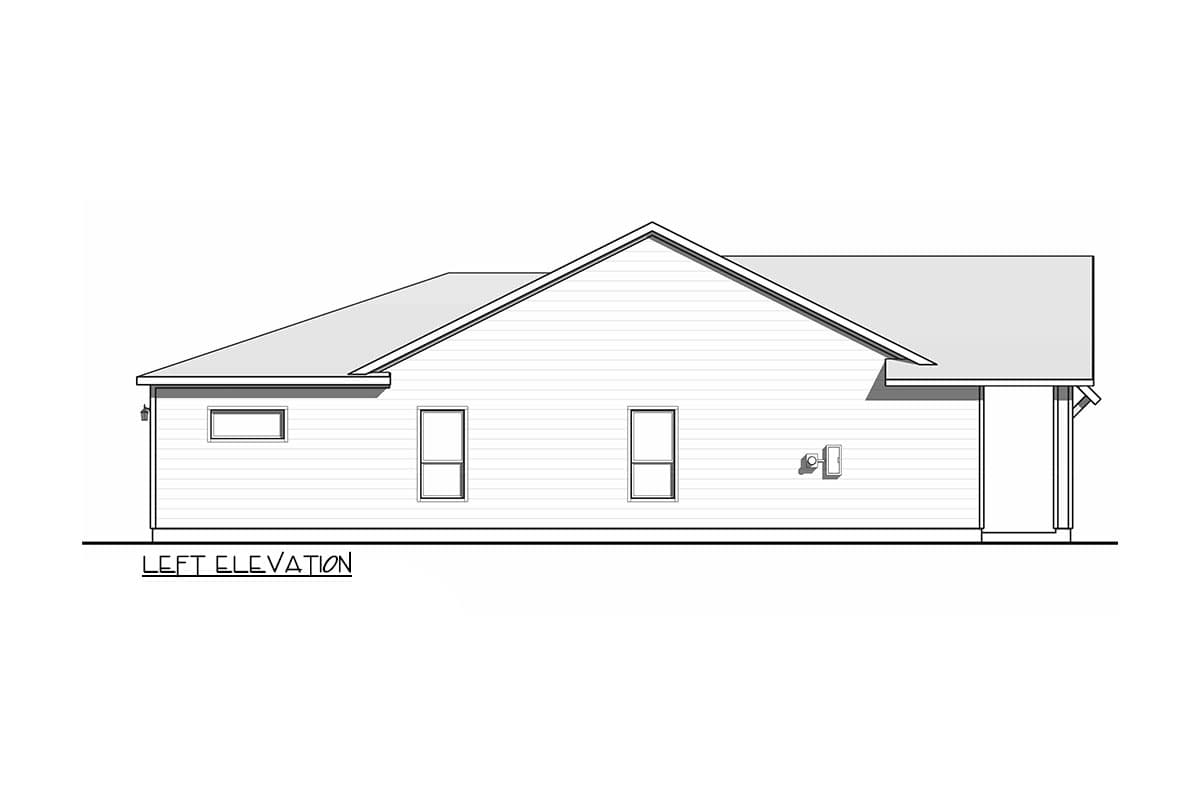

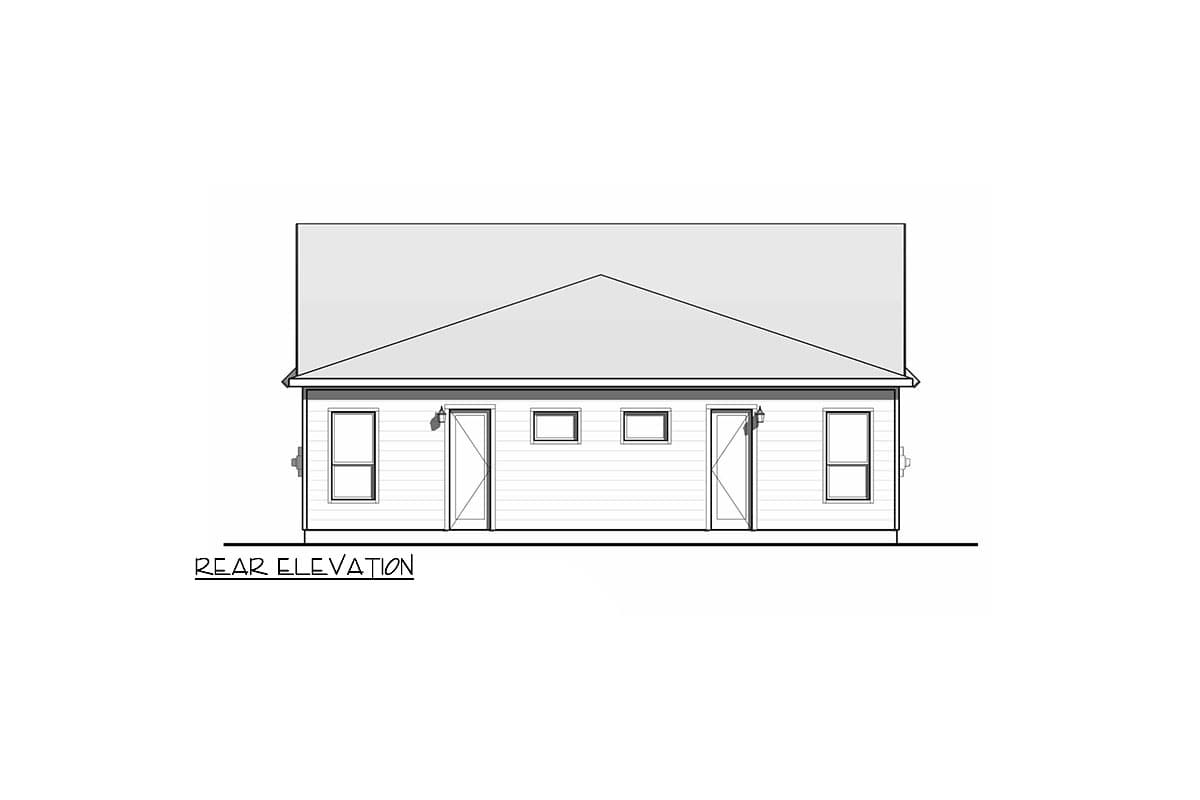

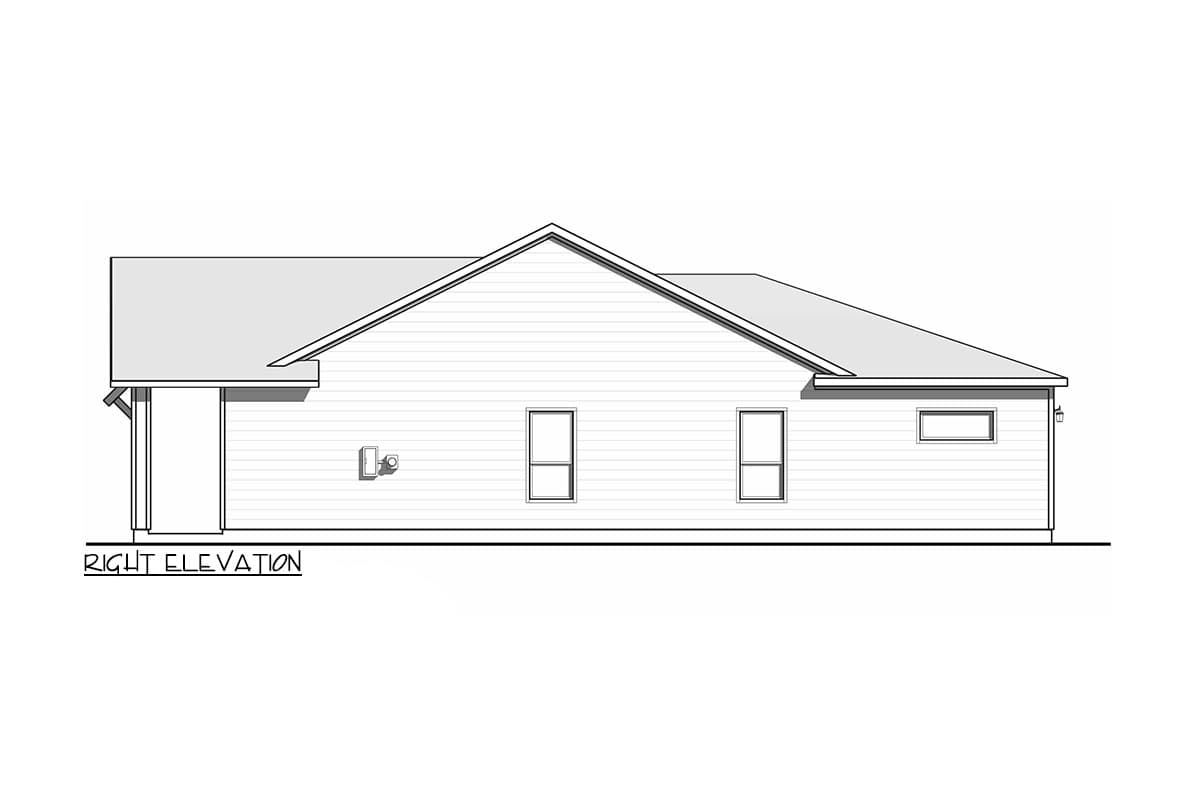

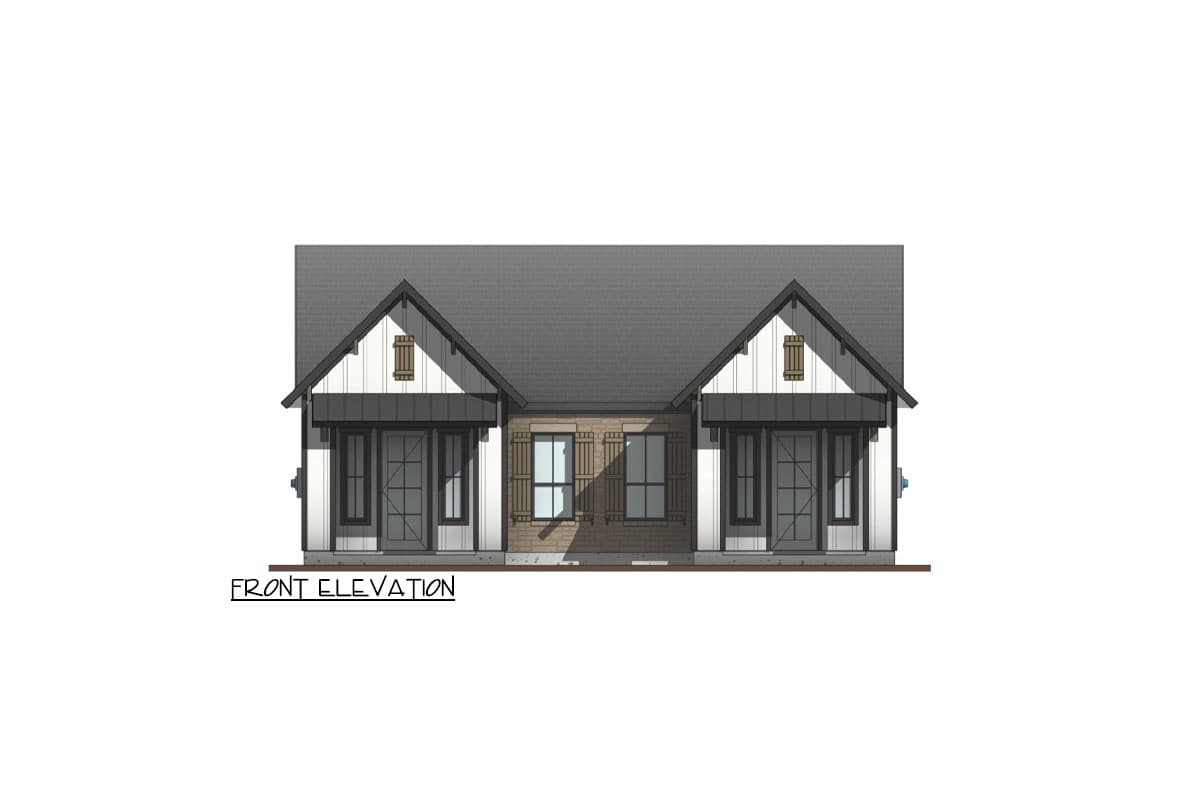

  • Exterior elevations (4 sides)
  • Building sections (if applicable)
  • Electrical plans
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Duplex House Plan with Matching 1106 Square Foot 3-Bed Units

  • 2,212

    Heated s.f.

  • 2

    Units

  • 40'

    Width

  • 62'

    Depth

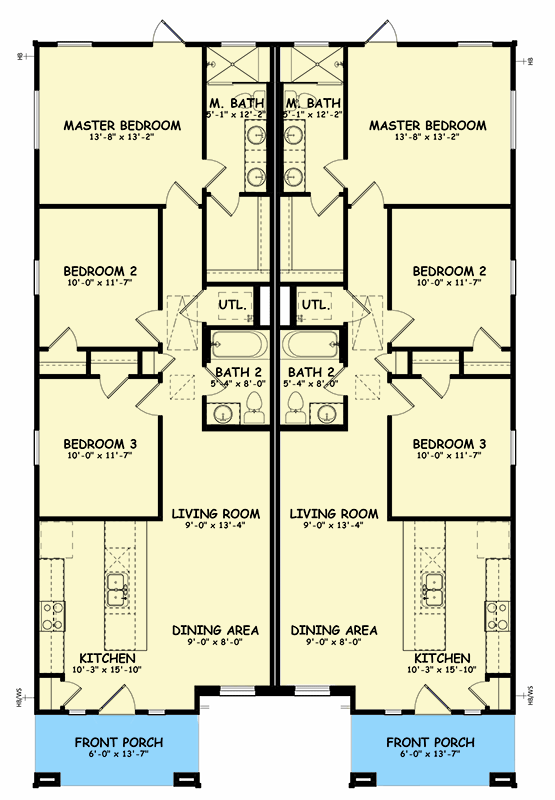

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,212 sq. ft.
  • 1st Floor: 2,212 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 62' 0"
  • Max ridge height: 20' 8"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site

Duplex House Plan with Matching 1106 Square Foot 3-Bed Units

  • 2,212

    Heated s.f.

  • 2

    Units

  • 40'

    Width

  • 62'

    Depth

Duplex House Plan with Matching 1106 Square Foot 3-Bed Units

  • 2,212

    Heated s.f.

  • 2

    Units

  • 40'

    Width

  • 62'

    Depth

Plan Details

Square Footage Breakdown

  • Total: 2,212 sq. ft.
  • 1st Floor: 2,212 sq. ft.

Dimensions

  • Width: 40' 0"
  • Depth: 62' 0"
  • Max ridge height: 20' 8"

Beds/Baths

  • Bedrooms: 6
  • Full bathrooms: 4

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Stick
