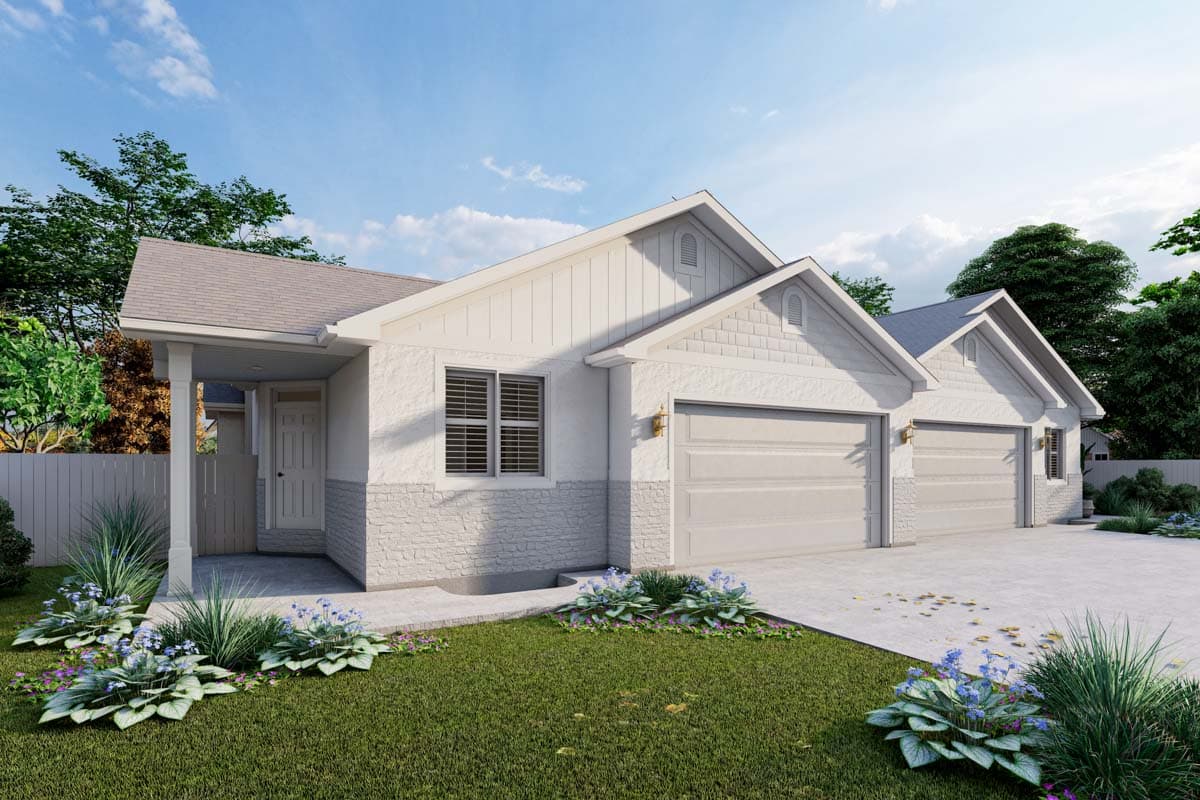

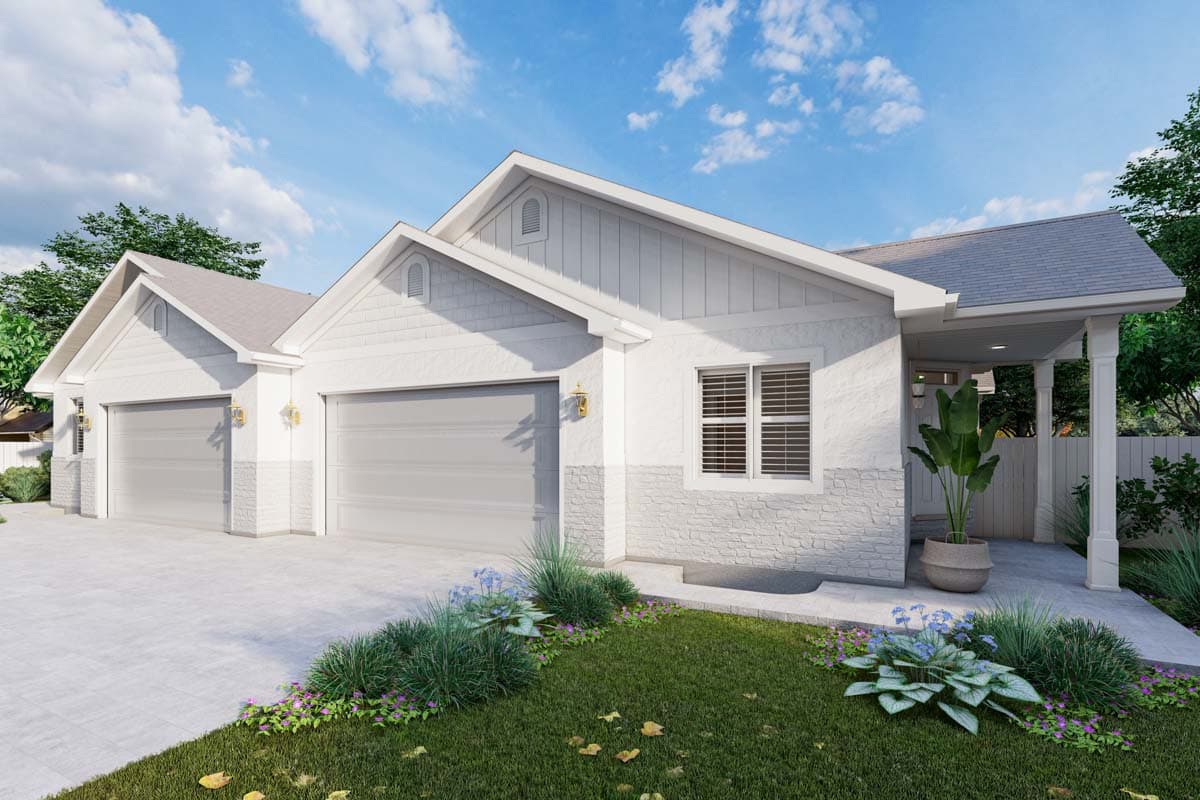

Plan 61478UT

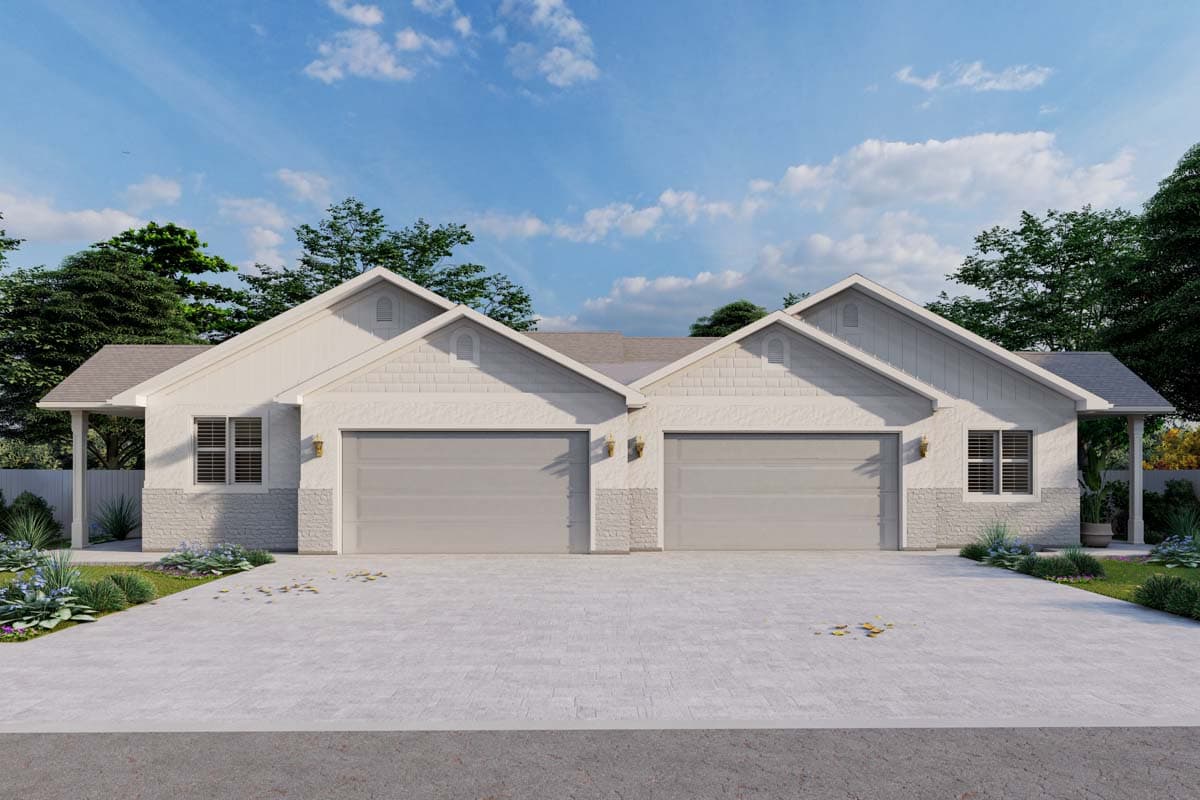

Duplex House Plan with Matching 1287 Square Foot Units

Heated S.F.
2,574
Units
2
Width
Depth

Floor Plan

Plan 61478UT

Main Level
Main Level
Lower Level
Lower Level

Plan 61478UT

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 61478UT: Duplex House Plan with Matching 1287 Square Foot Units - Floor Plan - Main Level - Southern, Southern Traditional, Traditional

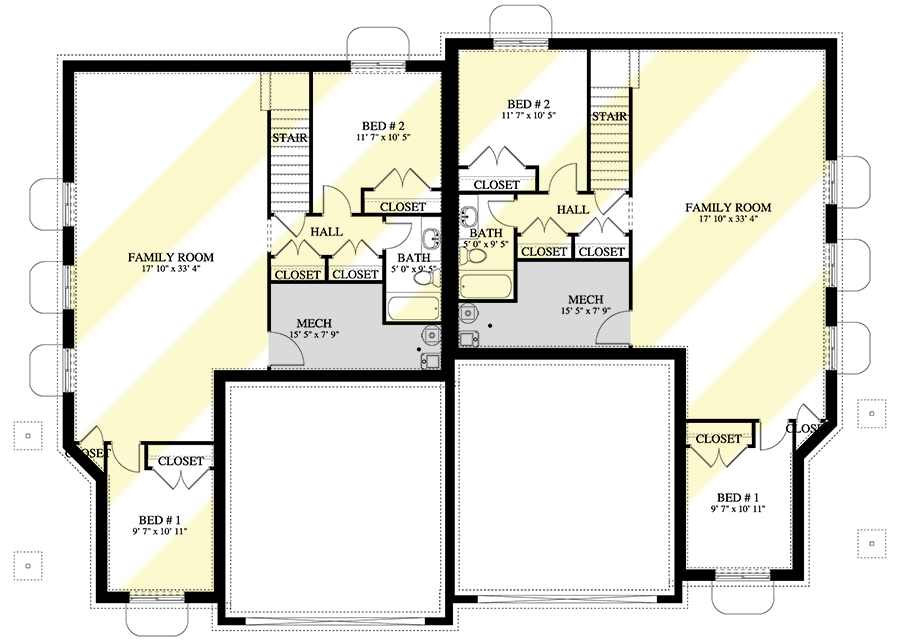

Lower Level

Plan 61478UT: Duplex House Plan with Matching 1287 Square Foot Units - Floor Plan - Lower Level - Southern, Southern Traditional, Traditional

Plan Details

  • This duplex house plan gives you matching-and-mirrored 2 bed, 2.5 bath units, each with 1287 square feet of heated living space and a 2-car 455 square foot garage.
  • Expand to the basement and get 2 more beds with a shared bathroom, a large family room that combined give you 1271 square feet of expansion space.
  • The bedrooms are in a split layout, maximizing your privacy.

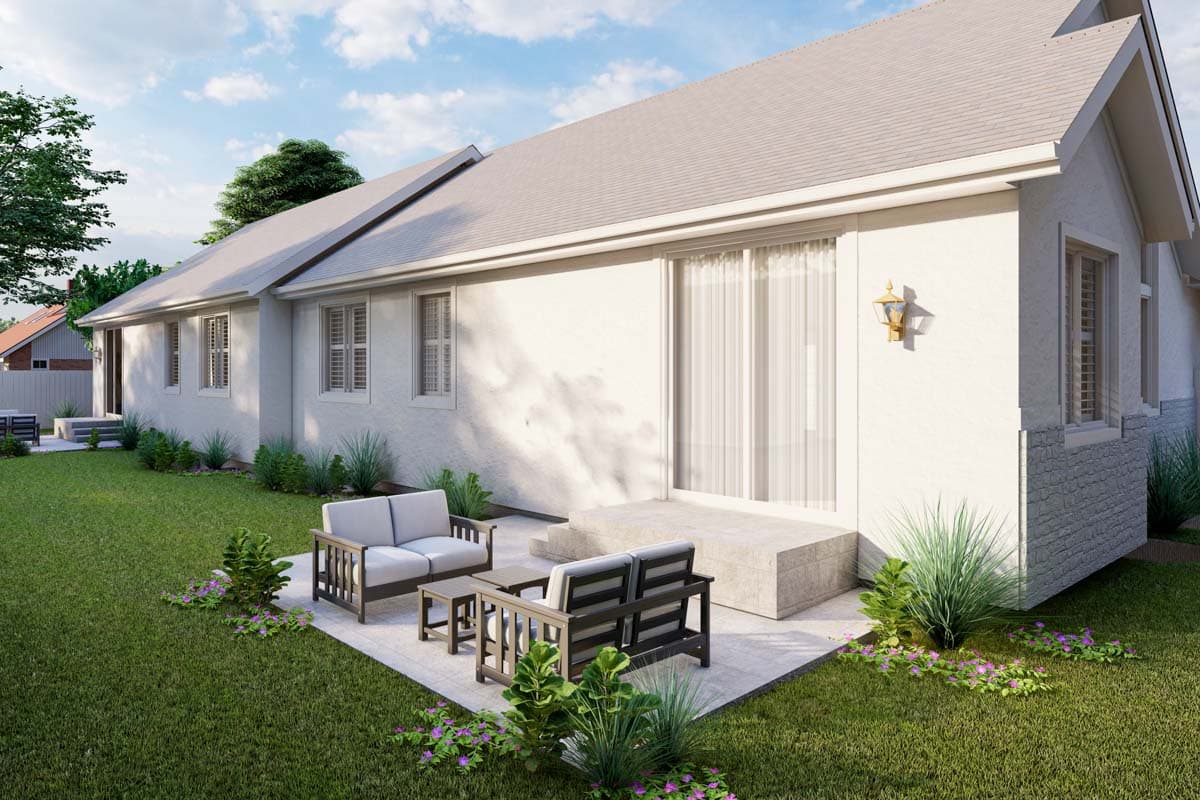

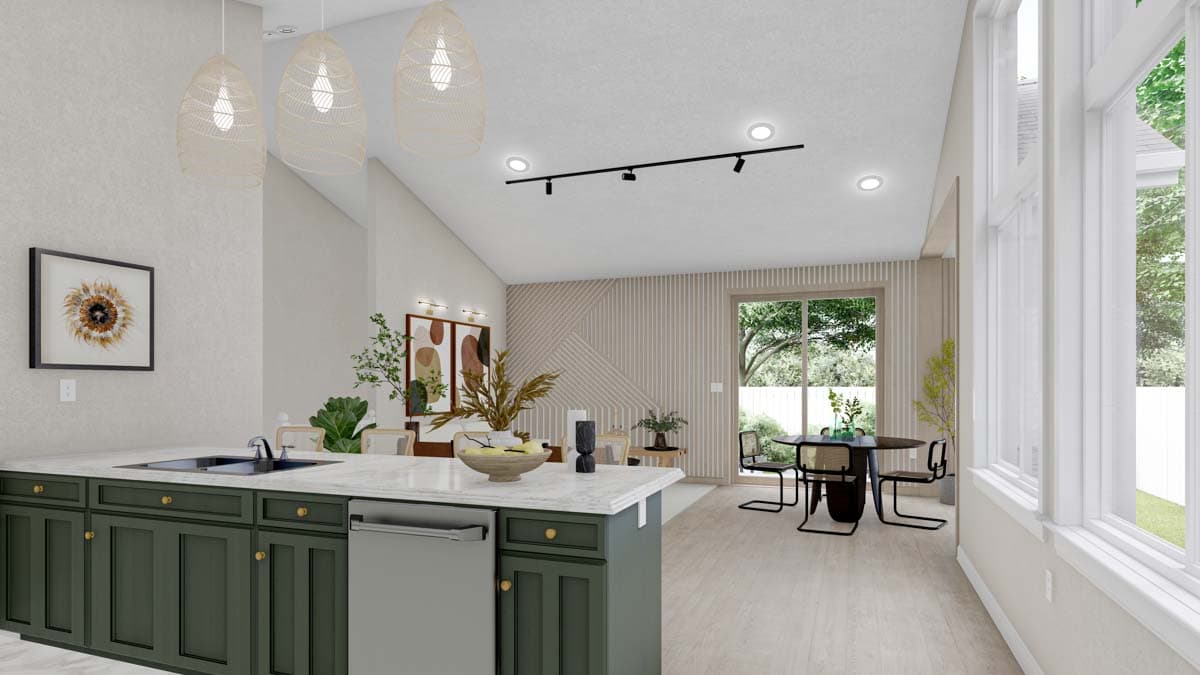

  • The kitchen has a peninsula with a double sink and casual seating that is open to the dining and family room. Sliding doors on the back wall take you to the back yard, deck or patio.
Unit A
Heated Area
1,287Sq. Ft.
1287 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
455 Sq. Ft.
Dimensions
35'width
51'depth
Unfinished Areas
455 Sq. Ft. Garage
Unit B
Heated Area
1,287Sq. Ft.
1287 Sq. Ft. 1st
Beds
2Beds
Baths
2Full Baths
Cars
Attached
455 Sq. Ft.
Dimensions
35'width
51'depth
Unfinished Areas
455 Sq. Ft. Garage

What's Included

  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

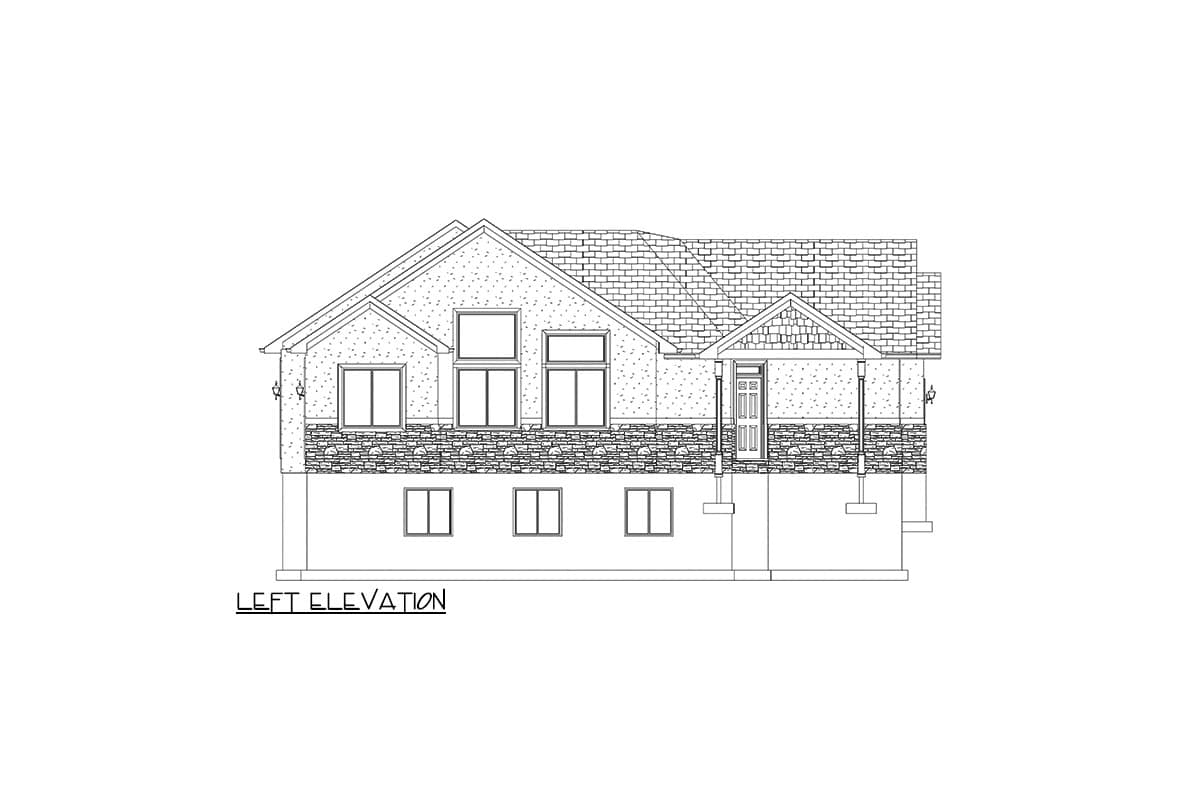

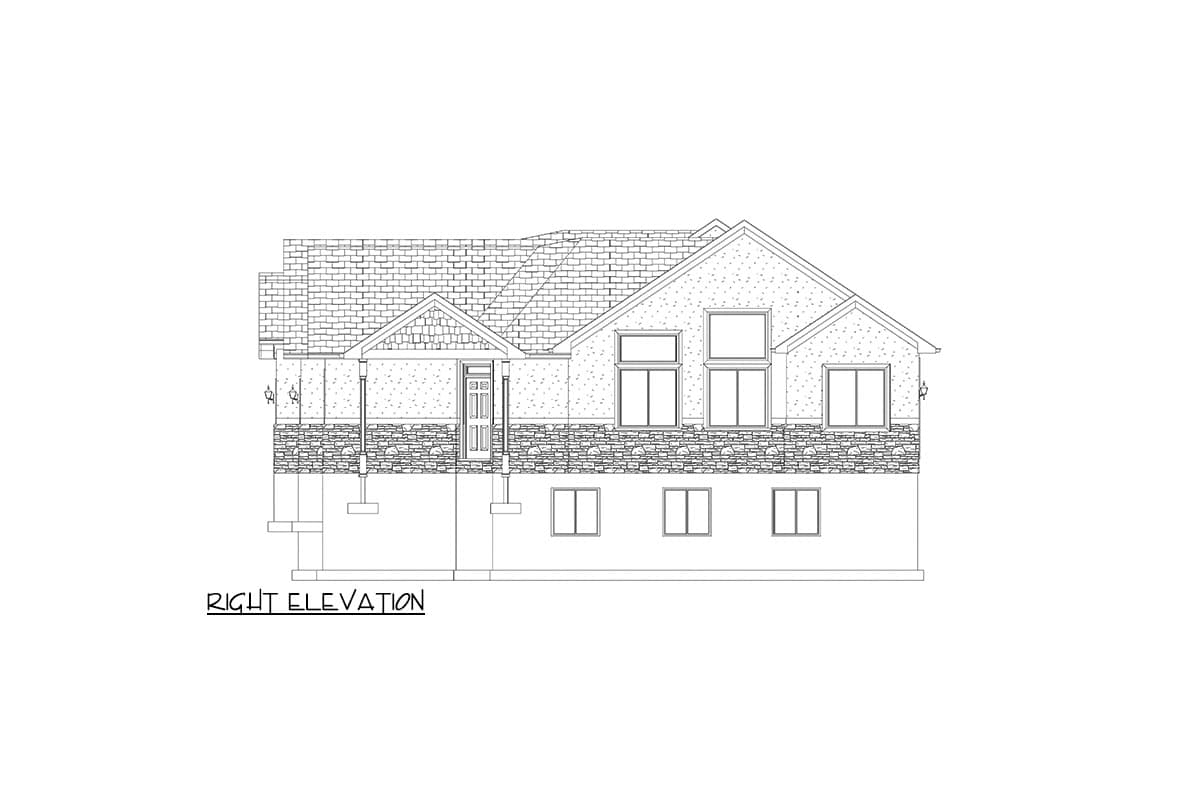

  • Elevations
  • Cross sections
  • Electrical plans
  • General details
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,574 sq. ft.

1st Floor

2,574 sq. ft.

Optional Lower Level

2,542 sq. ft.

Porch, Front

160 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 0"

Depth

51' 0"

Max Ridge Height

20' 7"

Garage

Type

Attached

Area

910 sq. ft.

Count

2, 3, or 4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Southern

Southern Traditional

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

2,574 sq. ft.

1st Floor

2,574 sq. ft.

Optional Lower Level

2,542 sq. ft.

Porch, Front

160 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Stem Wall

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

70' 0"

Depth

51' 0"

Max Ridge Height

20' 7"

Garage

Type

Attached

Area

910 sq. ft.

Count

2, 3, or 4 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8'

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Southern

Southern Traditional

Traditional

Special Features

Bedrooms - Split

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
