Plan 68483VR

Duplex House Plan with Side-To-Side Living Room

Heated S.F.
4,080
Units
2
Width
Depth

Floor Plan

Plan 68483VR

Main Level
Main Level
2nd Floor
2nd Floor

Plan 68483VR

M-F 9am-5pm EST |

1-203-761-8500

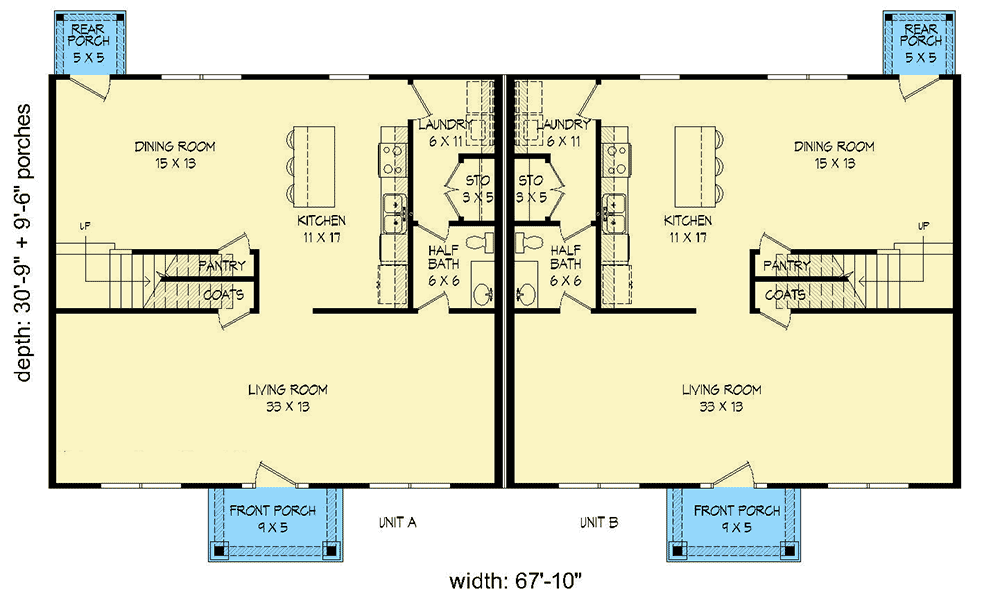

Main Level

Plan 68483VR: Duplex House Plan with Side-To-Side Living Room - Floor Plan - Main Level

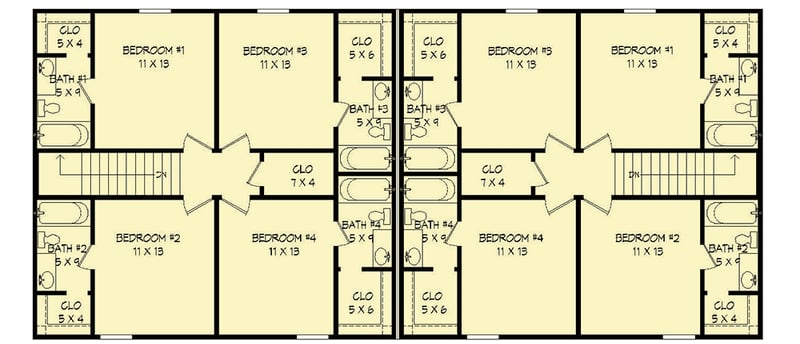

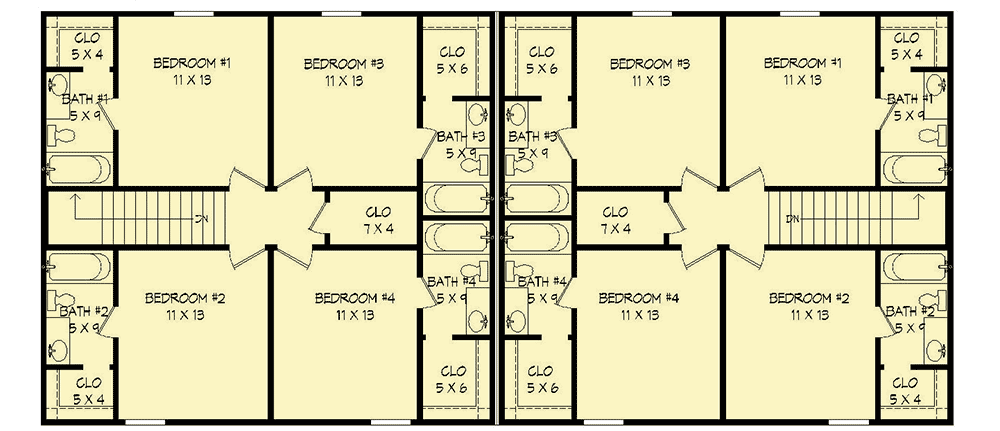

2nd Floor

Plan 68483VR: Duplex House Plan with Side-To-Side Living Room - Floor Plan - 2nd Floor

Plan Details

  • This duplex house plan gives you two identical side-by-side 4-bed, 2-story living units.
  • Enter off the covered entry porch and step into the 33'-wide living room.
  • The kitchen is open to the living room and there is a half bath and laundry on the main floor as well.
  • All four bedrooms are upstairs and each has its own bath.
Unit A
Heated Area
2,040Sq. Ft.
1038 Sq. Ft. 1st
1002 Sq. Ft. 2nd
Beds
4Beds
Baths
4Full Baths
1Half Bath
Dimensions
33' 11"width
30' 9"depth
25' 4"height
Unfinished Areas
68 Sq. Ft. Porch, Combined
Unit B
Heated Area
2,040Sq. Ft.
1038 Sq. Ft. 1st
1002 Sq. Ft. 2nd
Beds
4Beds
Baths
4Full Baths
1Half Bath
Dimensions
33' 11"width
30' 9"depth
25' 4"height
Unfinished Areas
68 Sq. Ft. Porch, Combined

What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

4,080 sq. ft.

1st Floor

2,076 sq. ft.

2nd Floor

2,004 sq. ft.

Porch, Combined

136 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 10"

Depth

30' 9"

Max Ridge Height

25' 4"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Special Features

Laundry - Upstairs

Square Footage Breakdown

Total Heated Area

4,080 sq. ft.

1st Floor

2,076 sq. ft.

2nd Floor

2,004 sq. ft.

Porch, Combined

136 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

8

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

67' 10"

Depth

30' 9"

Max Ridge Height

25' 4"

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Special Features

Laundry - Upstairs
