Plan 60510ND

Duplex with Privacy

Heated S.F.
3,750
Units
2
Width
Depth

Floor Plan

Plan 60510ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 60510ND

M-F 9am-5pm EST |

1-203-761-8500

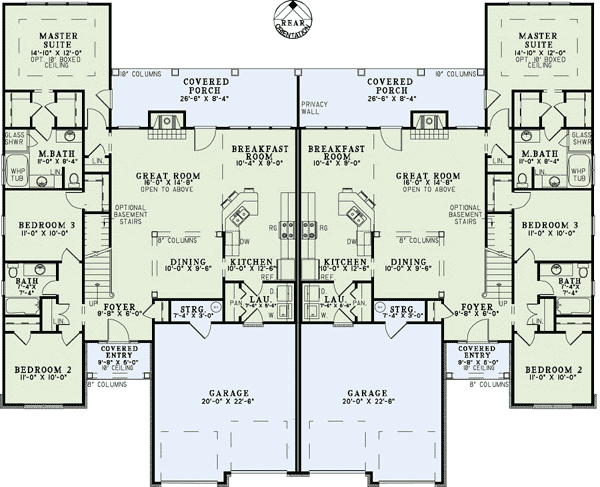

Main Level

Plan 60510ND: Duplex with Privacy - Floor Plan - Main Level

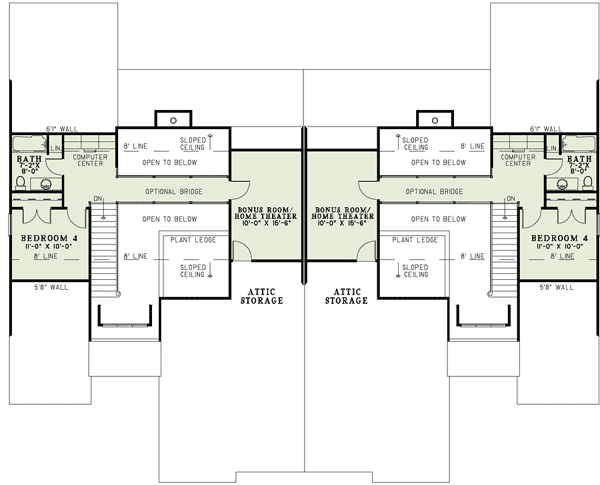

2nd Floor

Plan 60510ND: Duplex with Privacy - Floor Plan - 2nd Floor

Plan Details

  • This duplex house plan was designed with privacy in mind. The bedrooms are on either end of the combined structure ensuring peace and quiet for all.
  • Rear porches are divided by a privacy wall.
  • Expand above if you want.
Unit A
Heated Area
1,875Sq. Ft.
1588 Sq. Ft. 1st
287 Sq. Ft. 2nd
Beds
4Beds
Baths
3Full Baths
Cars
Attached
480 Sq. Ft.
Dimensions
42' 1"width
68' 6"depth
26'height
Unfinished Areas
480 Sq. Ft. Garage
233 Sq. Ft. Bonus
Unit B
Heated Area
1,875Sq. Ft.
1588 Sq. Ft. 1st
287 Sq. Ft. 2nd
Beds
4Beds
Baths
3Full Baths
Cars
Attached
480 Sq. Ft.
Dimensions
42' 1"width
68' 6"depth
26'height
Unfinished Areas
480 Sq. Ft. Garage
233 Sq. Ft. Bonus

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

3,750 sq. ft.

1st Floor

3,176 sq. ft.

2nd Floor

574 sq. ft.

Bonus

466 sq. ft.

Porch, Front

98 sq. ft.

Porch, Combined

302 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

6

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

84' 2"

Depth

68' 6"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

960 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Optionally Finished Bonus Room

Square Footage Breakdown

Total Heated Area

3,750 sq. ft.

1st Floor

3,176 sq. ft.

2nd Floor

574 sq. ft.

Bonus

466 sq. ft.

Porch, Front

98 sq. ft.

Porch, Combined

302 sq. ft.

Beds/Baths

Bedrooms

8

Full bathrooms

6

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

84' 2"

Depth

68' 6"

Max Ridge Height

26' 0"

Garage

Type

Attached

Area

960 sq. ft.

Count

4 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Optionally Finished Bonus Room
